- High microstep resolution
- Fast-running motor (output voltage 48 V, even at lower operating voltage)
- Closed-loop operation of 2-phase stepper motors
- Support for external sensors
- ID chip detection for fast startup

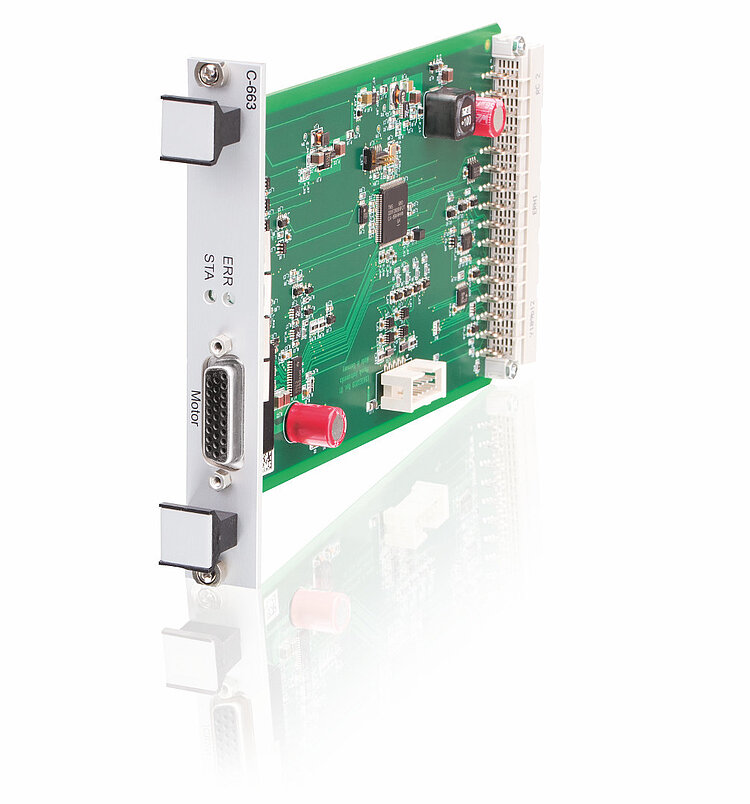

Mercury Step controller module for 2-phase stepper motors
1 axis. Microstep resolution: 1/2048 full step. Closed-loop operation. Point-to-point motion, trapezoidal velocity profile. Fast-running motor, even at lower operating voltage.
Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip for fast startup. Parameter changing during operation. Extensive software support, e.g., for LabVIEW, dynamic libraries for Windows and Linux.
Differential signal transmission for digital (A/B) encoder signals. TTL inputs for limit and reference point switches. Input for RS-422 signals for index switch. I/O lines (analog/digital) for automation.
Plug-and-play installation in the C-885 PIMotionMaster
Can be inserted in any free slot. Automatic detection and external communication (USB, Ethernet) by the processor and interface module of the C-885. Can be expanded with optional digital inputs and outputs. Power via the power supply of the C-885.
User Manual C663T0004
C-663.12C885 Motion Controller Module for Stepper Motors, for C-885 PIMotionMaster
User Manual MS241
C-663.12 Mercury Step Stepper Motor Controller
User Manual C663T0005
Parameter Handling when Upgrading to C-663.12 Controllers
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
