The adapter is compatible with selected linear or rotation stages as well as goniometers.
Vacuum-compatible product variants to 10-9 hPa available.
Types of mounting

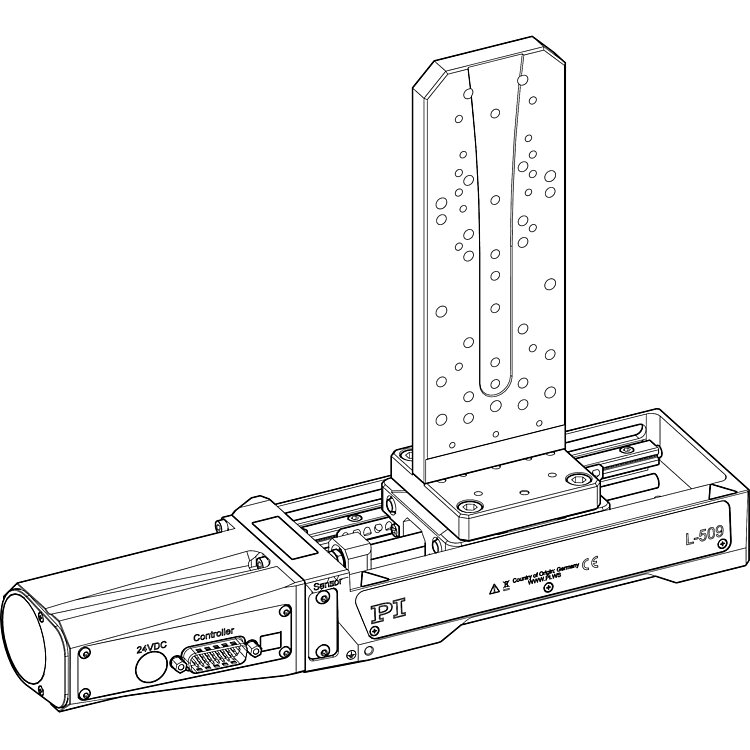

- Adapter bracket on positioner: The adapter bracket can be mounted on the moveable translation stage of the positioner and is then moved with the positioner accordingly.

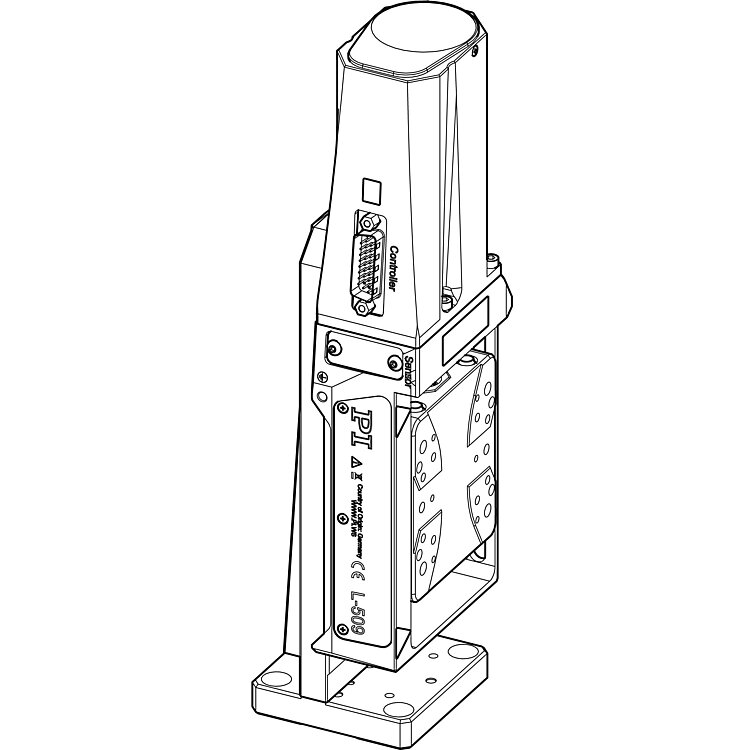

- Positioner on adapter bracket: The positioner can be mounted on the adapter bracket, the stage moves relatively to it.

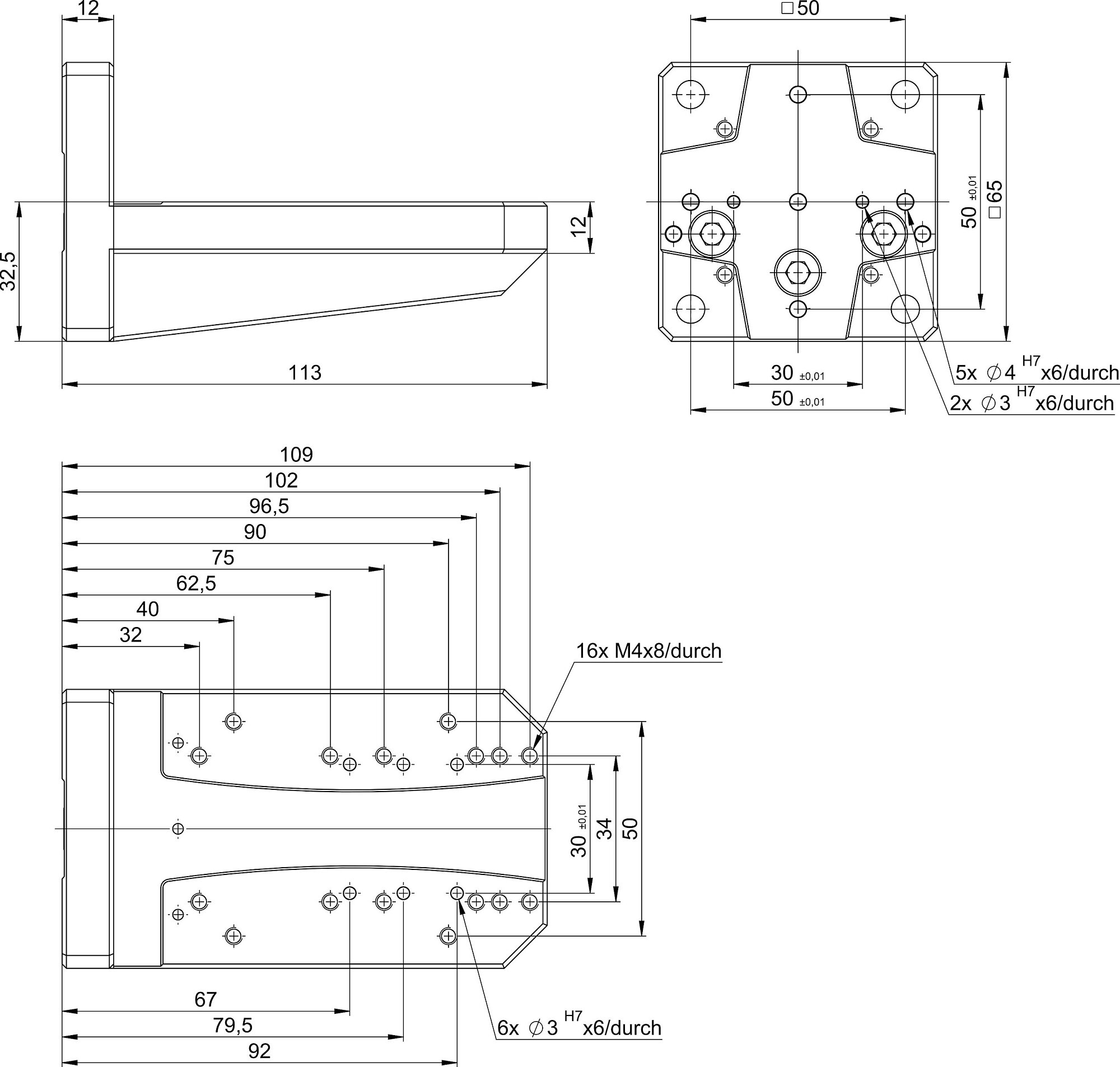

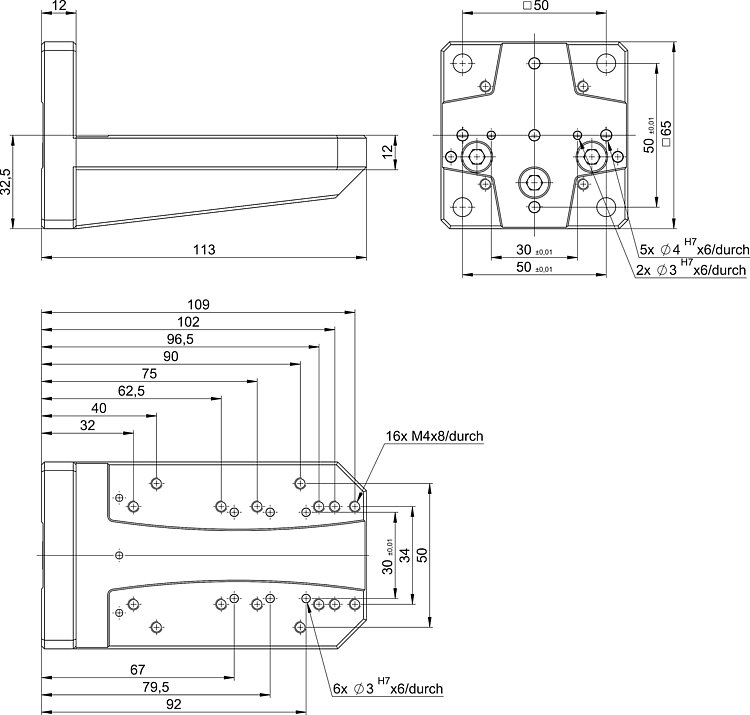

3-D model 61009075
3-D model 6100V075

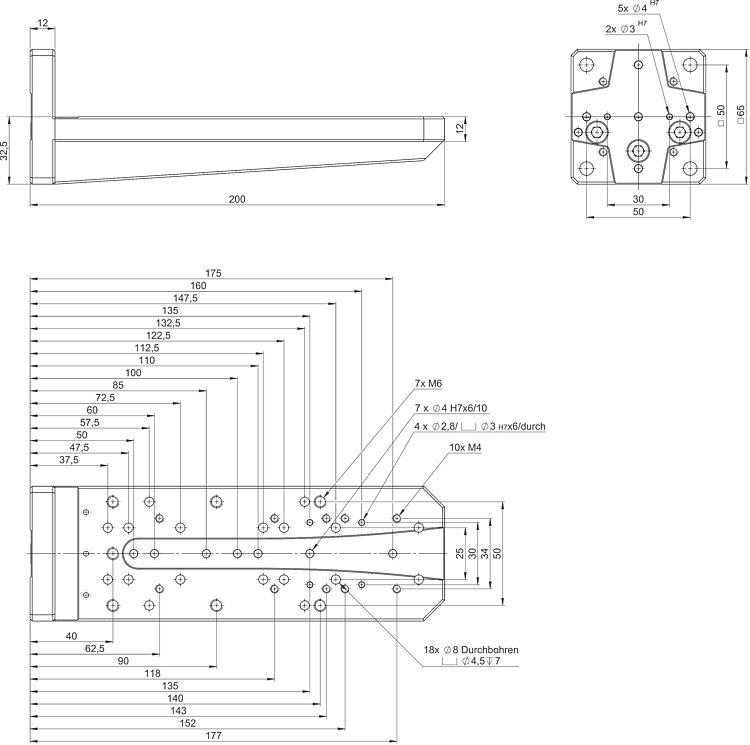

3-D model 61009076
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
