V-551 Precision Linear Stage

High Velocity and Precision due to Magnetic Direct Drive

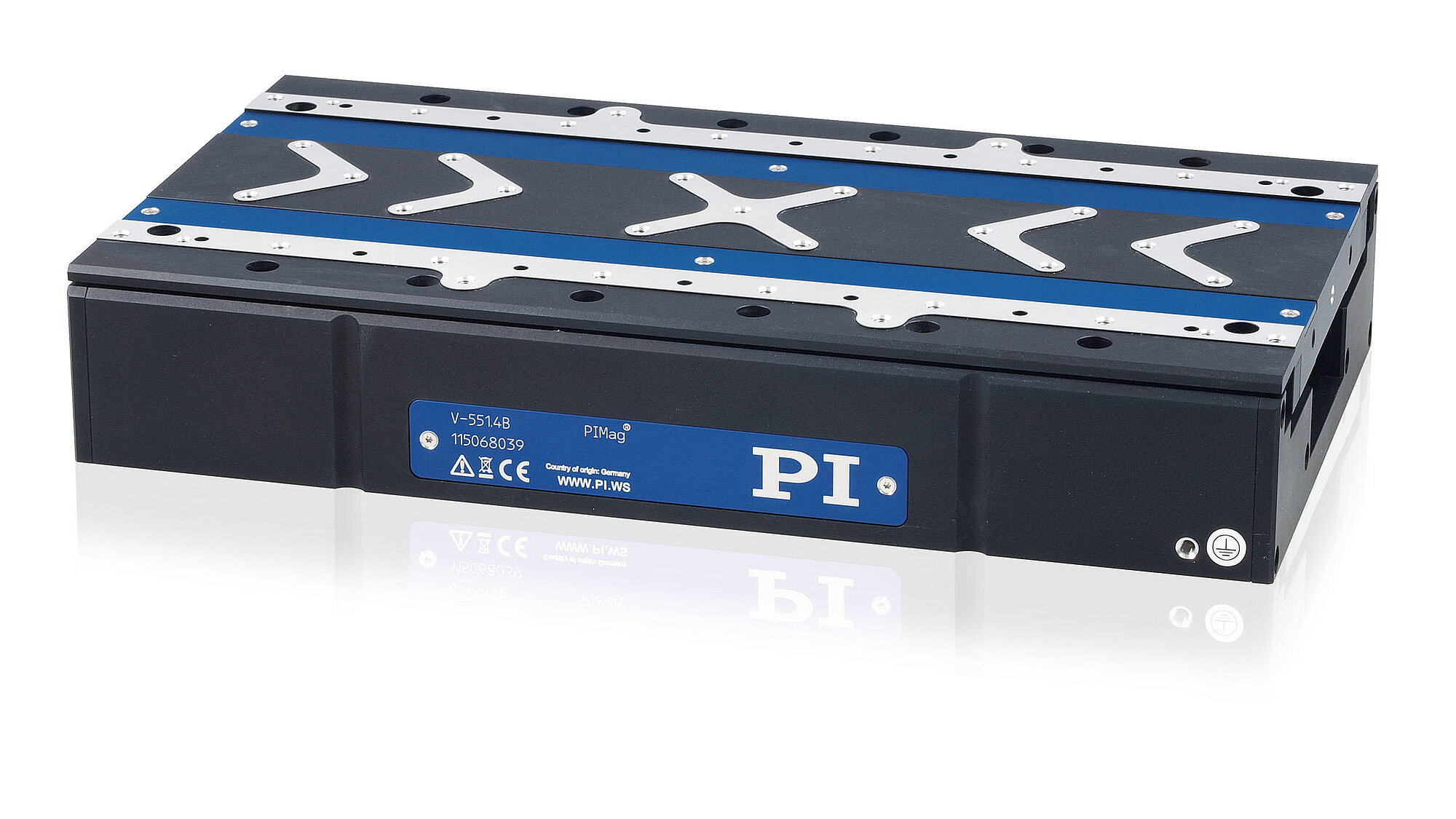

V-551 Precision Linear Stage

Product Description Specifications Downloads Quote / Order

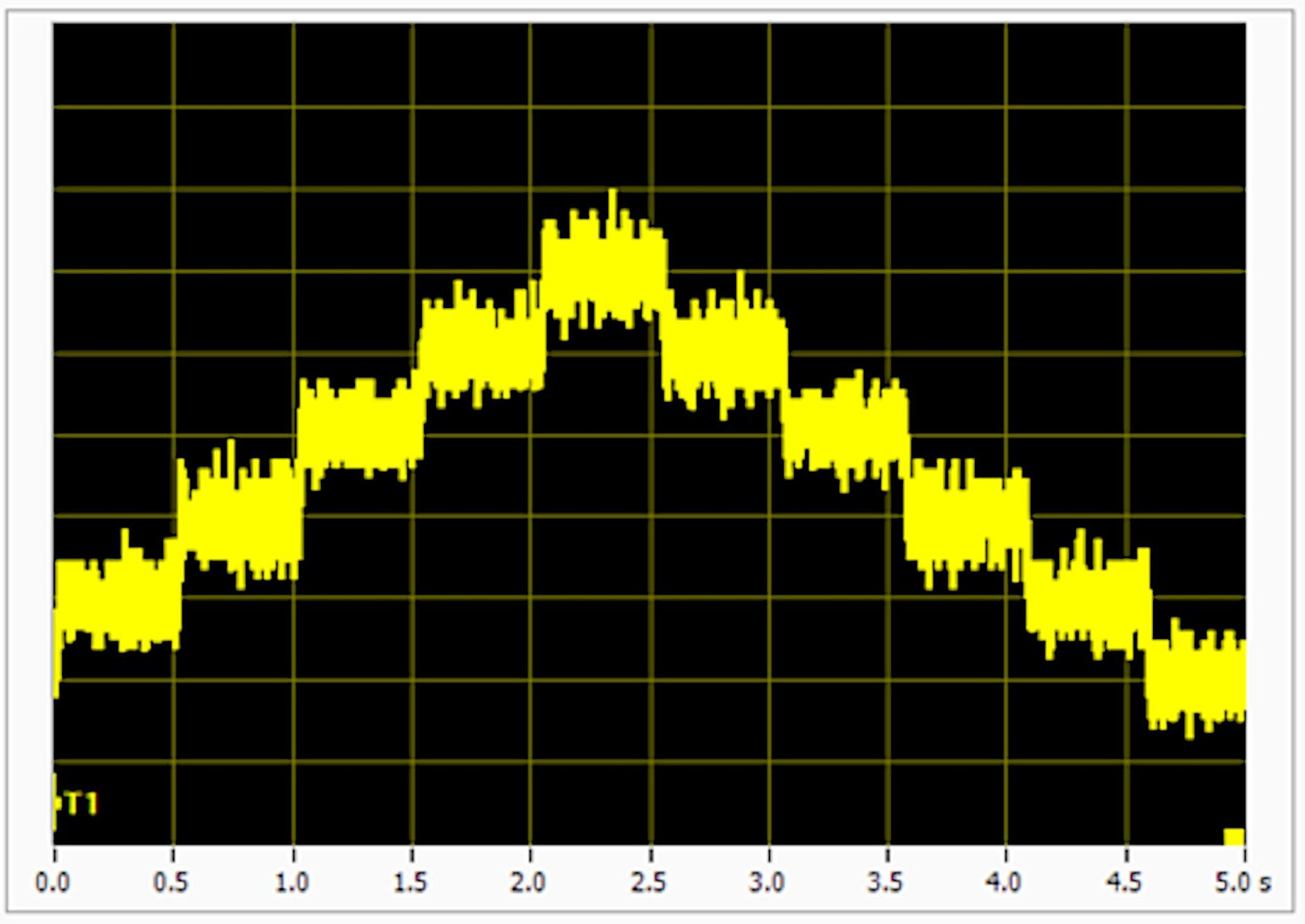

A V-551.4D with PIOne linear encoder performs a sequence of 0.5-nm steps.

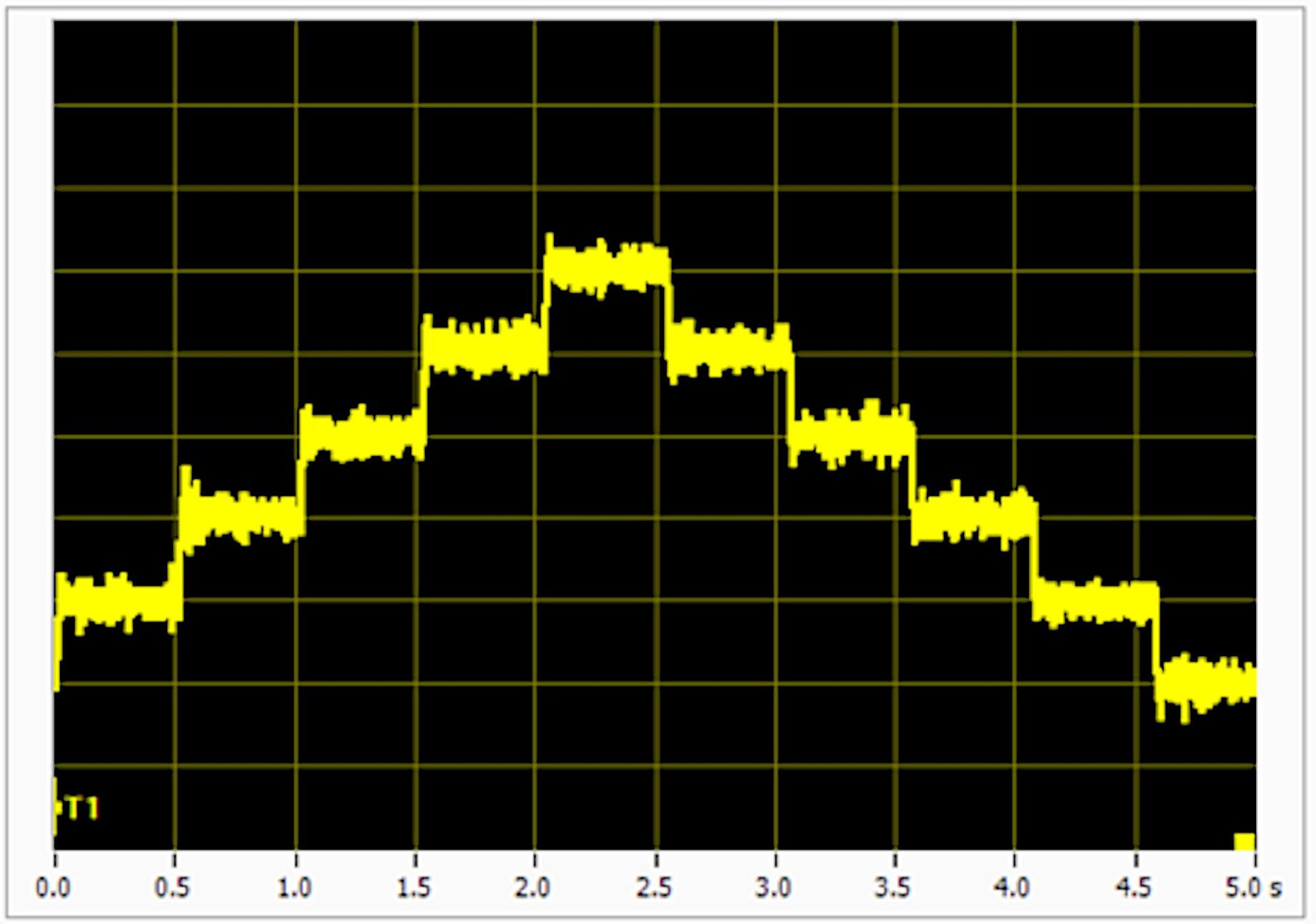

A V-551.4D with PIOne linear encoder performs a sequence of 1-nm steps.

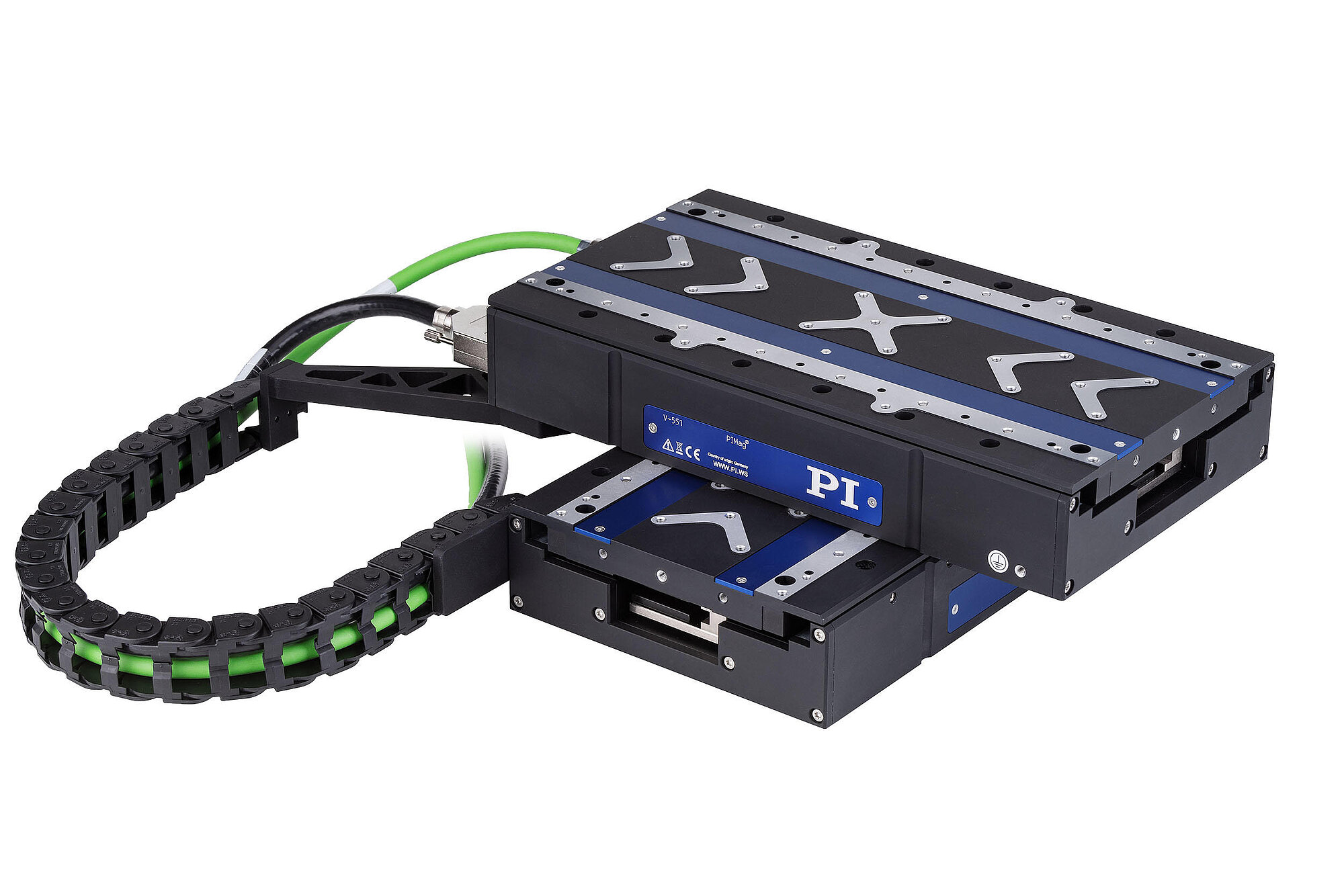

An XY setup of modified V-551.4D linear stages and an optional drag chain.

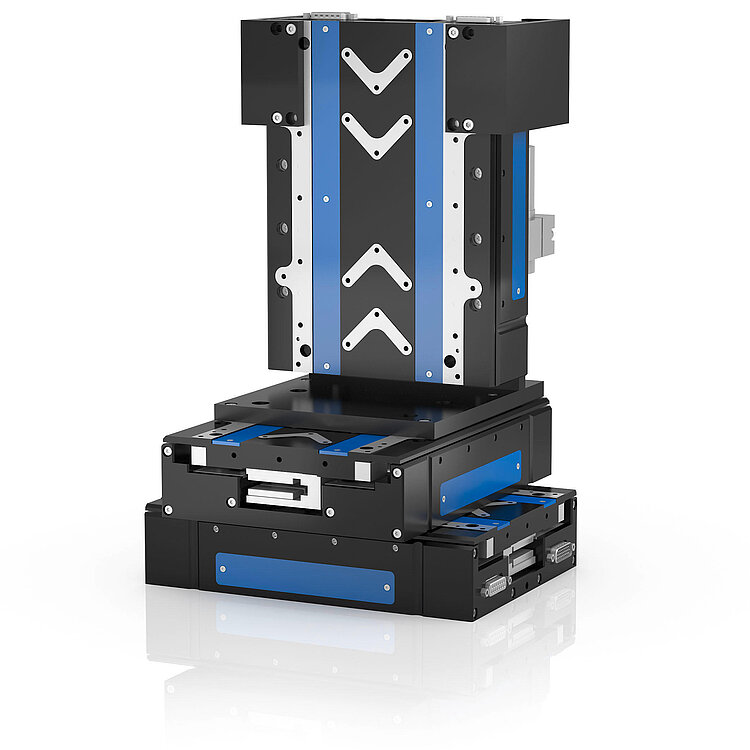

An XYZ assembly consisting of three V-551 linear stages each with 60 mm travel range. The Z axis was modified and has magnetic compensation of the weight force.

Travel ranges to 230 mm
Velocity up to 0.5 m/s
Absolute encoder with 1 nm resolution
Highest precision with PIOne linear encoder: Minimum incremental motion 0.5 nm
High guiding accuracy
Compact design with 160 mm width

Thanks to the smooth-running precision linear guides with crossed roller bearings, the linear positioner is particularly suitable for scanning applications with constant velocity. The anti-creep system reliably prevents cage creep. The guides have high load capacity and high precision under all operating conditions.

Linear motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.

Position measuring is performed with the highest accuracy directly at the motion platform so that nonlinearity, mechanical play or elastic deformation have no influence on position measuring.

The high-resolution PIOne encoder was developed by PI and, with corresponding processing of the measured values, allows a position resolution of much less than one nanometer. The optical and noncontact PIOne encoders are based on an interferometric measuring principle. Due to the short signal period and the high quality of the signals, the linearity error of PIOne encoders is less than 1 %. PIOne encoders support direction sensing when evaluating a reference signal.

Absolute encoders supply explicit position information that enables immediate determination of the position. This means that referencing is not required during switch-on, which increases efficiency and safety during operation.

Industry and research. Automation. Metrology. Photonics and precision scanning in semiconductor or flat panel display manufacturing

Download datasheet Go to specifications

Datasheet

Datasheet V-551

Version / Date

2020-05-25

Version / Date

2020-05-25

Version / Date

2019-02-08

Version / Date

2019-07-17

Document language

pdf - 1 MB

pdf - 1 MB

pdf - 1 MB

pdf - 1 MB

Motion and positioning	V-551.2x	V-551.4x	V-551.7x	Unit	Tolerance
Active axes	X	X	X
Travel range	60	130	230	mm
Pitch	±50	±100	±100	µrad	Typ.
Yaw	±50	±50	±50	µrad	Typ.
Straightness	±1	±1	±2	µm	Typ.
Flatness	±2	±2	±2	µm	Typ.
Velocity	0.5 ⁽¹⁾	0.5 ⁽¹⁾	0.5 ⁽¹⁾	m/s	Max.

Mechanical properties	V-551.2x	V-551.4x	V-551.7x	Unit	Tolerance
Load capacity in Z	150	150	150	N	Max.
Load capacity in Y	50	50	50	N	Max.
Moved mass	2.2	2.7	4.9	kg
Overall mass	4.2	5.5	9.7	kg
Linear guide	Crossed roller bearing with anti-creep system	Crossed roller bearing with anti-creep system	Crossed roller bearing with anti-creep system

Drive properties	V-551	Unit	Tolerance
Drive type	Linear motor, ironless, 3-phase
Intermediate circuit voltage	48 ⁽²⁾	V DC	Max.
Peak force	180	N	Typ.
Nominal force	27	N	Typ.
Peak current, RMS	10	A	Typ.
Nominal current, RMS	1.5	A	Typ.
Force constant, RMS	18	N/A	Typ.
Resistance per phase	3.15	Ω	Typ.
Inductance per phase	0.9	mH	Typ.
Back EMF phase-phase	16	Vs/m	Max.
Pole pitch N-N	30	mm

Encoder options	V-551.xB	V-551.xD
Integrated sensor	Absolute encoder	PIOne incremental linear encoder
Sensor signal	BiSS-C	Sin/cos, 1 V peak-peak, 2 µm signal period
Sensor resolution	1 nm	0.2 nm ⁽³⁾
Min. incremental motion	2 nm	0.5 nm ⁽⁴⁾
Unidirectional repeatability	0.02 µm	0.02 µm
Bidirectional repeatability	±0.05 µm	±0.05 µm
Travel range limit	Limits are set via software; additional mechanical stop buffers.	Hall effect limit switches, N/O contact, 5 V, TTL
Reference switch	–	Optical, direction sensing (reference edge track), 5 V, TTL
Reference switch repeatability	–	<1 µm

Miscellaneous	V-551
Operating temperature range	10 °C to 50 °C
Humidity	20 – 90% rel., not condensing
Material	Aluminum, black anodized
Motor connector	HD D-sub 26 (m)
Sensor connector	D-sub 15 (f)

⁽¹⁾ Max. 0.2 m/s for V-551.xD when combined with the C-891

⁽²⁾ 24 VDC with C-891 and 24V power adapter

⁽³⁾ interpolated

⁽⁴⁾ with ACS NanoPWM

Connecting cables are not in the scope of delivery and must be ordered separately.

Download datasheet Go to download

Separate connection cable required for motor and sensor connection respectively.

Datasheet

Datasheet V-551

Version / Date

2020-05-25

Version / Date

2020-05-25

Version / Date

2019-02-08

Version / Date

2019-07-17

Document language

pdf - 1 MB

pdf - 1 MB

pdf - 1 MB

pdf - 1 MB

Documentation

User Manual MP160

V-551.xD Precision Translation Stage

Version / Date

1.1.3 2020-06-12

Version / Date

1.1.3 2020-06-12

Document language

Request download link

Documentation

Short Instructions MP163EK

Positioners with Magnetic Linear Motor: V-308 / V-408 / V-508 / V-52x / V-551 / V-610 / V-73x / V-741

Version / Date

4.0.0 12/2020

Version / Date

4.0.0 12/2020

Document language

Download

pdf - 829 KB

Download

pdf - 858 KB

Documentation

User Manual MP147

V-551.xB Precision Translation Stage

Version / Date

1.0.4 2020-06-12

Version / Date

1.0.4 2020-06-12

Document language

Request download link

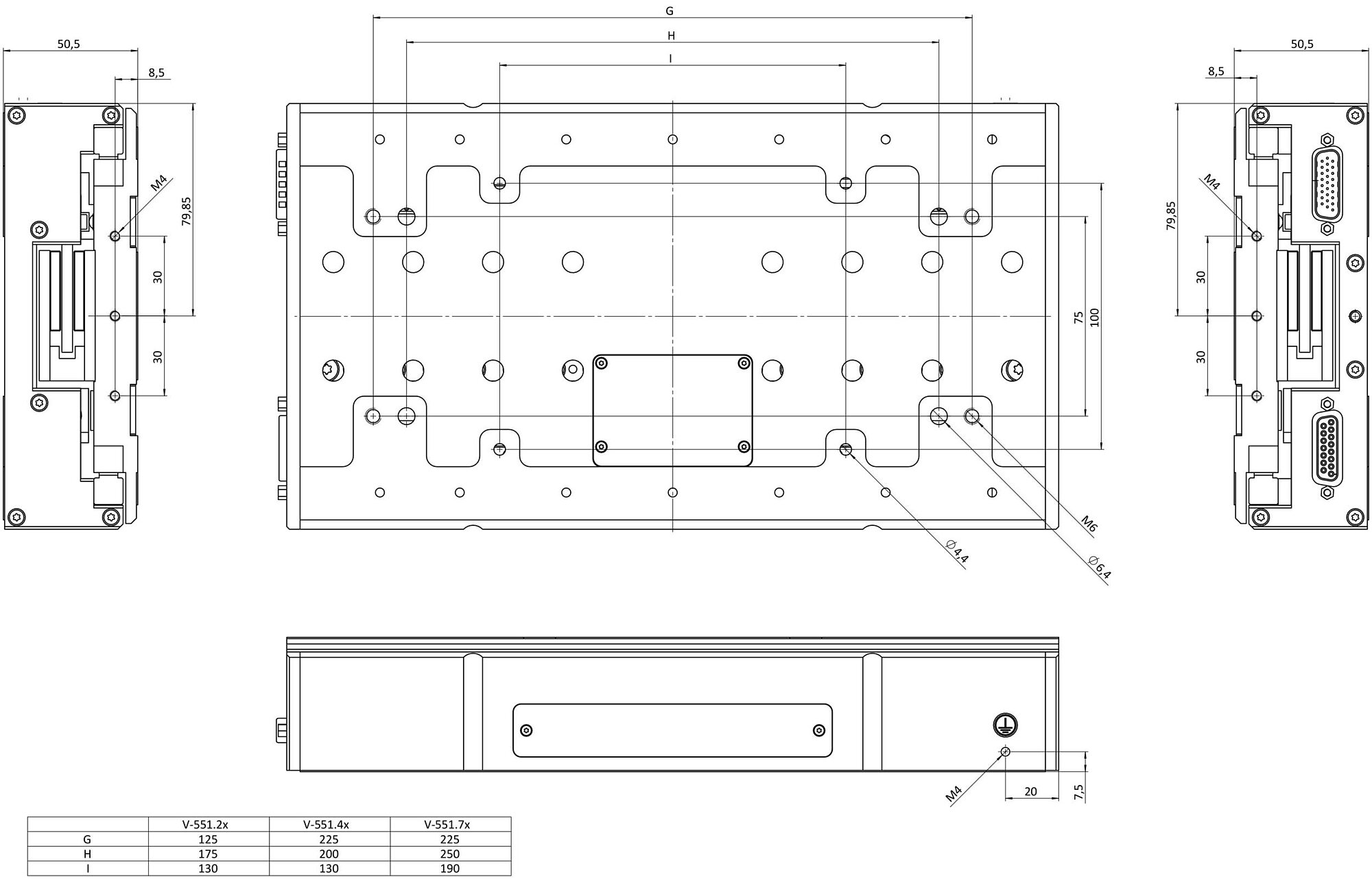

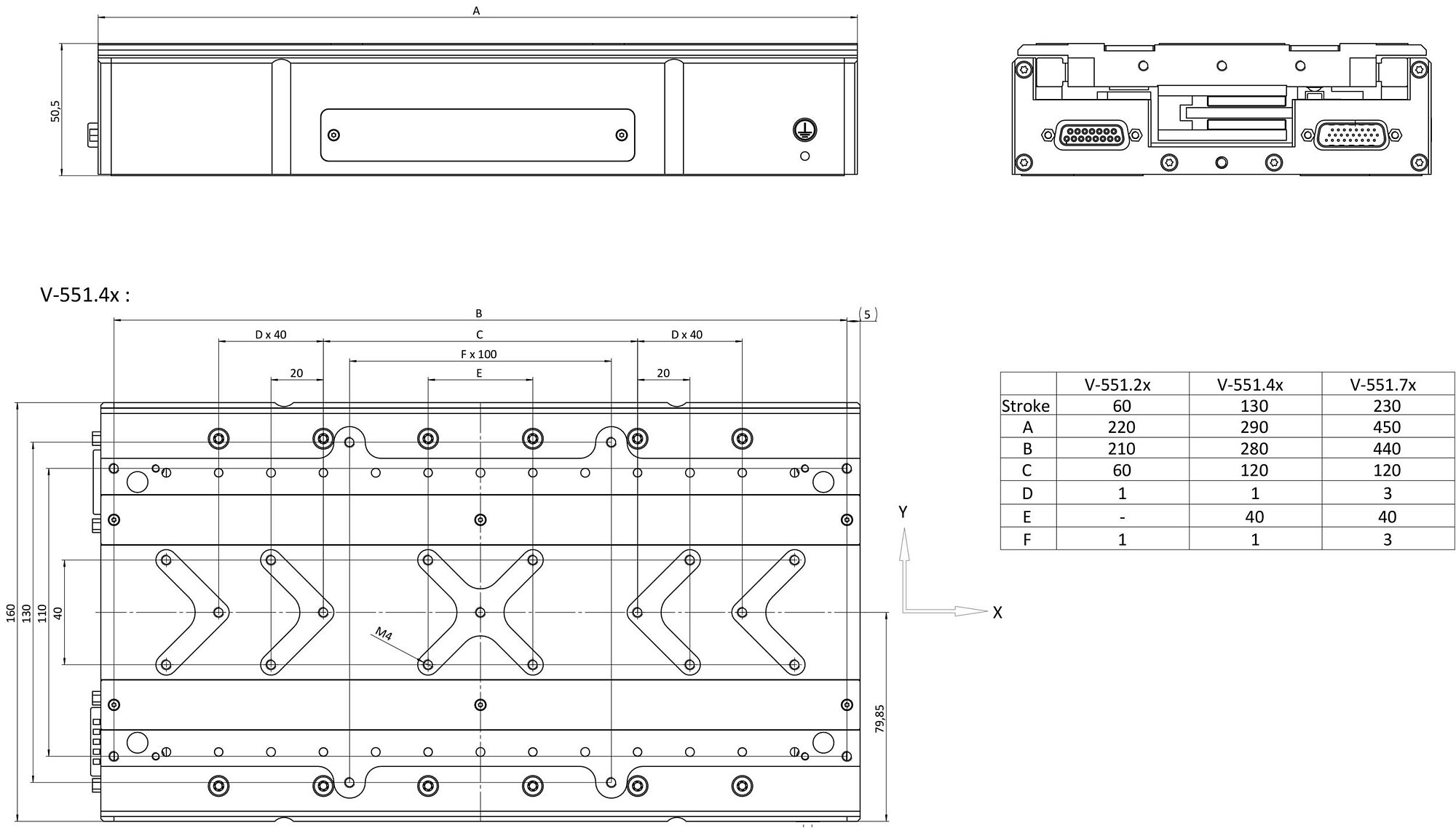

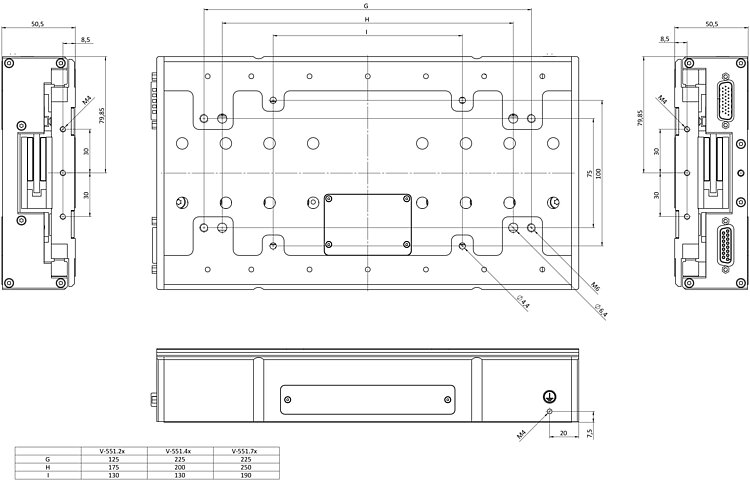

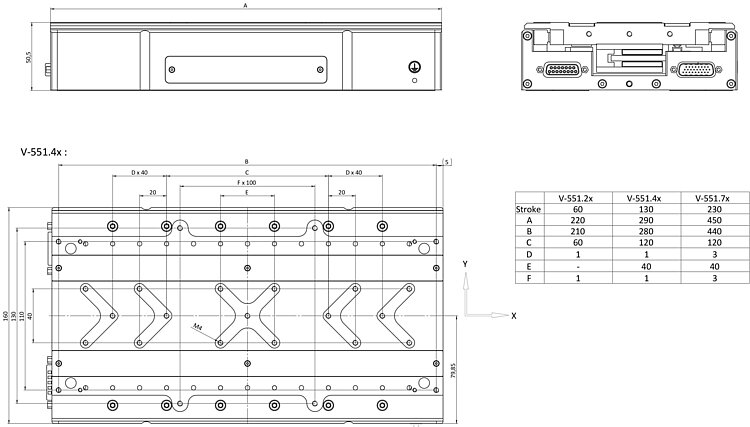

3-D Models

V-551 3-D model

Request download link

Go to quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

V-551.2B

Precision linear stage , 160 mm width, 60 mm travel range, 150 N load capacity, absolute encoder, 1 nm sensor resolution, ironless 3-phase linear motor

Buy online

Remove from quote list

V-551.2D

Precision linear stage , 160 mm width, 60 mm travel range, 150 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, ironless 3-phase linear motor

Remove from quote list

V-551.4B

Precision linear stage , 160 mm width, 130 mm travel range, 150 N load capacity, absolute encoder, 1 nm sensor resolution, ironless 3-phase linear motor

Buy online

Remove from quote list

V-551.4D

Precision linear stage , 160 mm width, 130 mm travel range, 150 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, ironless 3-phase linear motor

Remove from quote list

V-551.7B

Precision linear stage , 160 mm width, 230 mm travel range, 150 N load capacity, absolute encoder, 1 nm sensor resolution, ironless 3-phase linear motor

Buy online

Remove from quote list

V-551.7D

Precision linear stage , 160 mm width, 230 mm travel range, 150 N load capacity, PIOne linear encoder with sin/cos signal transmission, 2 µm sensor signal period, ironless 3-phase linear motor

Remove from quote list

Ask for custom design Go to quote list
