Stages with Magnetic Direct-Drive Linear Motor

The friction-free magnetic direct drive principle allows for most dynamic stages. Compared with motor-spindle-based stages, they use fewer mechanical components which results in less friction and backlash and thus more precision.

PI’s PIglide stages combine the magnetic direct drive with highly precise preloaded air bearings for even better performance.

Buy PI Products Online

Buy PI Products Online

Order PI’s stages, controllers, and matching accessories for your project in our online shop.

With Mechanical Bearing

NEW

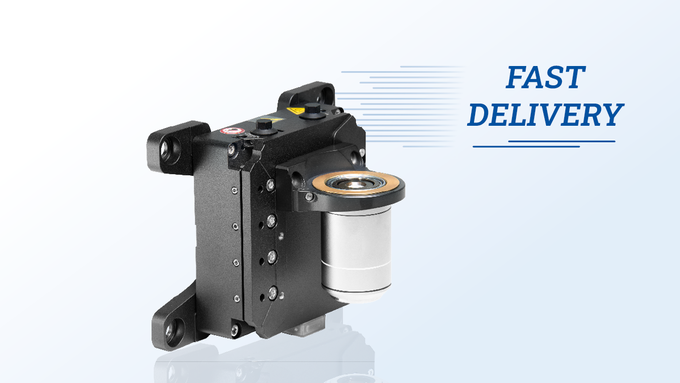

V-308 Voice Coil PIFOC Focus Drive for Objectives

High-dynamics positioner for microscope objectives
NEW

V-857 High-Speed Linear Stage

High Load Capacity • Cost Effective • Linear Motor
NEW

V-855 High-Speed Linear Stage

High Load Capacity • Cost Effective • Linear Motor
NEW

V-817 High-Load Linear Stage

High Performance • Linear Motor • Cost Effective • Fast Delivery

V-417 High-Load Linear Stage

High Performance, Linear Motor

V-412 High-Load Linear Stage

High Performance, Linear Motor

V-408 PIMag® Linear Stage

Inexpensive, with Linear Motor

V-508 PIMag® Precision Linear Stage

Versatile options for adapting to requirements

V-522 • V-524 • V-528 High-Dynamics PIMag® Linear Stage

Voice Coil Direct Drive with Direct Position Measuring

V-551 Precision Linear Stage

High Velocity and Precision due to Magnetic Direct Drive
PI LMS-270

LMS-270 Precision Linear Stage

High Dynamics due to the Magnetic Direct Drive, High Stability
PI LMS-180

LMS-180 Precision Linear Stage

High Dynamics due to Magnetic Direct Drive, Excellent Travel Accuracy

PIMag®

PI has many standard and customer-specific positioning solutions on offer that are equipped with magnetic direct drives; the company has also many years of experience in the design, construction, and manufacture of the necessary system components such as guides, sensors, control technology, and software. PI can also develop proprietary magnetic motors if positioning systems need to achieve specific performance characteristics that cannot be reached by using drive components currently available on the market, for example, to achieve a high force density or a compact design. These >> proprietary motors, developed in-house, are identified by the PIMag® brand name.


With Air Bearing

NEW

A-142 PIglide Voice Coil Linear Stage with Air Bearings

High Performance • Cleanroom-Compatible • Option for Vertical Mounting

A-131 PIglide VC Voice Coil Linear Stage with Air Bearings

High-Performance Miniature Nanopositioning System

A-110 PIglide LC Linear Stage with Air Bearings

Inexpensive High Performance Nanopositioning Stage

A-141 PIglide MB Miniature Linear Stage with Air Bearings

High Performance, Cleanroom Compatible, Customizable

A-123 PIglide AT3 Linear Stage with Air Bearings

High Performance Nanopositioning Stage

A-121 PIglide AT1 Linear Stage with Air Bearings

High Performance Small Footprint Nanopositioning Stage
