- XY system made of two V-417 positioners, travel ranges from 204 to 407 mm
- XYZ system with L-412 positioner as Z axis, 102 mm travel range
- Suitable G-901 ACS controller with ACS driver module

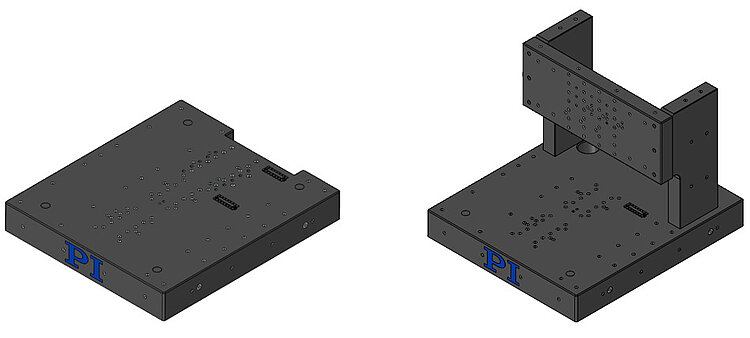

- Optional with granite base plate
- Delivery includes extensive test reports
- Extensive accessories, software support available
Integrated multi-axis system - IMAS

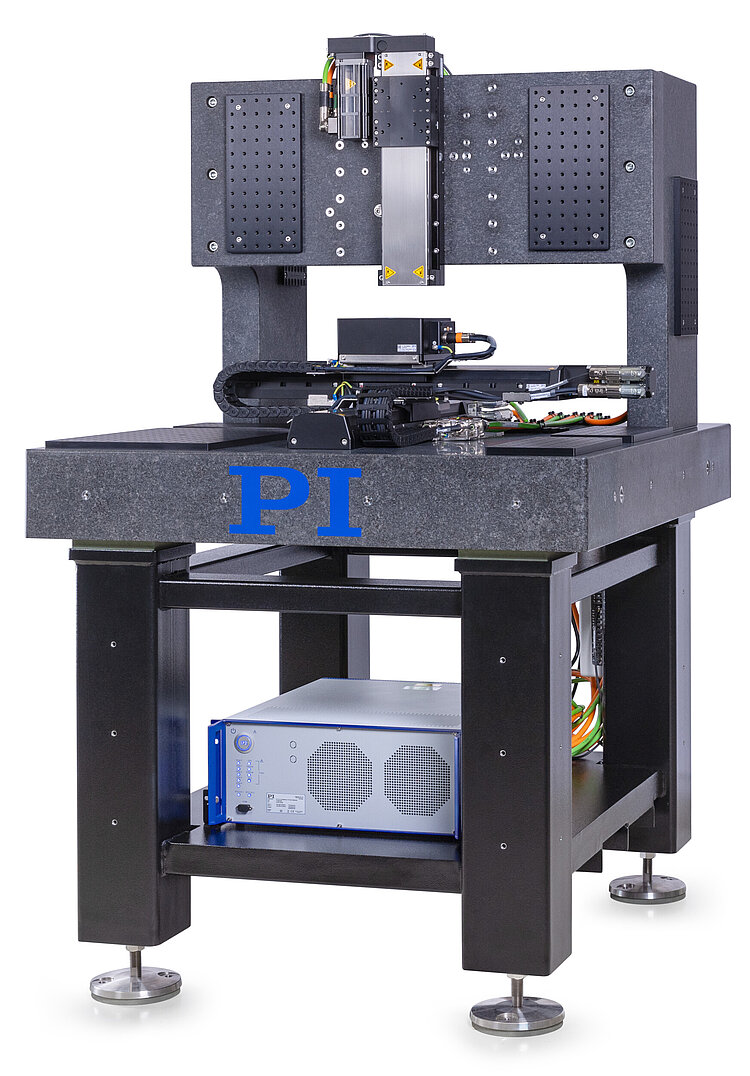

The X-417 multi-axis system is an integrated solution for industrial applications with high demands on dynamics and precision. XY or XYZ systems with suitable ACS high-performance controller from PI are available. The base system is an XY system made of two V-417 high-load linear stages with linear motor and absolute-measuring linear encoder. Combinations of several travel range variants are available: From 204 to 407 mm. The XY systems are also available with a granite plate. With the XYZ systems, an L-412 high-load linear stage with 102 mm travel range, synchronous servo motor, and holding brake is used as Z axis. The XYZ systems are also available with a granite plate as base; for these systems, the adapter bracket for fastening the Z axis to the granite base is included in the scope of the delivery.
A suitable cable set is included in the scope of delivery of all systems. The cable set includes a 5 m long drive cable per axis. If shorter cables are required, e.g. when mounting the controller in the base frame (accessory), a shorter cable set of 2 m length is available as accessory.
Options and accessories

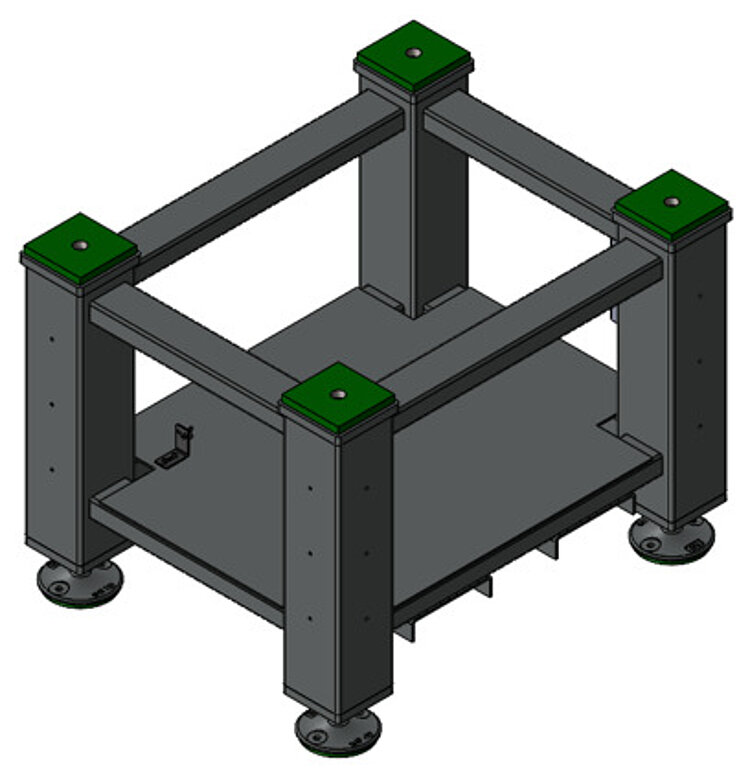

- Base frame

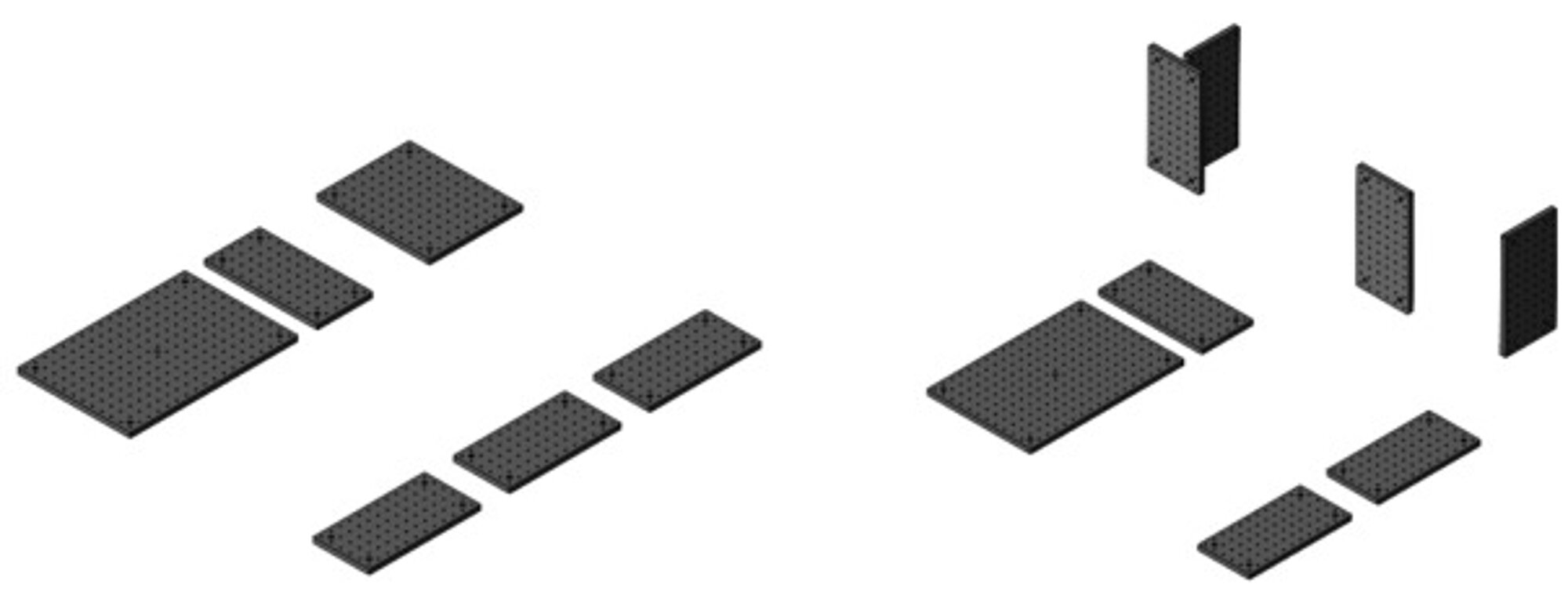

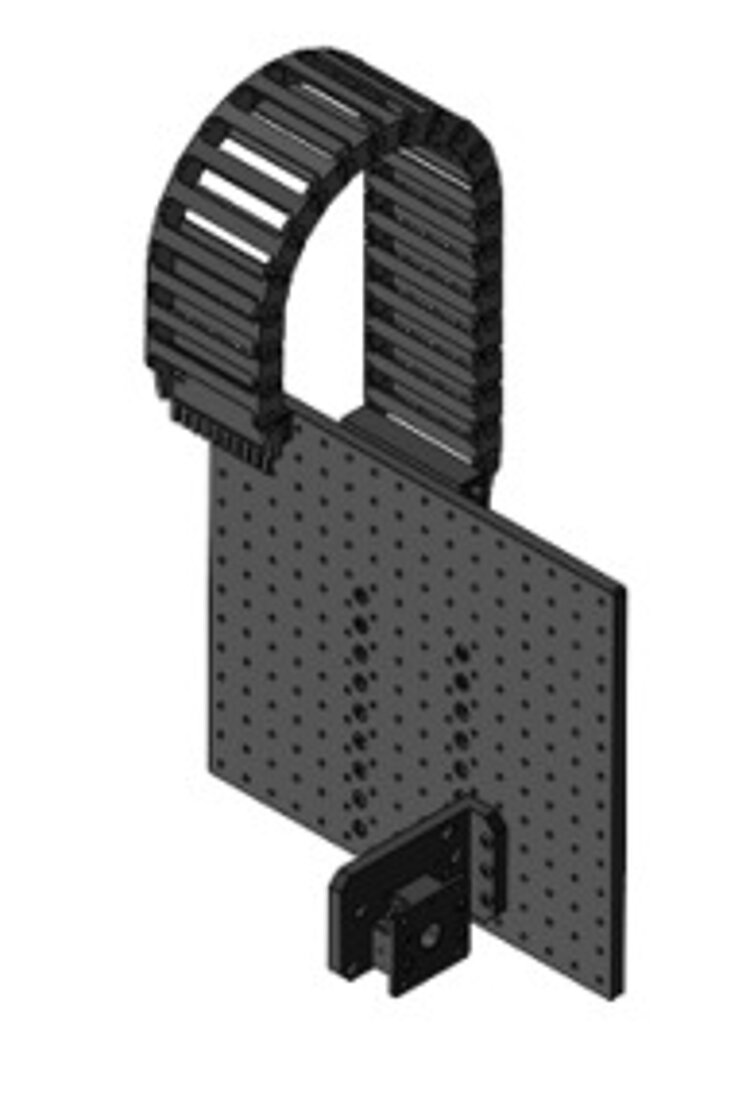

- Breadboard set for granite plate

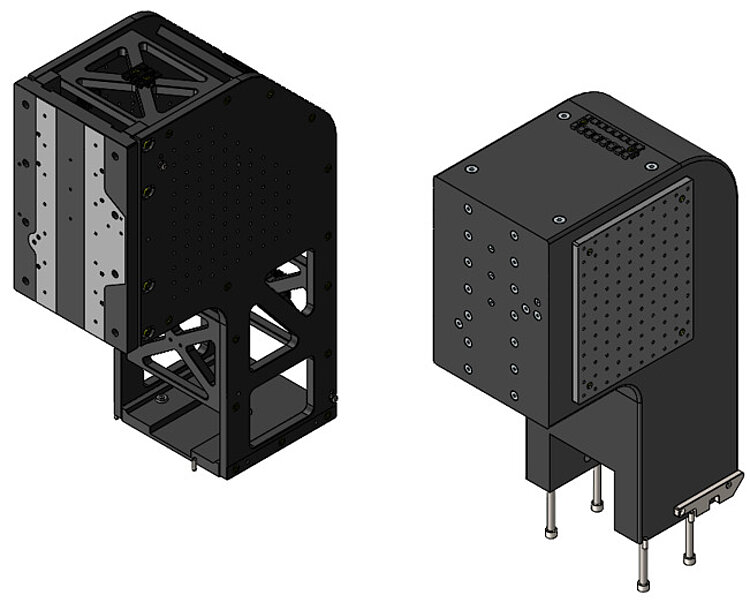

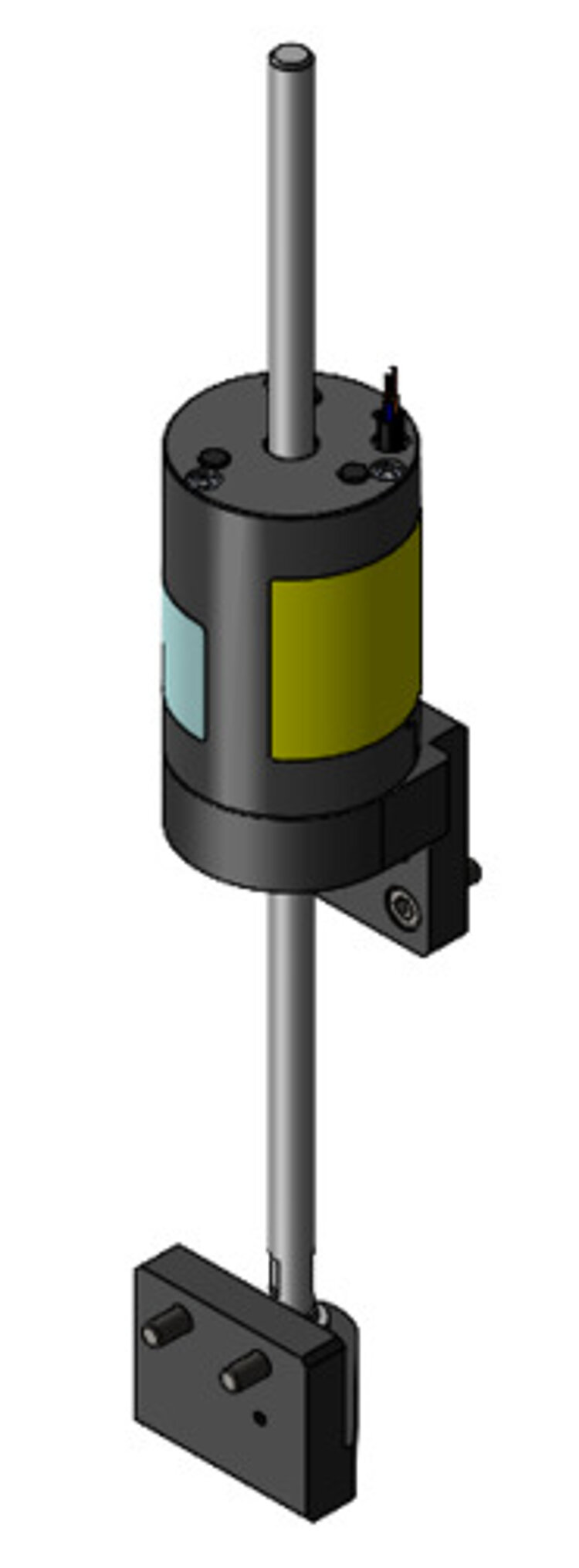

- Adapter bracket
- Additional cable set for XYZ system: Cable length for X / Y axes 2 m, for Z axis 3 m
- Software support, e.g. for SPS integration
Laser machining: Laser ablation. Laser welding. Ultrashort pulse laser machining. Galvo integration. Laser micromachining. Ceramics and diamond cutting. Laser drilling. Test & inspection. Electronics production.
User Manual X417UM0002
Base frame for X-417 series systems (iMAS) with granite base
User Manual X417UM0004
X-417.Z03 Z-bracket for X-417 series systems (iMAS) with granite base
User Manual X417UM0003
X-417.Z02 Breadboard set for X-417 series systems (iMAS) with granite base
User Manual X417UM0001
X-417 Series Integrated Multi Axis System (iMAS)
3-D models X-417.0xx
3-D models X-417.1xx
3-D models X-417.2xx

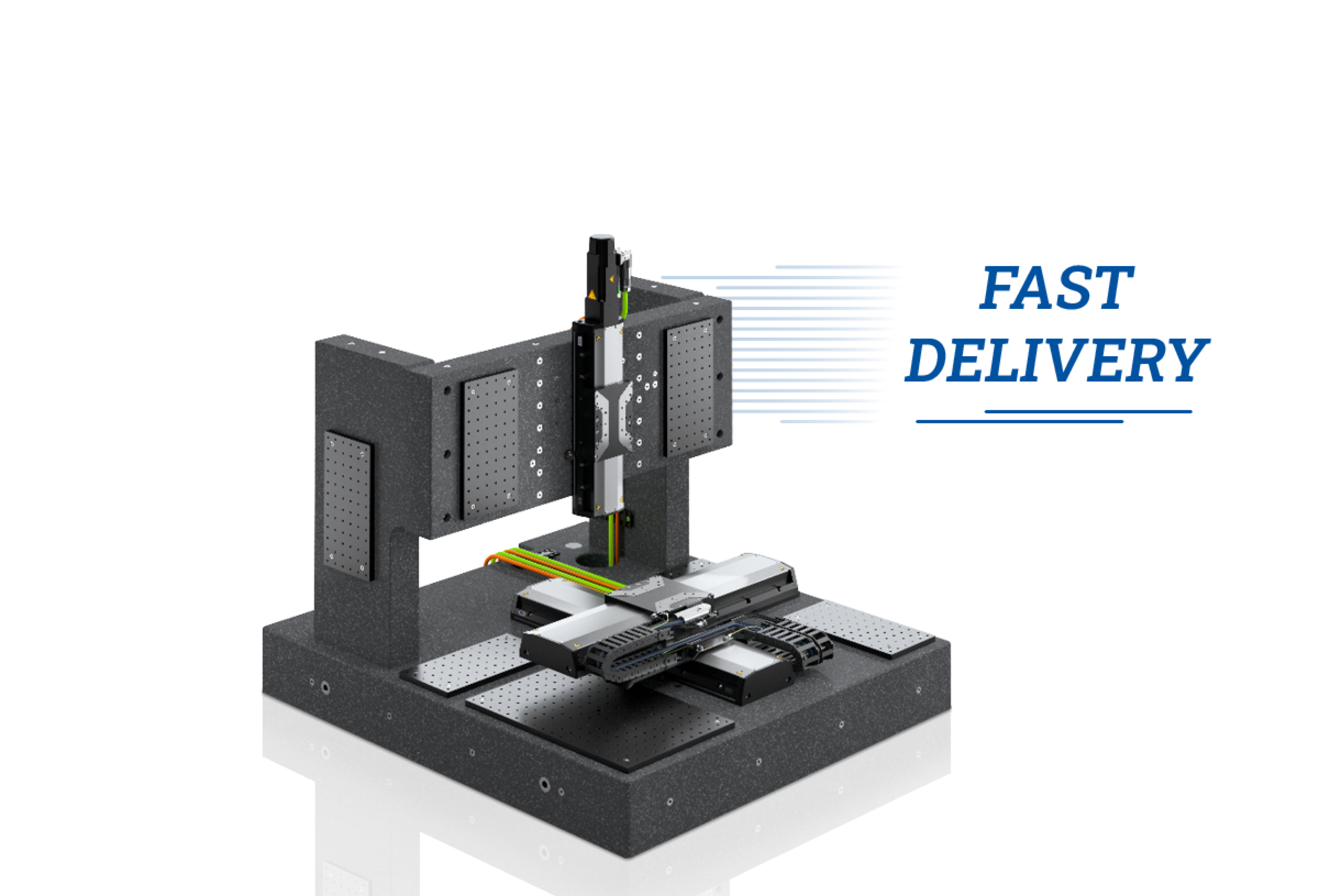

X-417 Scalable Integrated Multi-Axis System
Fast Configuration, Delivery, and Startup to Accelerate the Implementation of Precision Automation Processes
