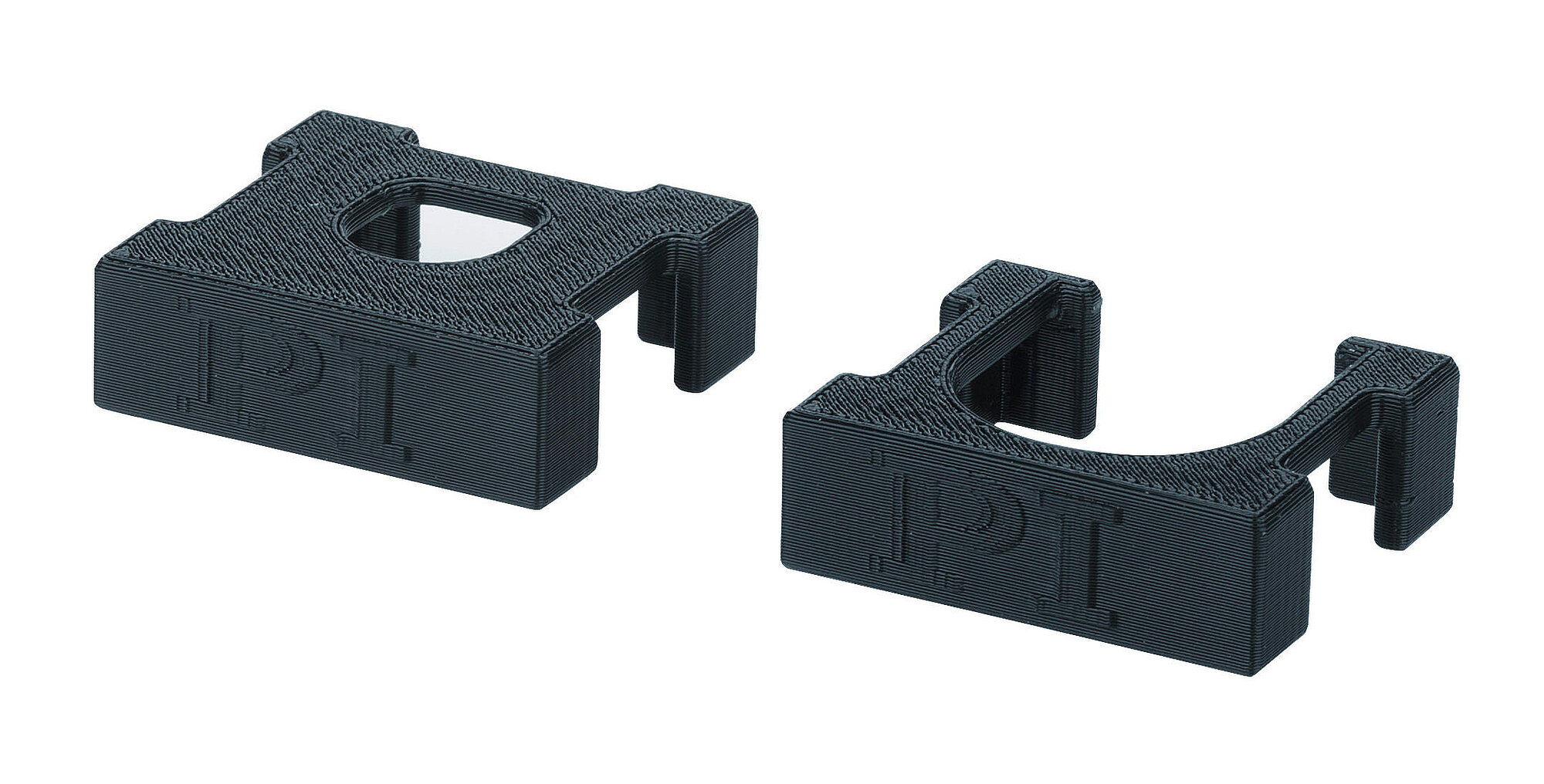

S-335.X Mirror Centering Aids for the S-335

S-335.X Mirror Centering Aids for the S-335

3-D Printed PI Equipment for Gluing Mirrors Yourself

  • Center 0.5" mirrors and 1.0" mirrors reliably
  • 3-D printed component, made of thermoplastic resin (ABS)
  • Inexpensive and also easy to use
to content quote / order

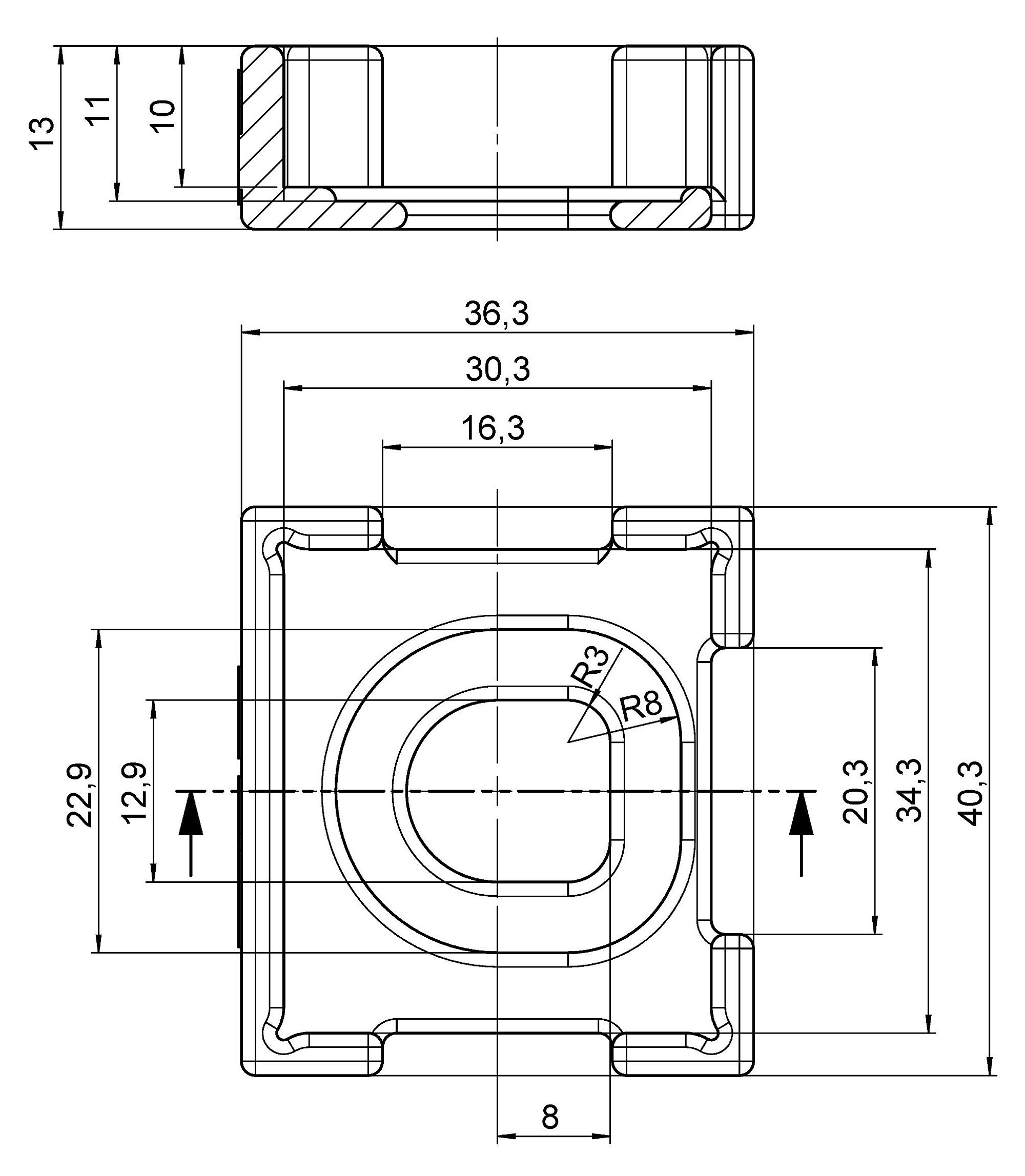

S-335.X1, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

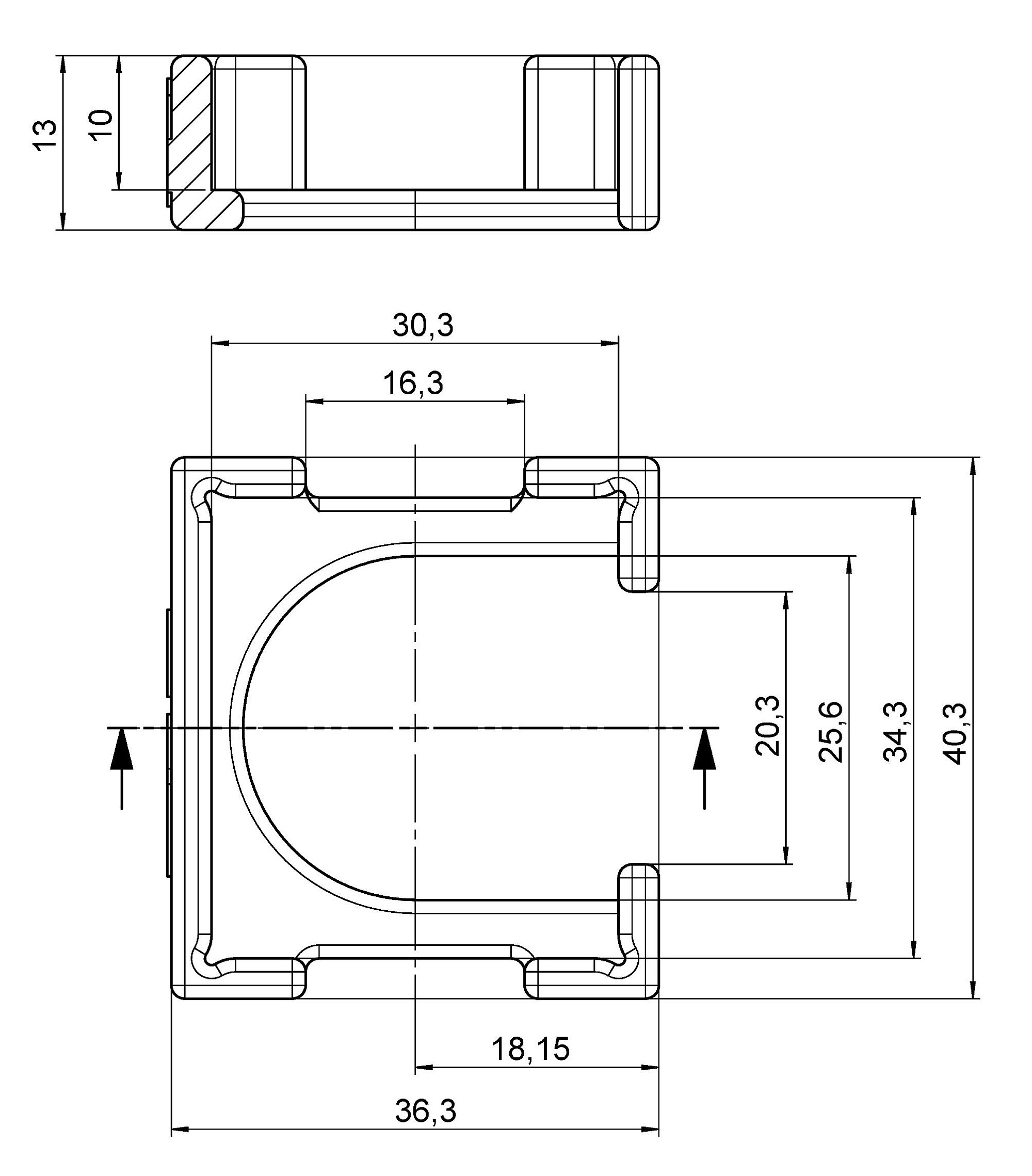

S-335.X2, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
S-335.X Mirror Centering Aids for the S-335
Product Description Specifications Downloads Quote / Order

Accessory for S-335 piezo tip/tilt platforms

Centering aids can be used for gluing a mirror onto models from the S-335 series supplied without mirrors. The centering aid holds the mirror at the desired position during gluing.

Download datasheet specifications quote / order

Downloads

Datasheet

Datasheet

Datasheet S-335.X

Version / Date
2025-10-30
pdf - 316 KB
Version / Date
2025-10-30
pdf - 313 KB
Version / Date
2025-10-30
pdf - 525 KB
Download
Download
Download

Documentation

Documentation

Technical Note S330T0024

S330T0024, valid for S-330.X1, S-330.X2, S-335.X1, S-335.X2

pdf - 332 KB
English
quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Ask for custom design quote list

How to Get a Quote

Click on QUOTE / ORDER
Add variant to quote list
Fill out quote form
Send price request to PI
We will contact you shortly

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

0039 02 665 011 01info@pionline.it
Contact us!

Compatible Products

S-335 Piezo Tip/Tilt Platform
