E-872.401 Q-Motion® Piezo Motor / PiezoMike Drive Electronics

Drives up to 4 Linear Actuators, Benchtop Device

E-872.401 Q-Motion® Piezo Motor / PiezoMike Drive Electronics
Product Description Specifications Downloads Quote / Order
  • For positioners with Q-Motion® piezo inertia drives and PiezoMike linear actuators
  • Inexpensive, scalable multi-channel concept
  • Integrated interfaces: TCP/IP, USB, USB for joystick, digital I/O
  • Extensive software support

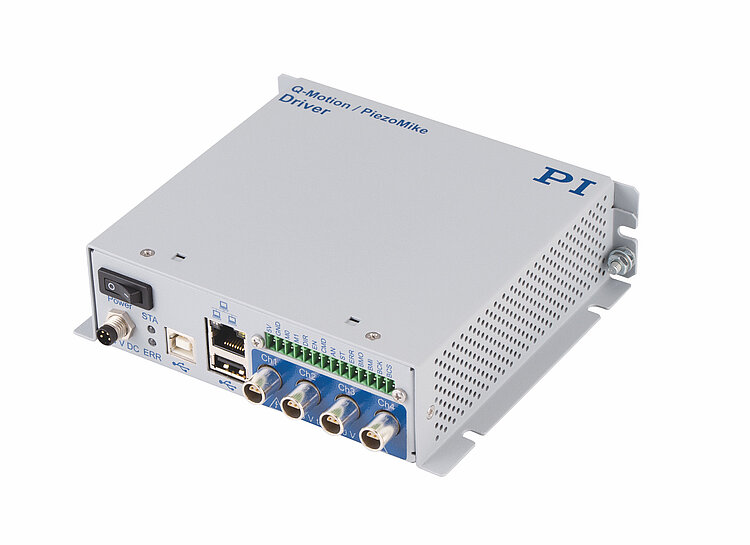

Drive electronics for 4 piezo mechanics

Drivers for inertia drives (Q-Motion® and PiezoMike) without position sensor (open-loop operation). Drives up to 4 linear actuators: The integrated amplifier drives one axis at a time; switching between the channels is done via commands. Special variant is possible on request for operating up to 64 channels via external module.

Features

Full-step and linear mode. Interfaces: TCP/IP, USB, USB for joystick, digital I/O.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. Extensive software support, e.g., for LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
