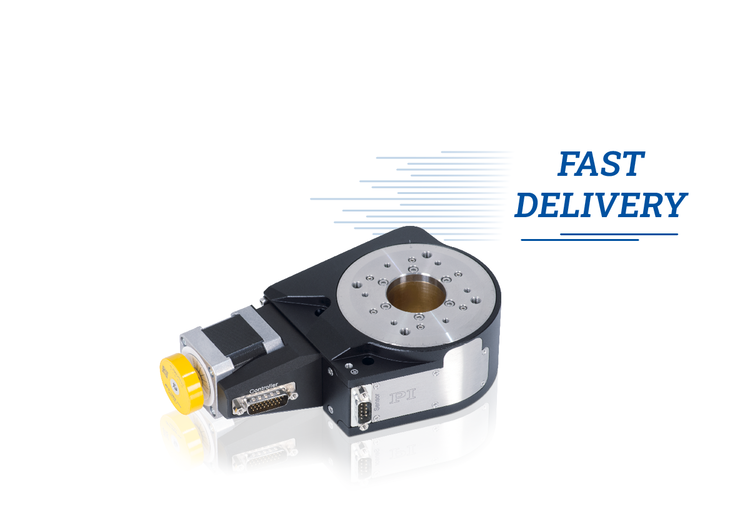

L-611 Precision Rotation Stage

High Travel Accuracy

L-611 Precision Rotation Stage
Product Description Specifications Downloads Quote / Order
  • Unlimited travel range
  • Very high resolution
  • Maximum velocity 200°/s
  • DC, BLDC, and stepper motors
  • Direction-sensing reference switch
  • Vacuum-compatible items available

Reference-class rotation stage

High-precision positioning due to low-play preloaded worm gear. Preloaded pivot bearings for high travel accuracy. Clear aperture with Ø 35 mm. Unlimited travel range in both directions of rotation. Noncontact reference switch. Compact multi-axis positioning systems possible with L-511 linear stages and L-310 Z stages. Vacuum-compatible product variants on request.

Versions

  • Low-vibration stepper motor
  • DC motor with ActiveDrive
  • DC servo motor
  • Brushless DC motor
  • Additional high-resolution optical angle measuring system, direct measuring

Option: Measurement of the travel accuracy and positioning accuracy

Individual measurement logs available on request for wobble, axial, and radial creep. Please specify when ordering.

Application fields

Medical industry. Sample inspection. Precision microassembly. Metrology. Photonics. Vacuum.

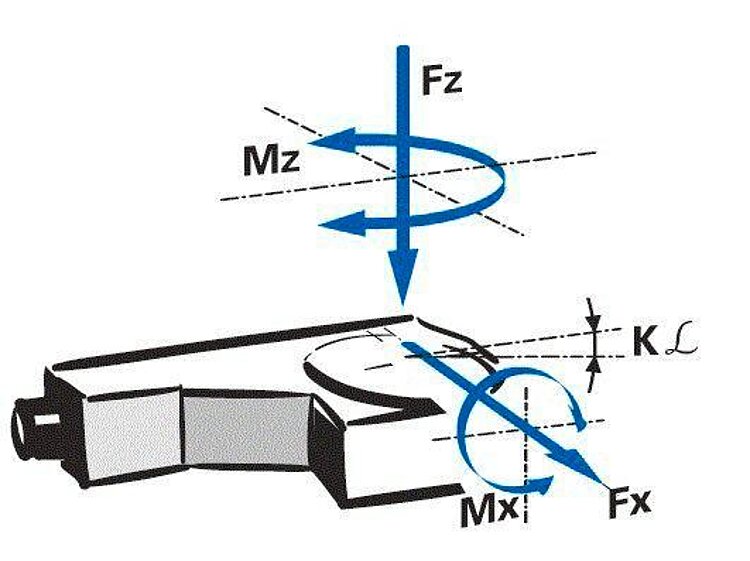

Specifications

Datasheet

Datasheet L-611

Version / Date
2019-11-11
Version / Date
2019-11-11
Version / Date
2019-07-31
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 1 MB

Downloads

Datasheet

Datasheet

Datasheet L-611

Version / Date
2019-11-11
Version / Date
2019-11-11
Version / Date
2019-07-31
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 1 MB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
Version / Date
1.5.0 October 2017
pdf - 395 KB
Documentation

User Manual MP154

L-611 Precision Rotation Stage
Version / Date
1.2.0 2018-07-03
Version / Date
1.2.0 2018-07-03
Document language

3-D Models

3-D Models

L-611 3-D model

Version / Date
2017-01-23

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

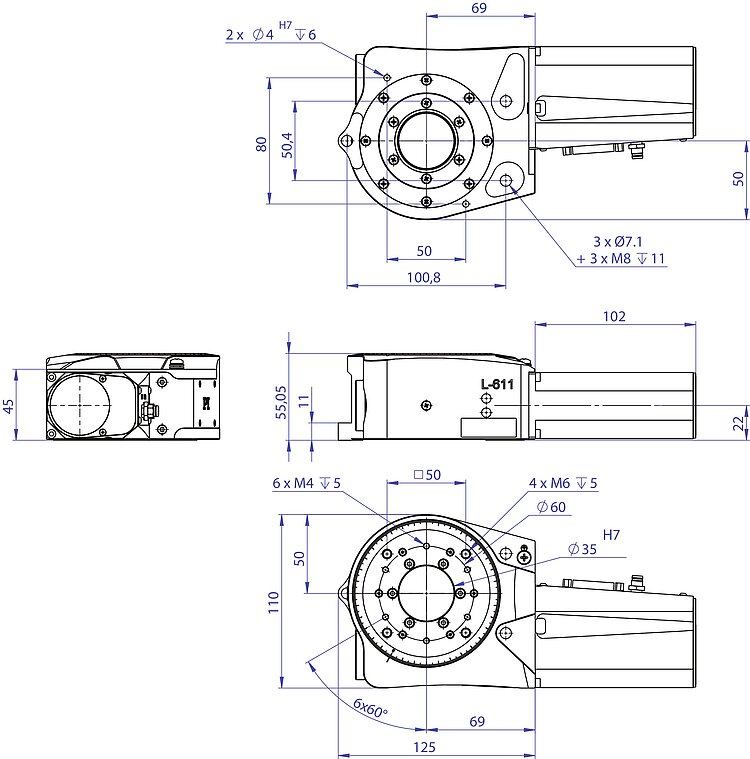

L-611.94AD
Precision rotation stage, ActiveDrive DC motor, 35 mm Ø clear aperture, incremental angle measuring system with A/B quadrature signal transmission, 0.035 µrad sensor resolution , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)

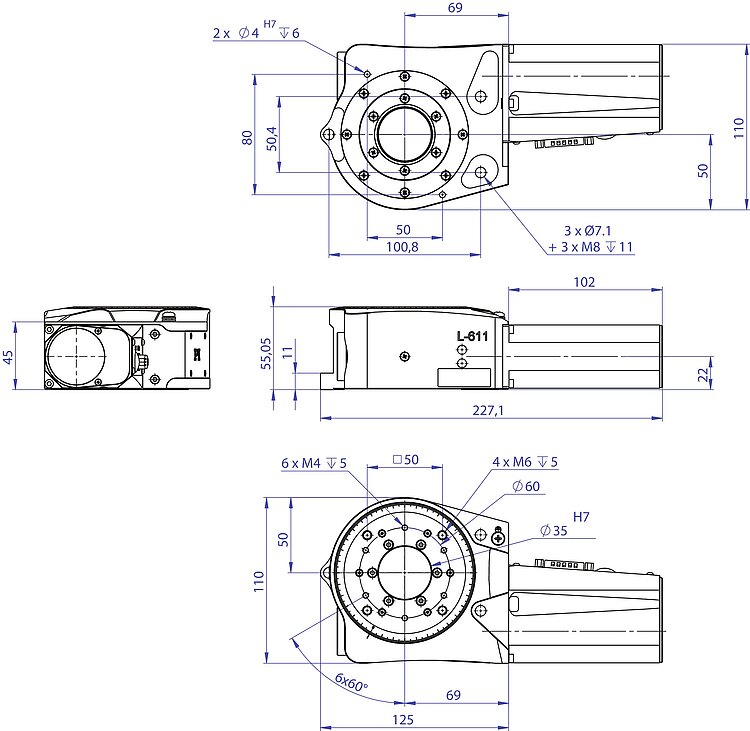

L-611.993261
Precision rotation stage, DC motor, 35 mm Ø clear aperture, incremental angle measuring system with sin/cos signal transmission, 9000 lines/revolution , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)

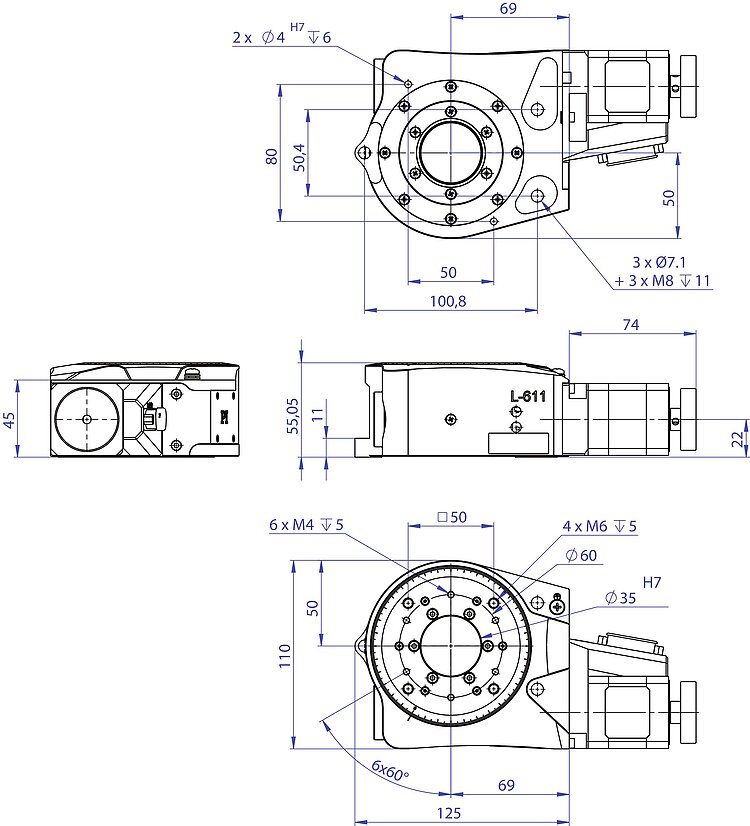

L-611.9ASD
Precision rotation stage, stepper motor, 35 mm Ø clear aperture, incremental angle measuring system with sin/cos signal transmission, 9000 lines/revolution , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
