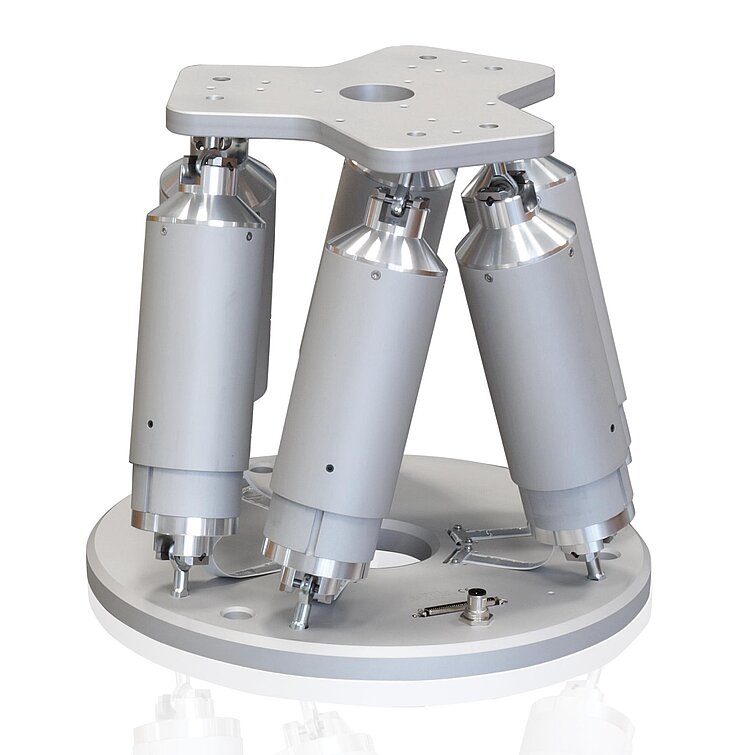

H-820 6-Axis Hexapod

Inexpensive Hexapod

H-820 6-Axis Hexapod
Product Description Specifications Downloads Quote / Order
  • Six degrees of freedom, travel ranges to 100 mm / 60°

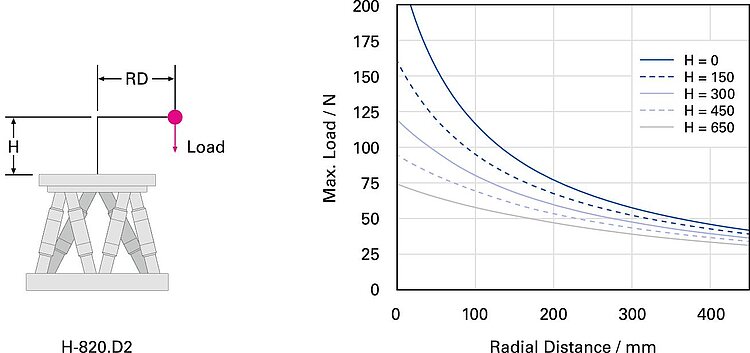

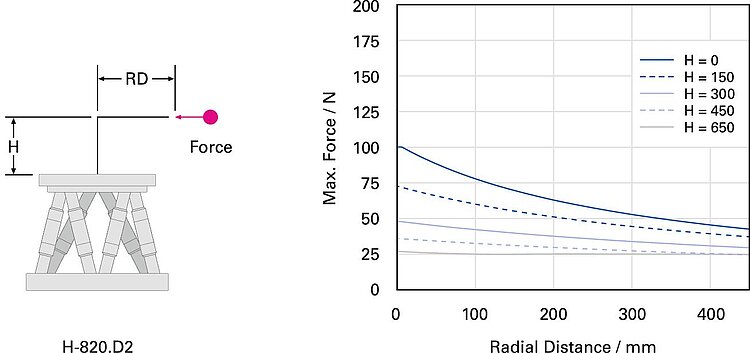

  • Load capacity to 20 kg
  • Velocity under full load to 20 mm/s
  • Repeatability up to ±0.5 µm

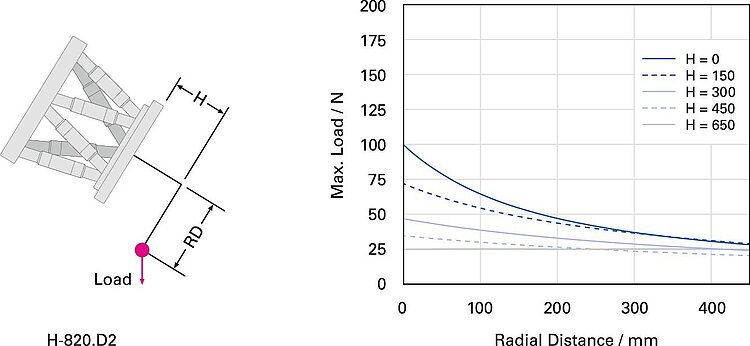

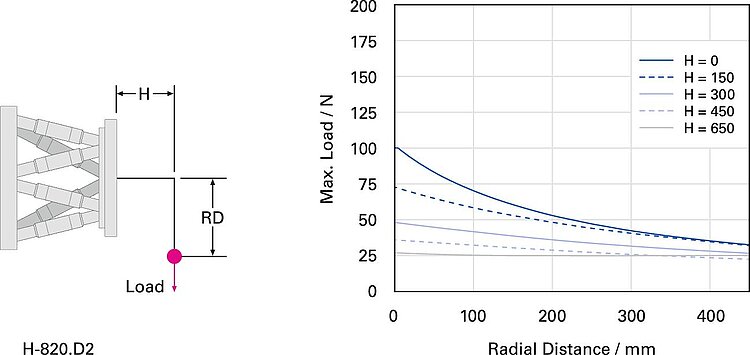

  • Works in any orientation
  • Fast response behavior

Standard-class 6-axis positioning system

Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction.

Direct drive with brushless DC motors (BLDC)

Indirect measuring principle

Rotary encoder on motor shaft

Fields of application

Industry and research. For life science, biotechnology, automation, micromachining

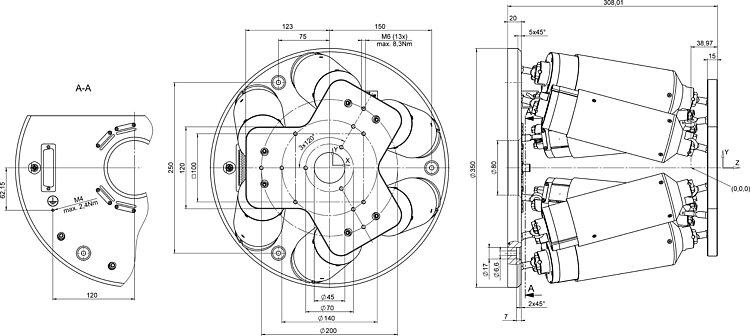

Specifications

Datasheet

Datasheet H-820

Version / Date
2018-05-17
Version / Date
2018-05-17
Version / Date
2018-07-12
Version / Date
2018-08-17
Document language
pdf - 772 KB
pdf - 782 KB
pdf - 844 KB
pdf - 805 KB

Downloads

Product Note

Product Note

Product Change Notification H-206.x1x, H-8xx.x1x, H-8xx.xVx, F-206.S

Version / Date
2019-04-04
Document language English
pdf - 367 KB

Datasheet

Datasheet

Datasheet H-820

Version / Date
2018-05-17
Version / Date
2018-05-17
Version / Date
2018-07-12
Version / Date
2018-08-17
Document language
pdf - 772 KB
pdf - 782 KB
pdf - 844 KB
pdf - 805 KB

Documentation

Documentation

User Manual C887T0017

C-887.5Bxx Drag-chain capable cable sets for connecting H-206 and most H-8xx hexapod standard models to C-887.5xx controller models
Version / Date
2020-04-09
Document language English
Request download link
Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller
Version / Date
1.2 0 12/2019
Version / Date
1.2.0 12/2019
Document language
pdf - 2 MB
pdf - 2 MB
Documentation

User Manual MS207

H-820 Hexapod Microrobot
Version / Date
2.3.0 2019-12-04
Version / Date
2.3.0 2019-12-04
Document language
Request download link

3-D Models

3-D Models

H-820.D2 3-D model

Version / Date
2020-09-24
Request download link

Software Files

Software Files

Hexapod Simulation Tool

Version / Date
2020-02-10
Request download link

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
