- Fast response time <5 ms with subnanometer resolution: Ideal for tracking
- Including E-727 USB controller and software
- Travel ranges to 70 µm × 70 µm × 50 µm
- Low profile for easy integration: 20 mm

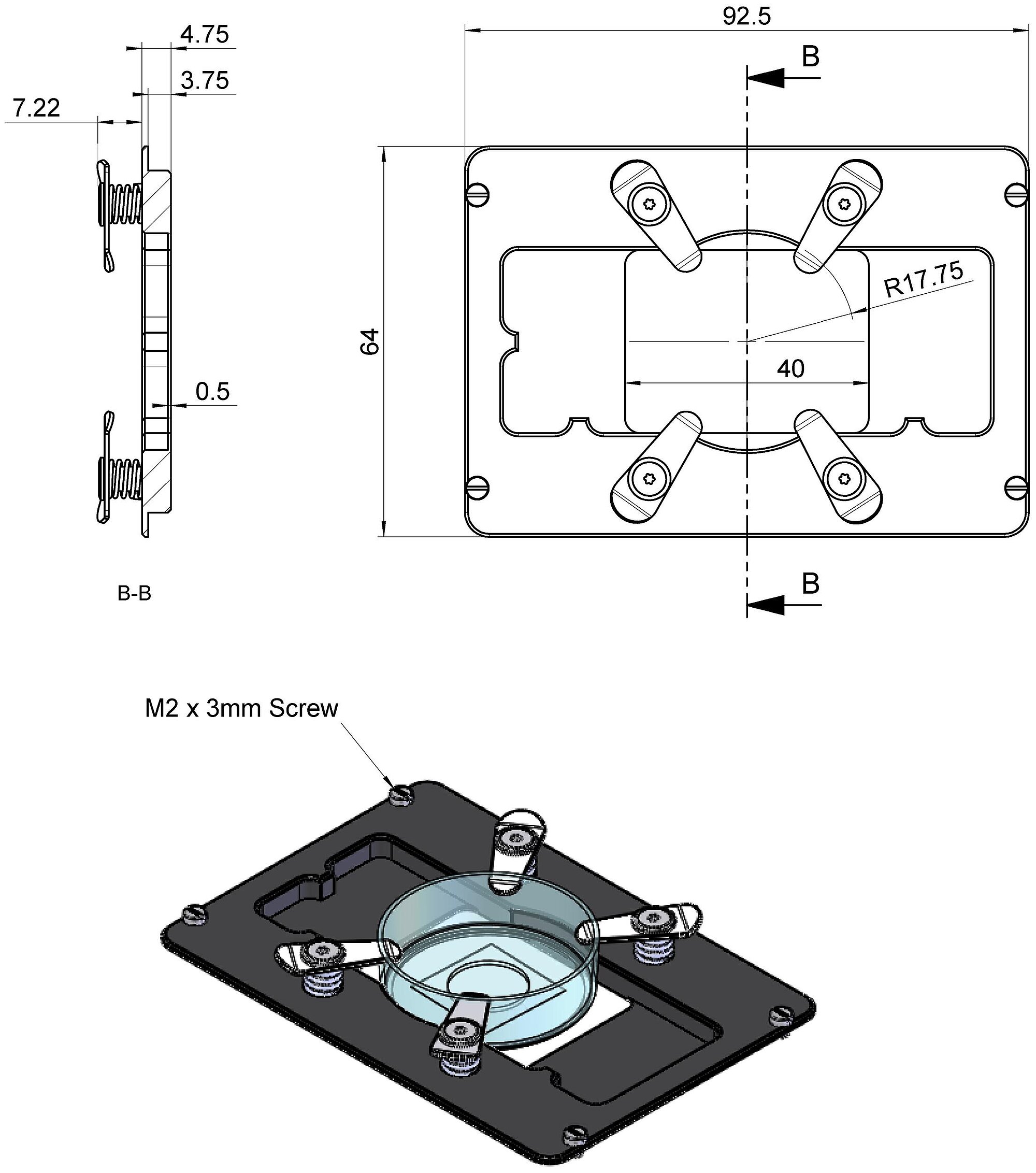

- Recessed sample holders, freely revolving nosepiece
- Extensive optional accessories
- Cost-optimized design
- High-resolution microscopy
- Inverse microscopy
- Confocal microscopy
Outstanding lifetime thanks to PICMA® piezo actuators
The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.
High guiding accuracy due to zero-play flexure guides
Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.
Extensive software for rapid start of productive operation
Thanks to support of MATLAB and NI LabVIEW as well as all common operating systems (Windows, Linux, and macOS), integration succeeds in virtually every environment – quickly and efficiently. Sophisticated programming examples and software tools such as PIMikroMove shorten the time to productive operation considerably.
Product Change Notification Piezo Actuator Driven Products
Short Instructions PZ289
Digital Piezo Controllers E-709.xxG / E-727 / E-754
User Manual PZ272

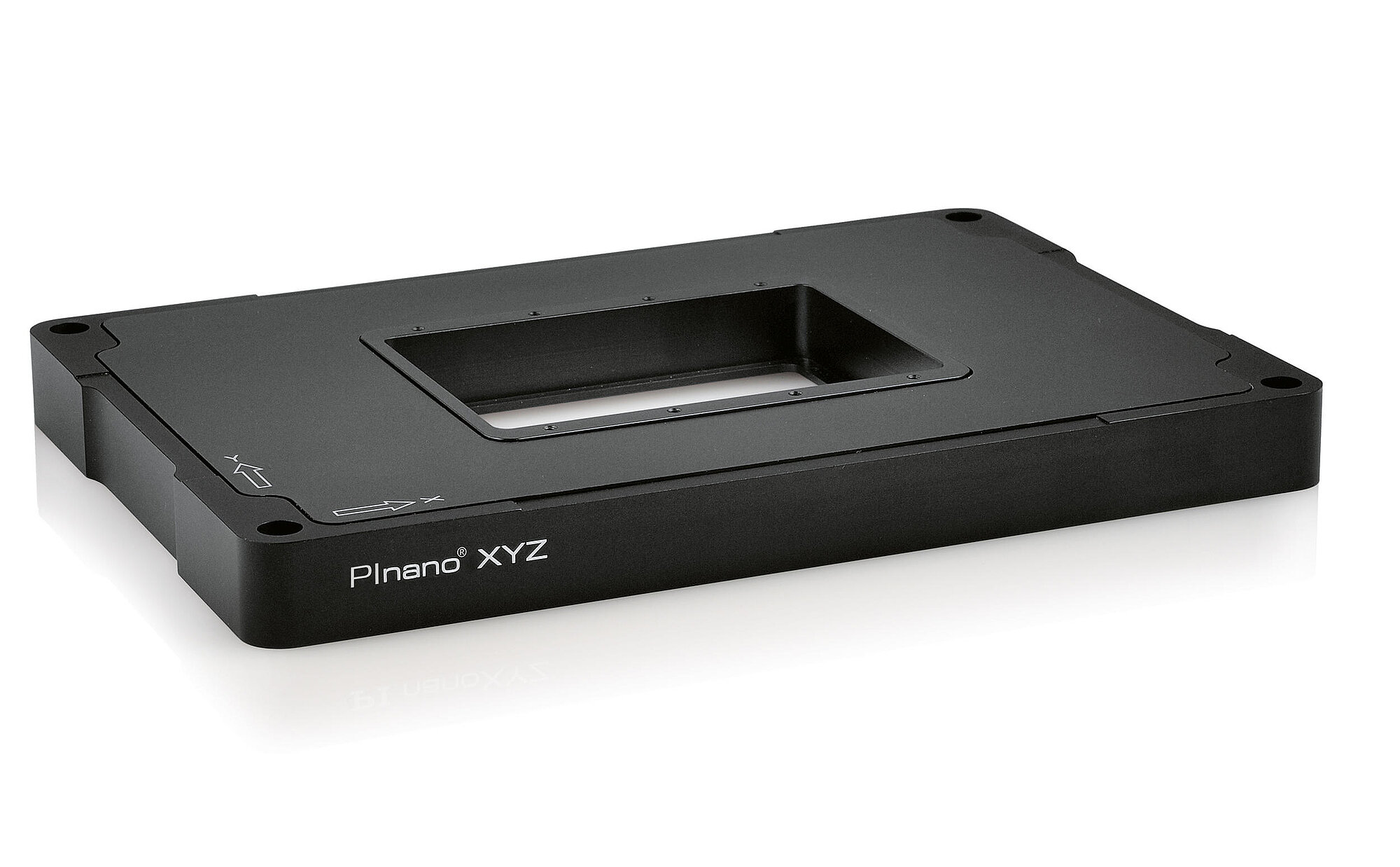

P-545.xC8S, P-545.xR8S, P-545.3D8S PInano® Piezo Systems
Short Instructions PZ240
Piezo Positioning Systems: P-5xx / P-6xx / P-7xx
3-D model P-545.3D8H
Microscope Stage Configurator
Sample Stages and Holders for Inverted Microscopes
