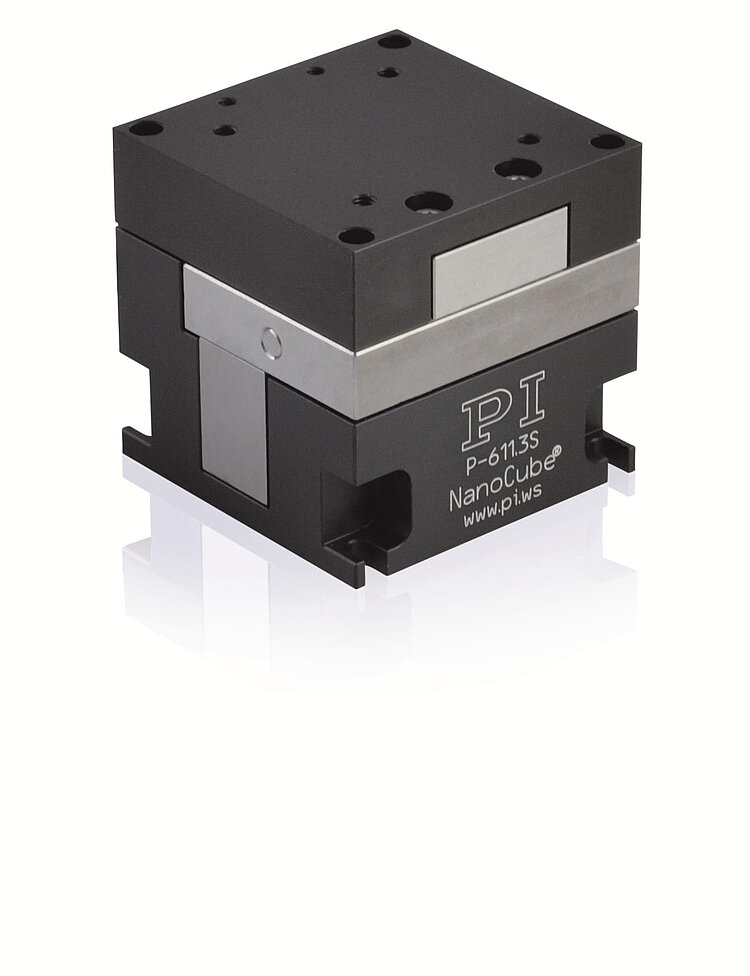

P-611.3 NanoCube® XYZ Nanopositioner

Compact Multi-Axis Piezo Positioner for Nanopositioning and Fiber Alignment

  • Travel range up to 120 µm × 120 µm × 120 µm
  • Ultracompact: 44 mm × 44 mm × 44 mm
  • Resolution to 0.2 nm
  • Fast response behavior
  • Zero-play and highly accurate flexure guides
  • Outstanding lifetime thanks to PICMA® piezo actuators
  • For fast scanning
  • Version with integrated fiber holder
  • Particularly inexpensive systems
P-611.3 NanoCube® XYZ Nanopositioner
Product Description Specifications Downloads Quote / Order

Application fields

  • Photonics / integrated optics
  • Micromanipulation
  • Biotechnology
  • Semiconductor tests
  • Fiber positioning

Outstanding lifetime due to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Specifications

Datasheet

Datasheet P-611.3

Version / Date
2023-12-11
pdf - 579 KB
Version / Date
2023-12-11
pdf - 585 KB
Version / Date
2019-01-18
pdf - 749 KB
Version / Date
2019-01-18
pdf - 826 KB

Downloads

Product Note

Product Note

Product Change Notification Piezo Actuator Driven Products

Version / Date
2021-04-19
pdf - 377 KB
English

Datasheet

Datasheet

Datasheet P-611.3

Version / Date
2023-12-11
pdf - 579 KB
Version / Date
2023-12-11
pdf - 585 KB
Version / Date
2019-01-18
pdf - 749 KB
Version / Date
2019-01-18
pdf - 826 KB

Documentation

Documentation

User Manual PZ253

P-611 Nanopositioning Systems with Strain Gauge Sensors / without Sensor

Version / Date
1.2.2 2022-08-24
pdf - 3 MB
Version / Date
1.2.2 2022-08-24
pdf - 3 MB
Documentation

Unpacking Instructions P611T0006

Unpacking and Handling of P-611 Positioners

Version / Date
2018-01-24
pdf - 768 KB
English
Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx

Version / Date
6.2.0 03/2024
pdf - 561 KB
Version / Date
6.2.0 03/2024
pdf - 595 KB

3-D Models

3-D Models

P-611.3x 3-D model

zip - 187 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-611.3O

NanoCube® XYZ nanopositioner; 120 µm × 120 µm × 120 µm travel range (open loop) (X × Y × Z); without sensor; D-sub 25 (m) connector; 1.5 m cable length

P-611.3OF

NanoCube® XYZ nanopositioner; 120 µm × 120 µm × 120 µm travel range (open loop) (X × Y × Z); without sensor; integrated fiber holder; D-sub 25 (m) connector; 1.5 m cable length

P-611.3S

NanoCube® XYZ nanopositioner; 100 µm × 100 µm × 100 µm travel range (X × Y × Z); SGS, direct position measuring; D-sub 25 (m) connector; 1.5 m cable length

P-611.3SF

NanoCube® XYZ nanopositioner; 100 µm × 100 µm × 100 µm travel range (X × Y × Z); SGS, direct position measuring; integrated fiber holder; D-sub 25 (m) connector; 1.5 m cable length
