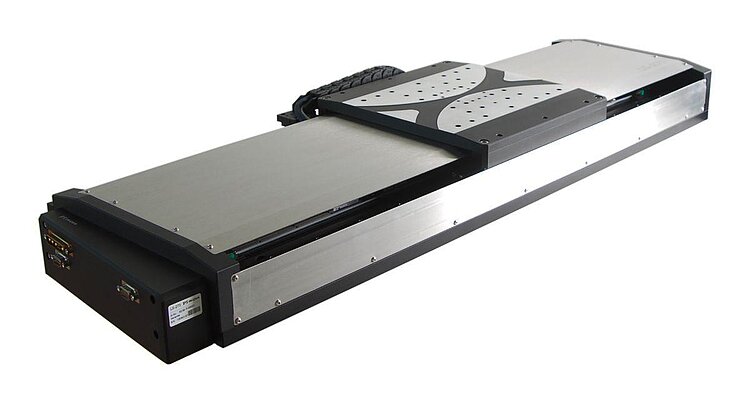

LMS-270 Precision Linear Stage

High Dynamics due to the Magnetic Direct Drive, High Stability

  • Travel ranges to 1016 mm (40 '')
  • Velocity to 800 mm/s
  • Incremental encoder with 15 nm resolution
  • 480 N peak force
LMS-270 Precision Linear Stage
Product Description Specifications Downloads Quote / Order

Reference-class linear stage

High travel accuracy. Inductive limit switches. High position resolution due to incremental encoder with analog signal transmission (sin/cos, 1 Vpp).

Versions with DC servo motors or stepper motors are available with the same footprint.

Magnetic direct drive

Ironless magnetic direct drive for high velocity and acceleration. High position resolution.

Application fields

Industry and research. Metrology, precision scanning in in semiconductor or electronics manufacturing.

Specifications

Datasheet

Datasheet LMS-270

Version / Date
2023-07-18
pdf - 4 MB
Version / Date
2023-07-18
pdf - 4 MB
Version / Date
2017-08-21
pdf - 606 KB

Downloads

Datasheet

Datasheet

Datasheet LMS-270

Version / Date
2023-07-18
pdf - 4 MB
Version / Date
2023-07-18
pdf - 4 MB
Version / Date
2017-08-21
pdf - 606 KB

Documentation

Documentation

User Manual LMS270UM0001

LMS-270 Linear stage with direct drive

Version / Date
2023-12-05
pdf - 3 MB
Version / Date
2023-12-05
pdf - 3 MB

3-D Models

3-D Models

62395000xx 3D Model

Version / Date
2023-04-05
zip - 9 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

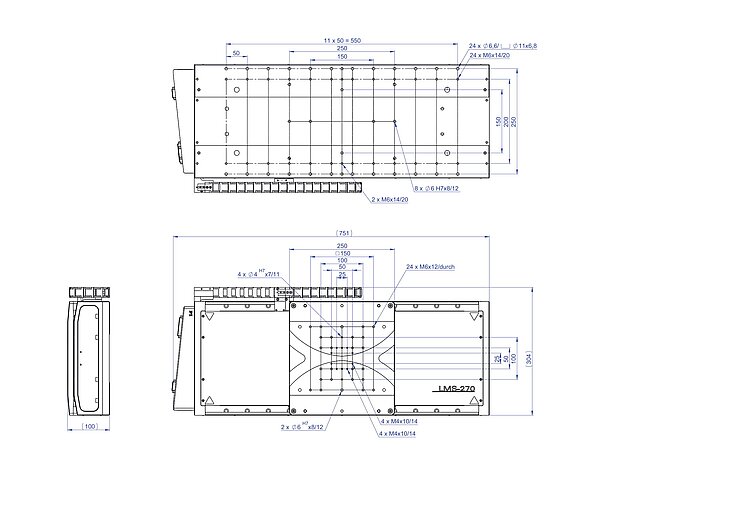

6239500057

Precision linear stage; ironless 3-phase linear motor; 304 mm (12 '') travel range; 500 N load capacity; 800 mm/s maximum velocity; incremental linear encoder, 15 nm sensor resolution, sin/cos, 1 V peak-peak

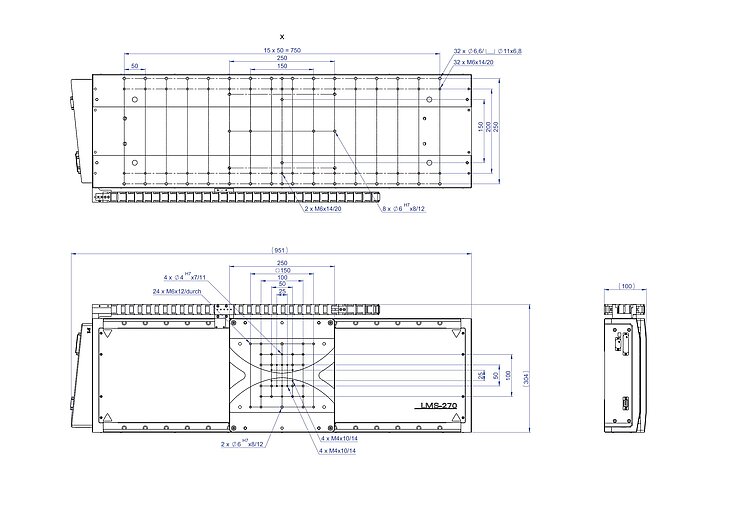

6239500021

Precision linear stage; ironless 3-phase linear motor; 508 mm (20 '') travel range; 500 N load capacity; 800 mm/s maximum velocity; incremental linear encoder, 15 nm sensor resolution, sin/cos, 1 V peak-peak

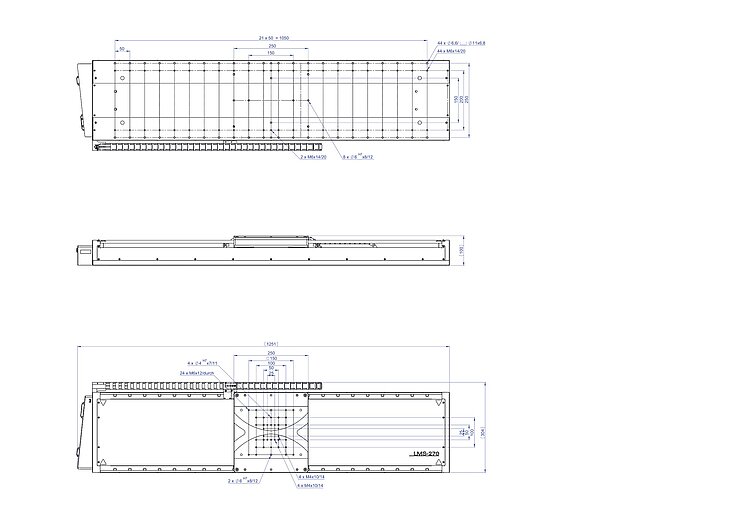

6239500058

Precision linear stage; ironless 3-phase linear motor; 813 mm (32 '') travel range; 500 N load capacity; 800 mm/s maximum velocity; incremental linear encoder, 15 nm sensor resolution, sin/cos, 1 V peak-peak

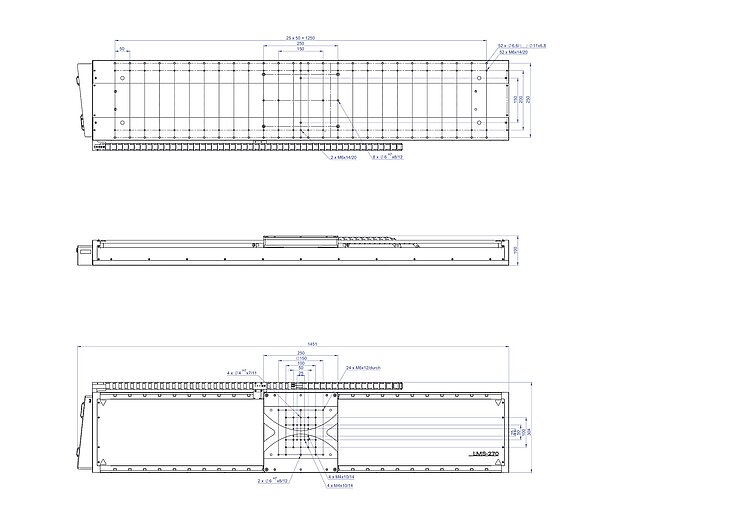

6239500059

Precision linear stage; ironless 3-phase linear motor; 1016 mm (40 '') travel range; 500 N load capacity; 800 mm/s maximum velocity; incremental linear encoder, 15 nm sensor resolution, sin/cos, 1 V peak-peak
