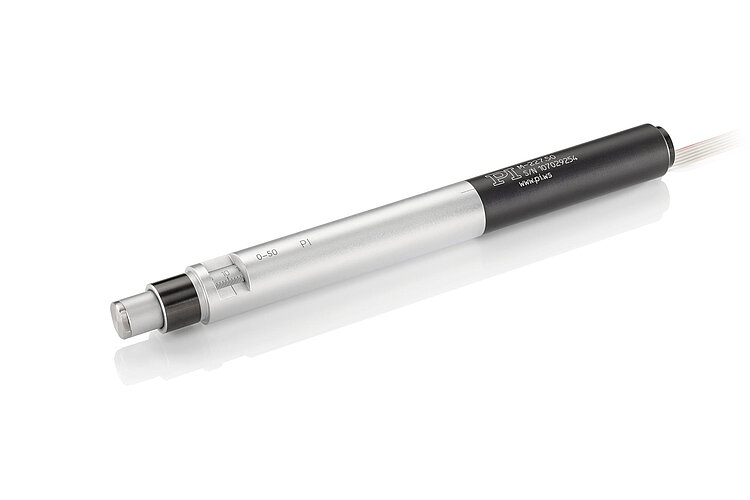

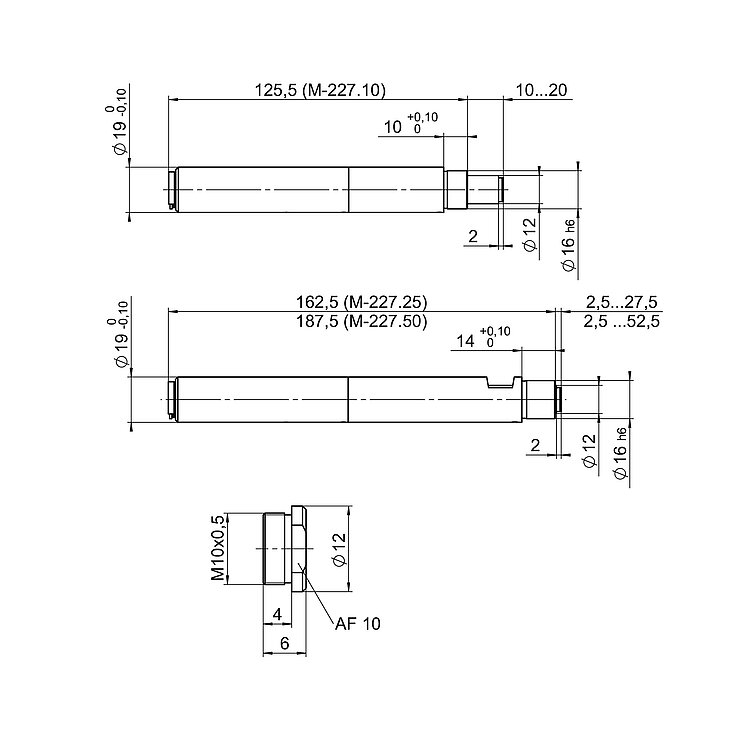

M-227 High-Resolution Linear Actuator with DC Motor

With Optional Piezo Drive

M-227 High-Resolution Linear Actuator with DC Motor
Product Description Specifications Downloads Quote / Order
  • Min. incremental motion 0.05 µm
  • Nonrotating end piece
  • Subnanometer resolution with optional piezo drive

Compact precision-class linear drive

High-resolution DC mike with closed-loop gearhead motors and rotary encoder. For installing into mechanical systems with external limit switches.

High-quality components

Nonrotating end piece for uniform motion prevents wobble, torque, and wear at the point of contact. Includes flat tip for decoupling forces. With differential encoder driver for a safe position signal transmission at distances up to 10 m

Fields of application

OEM, alignment, set-and-forget
