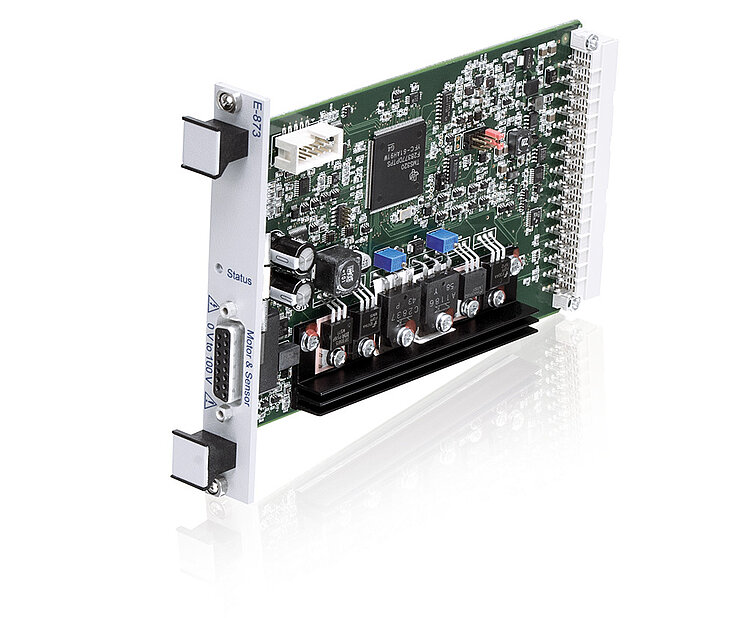

E-873.10C885 Q-Motion® Controller Module for C-885 PIMotionMaster

For Piezoelectric Inertia Drives, 1 Axis

  • Broadband encoder input
  • Macro programmable for stand-alone functionality
  • Fast startup due to ID chip detection
  • Data recorder
  • PID controller, parameter changing during operation
E-873.10C885 Q-Motion® Controller Module for C-885 PIMotionMaster
Product Description Specifications Downloads Quote / Order

Digital servo controller for piezo inertia drives

Integrated power amplifier and voltage generator for piezo inertia drives. Point-to-point motion, trapezoidal velocity profile, actuator mode for nanometer precision positioning at the target position. 1 axis.

Encoder input

Differential signal transmission for analog (sin/cos) encoder signals, BiSS interface for absolute encoders.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Plug-and-play installation in the C-885 PIMotionMaster

Can be inserted in any free slot. Automatic detection and external communication (USB, Ethernet) by the processor and interface module of the C-885. Can be expanded with optional digital inputs and outputs. Power via the power supply of the C-885.
