PD050.31
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 5 mm × ID 2.5 mm × TH 2.5 mm, connecting wires
PICMA® Chip Round Multilayer Actuators
Miniature Multilayer Piezo Actuators With and Without Inner Hole
- Superior lifetime
- Ultracompact: from 5 mm Ø
- Ideal for dynamic operation
- Microsecond response time
- Subnanometer resolution
- UHV-compatible to 10-9 hPa

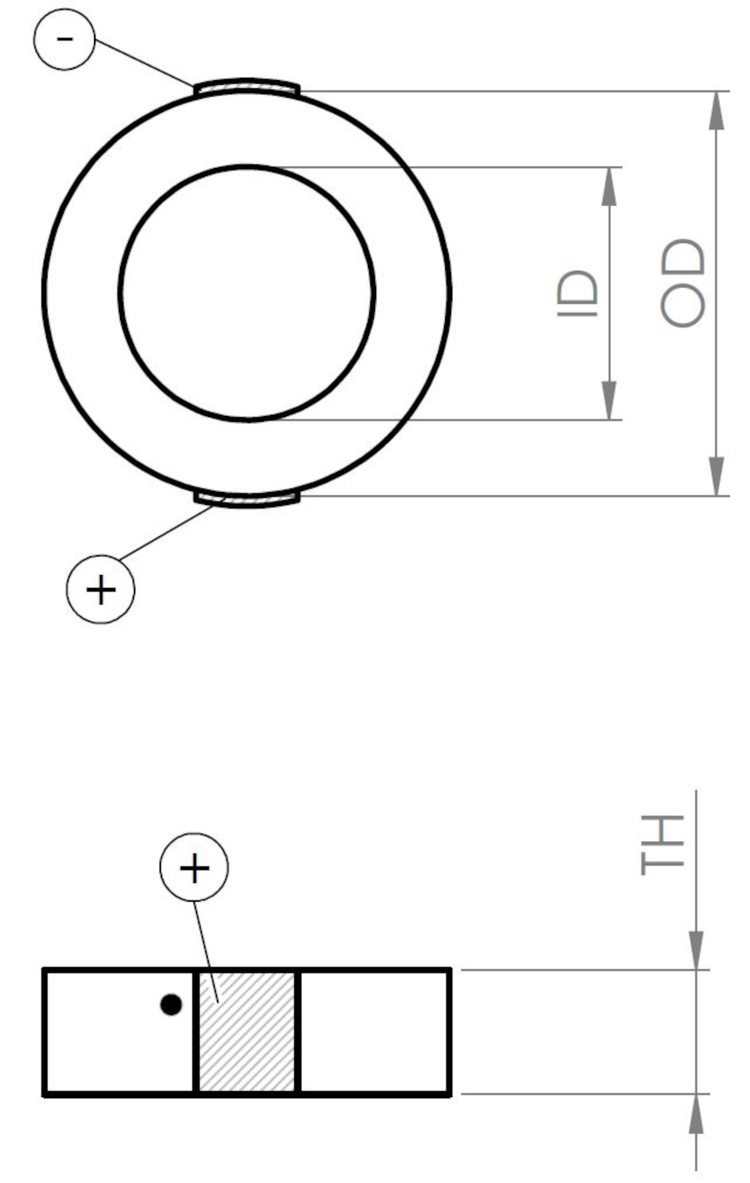

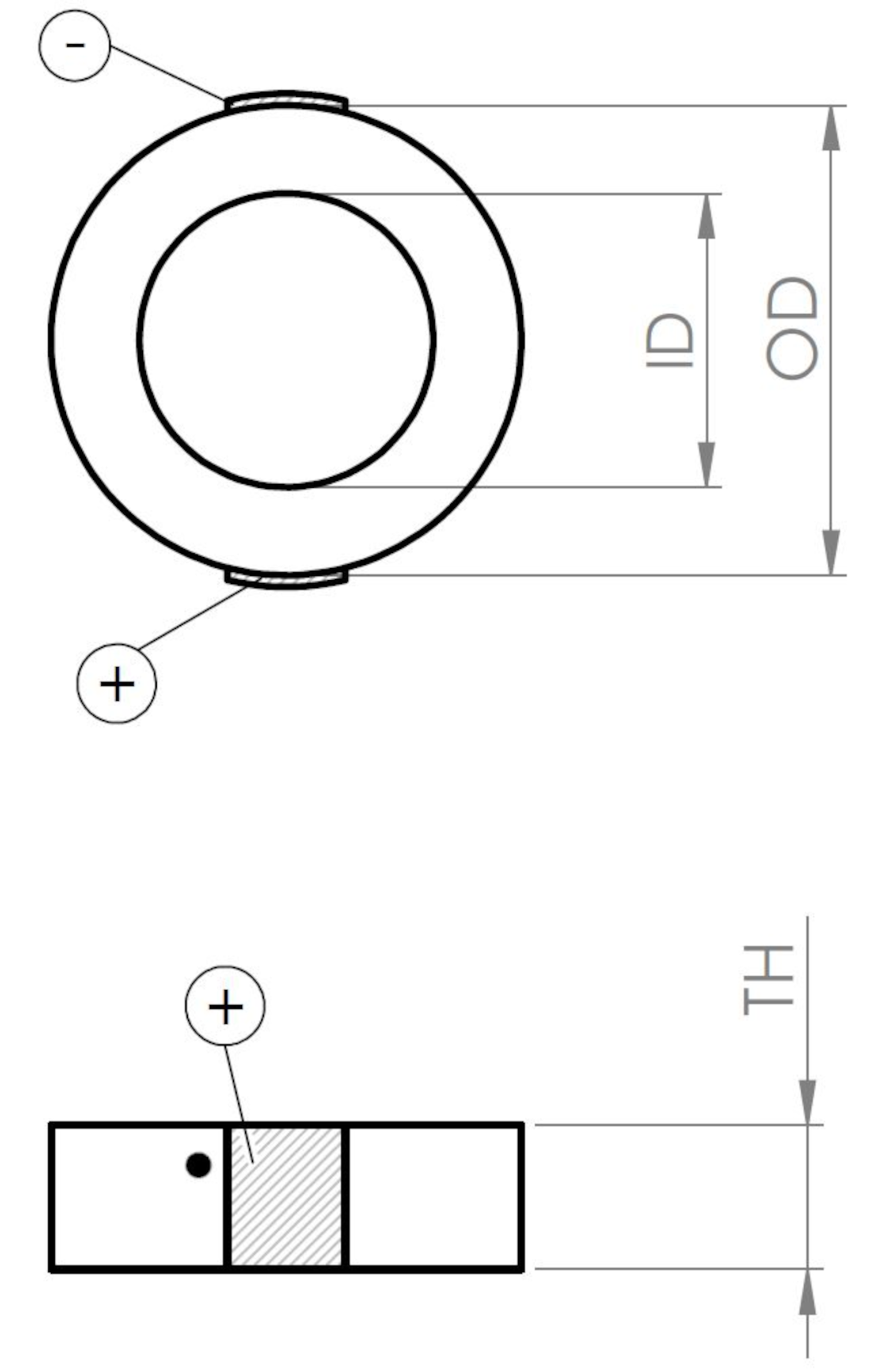

Round PICMA® Chip miniature piezo actuator, lapped end plates. OD, ID, TH, see data table.

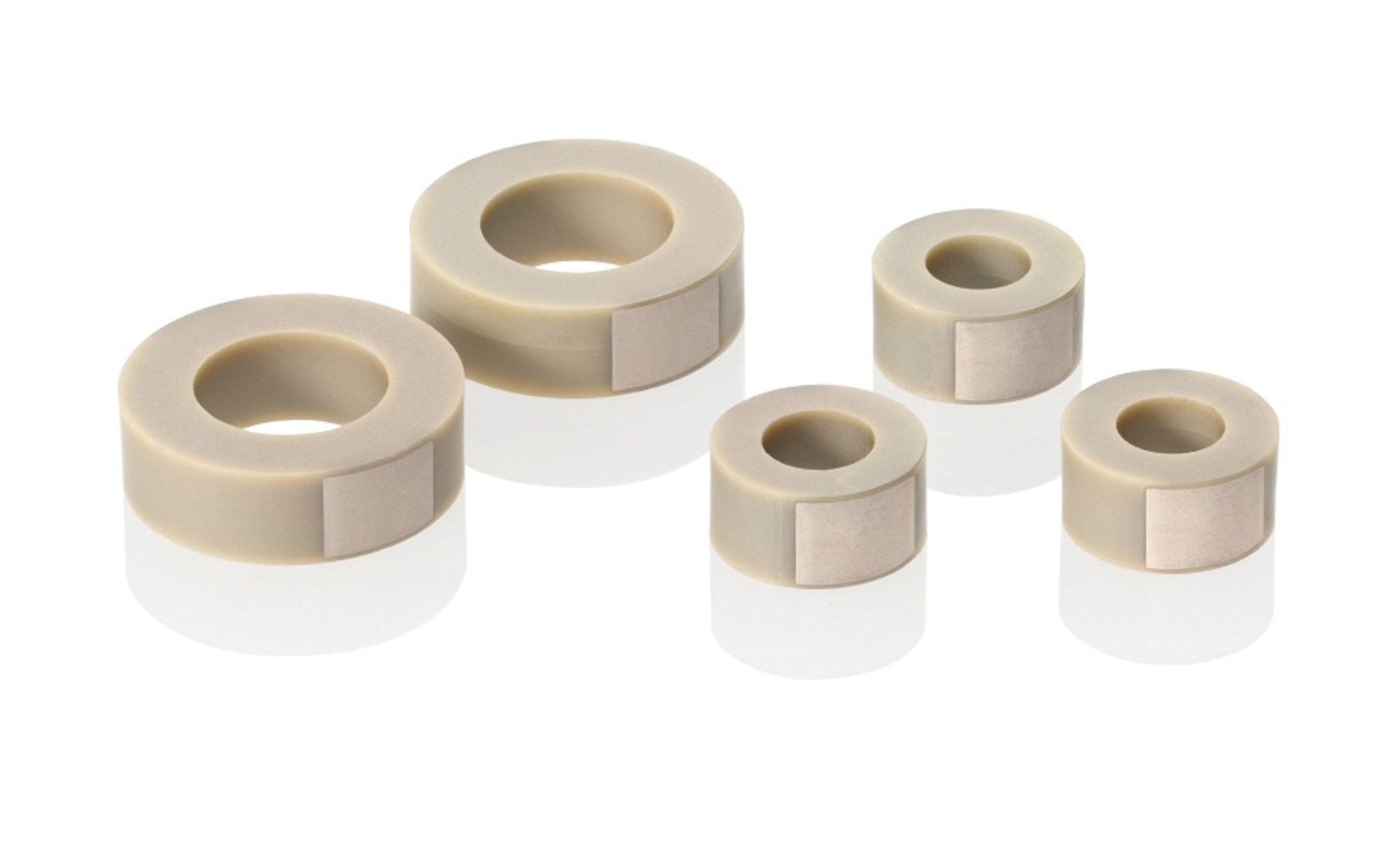

PICMA® Chip rings and disks are available with diameters up to 16 mm.

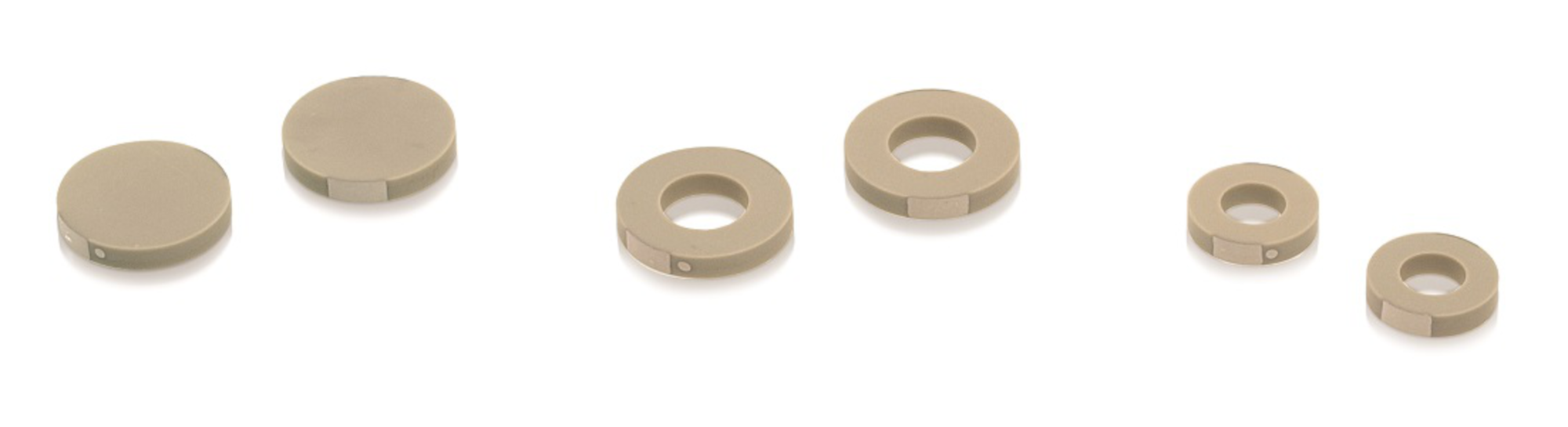

On request, PICMA® Chip piezo actuators can be manufactured with an all-ceramic-insulated inner hole (left) or with precision-ground ceramic end plates (right).
PICMA® Chip Round Multilayer Actuators
Descrizione del Prodotto
Specifiche
Download
Quotazione / Ordine
Piezo linear actuator with PICMA
Operating voltage -20 to 100 V. Ceramic insulation, polymer-free. Insensitive to humidity. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Flexible thanks to numerous designs. Versions with square, round, or annular cross section.
Customized versions and other specifications on request
PTFE-insulated connecting wires
Variety of shapes
Inner hole
Precision-ground ceramic end plates
Application fields
Industry and research. For laser tuning, microdispensing, life sciences.
Specifications
Specifications
| PD050.3x | PD080.3x | PD120.3x | PD150.3x | PD160.3x | PD161.3x | Unit | Tolerance | |
|---|---|---|---|---|---|---|---|---|
| Outer diameter (OD) | 5 ±0.2 | 8 ±0.3 | 12 ±0.4 | 15 ±0.3 | 16 ±0.5 | 16 ±0.5 | mm | |
| Inner diameter (ID) | 2.5 ±0.15 | 4.5 ±0.15 | 6 ±0.2 | 9 ±0.15 | 8 ±0.25 | – | mm | |
| Height (TH) | 2.5 ±0.05 | 2.5 ±0.05 | 2.5 ±0.05 | 2 ±0.05 | 2.5 ±0.05 | 2.5 ±0.05 | mm | |
| Travel range* | 1.8 | 2 | 2 | 1.8 | 2 | 2.3 | µm | ±20 % |
| Blocking force** | >400 | >1000 | >2500 | >3300 | >4400 | >6000 | N | |
| Electrical capacitance*** | 110 | 300 | 900 | 1000 | 1700 | 2400 | nF | ±20 % |
| Axial resonant frequency**** | >500 | >500 | >500 | >600 | >500 | >500 | kHz | |
| Piezoceramics | PIC252 | PIC252 | PIC252 | PIC252 | PIC252 | PIC252 | ||
| Operating voltage range | -20 to 100 | -20 to 100 | -20 to 100 | -20 to 100 | -20 to 100 | -20 to 100 | V | |
| Operating temperature range | -40 to 150 | -40 to 150 | -40 to 150 | -40 to 150 | -40 to 150 | -40 to 150 | °C | |
| Recommended preload for dynamic operation | 15 | 15 | 15 | 15 | 15 | 15 | MPa | |
| Maximum preload for constant force | 30 | 30 | 30 | 30 | 30 | 30 | MPa | |
| Recommended electronics | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 | E-610, E-617, E-831, E-836 |
Standard connections: PDxxx.31: PTFE-insulated connecting wires, UHV-compatible, 100 mm, AWG 32, Ø 0.49 mm; PDxxx.30: solderable contacts
* At 0 to 100 V. The values refer to the unattached component and may be lower when glued on.
** At 0 to 100 V
*** Measured at 1 V, 1 kHz, RT
**** Measured at 1 V, unloaded, unclamped. The value is halved for unilateral clamping. Depending on the installation situation, the lateral resonant frequencies can be lower than the axial resonant frequencies.
Downloads
Datasheet
Documentation
Documentation
User Manual PZ265
PL022 / PL033 / PL055 / PL088 PICMA® Chip miniature multilayer piezo actuators; PD161 Round PICMA® Chip miniature multilayer piezo actuators; PD050 / PD080 / PD120 / PD150 / PD160 Round PICMA® Chip miniature multilayer piezo actuators with inner hole
Versione / Data
1.1.0 2021-09-27
pdf - 2 MB
Versione / Data
1.1.0 2021-09-27
pdf - 2 MB
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
PD080.31
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 8 mm × ID 4.5 mm × TH 2.5 mm, connecting wires
PD120.31
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 12 mm × ID 6 mm × TH 2.5 mm, connecting wires
PD150.31
Round PICMA® Chip miniature piezo actuator with inner hole, 1.8 µm travel range, OD 15 mm × ID 9 mm × TH 2 mm, connecting wires
PD160.31
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 16 mm × ID 8 mm × TH 2.5 mm, connecting wires
PD161.31
Round PICMA® Chip miniature piezo actuator, 2.3 µm travel range, OD 16 mm × TH 2.5 mm, connecting wires
PD050.30
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 5 mm × ID 2.5 mm × TH 2.5 mm
PD080.30
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 8 mm × ID 4.5 mm × TH 2.5 mm
PD120.30
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 12 mm × ID 6 mm × TH 2.5 mm
PD150.30
Round PICMA® Chip miniature piezo actuator with inner hole, 1.8 µm travel range, OD 15 mm × ID 9 mm × TH 2 mm
PD160.30
Round PICMA® Chip miniature piezo actuator with inner hole, 2.0 µm travel range, OD 16 mm × ID 8 mm × TH 2.5 mm
PD161.30
Round PICMA® Chip miniature piezo actuator, 2.3 µm travel range, OD 16 mm × TH 2.5 mm
