Stages con Motori Stepper, DC e DC Brushless (BLDC)

Le applicazioni industriali in processi di produzione quali l'elaborazione laser, traggono vantaggio dalla precisione di posizionamento degli stages motorizzati. Il profilo ribassato rende questa serie di assi adatta a un’ampia gamma di applicazioni, che spaziano dal collaudo dei sistemi fino alle linee di produzione nell’automazione di precisione. Gli assi standard sono disponibili in varie classi di carico e precisione, con corse fino a 1 m. Le versioni miniaturizzate sono disponibili con un ingombro al di sotto di 20 x 20 mm.

MPL-W10 Modular Configurable Precision Linear Stage

Versatile – Spindle-Driven – Compact Design

L-412 High-Load Linear Stage

High Performance, Drive Screw

L-417 High-Load Linear Stage

High Performance, Spindle Drive

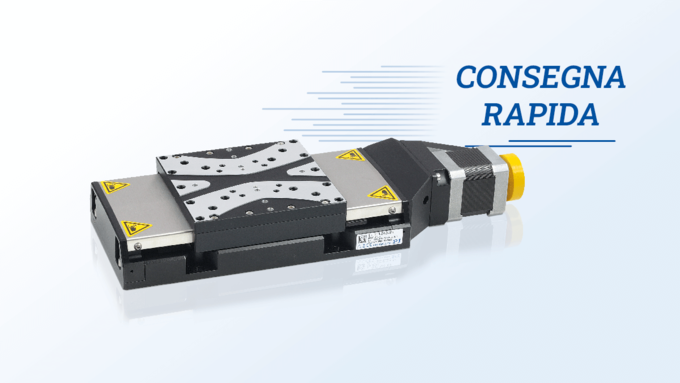

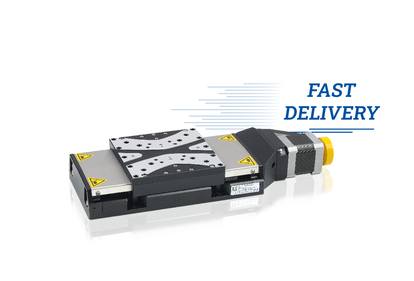

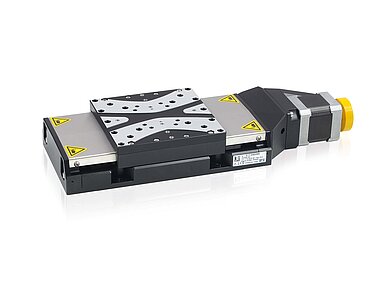

L-511 High-Precision Linear Stage

High Run-Out Accuracy

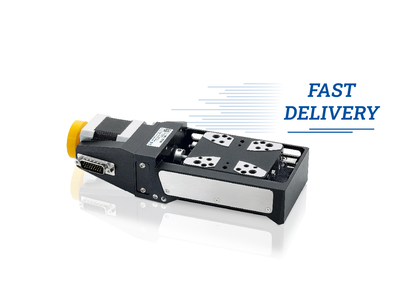

L-509 Precision Linear Stage

Compact Design, for Loads to 10 kg

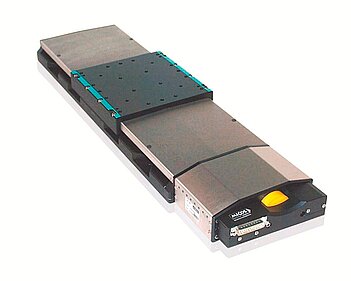

LS-180 Linear Stage for Heavy Loads

Robust Design for Industrial Use

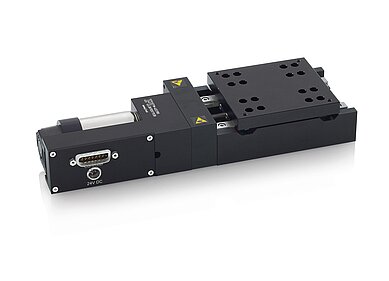

M-403 Linear Stage

Inexpensive, Reliable, Precise
  • Inexpensive, cost-optimized design for precise positioning
  • Travel ranges from 25 to 200 mm
  • Resolution to 0.018 µm
  • Minimum incremental motion to 0.2 µm
  • Preloaded precision threaded spindle
  • Higher loads with M-414

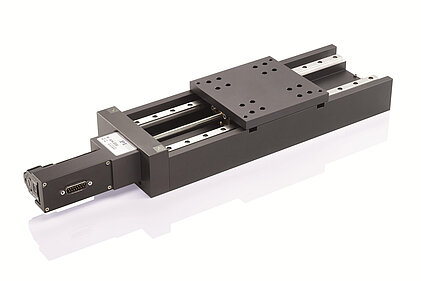

M-414 Precision High-Load Linear Stage

High Cycle Numbers, Inexpensive
  • Use of precision components
  • Flexible modular system M-403, M-414
  • Travel ranges from 100 to 300 mm
  • Recirculating ball screw provides high velocity and long lifetime
  • Minimum incremental motion 0.1 µm

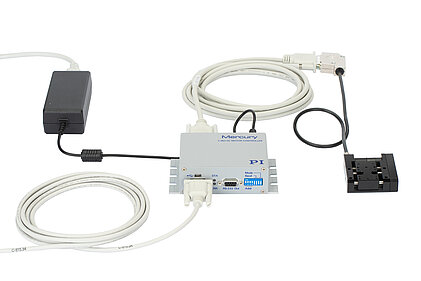

M-110.C86311 Linear Stage System

Compact Linear Stage, DC Gear Motor, 5 mm Travel Range, with Controller

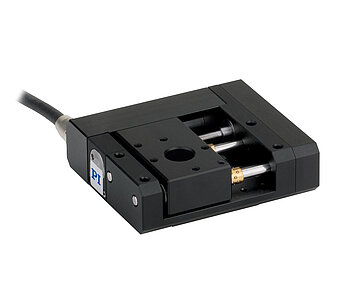

M-110 • M-111 • M-112 Compact Linear Stage

XY(Z) Combinations with a Variety of Drives and Travel Ranges

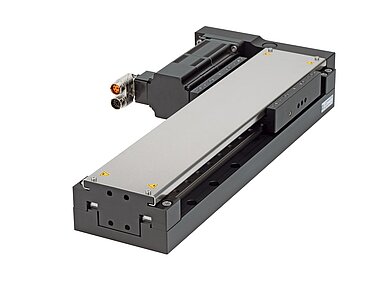

L-812 High-Load Linear Stage

Stepper or Servo Motor • Spindle Drive • Cost Effective
  • Width: 114 mm, travel range up to 610 mm
  • Precision ball screw, load capacity up to 50 kg
  • Stepper or servo motor
  • Compact design thanks to models with folded drivetrain
  • Models with holding brake for vertical mounting

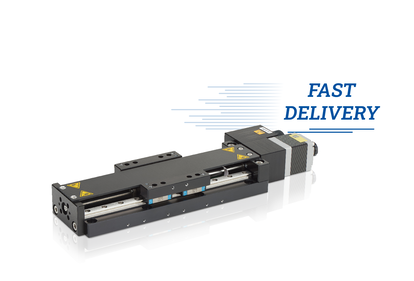

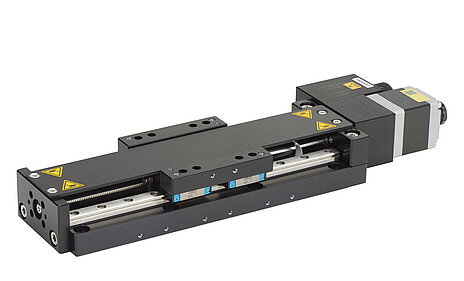

L-836 Stackable, Highly Compact, Universal Linear Stage

Versatile in Use • Drive Screw • Cost Effective • Suitable for Industrial Applications in X, XY, & XYZ
