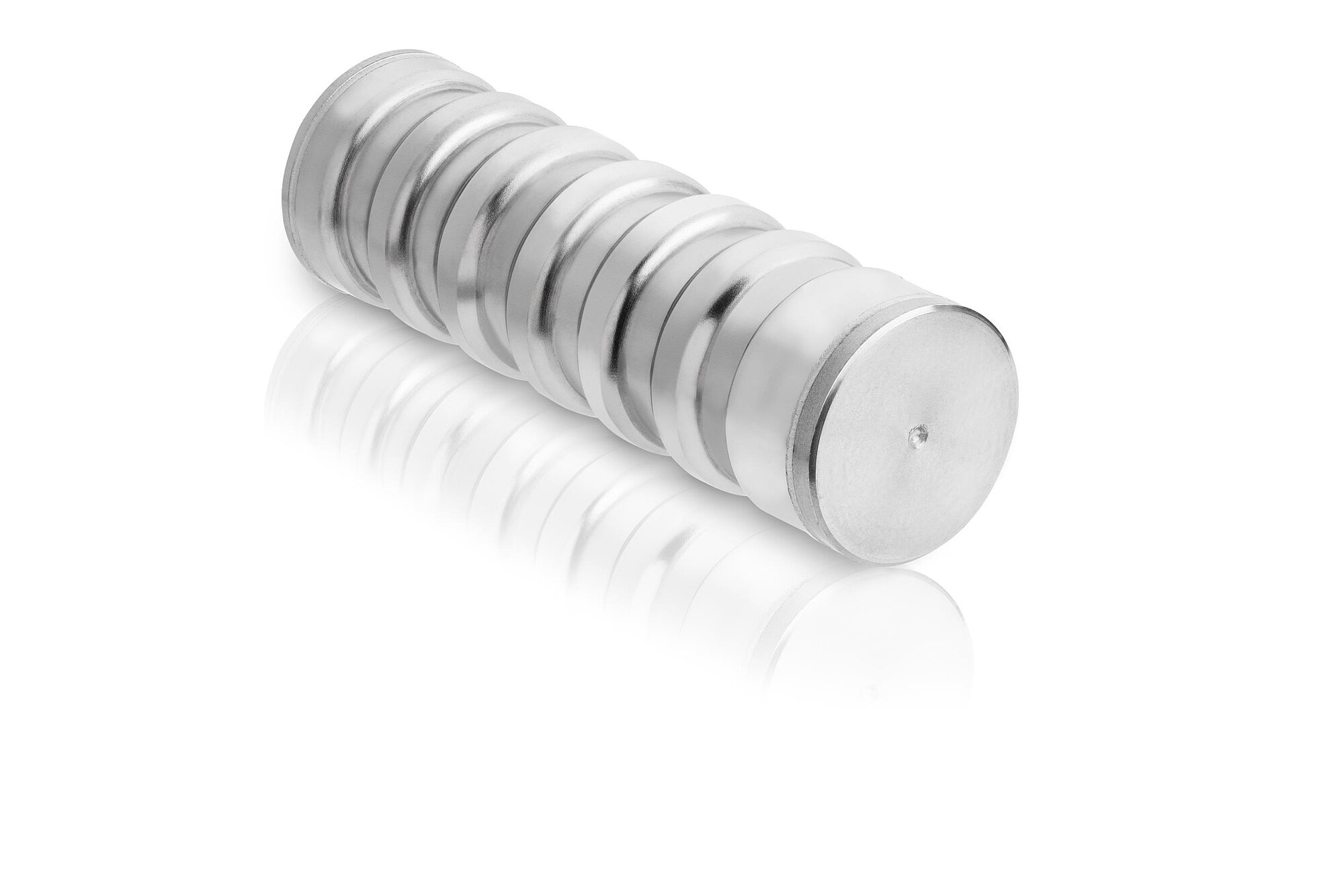

Encapsulated PICMA® Stack Piezo Actuators

Novità

With ceramic-insulated high-performance actuators

Splash-resistant full encapsulation
Superior lifetime
High temperature stability
Large travel range
High blocking force
High degree of stiffness
µs response time
Sub-nanometer resolution
UHV-compatible to 10^-9 hPa

Vai alla quotazione / ordine

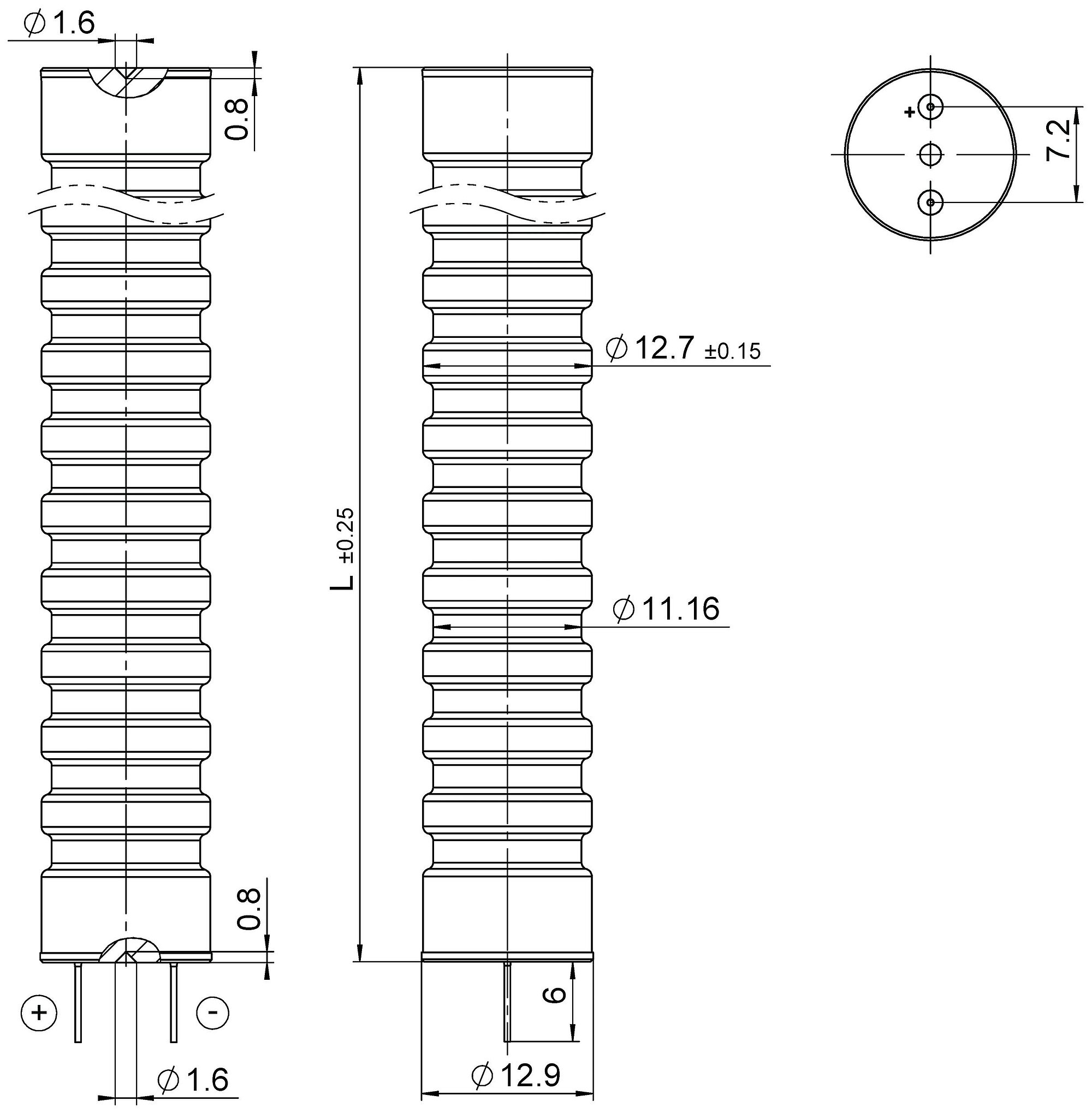

Encapsulated PICMA® Stack piezo actuators, dimensions in mm. L see data table.

Encapsulated PICMA^®Stack piezo actuators with high reliability

Operating voltage -20 to 150 V. Ceramic insulation, polymer-free. Insensitive to humidity. Excellent temperature stability. UHV-compatible to 10^-9 hPa, no outgassing, high bakeout temperature. Ideal for dynamic operation. Flexible thanks to numerous designs. Encapsulated versions for operation in splash water or oil.

Custom versions with modified specifications

For high operating temperature up to 200 °C

Application fields

Industry and research. For high-speed switching, precision positioning, and mass flow controllers, as well as active and adaptive systems.

Scarica il datasheet Vai alle Specifiche Vai alla quotazione / ordine

Datasheet

Datasheet Encapsulated PICMA®

Versione / Data

2025-06-12

pdf - 1 MB

Versione / Data

2025-06-12

pdf - 1 MB

Download

PICMA® Actuators with Shorter Lead Times Selected actuators are available with shorter lead times. Corresponding variants are highlighted in bold in the table below.

Motion	000122370	000127370	000128370	000129370	Tolerance
Travel range, open loop, at 0 to 150 V	60 µm	66 µm	96 µm	132 µm	+∞ / -10 %
Drive Properties	000122370	000127370	000128370	000129370	Tolerance
Operating voltage	-20 to 150 V	-20 to 150 V	-20 to 150 V	-20 to 150 V
Electrical capacitance	3.4 µF	3.9 µF	5.7 µF	7.7 µF	±20 %
Mechanical Properties	000122370	000127370	000128370	000129370	Tolerance
Stiffness	20 N/µm	18 N/µm	13 N/µm	9 N/µm	±20 %
Resonant frequency, unloaded	35 Hz	32 Hz	22 Hz	17 Hz	±20 %
Recommended preload for dynamic operation	15 MPa	15 MPa	15 MPa	15 MPa
Maximum preload for constant force	30 MPa	30 MPa	30 MPa	30 MPa
Piezo material	PIC354	PIC354	PIC354	PIC354
Length L	40.4 mm	44.4 mm	64.4 mm	84.4 mm
Outer diameter	12.9 mm	12.9 mm	12.9 mm	12.9 mm
Blocking force at 0 to 150 V	1200 N	1200 N	1200 N	1200 N
Miscellaneous	000122370	000127370	000128370	000129370	Tolerance
Operating temperature range	-40 to 150 °C	-40 to 150 °C	-40 to 150 °C	-40 to 150 °C
Connector	Connecting wires, solderable	Connecting wires, solderable	Connecting wires, solderable	Connecting wires, solderable

Electrical capacitance: Measured at 1 V_pp, 1 kHz, room temperature.

Resonant frequency, unloaded: Measured at 1 V_pp, unclamped. The value is halved for unilateral clamping.

Leakage current: < 1 µA, typically < 100 nA, measured at 100 V, after 5 min, room temperature, 60 % relative humidity.

Resistance: > 10 GΩ, laboratory measurement at room temperature or at an elevated temperature of up to 100 °C.

AC service life: > 6 × 10^8 cycles, measured under 8 MPa preload, 0 to 120 V, 116 Hz sine wave.

DC lifetime (MTTF): > 7 × 10^4 h, extrapolated at 150 V, room temperature.

Custom versions or different specifications on request.

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
