Stages di Rotazione

L'ampia gamma di assi rotativi offerti in diverse dimensioni, capacità di carico e accuratezza di posizionamento, risponde ai requisiti imposti dal movimento rotazionale. PI offre stages con tutti i tipi di motorizzazione e opzioni di guida: air bearing, motori torque, motori a vite senza fine, stages piezo di piccole dimensioni e stages goniometrici specifici con possibilità di montaggio ortogonale con tip-tilt. Tutti questi possono essere montati in combinazioni multiasse con corrispondenti stages lineari, verticali e XY.

Assi di Rotazione con Motori ad Azionamento Magnetico Diretto PIMag®

V-62x High-Precision Rotation Stage with Direct Drive

Ideal for Indexing, Positioning, Scanning, Measuring Technology

A-68x PIglide Rotation Stage with Air Bearing

Large Aperture, Friction Free, Motorized
  • Friction-free, motorized
  • ⌀365mm motion platform
  • ⌀260 mm aperture
  • Eccentricity/flatness &lt
  • 300nm

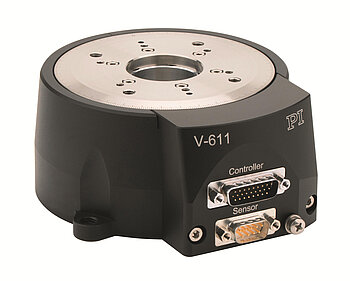

V-611 Rotation Stage

High Load Capacity and Long Lifetime for Industrial Applications

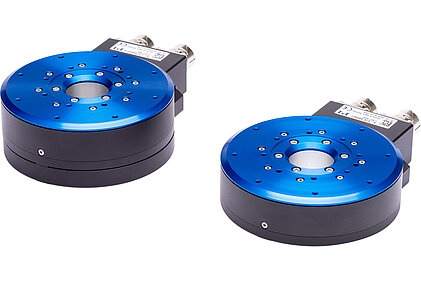

V-610 Compact PIMag® Rotation Stage

Flat Design at High-Torque for Loads up to 2 kg

A-63x PIglide RL Flat Rotation Stage with Air Bearing

Friction-free, Motorized
  • Friction-free, motorized
  • Low profile
  • Eccentricity/flatness &lt
  • 100nm
  • Self-locking option

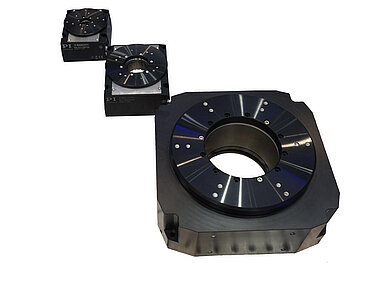

A-62x PIglide RM Rotation Stage with Air Bearings

Friction-Free, Ideal for Indexing, Positioning, Scanning, Measuring Technology
  • Friction-Free
  • Motion platform 50mm to 300mm
  • Load capacity up to 4170N
  • Eccentricity/flatness &lt
  • 200nm
  • mounted vertically or horizontally

Assi di Rotazione con Motori Stepper, DC e DC Brushless (BLDC)

Novità

G-902.RxI ACS Driver Module

For 4 Drive Axes with AC Servo Motor, DC Motor, Voice Coil Motor, Stepper Motor
  • ACS driver module for 4 drive axes, as benchtop device or control cabinet module, directly compatible with positioners from PI.
Novità

G-902.RxE Motion Controller

Integrated Driver for up to 4 Drive Axes with AC Servo Motor, DC Motor, Voice Coil Motor, Stepper Motor
  • ACS motion controller with integrated ACS driver for 2 or 4 drive axes, directly compatible with positioners from PI.

L-611 Precision Rotation Stage

High Travel Accuracy

PRS-200 Precision Rotation Stage

Large Aperture, High Travel Accuracy

M-060 • M-061 • M-062 Precision Rotation Stage

Unlimited Travel Range

Stage di Rotazione Miniaturizzati con Dispositivi Q-Motion e PILine®

U-628 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor and Central Opening

U-622 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor

U-651 Rotation Stage with Low-Profile Design

Fast PILine® Direct Drive and Central Opening

U-624 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor

Q-632 Q‑Motion® Rotation Stage

Compact Through Piezo Motor: 30 mm Turntable Diameter

Assi di Rotazione con Motori Stepper, DC e DC Brushless (BLDC)

RS-40 Compact Rotation Stage

Precision Positioning

DT-80 Compact Rotation Stage

Large Clear Aperture

Assi Goniometrici Motorizzati

WT-85 Motorized Precision Goniometer

Compact, with Aperture

WT-100 Motorized Precision Goniometer

Compact, with Large Aperture

piattaforma tip/tilt

V-931 High Dynamics PIMag® Voice Coil Tip/Tilt Platform

For Fast Steering Mirrors
