PD73Z2ROW
PInano® Z piezo scanner system with clear aperture for microtiter plates, for inverted Olympus microscopes, 220 µm, piezoresistive sensors, with USB digital controller
P-736 PInano® Z Microscope Scanner for Microtiter Plates
Large Clear Aperture, Low Profile, with Digital Controller
- Fast step & settle
- Clear aperture for well plates and low profile for easy integration
- Travel range 220 µm
- Outstanding lifetime due to PICMA® piezo actuators
- Piezoresistive sensors for lower cost
- Capacitive sensors for higher stability

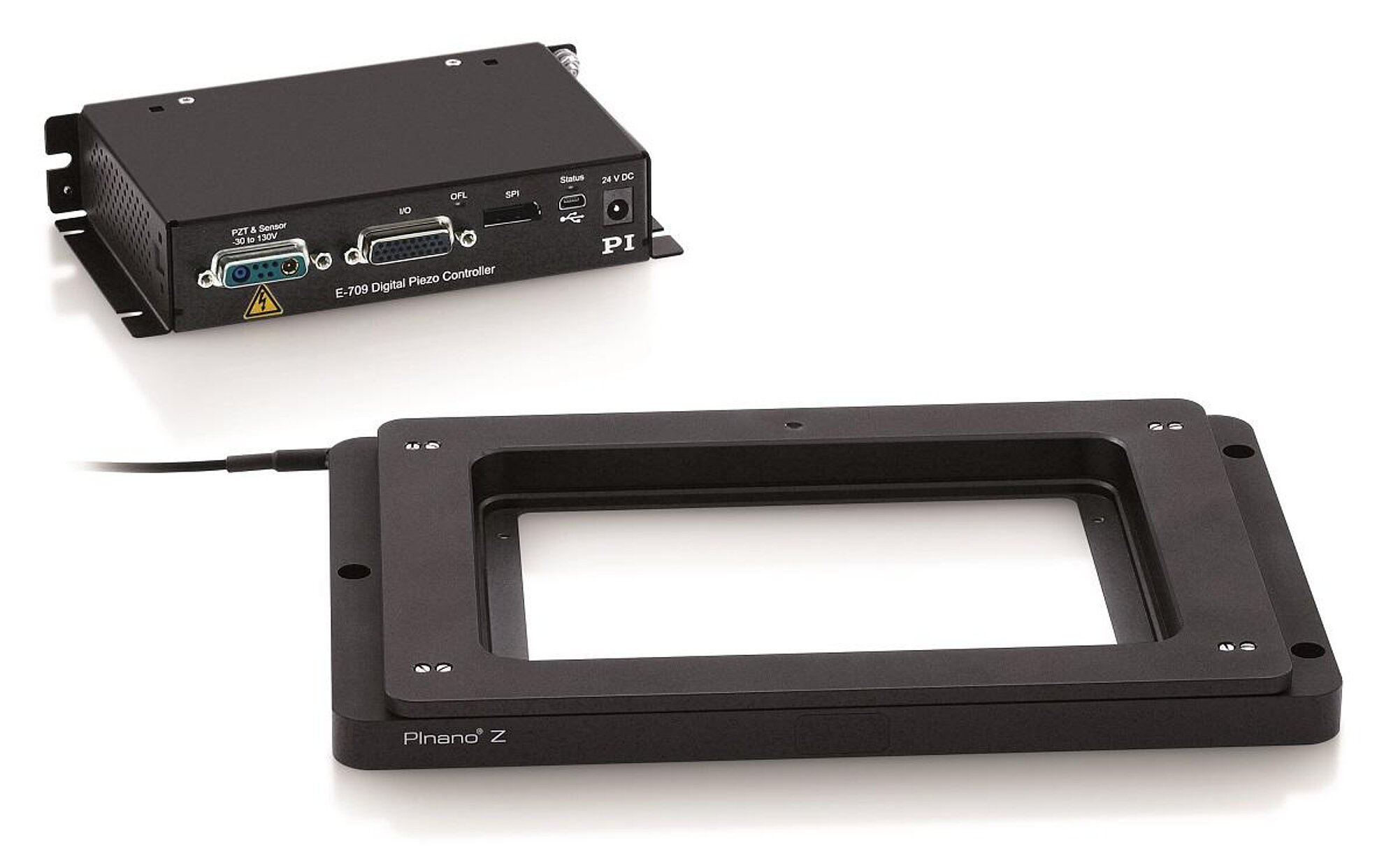

P-736.ZCN2 in combination with the XY stage M-687 with extra large free aperture
P-736 PInano® Z Microscope Scanner for Microtiter Plates
Descrizione del Prodotto
Specifiche
Download
Quotazione / Ordine
Precision-class nanopositioning system for high-resolution microscopy
Optimized for very fast step-and-settle. Exceptionally low profile of 18 mm for easy integration. Versions available for inverted microscopes from Nikon and Olympus.
PICMA® piezo actuator drive
All-ceramic insulation for maximum operating time. Significantly higher humidity resistance. Excellent guiding accuracy due to FEA-modeled flexure joints.
Choice of feedback sensors: piezoresistive or capacitive
- High-resolution piezoresistive sensors ensure stable position control
- Direct-measuring capacitive sensors for considerably improved stability and repeatability compared to piezoresistive sensors
System with controller and software
The compact E-709 digital servo piezo controller is included in the delivery. Digital servos allow adaptation of all control parameters on the fly, by software. Control is possible via USB, RS-232 and a broadband analog interface. Supports PIMikroMove, NanoCapture. PI General Command Set (GCS). Drivers for NI LabVIEW, shared libraries for Windows and Linux. Compatible with µManager, MATLAB and Andor iQ.
Application fields
Confocal microscopy, 3D imaging, laser technology, interferometry, metrology / measuring technology, biotechnology, micromanipulation.

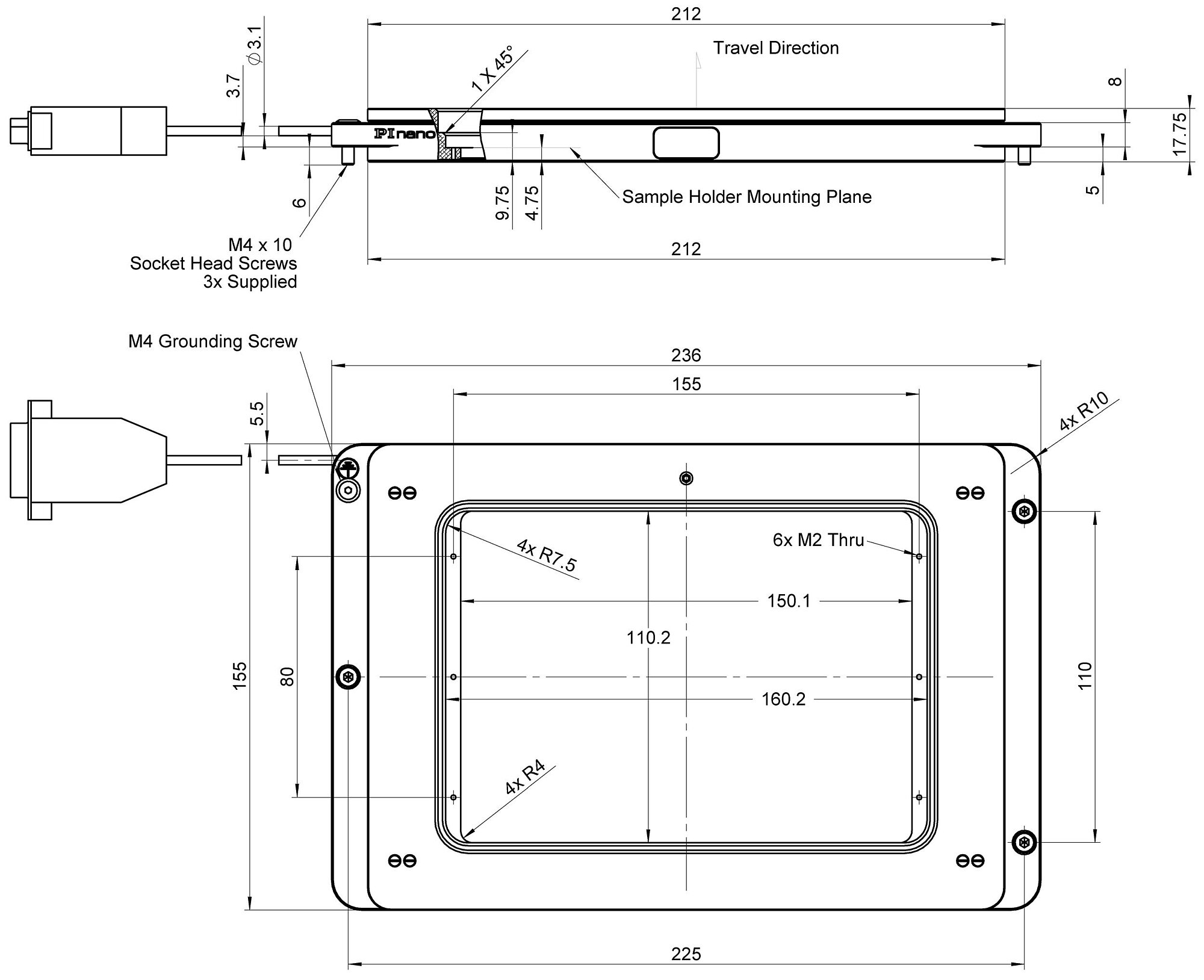

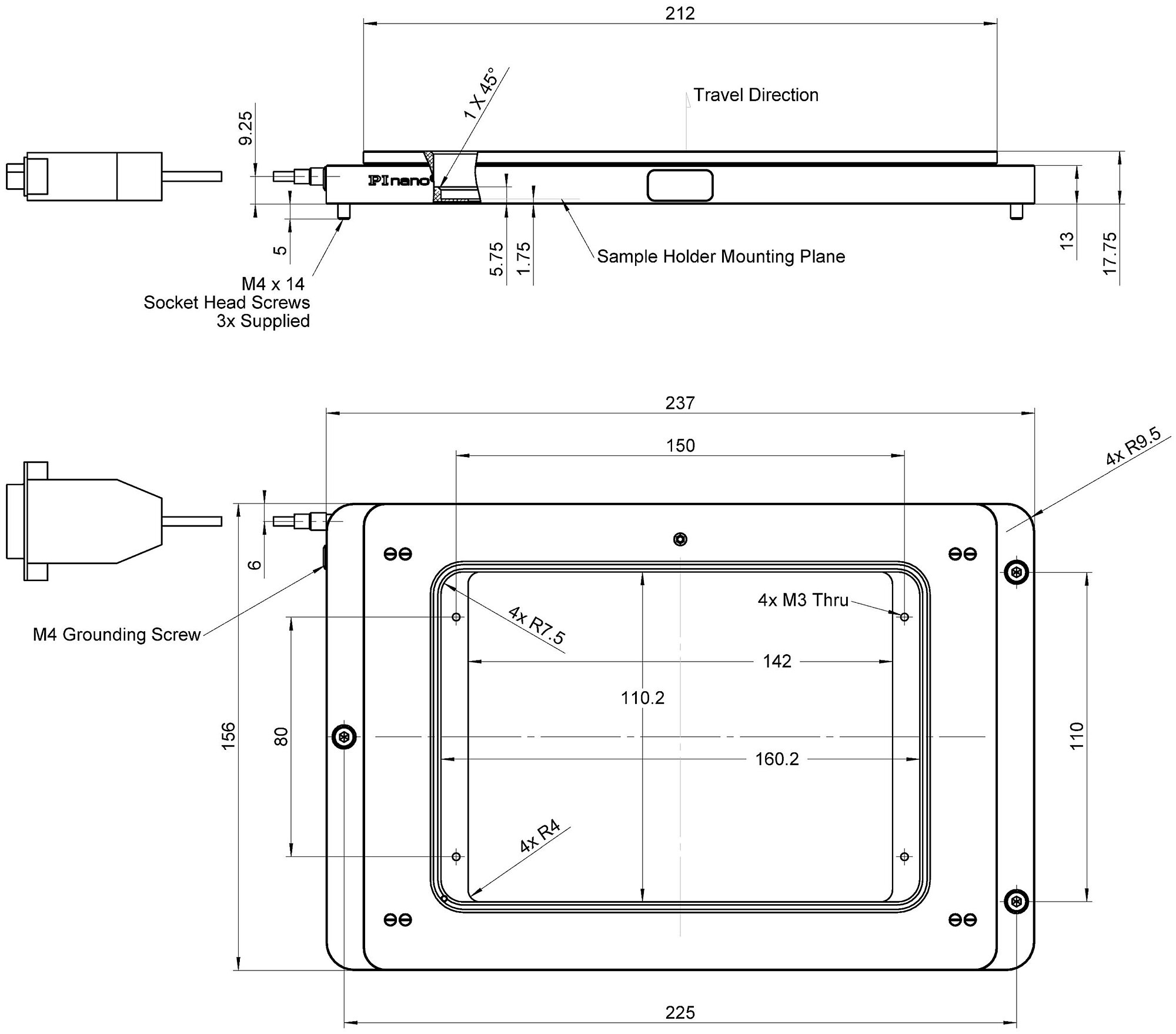

Specifications
Specifications
PD73Z2ROW / P-736.ZRN2S | PD73Z2COW / P-736.ZCN2S | Unit | Tolerance | |
|---|---|---|---|---|
Active axes | Z | Z | ||
Motion and positioning | ||||
Integrated sensor | Piezoresistive | Capacitive | ||
Closed-loop travel range | 220 | 220 | µm | |
Closed-loop resolution | 1 | 1 | nm | typ. |
Mechanical properties | ||||
Resonant frequency, under load, at 100 g | 250 | 250 | Hz | |
Recommended load* | 500 | 500 | g | max. |
Drive properties | ||||
Piezo ceramic | PICMA® P-885 | PICMA® P-885 | ||
Miscellaneous | ||||
Operating temperature range | 15 to 40 | 15 to 40 | °C | |
Material | Aluminum | Aluminum | ||
Mass | 850 | 850 | g | ±5 % |
Cable length | 1.7 | 1.7 | m | ±10 mm |
Piezo controller | E-709 digital servo (included in scope of delivery) | |||
Communication interfaces | USB, RS-232, SPI | |||
I/O connector | HD D-sub 26-pin 1× analog input 0 to 10 V 1× sensor monitor 0 to10 V 1× digital input (LVTTL, programmable) 1× analog output 5× digital outputs (LVTTL, 3× predefined, 2× programmable) | |||
Command set | PI General Command Set (GCS) | |||
User software | PIMikroMove | |||
Software drivers | NI LabVIEW driver, dynamic libraries for Windows and Linux. Supported by MATLAB, µManager, Andor iQ | |||
Supported functions | Wave generator, data recorder, auto zero, trigger I/O | |||
Controller dimensions | 160 mm × 96 mm × 33 mm | |||
