P-725.xCDE2 PIFOC Focus Scanner for Microscope Objectives

Dynamic Scanning with Travel Ranges of 100 µm, 400 µm, or 800 µm

Travel range 100 µm, 400 µm, or 800 µm
Significantly faster response and longer lifetime than motorized drives
Fine positioning of objectives with sub-nm resolution
Direct position measuring with capacitive sensors: Highest linearity
Large clear aperture with Ø 29 mm

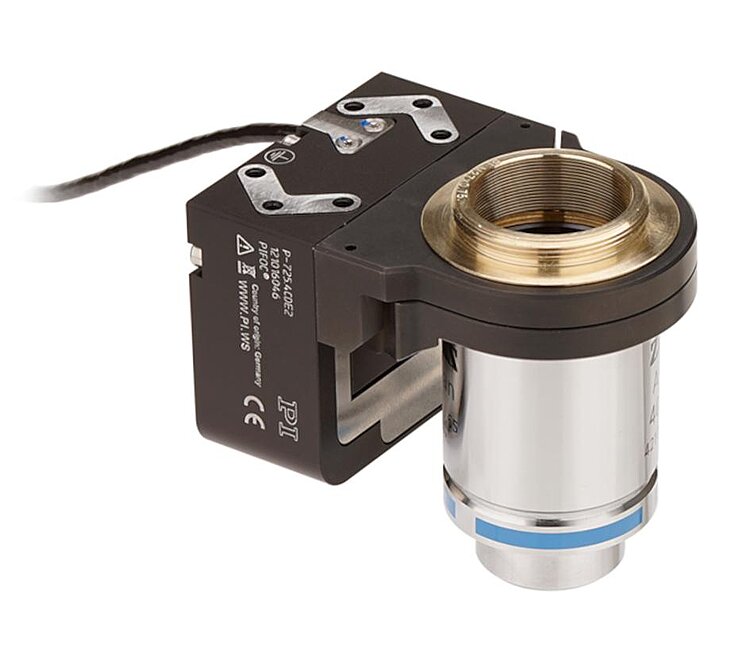

P-725.4CDE2 with objective (not included in the scope of delivery)

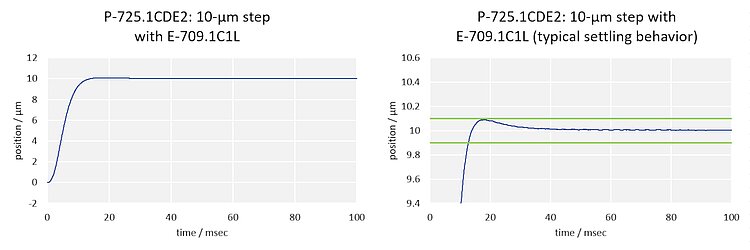

Fast step-and-settle: Due to its stiff design, the P-725.1CDE2 PIFOC can make a 10-µm step with an error band of 1% in only 14 ms (150 g load, with E-709.1C1L controller).

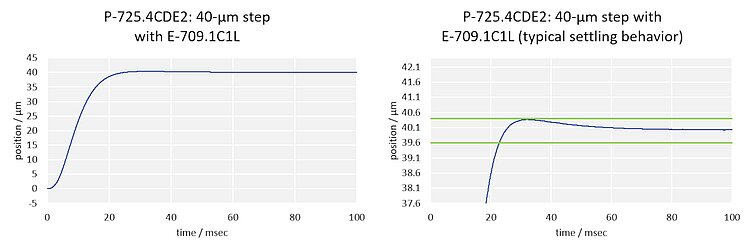

Fast step-and-settle: Due to its stiff design, the P-725.4CDE2 PIFOC can make a 40-µm step with an error band of 1% in only 22 ms (150 g load, with E-709.1C1L controller).

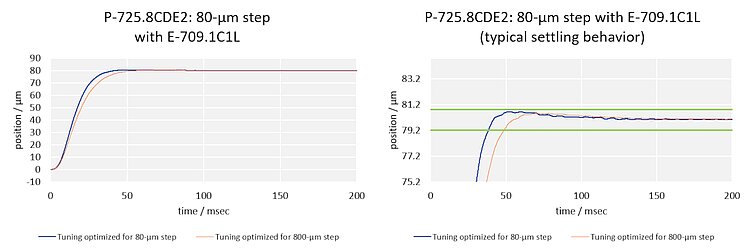

Fast step-and-settle: Due to its stiff design, the P-725.8CDE2 PIFOC can make a 80-µm step with an error band of 1% in only 39 ms (150 g load, with E-709.1C1L controller).

Threaded adapter and spacers for P-725.xCDEx and P-725.xCDE1S

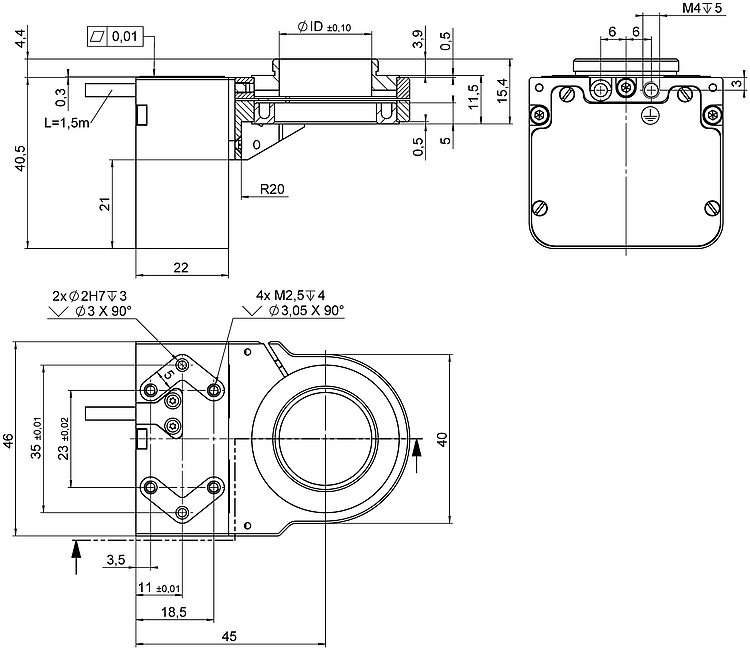

P-725.1CDE2 and P-725.4CDE2, dimensions in mm (please order the adapter and spacers separately). Note that a comma is used in the drawings instead of a decimal point.

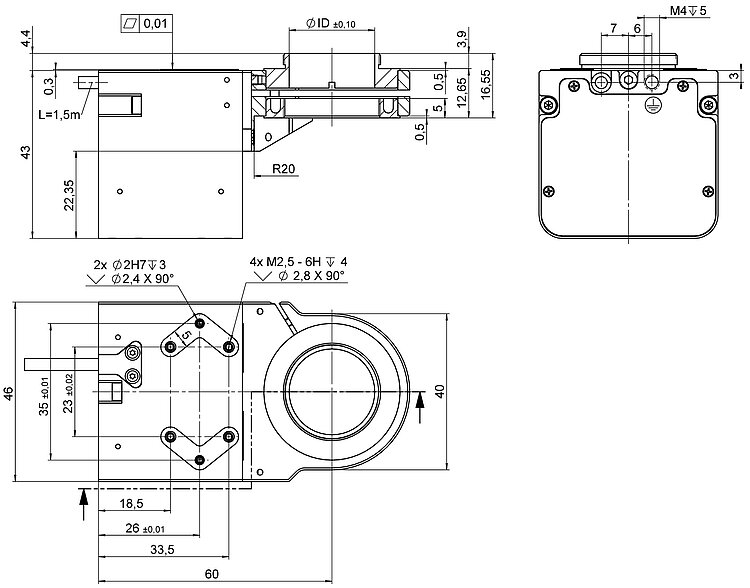

P-725.8CDE2, dimensions in mm (please order the adapter and spacers separately). Note that a comma is used in the drawings instead of a decimal point.

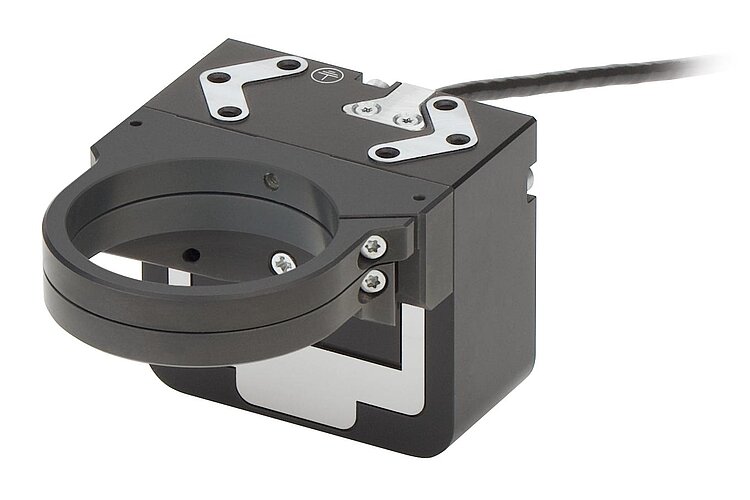

P-725.4CDE2

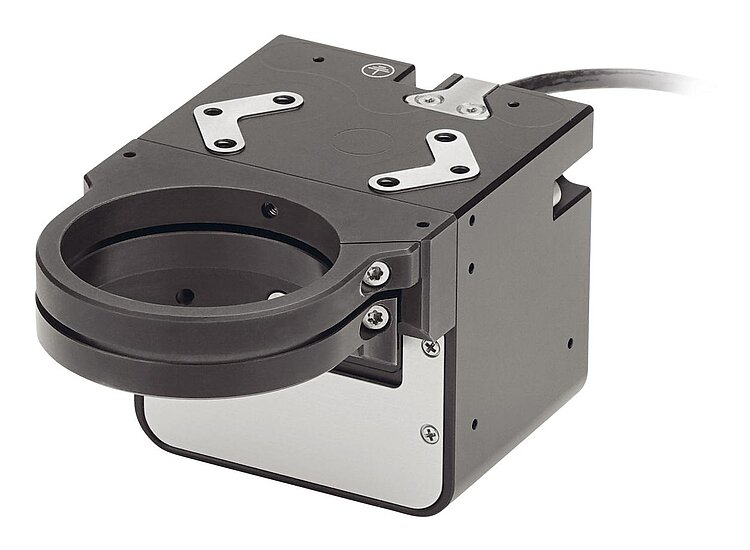

P-725.8CDE2

P-725.8CDE2 with P-725.03x thread adapters and P-725.03S spacer inserted between the microscope turret and the objective

Application fields

Super-resolution microscopy
Light disk microscopy
Confocal microscopy
2-photon microscopy
3D imaging
Screening
Interferometry
Measuring technology
Autofocus systems
Biotechnology
Semiconductor inspection

Outstanding lifetime due to PICMA^® piezo actuators

The PICMA^® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA^® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Subnanometer resolution with capacitive sensors

Capacitive sensors measure with subnanometer resolution without contacting. They guarantee excellent linearity of motion, long-term stability, and a bandwidth in the kHz range.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.

Scarica il datasheet Vai alle Specifiche Vai alla quotazione / ordine

Datasheet

Versione / Data

2024-11-11

pdf - 2 MB

Versione / Data

2024-11-11

pdf - 2 MB

Versione / Data

2025-02-28

pdf - 2 MB

Download

Motion	P-725.1CDE2	P-725.4CDE2	P-725.8CDE2	Tolerance
Active axes	Z	Z	Z
Travel range in Z	100 µm	400 µm	800 µm	+20 / -0 %
Travel range in Z, open loop	120 µm	420 µm	840 µm	±20 %
Linearity error in Z	< 0.03 %	< 0.03 %	< 0.03 %
Angular error around X	± 10 µrad	± 10 µrad	± 50 µrad
Angular error around Y	± 10 µrad	± 45 µrad	± 50 µrad
Positioning	P-725.1CDE2	P-725.4CDE2	P-725.8CDE2	Tolerance
Minimum incremental motion in Z	1 nm	4 nm	5 nm
Point repeatabilitiy, 10% step, 1 sigma	10 nm	10 nm	50 nm
Integrated sensor	Capacitive, direct position measuring	Capacitive, direct position measuring	Capacitive, direct position measuring
Sensor noise, 1 sigma	0.2 nm	0.2 nm	0.8 nm
Position noise in Z	0.1 nm	0.1 nm	0.4 nm	max.
Settling time for 10% step in Z	14 ms	22 ms	39 ms	±10 %
Drive Properties	P-725.1CDE2	P-725.4CDE2	P-725.8CDE2	Tolerance
Drive type	PICMA®	PICMA®	PICMA®
Electrical capacitance in Z	3.2 µF	6.4 µF	12.8 µF	±20 %
Mechanical Properties	P-725.1CDE2	P-725.4CDE2	P-725.8CDE2	Tolerance
Stiffness in Z	0.5 N/µm	0.25 N/µm	0.07 N/µm	±20 %
Resonant frequency in Z, unloaded	680 Hz	400 Hz	230 Hz	±20 %
Resonant frequency in Z, under load with 150 g	290 Hz	175 Hz	110 Hz	±20 %
Permissible push force in Z	100 N	100 N	100 N	max.
Permissible pull force in Z	20 N	20 N	20 N	max.
Guide	Flexure guide with lever amplification	Flexure guide with lever amplification	Flexure guide with lever amplification
Overall mass	280 g	280 g	350 g	±5 %
Material	Stainless steel, aluminum	Stainless steel, aluminum	Stainless steel, aluminum
Objective diameter	39 mm	39 mm	39 mm	max.
Miscellaneous	P-725.1CDE2	P-725.4CDE2	P-725.8CDE2	Tolerance
Operating temperature range	10 to 70 °C	10 to 70 °C	10 to 70 °C
Connector	D-sub 7W2 (m)	D-sub 7W2 (m)	D-sub 7W2 (m)
Cable length	1.5 m	1.5 m	1.5 m	+50 / -0 mm
Recommended controllers / drivers	E-709.1C1L - economic choice, suitable for most use cases; E-754.1CD - high performance choice for highest precision	E-709.1C1L - economic choice, suitable for most use cases; E-754.1CD - high performance choice for highest precision	E-709.1C1L - economic choice, suitable for most use cases; E-754.1CD - high performance choice for highest precision

Linearity error in Z: Under laboratory conditions, a digital controller makes it possible to reduce the linearity error even further.

Settling time: 1% error band, 150 g load

Position noise: 1 sigma

The objective is not included in the scope of delivery.

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
