P-725.xxM • P-725.xxL • P-725.xxS Thread Adapters for PIFOC Focus Scanners

Novità

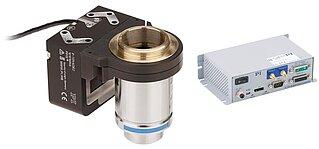

Easy Integration of the PIFOC Positioner to a Microscope (suitable for P-725.xCDE2)

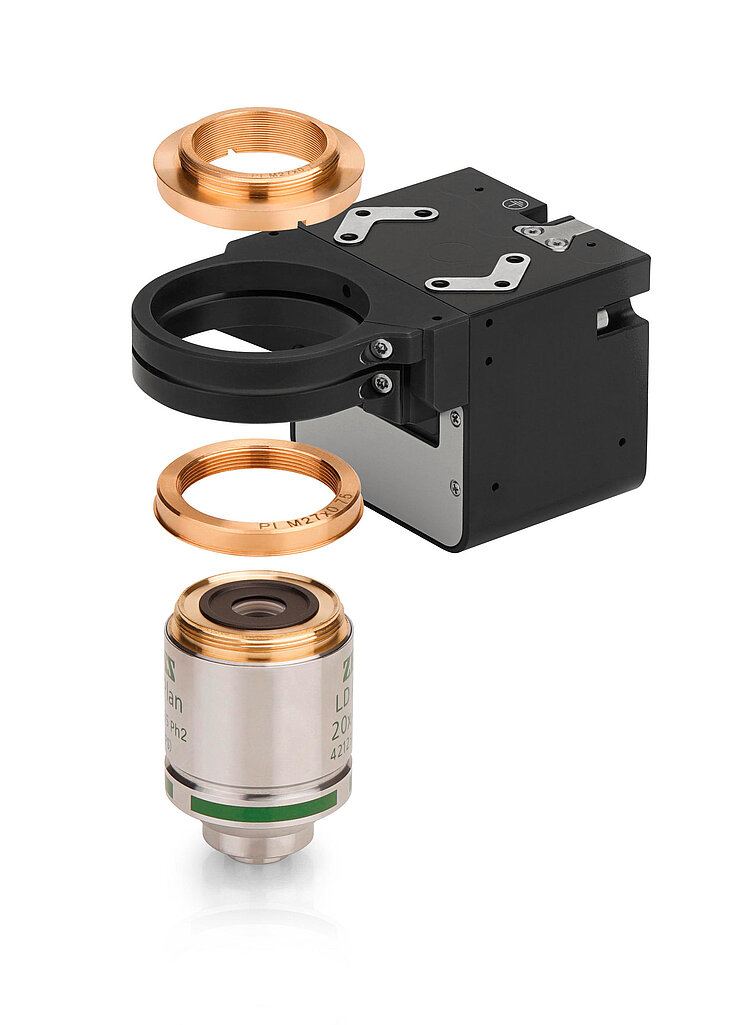

Thread adapters to easily adapt PIFOC positioners to a microscope
Twist-free cable routing
Objective spacers for correcting the parfocal length

Threaded adapter and spacers for P-725.xCDE2

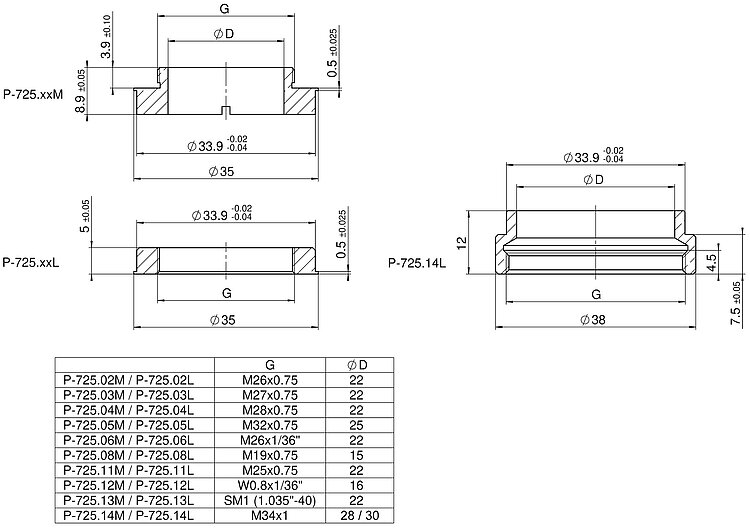

P-725.xxL, P-725.xxM, dimensions in mm

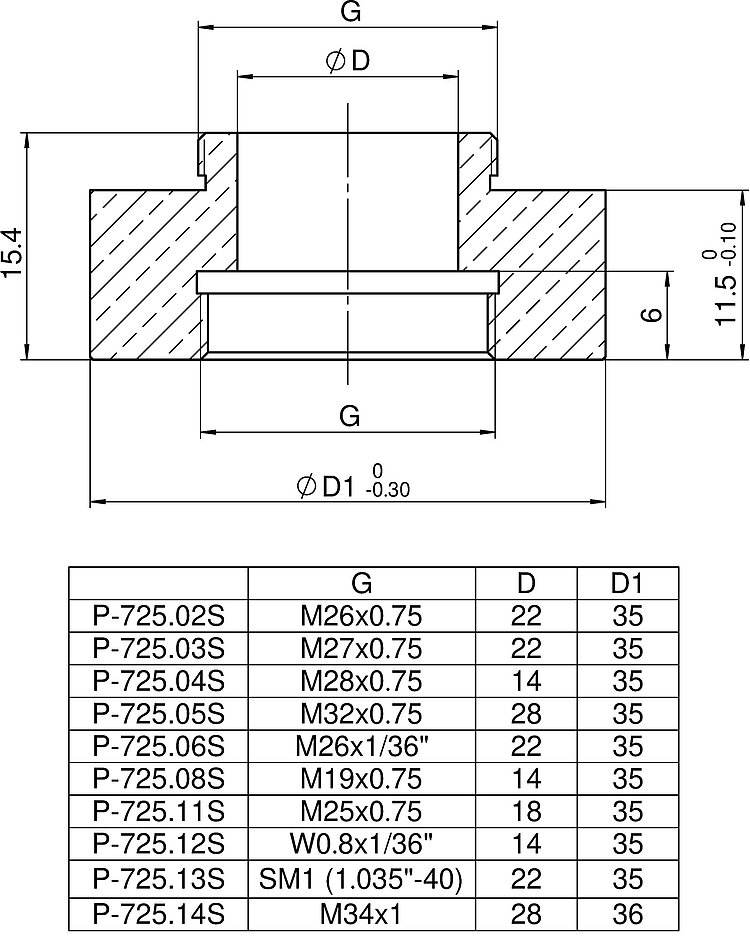

P-725.xxS, dimensions in mm

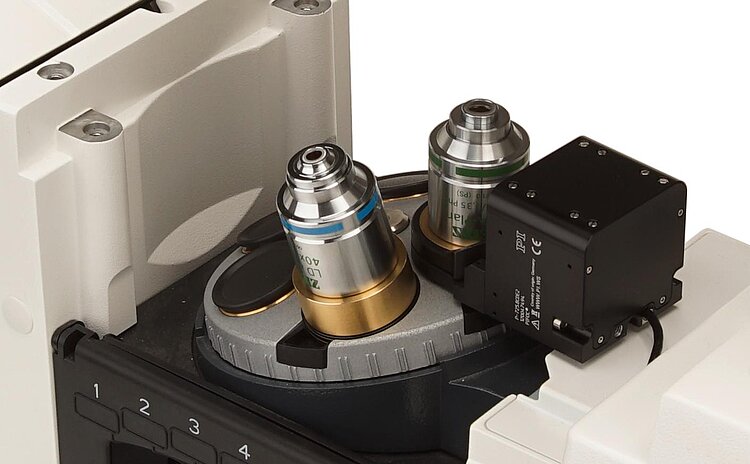

P-725.8CDE2 with P-725.03x thread adapters and P-725.03S spacer inserted between the revolving nosepiece of the microscope and the objective

The PIFOC objective positioners are inserted with the thread adapters between the microscope's revolving nosepiece and objective. After the adapter has been screwed into the revolving nosepiece, the PIFOC positioner is orientated as desired and fixed to the adapter. It is not necessary to turn the PIFOC positioner while doing this and it simplifies routing the cable.

Scarica il datasheet Vai alle Specifiche

Datasheet

Versione / Data

2022-05-13

pdf - 1 MB

Versione / Data

2022-05-13

pdf - 1 MB

Download

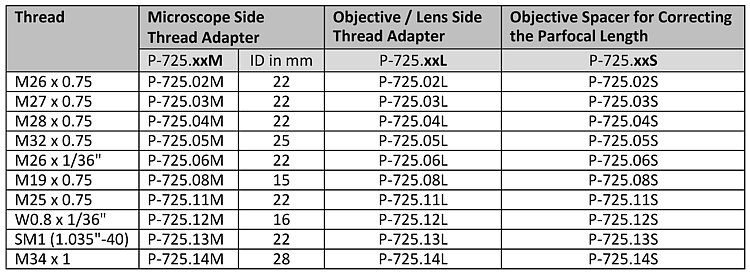

	P-725.02M	P-725.03M	P-725.04M	P-725.05M	P-725.06M	P-725.08M	P-725.11M	P-725.12M	P-725.13M	P-725.14M	P-725.02L	P-725.03L	P-725.04L	P-725.05L	P-725.06L	P-725.08L	P-725.11L	P-725.12L	P-725.13L	P-725.14L	P-725.02S	P-725.03S	P-725.04S	P-725.05S	P-725.06S	P-725.08S	P-725.11S	P-725.12S	P-725.13S	P-725.14S
