L-505.011200
Compact linear stage; 2-phase stepper motor; 13 mm travel range; 30 N load capacity; 10 mm/s maximum velocity; fine-threaded spindle; 0.5 m cable length; 36 mm width
L-505 Compact Linear Stage
With DC or Stepper Motor
- Travel ranges 13 or 26 mm
- Stepper motor with and without gearhead or DC servo motor
- Velocity to 15 mm/s
- Load capacity to 30 N
- Integrated reference and limit switches

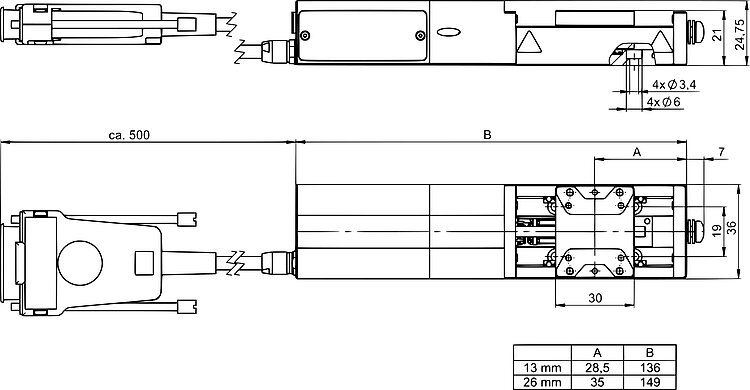

L-505 with direct fixed drive and stepper motor, dimensions in mm

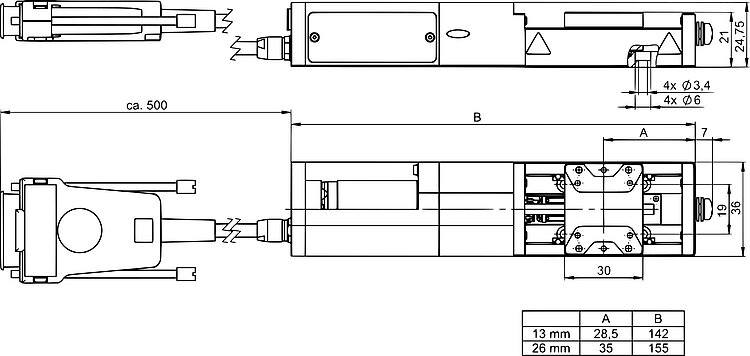

L-505 with direct fixed drive and DC motor, dimensions in mm

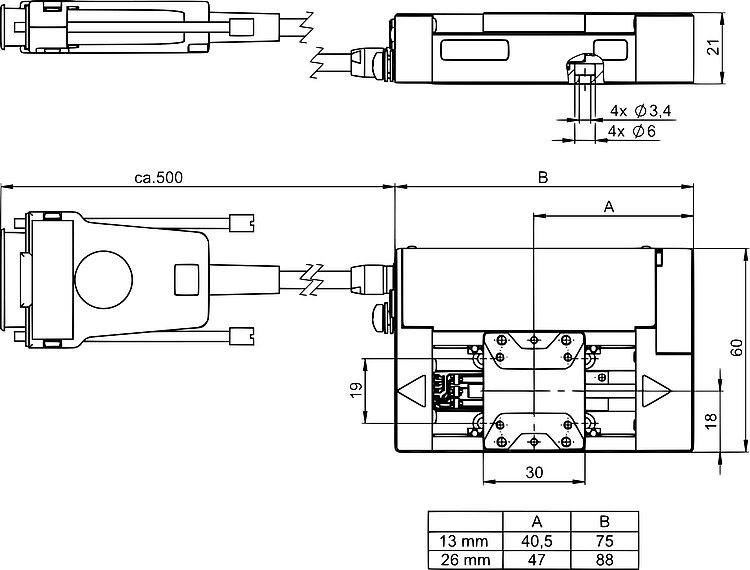

L-505 with belt drive, dimensions in mm

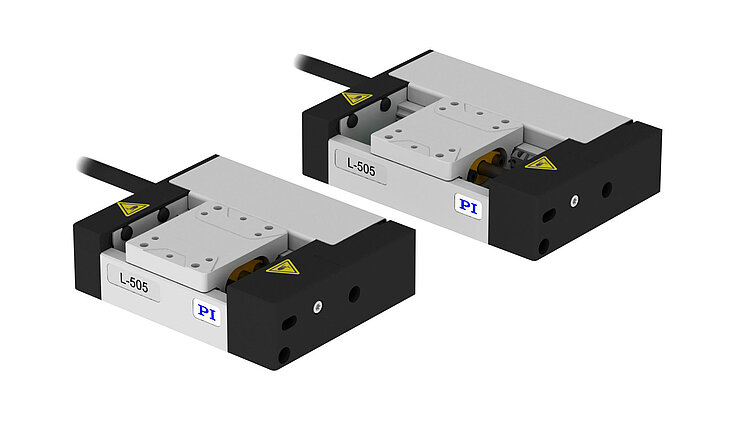

Comparison of the travel ranges: 13 mm (left) and 26 mm (right)

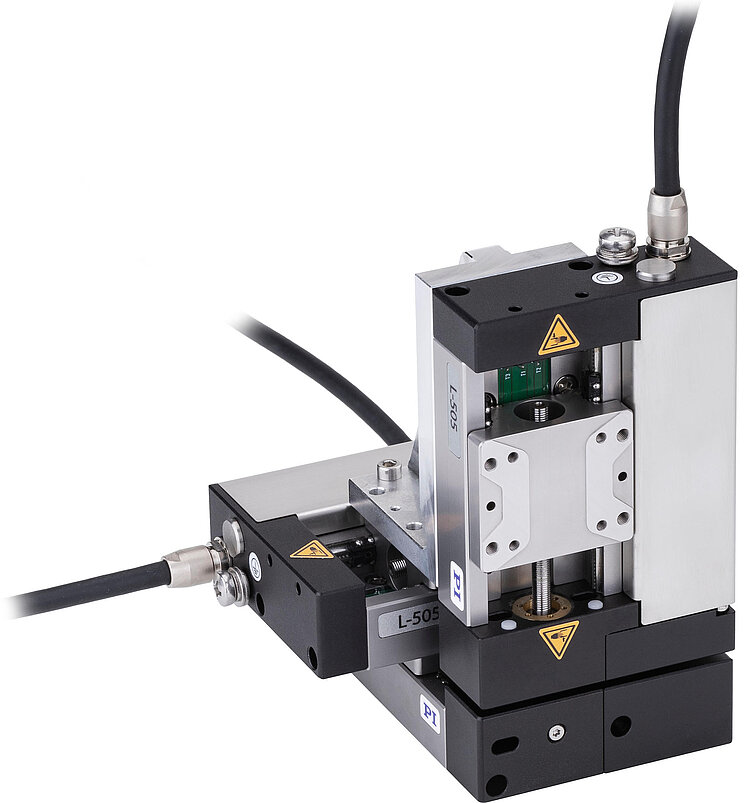

XYZ assembly consisting of three L-505 linear stages (26 mm travel range)
XYZ assembly consisting of three L-505 linear stages and L-505.AP1 mounting bracket

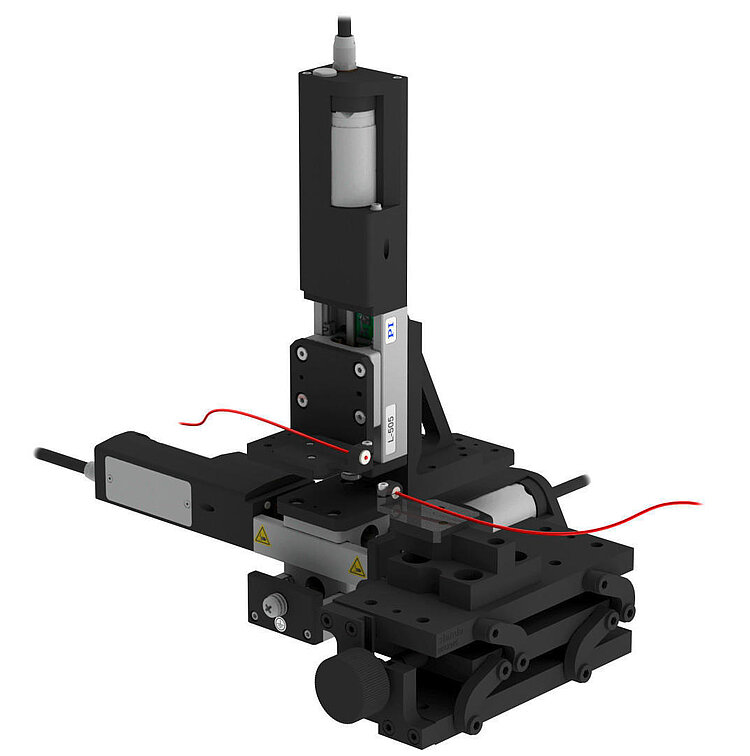

XYZ assembly for fiber alignment consisting of three L-505 linear stages with folded drivetrain
XYZ assembly for fiber alignment consisting of three L-505 linear stages with direct fixed drive
Exploded view of an XYZ assembly consisting of three L-505 linear stages and L-505.AP1 adapter bracket

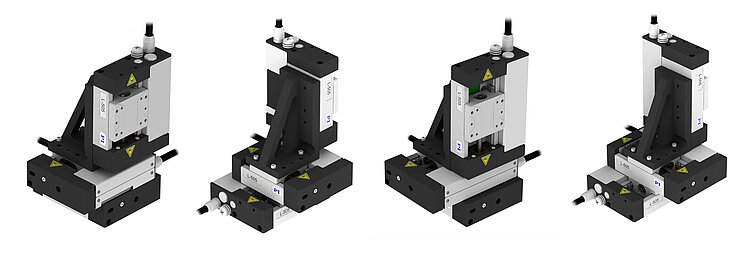

Comparison of XYZ assemblies consisting of three linear stages with folded drivetrain: 13 mm travel range (left) and 26 mm travel range (right)
L-505 Compact Linear Stage
Descrizione del Prodotto
Specifiche
Download
Quotazione / Ordine
Product overview
Compact linear stage with low-backlash drive spindle and ball guides. Directly mountable XY combination. Integrated reference and limit switches: Hall effect.

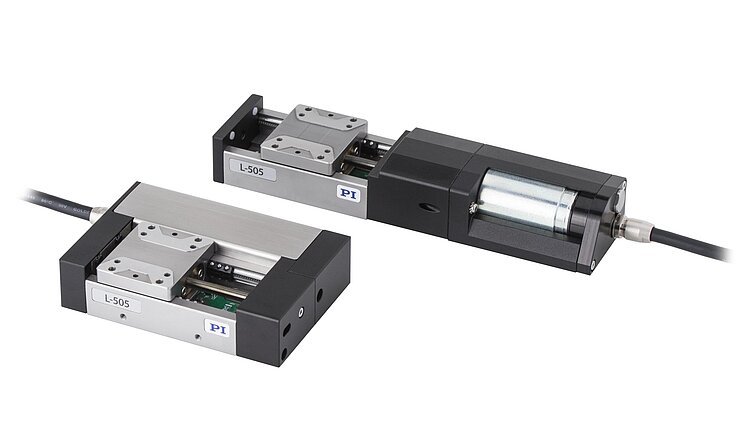

The linear stage is available in two design variants:
- Narrow, long variant with direct fixed drive (flange motor).
- Wide, compact variant with belt drive (folded drivetrain). These variants are marked by an "F" at the end of the item number.
Drive types
- DC motor
- Stepper motor with or without gearhead
Variants with DC motor are equipped with an incremental linear encoder.
Highly accurate position measuring with incremental linear encoder
Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.
Application fields
Medical industry. Autofocus. Precision microassembly. Biotechnology. Automation.
Specifications
Specifications
Select a travel range:
| Motion | L-505.011200 | L-505.011200F | L-505.021200 | L-505.021200F | L-505.01A200F | L-505.023212 | Tolerance |
|---|---|---|---|---|---|---|---|
| Active axes | X | X | X | X | X | X | |
| Travel range in X | 13 mm | 13 mm | 26 mm | 26 mm | 13 mm | 26 mm | |
| Maximum velocity in X, unloaded | 10 mm/s | 7.5 mm/s | 10 mm/s | 7.5 mm/s | 0.75 mm/s | 15 mm/s | |
| Straightness error in Y (straightness) | ± 0.5 µm | ± 0.5 µm | ± 1 µm | ± 1 µm | ± 0.5 µm | ± 1 µm | typ. |
| Straightness error in Z (flatness) | ± 0.5 µm | ± 0.5 µm | ± 1 µm | ± 1 µm | ± 0.5 µm | ± 1 µm | typ. |
| Angular error around Y (pitch) | ± 50 µrad | ± 50 µrad | ± 75 µrad | ± 75 µrad | ± 50 µrad | ± 75 µrad | typ. |
| Angular error around Z (yaw) | ± 50 µrad | ± 50 µrad | ± 75 µrad | ± 75 µrad | ± 50 µrad | ± 75 µrad | typ. |
| Positioning | L-505.011200 | L-505.011200F | L-505.021200 | L-505.021200F | L-505.01A200F | L-505.023212 | Tolerance |
| Minimum incremental motion in X | 0.1 µm | 0.1 µm | 0.1 µm | 0.2 µm | 0.2 µm | 0.1 µm | typ. |
| Unidirectional repeatability in X | ± 0.15 µm | ± 0.15 µm | ± 0.15 µm | ± 0.15 µm | ± 0.15 µm | ± 0.05 µm | typ. |
| Bidirectional repeatability in X | 5 µm | 5 µm | 5 µm | 5 µm | 5 µm | 0.3 µm | typ. |
| Reference switch | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | |
| Reference switch repeatability | 4 µm | 4 µm | 4 µm | 4 µm | 4 µm | 4 µm | max. |
| Limit switches | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | |
| Integrated sensor | — | — | — | — | — | Incremental linear encoder | |
| Sensor signal | — | — | — | — | — | A/B quadrature, RS-422 | |
| Sensor resolution | — | — | — | — | — | 50 nm | |
| Drive Properties | L-505.011200 | L-505.011200F | L-505.021200 | L-505.021200F | L-505.01A200F | L-505.023212 | Tolerance |
| Drive type | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor with gearhead | DC motor | |
| Nominal voltage | 24 V | 24 V | 24 V | 24 V | 24 V | 12 V | |
| Nominal current, RMS | 0.6 A | 0.6 A | 0.6 A | 0.6 A | 0.25 A | 0.46 A | typ. |
| Maximum power consumption | 4 W | 4 W | 4 W | 4 W | 1 W | 7 W | |
| Motor resolution | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 24 Full steps/rev. | — | |
| Drive force in positive direction of motion in X | 20 N | 20 N | 20 N | 20 N | 65 N | 20 N | typ. |
| Drive force in negative direction of motion in X | 20 N | 20 N | 20 N | 20 N | 65 N | 20 N | typ. |
| Mechanical Properties | L-505.011200 | L-505.011200F | L-505.021200 | L-505.021200F | L-505.01A200F | L-505.023212 | Tolerance |
| Permissible push force in Y | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | max. |
| Permissible push force in Z | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | max. |
| Permissible torque in θX | 7 N·m | 7 N·m | 9 N·m | 9 N·m | 7 N·m | 9 N·m | max. |
| Permissible torque in θY | 6 N·m | 6 N·m | 8 N·m | 8 N·m | 6 N·m | 8 N·m | max. |
| Permissible torque in θZ | 6 N·m | 6 N·m | 8 N·m | 8 N·m | 6 N·m | 8 N·m | max. |
| Holding force in X, passive | 20 N | 20 N | 20 N | 20 N | 20 N | — | |
| Moved mass in X, unloaded | 0.07 g | 0.07 g | 0.07 g | 0.07 g | 0.07 g | 0.07 g | |
| Drive screw type | Fine-threaded spindle | Fine-threaded spindle | Fine-threaded spindle | Fine-threaded spindle | Fine-threaded spindle | Fine-threaded spindle | |
| Drive screw pitch | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | |
| Gear ratio i | — | — | — | — | 28,444 | — | |
| Guide | Ball guide | Ball guide | Ball guide | Ball guide | Ball guide | Ball guide | |
| Overall mass | 400 g | 400 g | 400 g | 400 g | 400 g | 400 g | |
| Material | Anodized aluminum, stainless steel | Anodized aluminum, stainless steel | Anodized aluminum, stainless steel | Anodized aluminum, stainless steel | Anodized aluminum, stainless steel | Anodized aluminum, stainless steel | |
| Miscellaneous | L-505.011200 | L-505.011200F | L-505.021200 | L-505.021200F | L-505.01A200F | L-505.023212 | Tolerance |
| Operating temperature range | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | |
| Connector | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | |
| Cable length | 0.5 m | 0.5 m | 0.5 m | 0.5 m | 0.5 m | 0.5 m | |
| Recommended controllers/drivers | C-663.12 G-901 G-910 ACS modular controller | C-663.12 G-901 G-910 ACS modular controller | C-663.12 G-901 G-910 ACS modular controller | C-663.12 G-901 G-910 ACS modular controller | C-663.12 G-901 G-910 ACS modular controller | C-863 C-884 G-901 G-910 ACS modular controller |
At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
Downloads
Datasheet
Documentation
Documentation
User Manual L505UM0001
L-505.0x1200 Linear Stage with Stepper Motor
Versione / Data
2022-06-10
pdf - 4 MB
Versione / Data
2022-06-10
pdf - 4 MB
Documentation
User Manual L505UM0002
L-505.0x1212 Linear Stage with Stepper Motor and Linear Encoder
Versione / Data
2022-06-10
pdf - 4 MB
Versione / Data
2022-06-10
pdf - 4 MB
Documentation
User Manual L505UM0003
L-505.0x3212 Linear Stage with DC Motor and Linear Encoder
Versione / Data
2022-07-27
pdf - 2 MB
Versione / Data
2022-07-27
pdf - 2 MB
Documentation
User Manual L505UM0004
L-505.0x4212F Linear Stage with DC Gear Motor
Versione / Data
2022-07-27
pdf - 2 MB
Versione / Data
2022-07-27
pdf - 2 MB
Documentation
User Manual L505UM0005
L-505.0xA200F Linear Stage with Stepper Motor with Gearhead
Versione / Data
2022-06-10
pdf - 4 MB
Versione / Data
2022-06-10
pdf - 4 MB
Documentation
User Manual L505UM0006
L-505.0xA212F Linear Stage with Stepper Motor with Gearhead and Linear Encoder
Versione / Data
2022-06-10
pdf - 4 MB
Versione / Data
2022-06-10
pdf - 4 MB
3D Models
3D Models
3D model L-505.APx
zip - 42 KB
3D Models
3D model L-505.02xxxx
Versione / Data
2025-05-20
zip - 7 MB
3D Models
3D model L-505.01xxxx
Versione / Data
2025-05-20
zip - 7 MB
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
L-505.011200F
Compact linear stage; 2-phase stepper motor; 13 mm travel range; 30 N load capacity; 7.5 mm/s maximum velocity; fine-threaded spindle; 0.5 m cable length; 60 mm width, folded drivetrain
L-505.021200
Compact linear stage; 2-phase stepper motor; 26 mm travel range; 30 N load capacity; 10 mm/s maximum velocity; fine-threaded spindle; 0.5 m cable length; 36 mm width
L-505.021200F
Compact linear stage; 2-phase stepper motor; 26 mm travel range; 30 N load capacity; 7.5 mm/s maximum velocity; fine-threaded spindle; 0.5 m cable length; 60 mm width, folded drivetrain
L-505.01A200F
Compact linear stage; 2-phase stepper motor with gearhead; 13 mm travel range; 30 N load capacity; 0.75 mm/s maximum velocity; fine-threaded spindle; 0.5 m cable length; 60 mm width, folded drivetrain
L-505.023212
Compact linear stage; DC motor; 26 mm travel range; 30 N load capacity; 15 mm/s maximum velocity; fine-threaded spindle; incremental linear encoder, 50 nm sensor resolution, A/B quadrature, RS-422; 0.5 m cable length; 36 mm width
