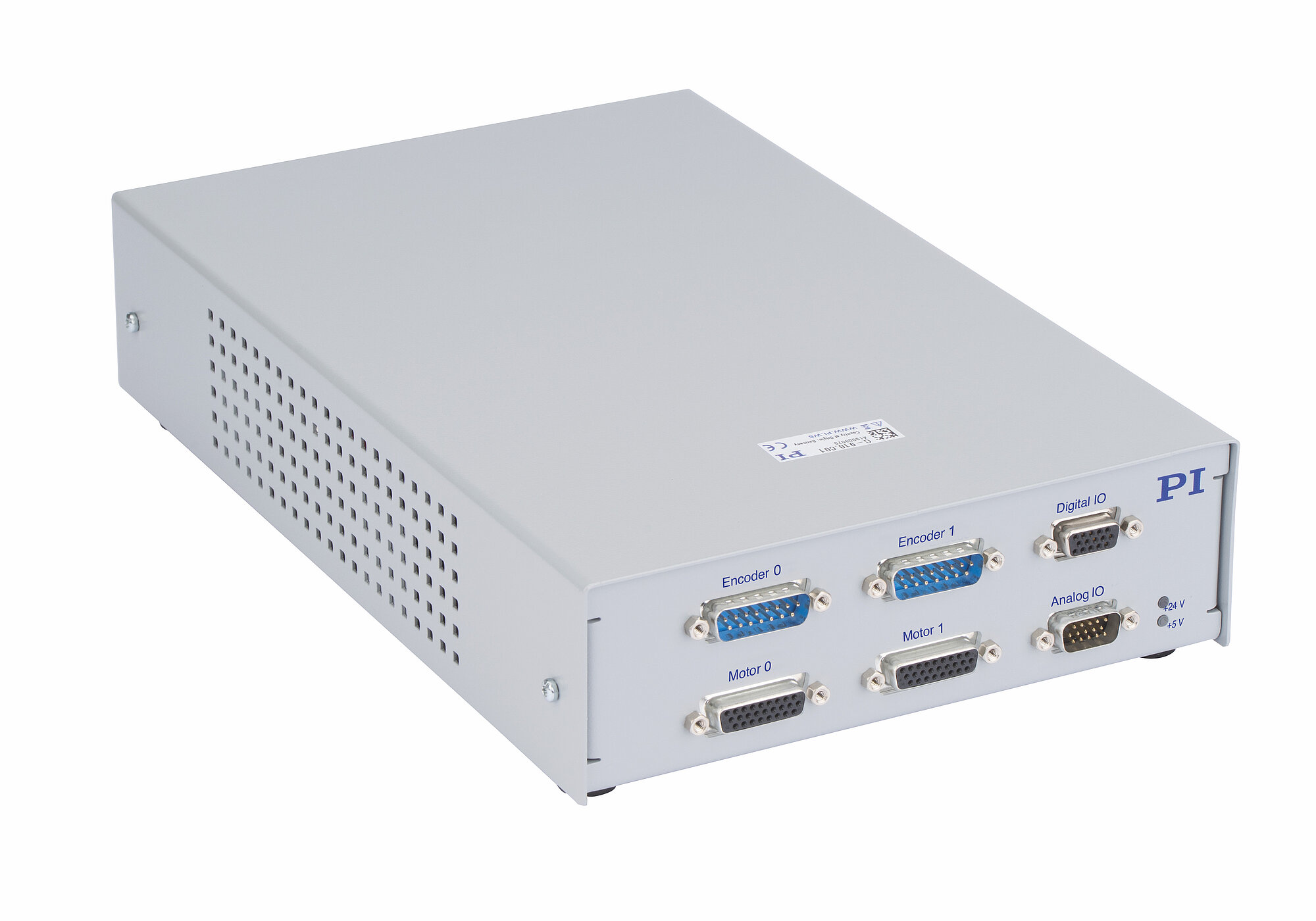

G-910.RC01 • RC03 ACS Driver Module for Low Power Requirement

For 2 Drive Axes with AC Servo Motor, DC Motor, Voice Coil Motor, Stepper Motor

Universal driver module as benchtop device or control cabinet module
Directly compatible with positioners from PI
For AC servo motors / brushless DC motors, brushed DC motors, voice coil motors, stepper motors
Encoder inputs for incremental and absolute-measuring encoders
Output power to 480 W at 60 V
Communication via EtherCAT

Vai alla quotazione / ordine

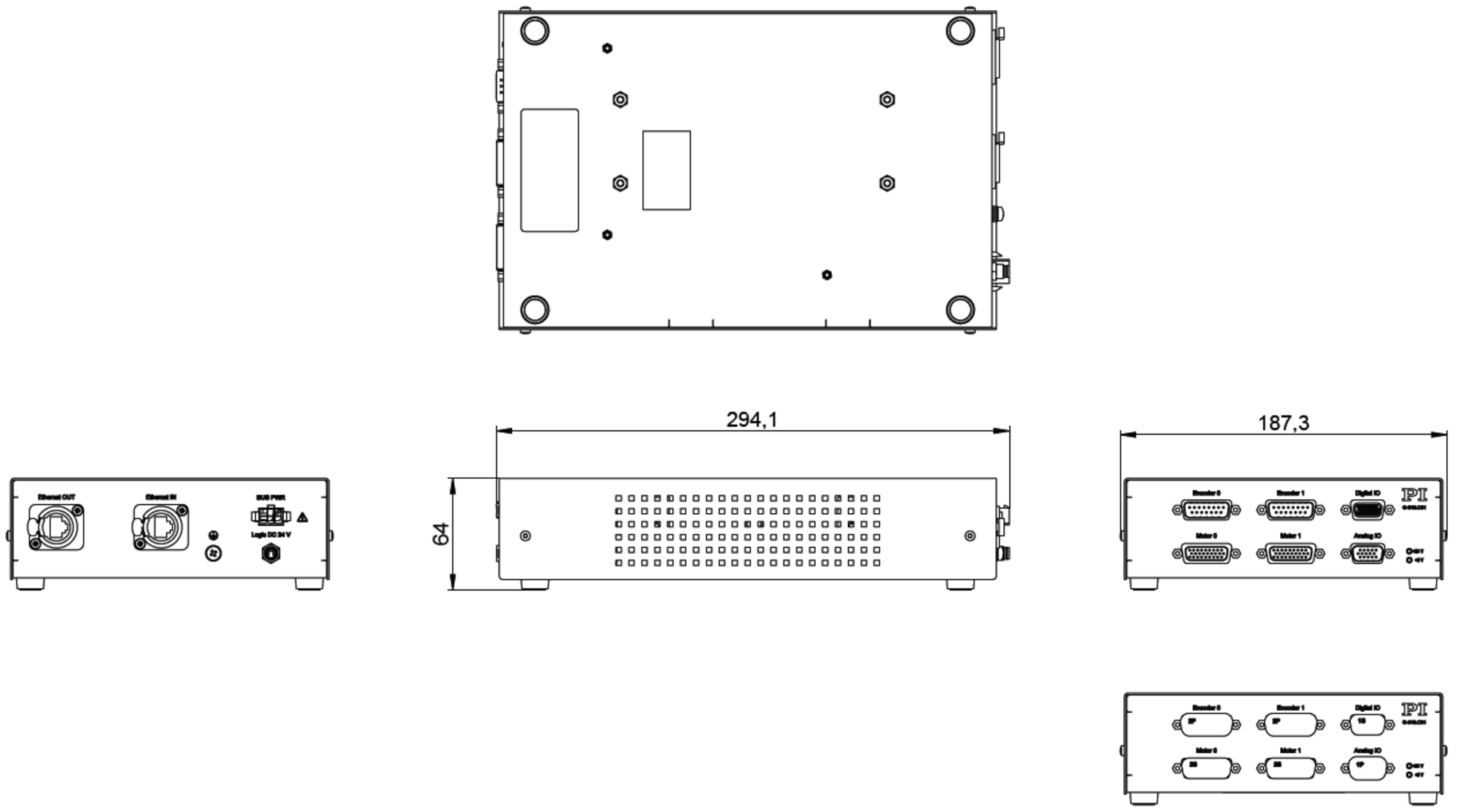

G-910.RC0102x00, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

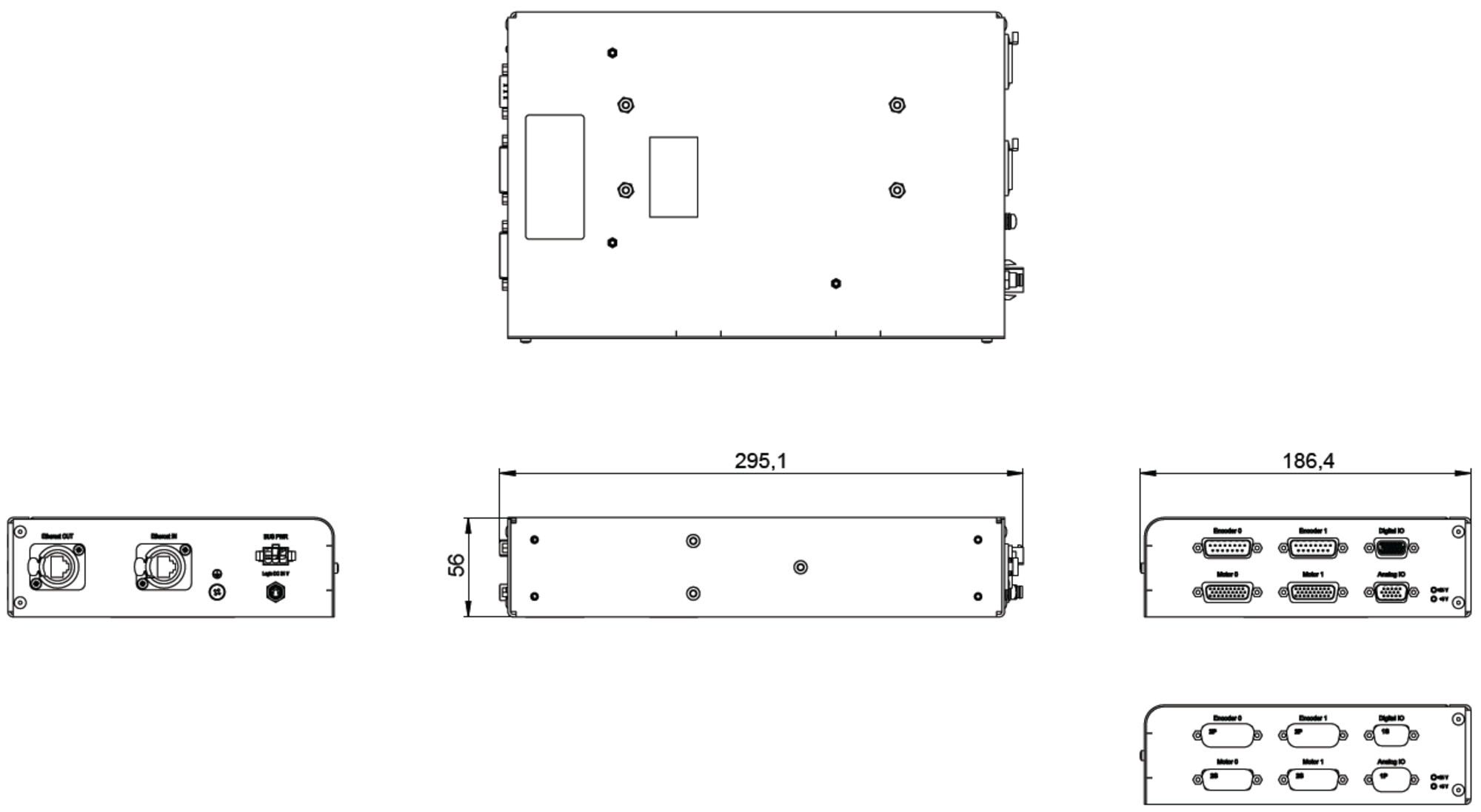

G-910.RC0302200, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

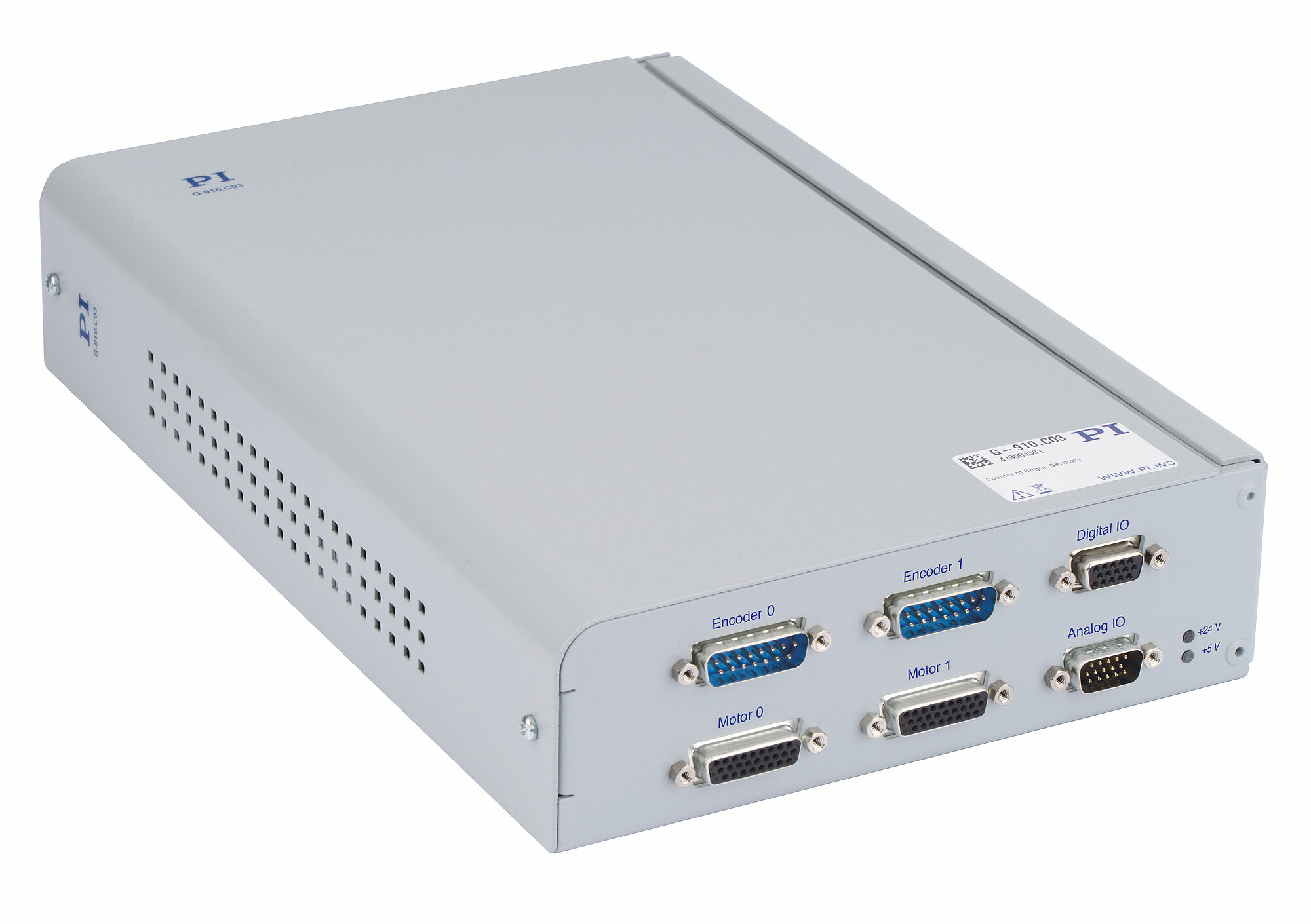

G-910.RC03: ACS UDMnt power amplifier in control cabinet housing

Universal driver module

ACS driver module for operation of positioners with different motor and encoder types, can be configured for a variety of applications. 2 axes, 5 A continuous current per axis possible. 2 motor brakes via PWM brake driver, reduced heat generation by the motor brake. Motion profiles are generated by an external motion controller, e.g., G-910.RC02, and received via EtherCAT. The motion controller must be ordered separately.

Housing types

Available as a benchtop device or a control cabinet module; the adapter for mounting on a TH-35 top hat rail or a mounting plate is included in the scope of delivery for the control cabinet version.

Encoder

Supports incremental encoders (sine/cosine or RS-422) and absolute encoders (EnDat 2.2 & 2.1, Smart-Abs, Panasonic, BiSS-A/B/C (SSI)). Depending on the application, encoders can be connected to the motor interface or separate sensor interface.

I/O lines

Digital inputs and outputs can be flexibly configured. To evaluate reference switches, digital inputs can alternatively be routed to motor connectors. Depending on the application, inputs for limit and reference switches can be configured for 5 V or 24 V and also as PNP or NPN inputs. Position synchronous trigger signals with up to 10 Mhz output frequency enable precise process control at high travel velocities (position event generator – PEG).

Communication

EtherCAT interface for integration with an ACS EtherCAT network. Commanding via the G-910.RC02 motion controller, for example, which integrates an SPiiPlusEC controller + EtherCAT master from ACS, among other components.

Configuration

If the types of positioners used are specified when ordering, all connectors of the G-910.RC01 / G-910.RC03 are suitably preconfigured at delivery. The default configuration, without positioner-specific adjustments, is detailed in the specifications. For subsequent adjustments, contact PI customer service.

Scarica il datasheet Vai alle Specifiche Vai alla quotazione / ordine

Datasheet

Versione / Data

2026-03-18

pdf - 1 MB

Versione / Data

2026-03-18

pdf - 1 MB

Versione / Data

2026-03-18

pdf - 2 MB

Download

	G-910.RC0102100 / G-910.RC0102200 / G-910.RC0302200
Function	ACS UDMnt driver module, with connectors for positioners from PI
Design	G-910.RC01xxxxx: Benchtop deviceG-910.RC03xxxxx: Control cabinet module
Motor types	2-phase and 3-phase AC servo motors / brushless DC motors, brushed DC motors, voice coil motors, stepper motors
Number of drive axes	2
Motion and control	G-910.RC0102100 / G-910.RC0102200 / G-910.RC0302200
Controller type	Cascaded PIV controller structure with velocity and acceleration feedforward control
Sampling rate current control	20 kHz
Control algorithms	Gantry control, dual-loop control
Encoder	1 × per axis, supported types:Incremental: 1V_ss, RS-422Absolute: EnDat 2.2 & 2.1, Smart-Abs, Panasonic, BiSS-A/B/C (SSI)
Limit switch	2 × per axisStandard: 5 V sinking (NPN)Optional configuration: 24 V; sourcing (PNP)
Reference switch	Default: 1 × per axis, 5 V sinking (NPN)Optional configuration: 24 V; sourcing (PNP); use as digital multipurpose inputs on HD-D-sub 15 (f)
Motor brake	1 × per axisIntegrated PWM brake driver with current reduction for reduced brake heating
Electrical properties	G-910.RC0102100	G-910.RC0102200	G-910.RC0302200
Output voltage (intermediate circuit)*	24 V	48 V	12 V to 60 V
Max. output power (intermediate circuit)*	120 W per axis	280 W per axis	480 W per axis (at 60 V DC, 8 A input current)
Current limitation per motor phase (amplitude sinus), continuous/peak (max. 1 s)	5 A / 9.5 A peak**	5 A / 9.5 A peak**	5 A continuous / 10 A peak
Interfaces and operation	G-910.RC0102100 / G-910.RC0102200 / G-910.RC0302200
Motor connector	2 × HD D-sub 26 (f)
Sensor connector	2 × D-sub 15 (m) or 2 × via the motor connectorsFactory default configuration on delivery:Digital incremental encoder (RS-422) or absolute encoder on motor connectorIncremental encoder 1 V_ss on D-sub 15 (m)Factory default configuration on delivery:Digital incremental encoder (RS-422) or absolute encoder on D-sub 15 (m)
Digital I/O lines	HD D-sub 15 (f):2 × outputs PNP 24 V source; also control the brake drivers at the motor connectorsDefault for inputs:2 × PNP 24 V source on HD D-sub 15 (f); in addition 2 × NPN 5 V sinking for reference switches on the motor connectorsOptional configuration for inputs:4 × PNP 24 V source on HD D-sub 15 (f)
Analog I/O lines	HD D-sub 15 (m):2 differential analog inputs: ±10 V, 12 bit1 differential analog output: ±10 V, 10 bit
Outputs for position event generator (PEG)	Parallel on HD D-sub 15 (m) and HD D-sub 15 (f):2 differential outputs (RS-422) for pulses at programmable positions, pulse width 26 ns to 1.75 ms, max. 10 MHz; only possible with incremental encoder
Communication interfaces	EtherCAT
Environment	G-910.RC0102100	G-910.RC0102200	G-910.RC0302200
Operating voltage intermediate circuit	24 V DC from external power supply unit, power supply unit with 24 V DC (120 W) included in the scope of delivery	48 V DC from external power supply unit, power supply unit with 48 V DC (280 W) included in the scope of delivery	12 V to 60 V DC from external power adapter, not included in the scope of delivery
Operating voltage logic	24 V DC from external power supply unit, power supply unit with 24 V DC (120 W) included in the scope of delivery	24 V DC from external power supply unit, power supply unit with 24 V DC (120 W) included in the scope of delivery	24 V DC from external power supply unit, not included in the scope of delivery
Max. current consumption intermediate circuit	5 A*	5 A*	<8.6 A
Max. current consumption logic	0.9 A	0.9 A	0.9 A
Operating temperature range	5 °C to 40 °C (temperature protection switches off at excessively high temperatures)	5 °C to 40 °C (temperature protection switches off at excessively high temperatures)	5 °C to 40 °C (temperature protection switches off at excessively high temperatures)
GND	1.55 kg	1.55 kg	1.4 kg
Dimensions	187.3 mm × 64 mm × 294.1 mm	187.3 mm × 64 mm × 294.1 mm	186.4 mm × 56 mm × 295.2 mm

* Depending on the power supply unit used

** Permissible maximum value is not reached with the supplied power supply unit

Scarica il datasheet Vai al download Vai alla quotazione / ordine

Datasheet

Versione / Data

2026-03-18

pdf - 1 MB

Versione / Data

2026-03-18

pdf - 1 MB

Versione / Data

2026-03-18

pdf - 2 MB

Download

Documentation

G-910.RC0302200 ACS driver module, 2 axes, intermediate circuit voltage 12 to 60 V DC, directly compatible with positioners from PI

Versione / Data

2022-05-04

pdf - 3 MB

Documentation

G-910.RC0102100 and G-910.RC0102200 ACS drive modules with 24 V and 48 V intermediate circuit voltage and interfaces for PI positioners

Versione / Data

2020-06-30

pdf - 2 MB

inglese

Documentation

ACS Motion Controllers and Drivers: G-900, G-901, G-902, G-910

Versione / Data

1.0.0 08/2025

pdf - 1 MB

Versione / Data

1.0.0 08/2025

pdf - 1 MB

3D Models

Versione / Data

2021-02-05

zip - 2 MB

3D Models

Versione / Data

2021-02-05

zip - 3 MB

Vai alla quotazione / ordine

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

G-910.RC0102100

ACS driver module, 2 axes, intermediate circuit voltage 24 V DC, logic voltage 24 V DC, benchtop device, integrated ACS UDMnt2B220U2N power amplifier

Add to quote list Remove from quote list

G-910.RC0102200

ACS driver module, 2 axes, intermediate circuit voltage 48 V DC, logic voltage 24 V DC, benchtop device, integrated ACS UDMnt2B220U2N power amplifier

Add to quote list Remove from quote list

G-910.RC0302200

ACS driver module, 2 axes, intermediate circuit voltage 12 to 60 V DC, logic voltage 24 V DC, control cabinet module for screw-on or top hat rail mounting, integrated ACS UDMnt2B220U2N power amplifier

Add to quote list Remove from quote list

Ask for custom design
