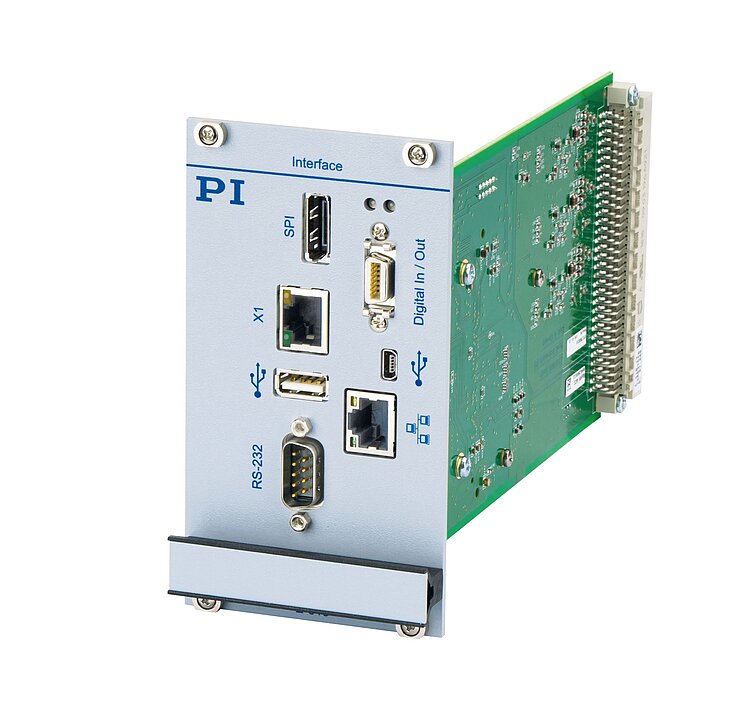

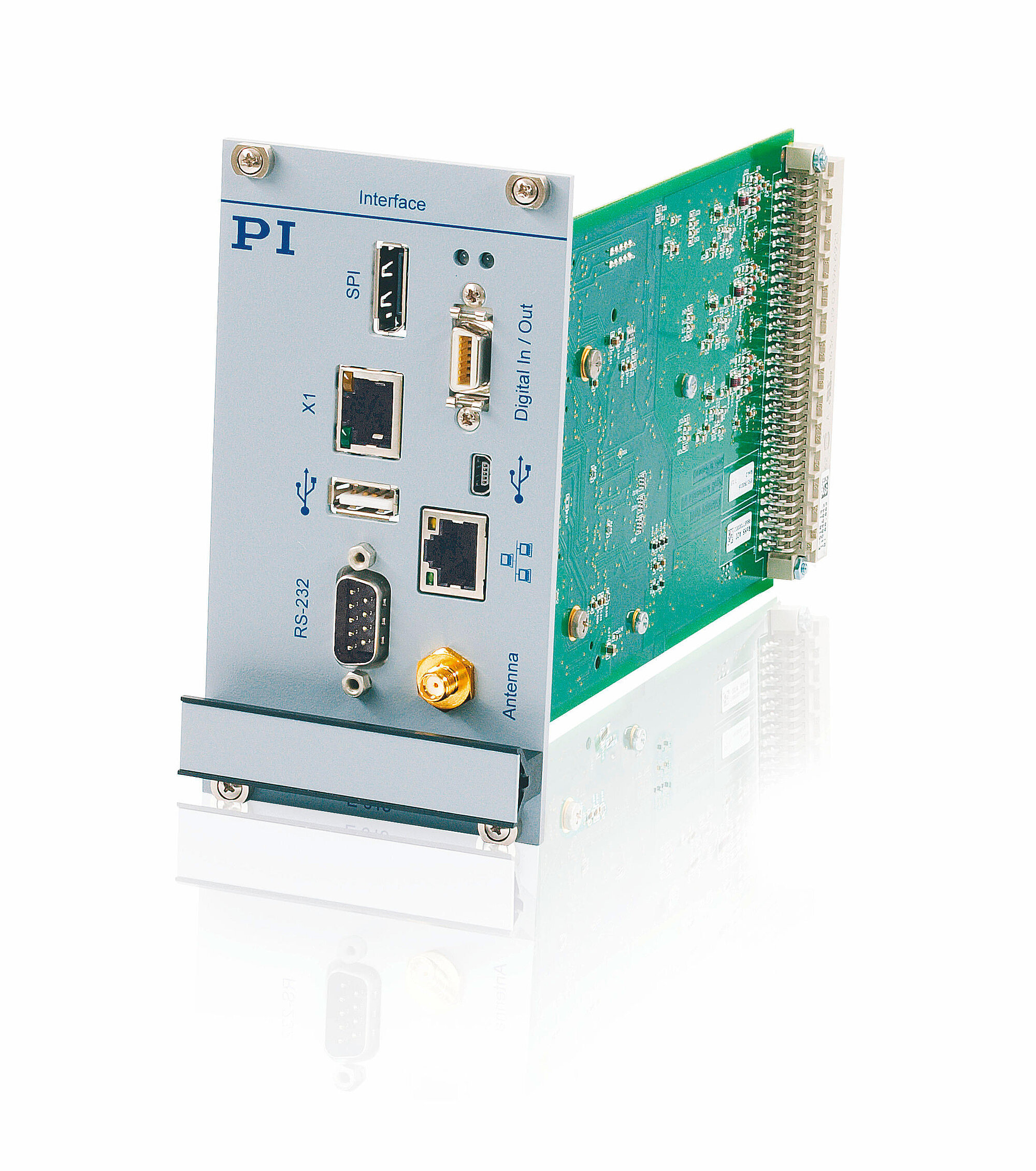

E-518 Digital Interface and Function Unit

For the Modular E-500 Piezo Controller

Low-noise 20-bit D/A and A/D converter
25 kHz control frequency
TCP/IP, USB as well as RS-232 interface
Wave generator with programmable trigger inputs and outputs
3 axes
Plug-in module for E-500 system

Interface and function module for piezo-based positioning systems

Interface module for digital control of E-500 motion control systems and E-470, E-481, and E-482 piezo amplifiers/controllers. Availability of digital functions such as wave generator or data recorder.

Interfaces

Commanding via TCP/IP, USB, and RS-232 interfaces. Digital inputs and outputs for automation.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with startup macro. Data recorder. Wave generator. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Scarica il datasheet Vai alle Specifiche Vai alla quotazione / ordine

Datasheet

Versione / Data

2026-07-03

pdf - 165 KB

Versione / Data

2026-07-03

pdf - 168 KB

Versione / Data

2026-07-03

pdf - 333 KB

Download

Basics	E-518.I3
Housing type	Module without housing, 14 HP, 3 U
Axes	3
Processor	DSP 376 MHz
Application-related functions	Makro ǀ Startup macro ǀ Data recorder
Configuration management	Import of parameter files ǀ Manual parameter input
Motion and control	E-518.I3
Control variables	Position
Maximum control frequency (servo cycle)	25000 Hz
Motion types	Point-to-point motion ǀ Wave generator
Interfaces and operation	E-518.I3
Communication interfaces	RS-232 ǀ TCP/IP ǀ USB
Motion-dependent inputs and outputs	Digital trigger input ǀ Digital trigger output
Display and indicators	Status LED ǀ Error LED
Command set	GCS 2.0
User software	PIMikroMove
Application programming interfaces	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python
Digital inputs	3
Digital input signal	TTL, 3.3 V, 5 V compatible
Digital outputs	3
Digital output signal	TTL, 3.3 V
Amplifier	E-518.I3
Resolution DAC/voltage resolution	20 bit
Number of amplifier channels	3
Sensor	E-518.I3
Sensor channels	3
Digital resolution for the sensor input	20 bit
Sensor scanning frequency	200000 Hz
Electrical properties	E-518.I3
Miscellaneous	E-518.I3
Connector digital input	MDR 14-pole (f)
Connector digital output	MDR 14-pole (f)
Connector TCP/IP	RJ45 socket, 8P8C
Connector USB	USB socket type A ǀ USB socket Mini-B
Connector RS-232	D-sub 9 (m)
Maximum current consumption	1 A
Operating temperature range	5 to 50 °C
Overall mass	260 g

Sensor evaluation, position control, and piezo voltage output are handled by the analog section of the piezo controller.

Resolution DAC/voltage resolution: 16 bit @ 1 MHz
