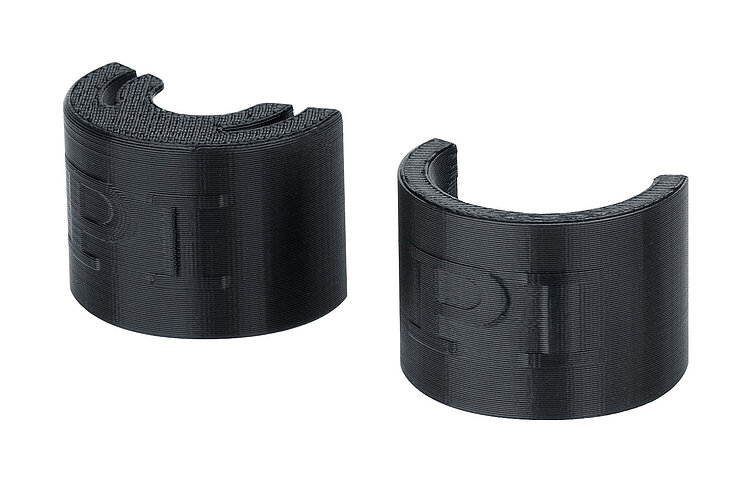

S-330.Xx Mirror Centering Aids for the S-330 and S-331

3-D Printed PI Equipment for Gluing Mirrors Yourself

S-330.Xx Mirror Centering Aids for the S-330 and S-331
Product Description Downloads Quote / Order

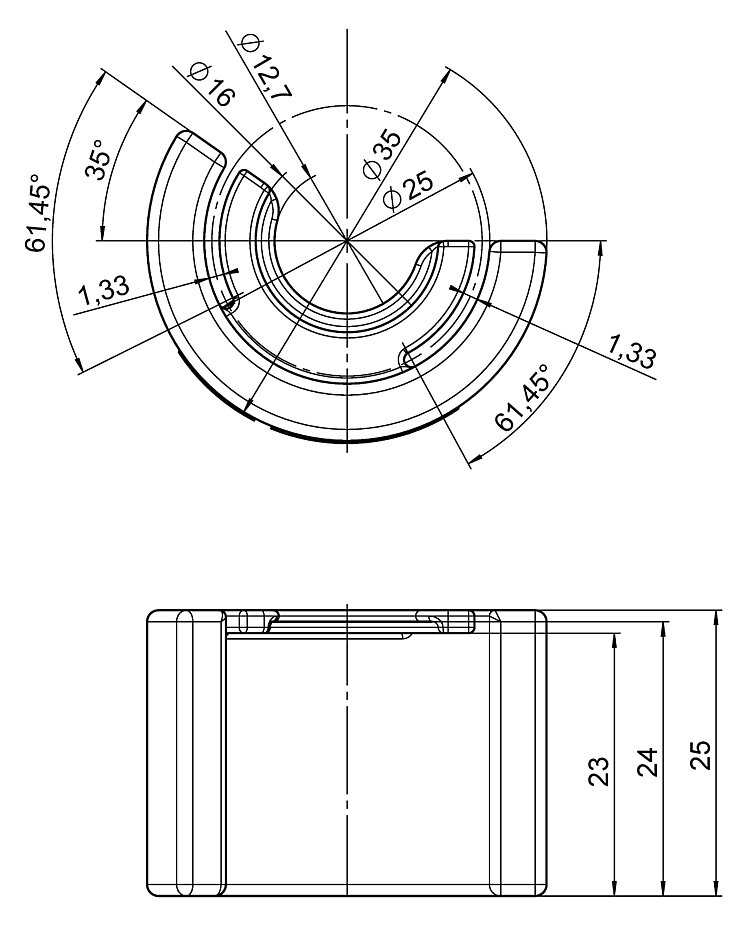

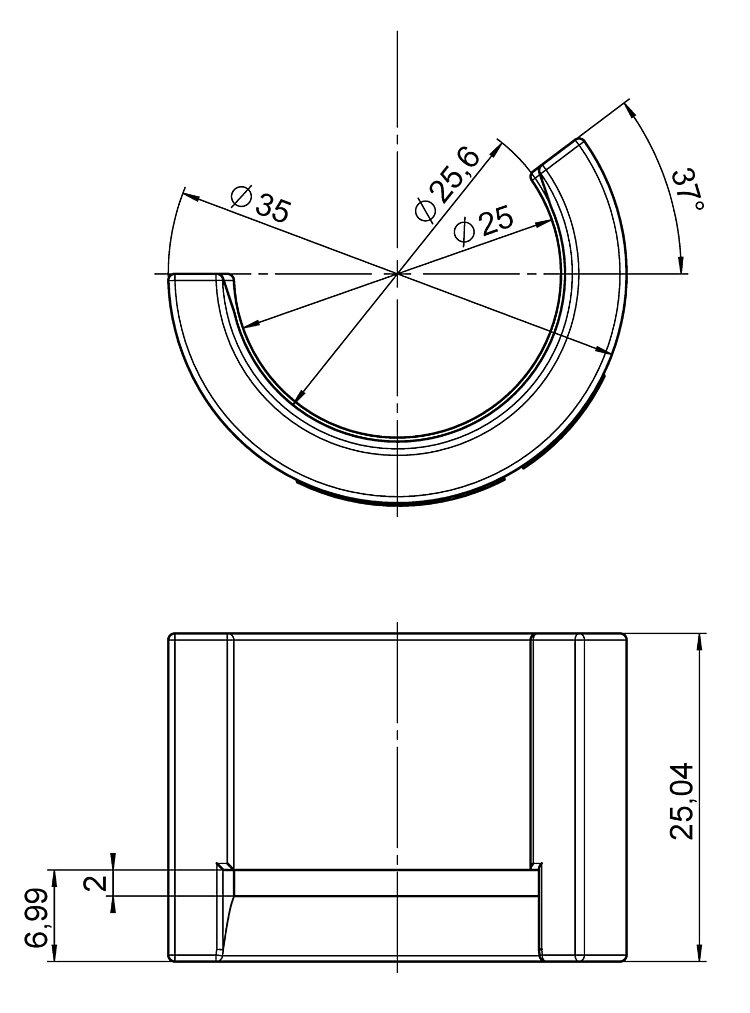

  • Center 0.5" mirrors and 1.0" mirrors reliably
  • 3-D printed component, made of thermoplastic resin (ABS)
  • Inexpensive and also easy to use

Accessory for S-330 and S-331 piezo tip/tilt platforms

Centering aids can be used for gluing a mirror onto models from the S-330 and S-331 series supplied without mirrors. The centering aid holds the mirror at the desired position during gluing.

Downloads

Datasheet

Datasheet S-330.Xx

Version / Date
2018-05-14
Version / Date
2018-05-14
Document language
pdf - 162 KB
pdf - 163 KB

Documentation

Technical Note S330T0024

S330T0024, valid for S-330.X1, S-330.X2, S-335.X1, S-335.X2
Document language English
pdf - 332 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
