P-876 DuraAct Patch Transducer

Bendable and Robust

P-876 DuraAct Patch Transducer
Product Description Specifications Downloads Quote / Order

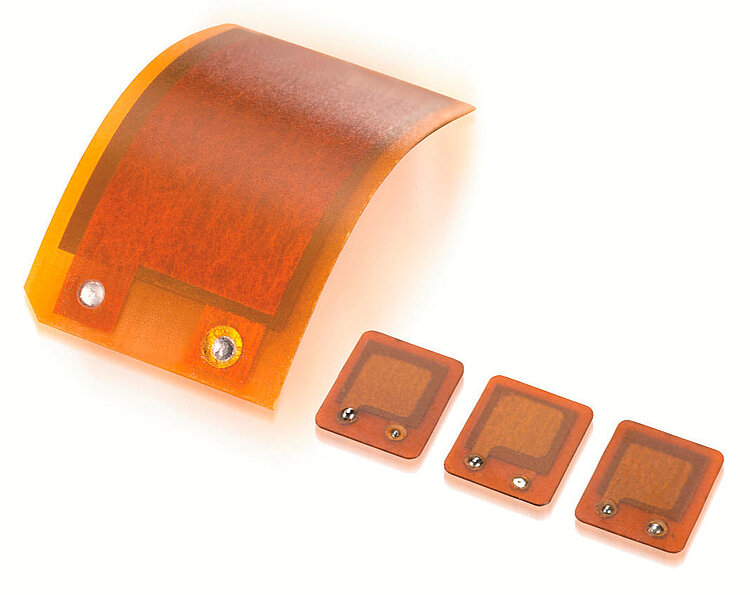

Patch transducer

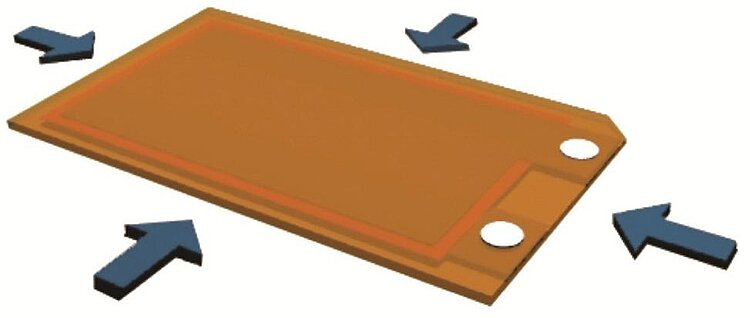

Functionality as actuator and sensor component. Nominal operating voltage from 100 up to 1000 V, depending on the active layer height. Power generation for self-sufficient systems possible up to the milliwatt range. Can also be applied to curved surfaces.

Robust, inexpensive design

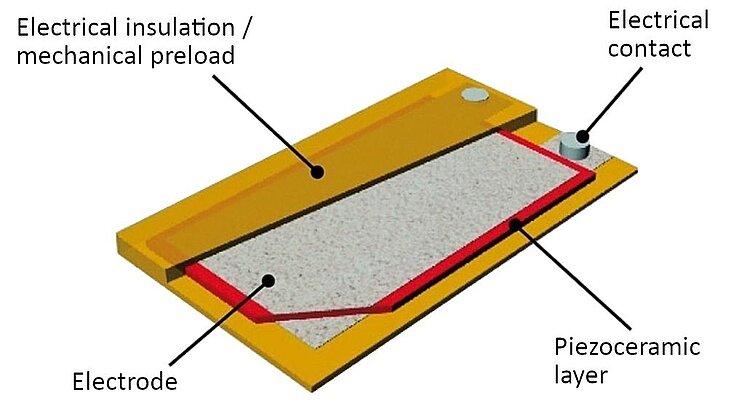

Laminated structure consisting of a piezoceramic plate, electrodes and polymer materials. Manufactured with bubble-free injection method. The polymer coating simultaneously serves as electrical insulation and as mechanical preload, which makes the DuraAct bendable.

Customized versions and other specifications on request

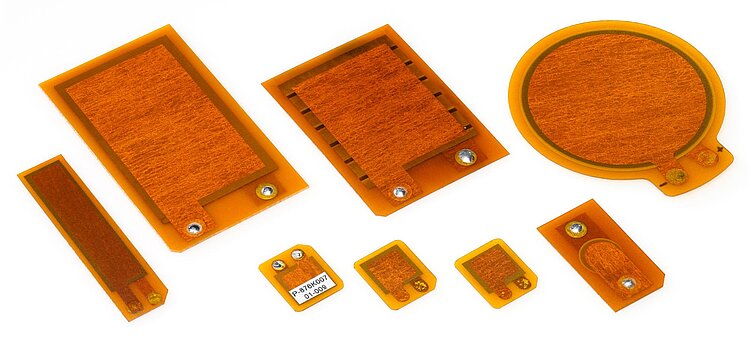

  • Flexible choice of size
  • Flexible choice of thickness and therefore bending ability
  • Flexible choice of piezoceramic material
  • Variable design of the electrical connections
  • Combined actuator/sensor applications, even with several piezoceramic layers
  • Multilayer piezo elements

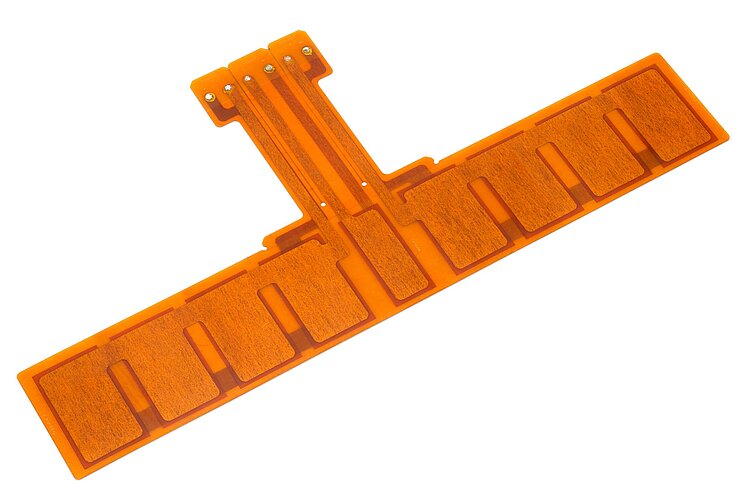

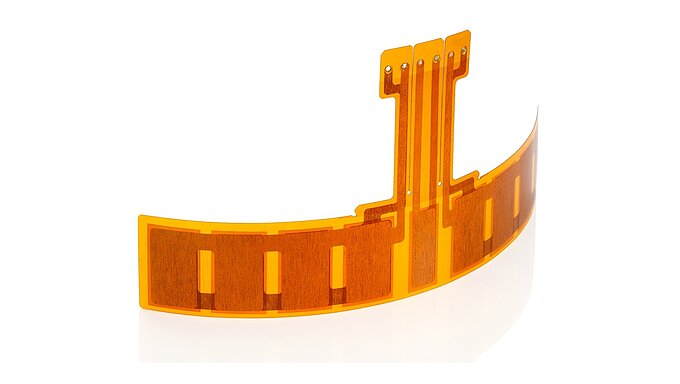

  • Arrays

Fields of application

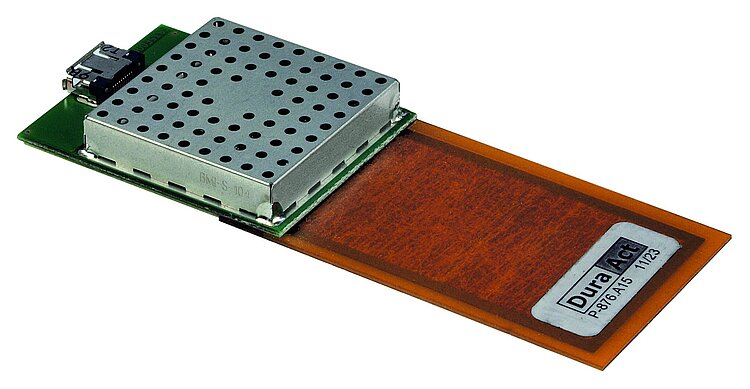

Industry and research. Can also be applied to curved surfaces or used for integration in structures. For adaptive systems, energy harvesting, structural health monitoring.

Specifications

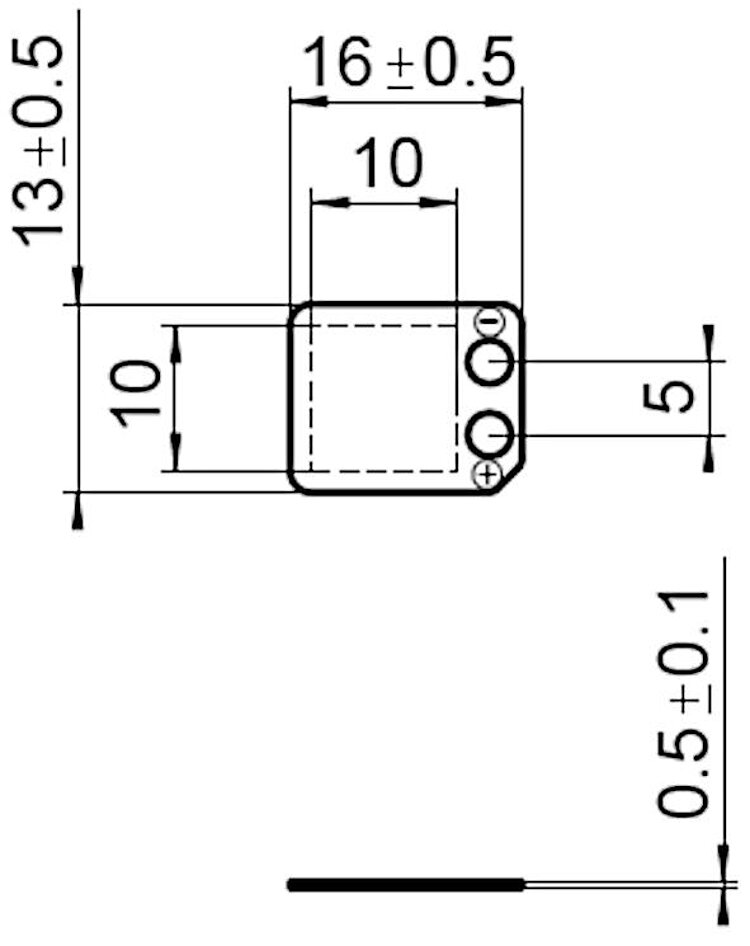

Datasheet P-876

Version / Date
2019-01-17
Version / Date
2019-01-17
Version / Date
2019-02-06
Document language
pdf - 2 MB
pdf - 2 MB
pdf - 811 KB

Downloads

Datasheet

Datasheet P-876

Version / Date
2019-01-17
Version / Date
2019-01-17
Version / Date
2019-02-06
Document language
pdf - 2 MB
pdf - 2 MB
pdf - 811 KB

Documentation

Technical Note P876T0001

P-876, P-878 DuraAct and DuraAct Power Patch Transducers
Version / Date
2015-09-02
Version / Date
2015-09-02
Document language
pdf - 432 KB
pdf - 431 KB

Whitepaper

Energy Harvesting Uses the Piezo Effect

DuraAct Piezo Transducer plus Matching Electronics
Version / Date
WP pi1068
Version / Date
WP pi1068
Document language
pdf - 514 KB
pdf - 604 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
