- High velocity and dynamics
- Minimal moved mass and inertia
- Velocity up to 250 mm/s
- Precise path tracking
- Friction-free voice coil drive
Thanks to its excellent dynamic properties, the H-860 is ideally suited for motion simulation.
It is used in test systems, e.g. for image stabilization in cameras and mobile devices. Further fields of application include quality assurance of camera test systems and image stabilization software; vibration simulation, eye tracking, simulation of human and artificial motion.
The friction-free drive design is based on voice coils drives and flexure guides. The struts and platform are made of carbon fiber for minimal moved mass and inertia.
Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiffer than serial-kinematic systems, no moved cables.

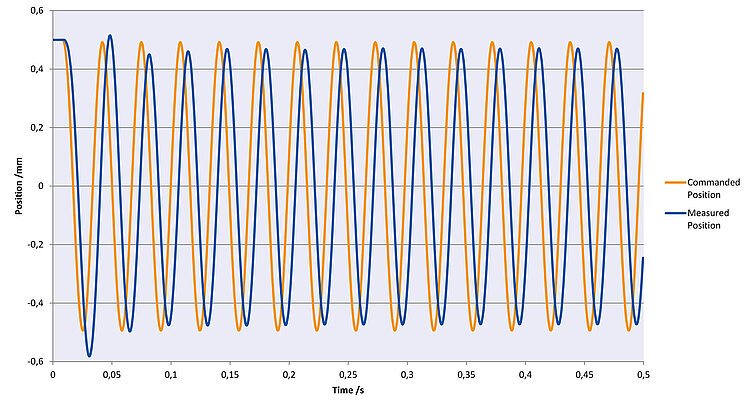

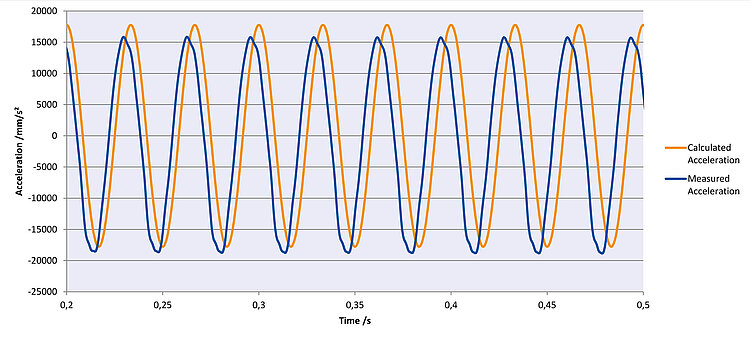

Precise running of predefined motion profiles with high path accuracy: Sine curves and freely definable trajectories.
Voice coil drives consist of two essential components: A permanent magnet and a coil that are located in the air gap of the magnetic field. Thanks to their low weight and friction-free drive principle, voice coil drives are particularly suitable for applications that require high dynamics and high velocities at limited travel ranges. High scan frequencies and precision positioning are also possible with these drives, because they are free of the effects of hysteresis.
Product Change Notification Motor Driven Products
User Manual H860T0002

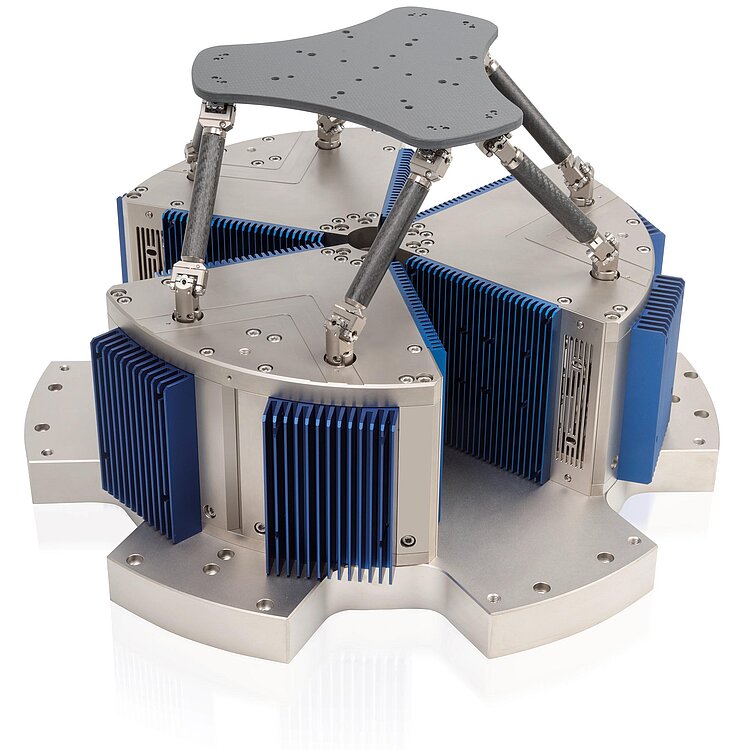

H-860 Hexapod with Magnetic Direct Drive for High Velocity

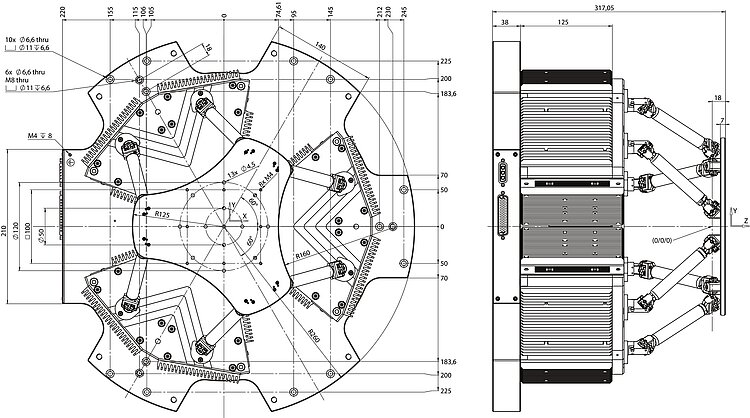

3-D model H-860.S2H
