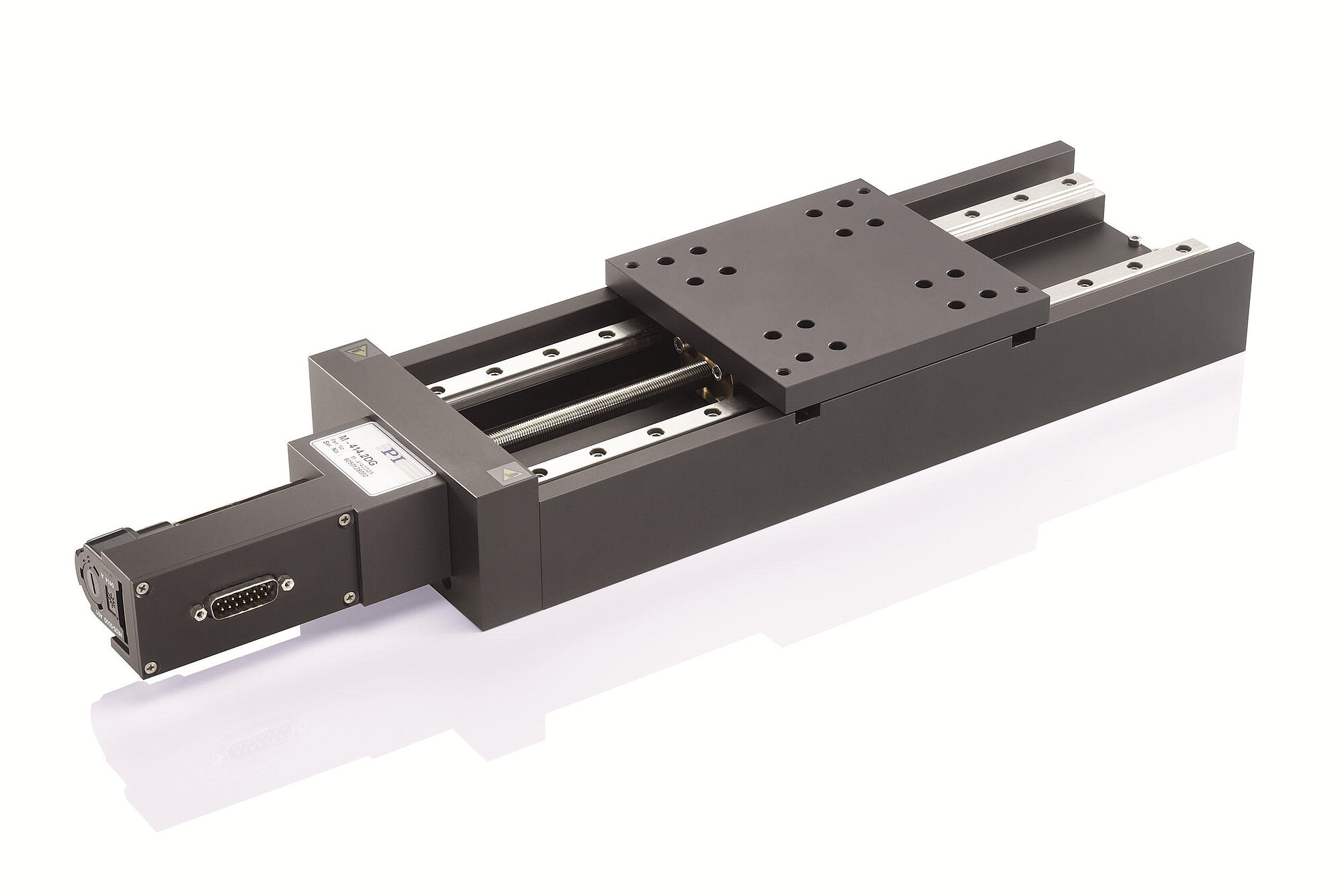

M-414 Precision High-Load Linear Stage

High Cycle Number, Inexpensive

M-414 Precision High-Load Linear Stage
Product Description Specifications Downloads Quote / Order
  • Use of precision components
  • Flexible modular system M-403, M-404, M-413, M-414
  • Travel ranges from 100 mm to 300 mm
  • Resolution to 0.023 µm
  • Ball screw for high velocities and number of cycles
  • Min. incremental motion 0.1 µm

Application fields

Measuring technology, alignment.

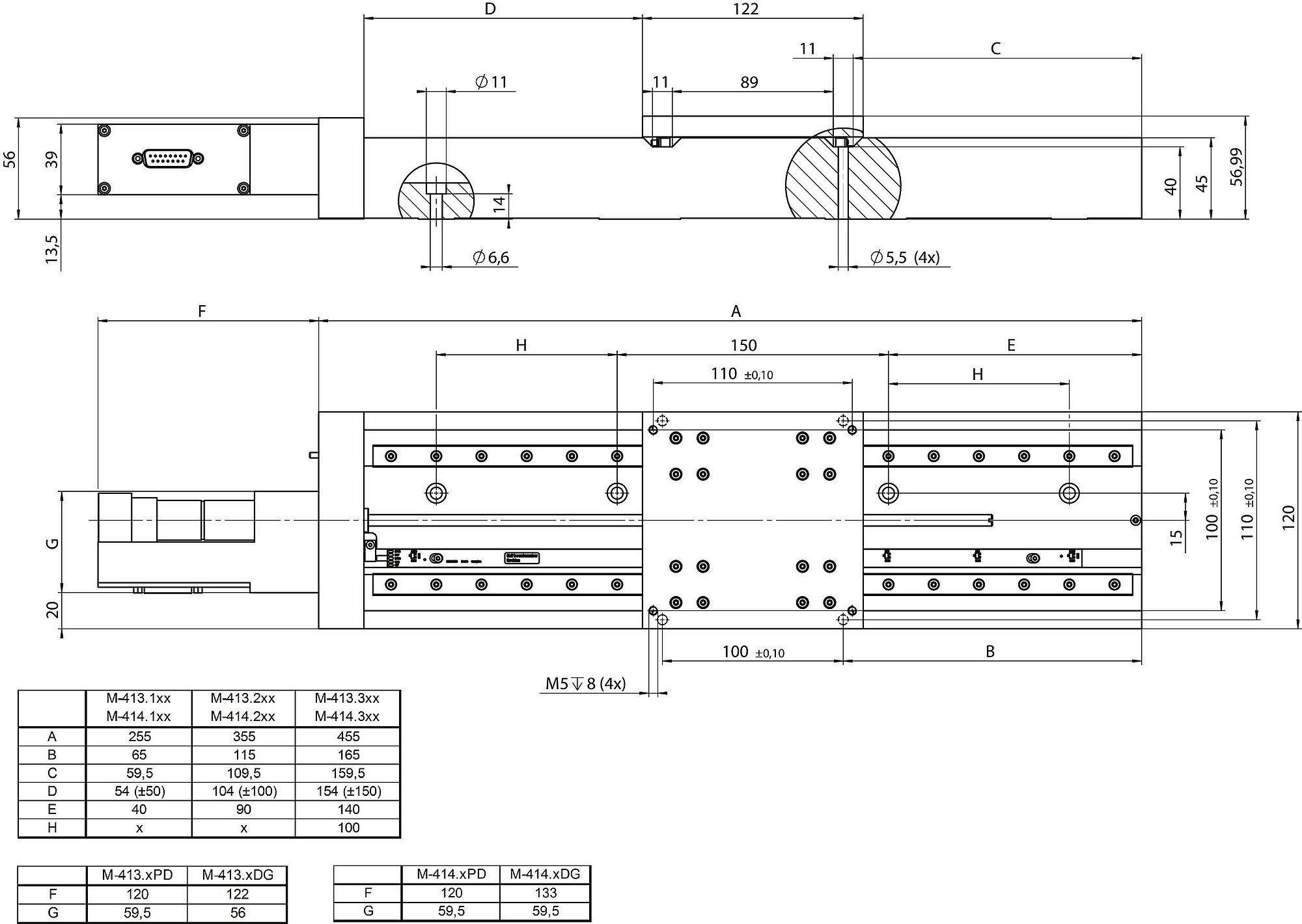

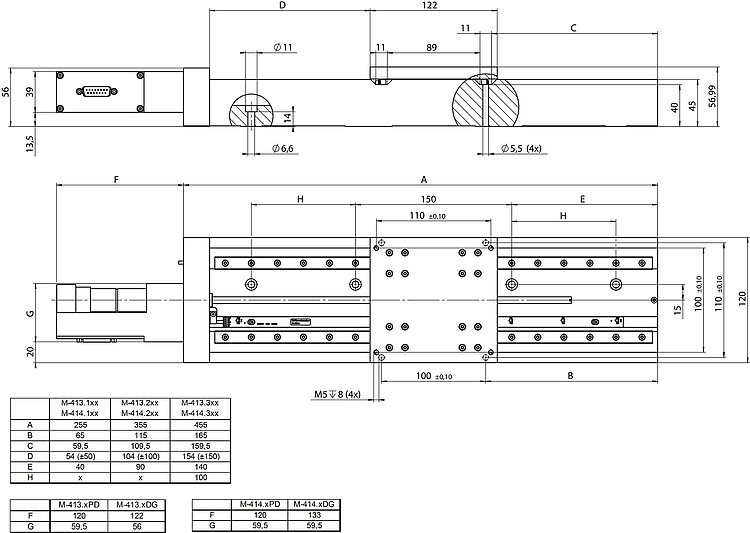

Specifications

Datasheet

Datasheet M-414

Version / Date
2019-05-09
Version / Date
2019-05-09
Version / Date
2019-07-31
