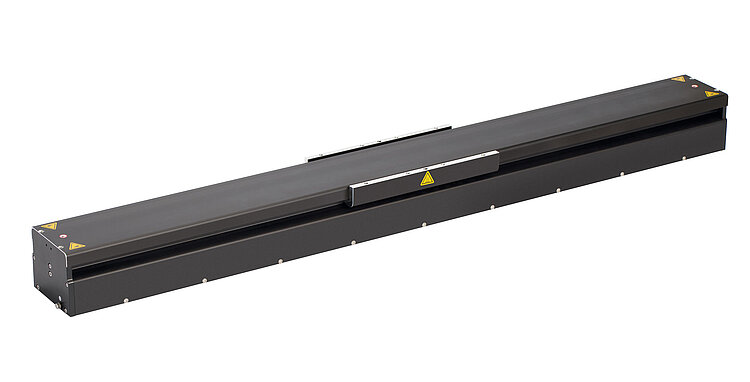

V-857 High-Speed Linear Stage

High Load Capacity • Cost Effective • Linear Motor

  • Long travel ranges (to 800 mm) with narrow profile (132 mm width)
  • Permanent load capacity to 1000 N
  • Highly dynamic, maintenance-free linear motor with velocities up to 5 m/s
  • Robust industrial design for a long lifetime
  • High-precision incremental or absolute linear encoder
  • Ideal for gantry systems
V-857 High-Speed Linear Stage
Product Description Specifications Downloads Quote / Order

Industrial design for high performance and high load

The V-857 is a heavy-duty and highly dynamic linear stage for industrial applications. Its design is consistently geared to demanding industrial conditions and it is characterized by high stiffness and the use of high-quality components: recirculating ball bearing guides, 3-phase linear motor, incremental or absolute linear encoder. The high resolution of the encoders allows an excellent tracking performance, small tracking errors, and short settling times. Industry-compatible connectors offer a fast and secure connectivity. The optional motion platform offers versatile assembly options with a triple M6 hole pattern.

Linear motor with direct drive

3-phase magnetic direct drives do not use mechanical components in the drivetrain, they transmit the drive force to the motion platform directly and without friction. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.

Options

Optional accessory: V-857.TT1 motion platform

Application fields

  • Electronics manufacturing: PCB manufacturing, printed electronics
  • Test & inspection: Noncontact 2D measurement, sensor & camera placement for inspection, position sensor testing, vibration & acceleration testing
  • Advanced manufacturing: Robotic manipulation and microassembly, industrial inkjet printing

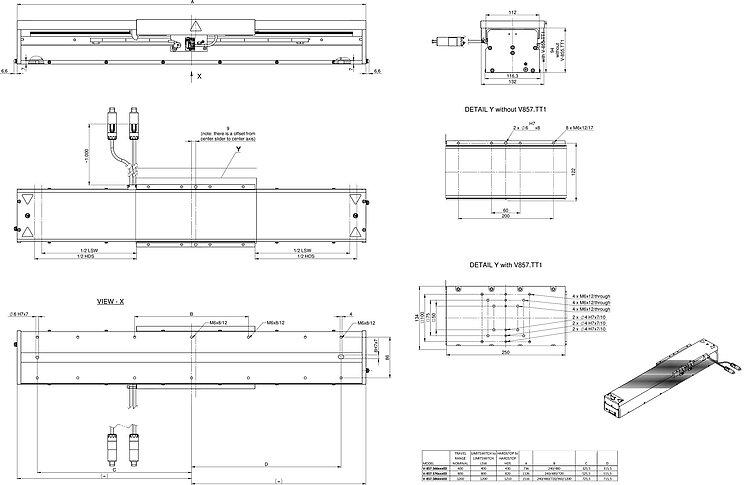

Specifications

Datasheet

Datasheet V-857

Version / Date
2022-03-02
pdf - 2 MB
Version / Date
2022-03-02
pdf - 2 MB

Downloads

Datasheet

Datasheet

Datasheet V-857

Version / Date
2022-03-02
pdf - 2 MB
Version / Date
2022-03-02
pdf - 2 MB

Documentation

Documentation

User Manual V857UM0001

V-857.5x6023E0 High-Speed Linear Stage

Version / Date
2023-04-03
pdf - 6 MB
Version / Date
2023-04-03
pdf - 6 MB
Documentation

User Manual V857UM0002

V-857.5x6211E0 High-Speed Linear Stage

Version / Date
2023-04-03
pdf - 6 MB
Version / Date
2023-04-03
pdf - 6 MB
Documentation

Short Instructions MP188EK

High-Load Positioners to 325 V: V-412 / V-417 / V-857

Version / Date
2.0.0 09/2023
pdf - 871 KB
Version / Date
2.0.0 09/2023
pdf - 905 KB

3-D Models

3-D Models

3-D model V-857.576xxxxx

Version / Date
2021-08-04
zip - 3 MB
3-D Models

3-D model V-857.566xxxxx

Version / Date
2021-08-04
zip - 3 MB

Animated 3-D Models

Animated 3-D Models

Animated 3-D Model V-857.566xxxxx

Version / Date
2021-08-04
zip - 3 MB
Animated 3-D Models

Animated 3-D Model V-857.576xxxxx

Version / Date
2021-08-04
zip - 3 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

V-857.566023E0 NEW!

High-speed linear stage; ironless 3-phase linear motor; 400 mm travel range; 1000 N load capacity; 5000 mm/s maximum velocity; absolute linear encoder, 5 nm sensor resolution, BiSS-C, 32-bit

V-857.566211E0 NEW!

High-speed linear stage; ironless 3-phase linear motor; 400 mm travel range; 1000 N load capacity; 5000 mm/s maximum velocity; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

V-857.576023E0 NEW!

High-speed linear stage; ironless 3-phase linear motor; 800 mm travel range; 1000 N load capacity; 5000 mm/s maximum velocity; absolute linear encoder, 5 nm sensor resolution, BiSS-C, 32-bit

V-857.576211E0 NEW!

High-speed linear stage; ironless 3-phase linear motor; 800 mm travel range; 1000 N load capacity; 5000 mm/s maximum velocity; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak
