L-220 V6 High-Resolution Linear Actuator Suitable for Vacuum

Suitable for High Cycle Numbers

L-220 V6 High-Resolution Linear Actuator Suitable for Vacuum
Product Description Specifications Downloads Quote / Order

Reference-class linear drive

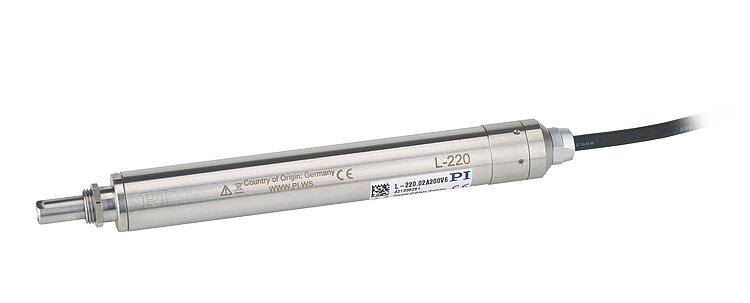

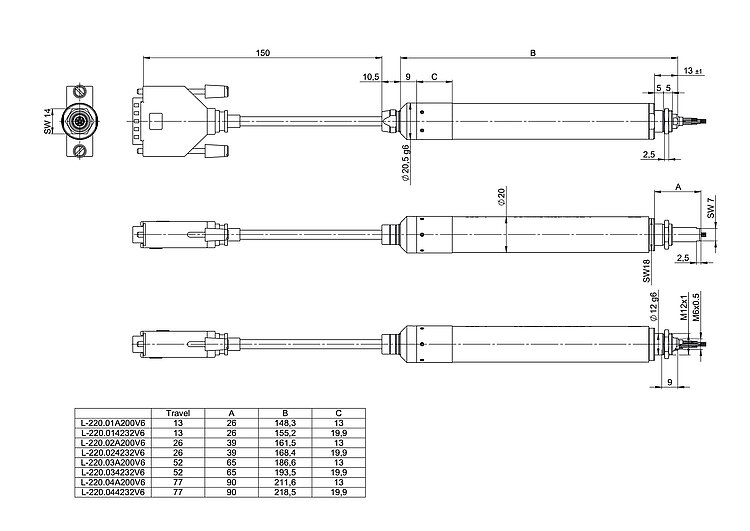

Combines high precision, high forces, and high dynamics. High-performance and low-vibration 2-phase stepper motor with gear ratio allows precision positioning even without position control.

High-quality components

Ball screw for smooth feed. Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat and spherical tip for decoupling forces. Noncontact limit switches protect the mechanics. A direction-sensing reference switch supports automation applications.

Reduced outgassing especially for use in vacuum environments

Most notably, for the lubrication of the guides and the drive screw a material with particularly low outgassing is used. Therefore, a bakeout temperature of up to 80 °C can be reached. With this and other modifications of the PI V6 vacuum class, this positioner can be used up to 10-6 hPa.

Application fields

Vacuum chambers. Research. Beamline instrumentation. Microscopy. Electronics assembly and inspection.
