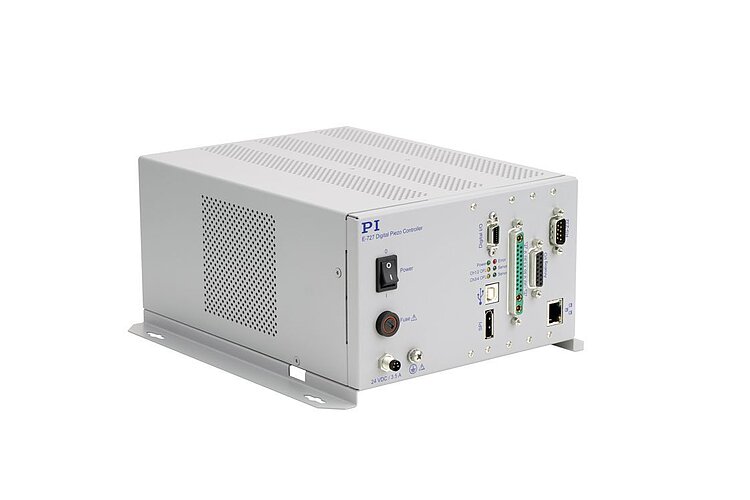

E-727.x • E-727.xAP Digital Multi-Channel Piezo Controller

For Nanopositioning Systems with Capacitive, Piezoresistive or Strain Gauge Sensors

E-727.x • E-727.xAP Digital Multi-Channel Piezo Controller
Product Description Specifications Downloads Quote / Order
  • 20 kHz sampling rate control
  • Option for increased output current
  • Interfaces: TCP/IP, USB and RS-232
  • Optional analog inputs and outputs
  • Autoloading of calibration data from stage ID chip for interchangeability of controller and mechanics
  • 4th order polynomial linearization for mechanics and electronics

Digital controller for piezo-based nanopositioning systems

Integrated low-noise power amplifiers for PICMA® piezo actuators. Output voltage -30 to +130 V. Supports nanopositioning systems with strain gauge sensors, capacitive sensors or piezoresistive sensors. P-I controller with 2 notch filters. Linearization based on 4th-order polynomials. Optional Dynamic Digital Linearization (DDL). Delivery includes wide input range power supply, USB and RS-232 cable.

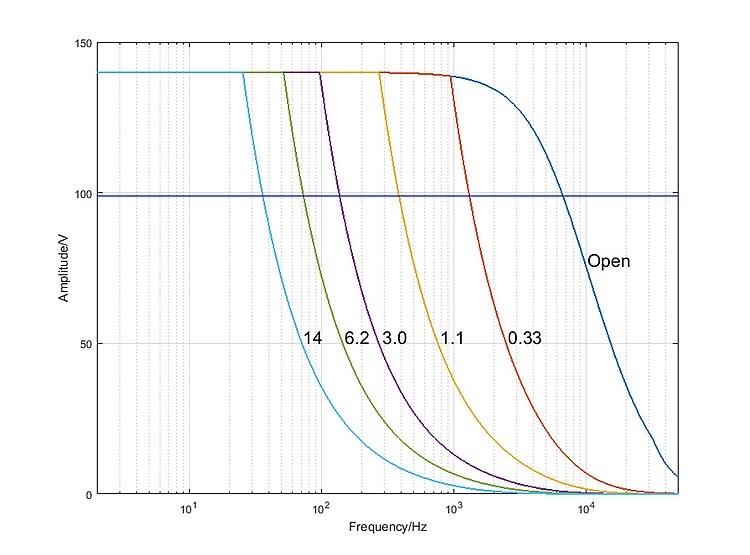

High dynamics

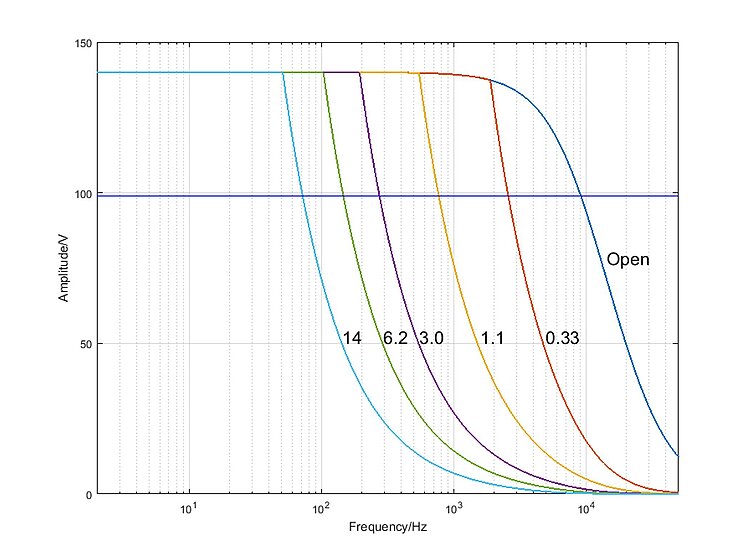

Increased output current (optional) for dynamic applications that require a high peak current.

Extensive functionality

ID chip for fast startup and quick exchange of system components. Data recorder, wave generator, macros. Extensive software support, e.g., for NI LabVIEW, dynamic libraries for Windows and Linux.

Interfaces

TCP/IP, USB, RS-232, SPI. 4 analog inputs and outputs each (optional) for external sensors, target values or external amplifiers. 4 digital inputs and outputs respectively.

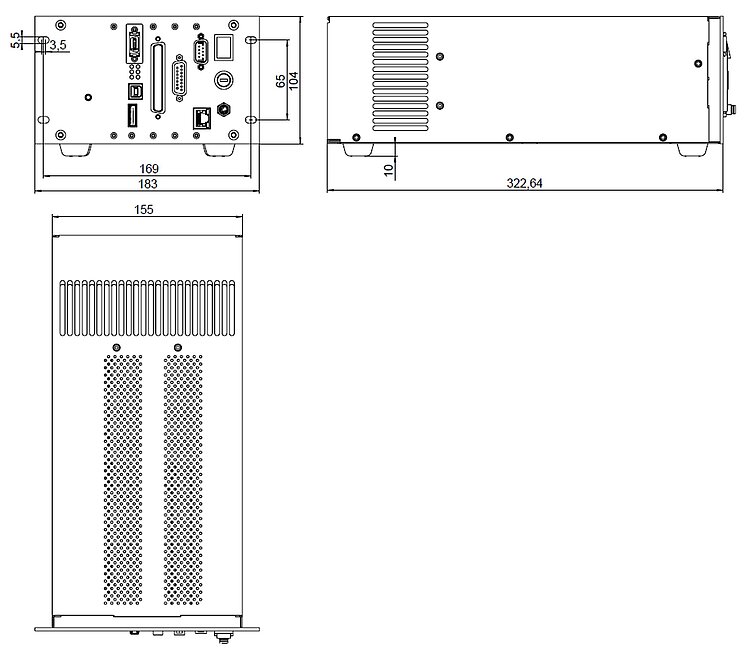

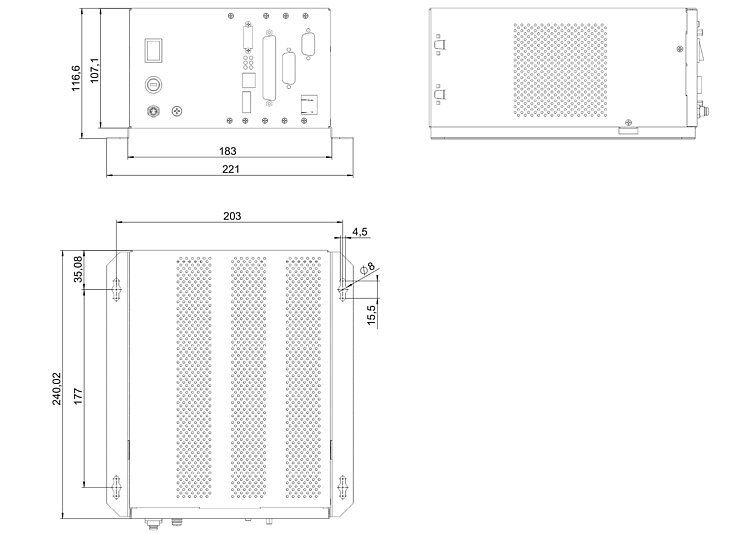

Specifications

Datasheet

Datasheet E-727.xAP

Version / Date
2018-06-18
Version / Date
2018-06-18
Version / Date
2018-07-11
Document language
pdf - 482 KB
pdf - 484 KB
pdf - 1 MB

Downloads

Datasheet

Datasheet

Datasheet E-727.xAP

Version / Date
2018-06-18
Version / Date
2018-06-18
Version / Date
2018-07-11
Document language
pdf - 482 KB
pdf - 484 KB
pdf - 1 MB

Documentation

Documentation

Short Instructions PZ289

Digital Piezo Controllers E-709.xxG / E-727 / E-754
Version / Date
1.0.0 2019/09
Version / Date
1.0.0 2019/09
Document language
pdf - 2 MB
pdf - 2 MB
Documentation

Technical Note A000T0074

Guide to Grounding and Shielding
Version / Date
2018-11-22
Version / Date
2018-11-22
Document language
pdf - 120 KB
pdf - 125 KB
Documentation

User Manual E727T0005

E-727 Digital Multi-Channel Piezo Controller
Version / Date
2019-06-28
Document language English
Documentation

User Manual E727T0012

E-727.AS Digital Multi-Channel Piezo Controller With Area Scan Routines for Fast Optical Alignment in Silicon Photonics Production
Version / Date
2018-08-16
Document language English
Documentation

Commands Manual PZ281E

GCS Commands for E-727 Digital Multi-Channel Piezo Controller
Version / Date
1.1.0 2019-01-30
Document language English
Documentation

Software Manual PZ260

GCS Driver Set for use with NI LabVIEW Software, for E-727 Digital Multi-Channel Piezo Controller
Version / Date
2016-06-30
Document language English

General Software Documentation

General Software Documentation

Software Manual SM146

GCS Array Data Format
Version / Date
1.2.1
Document language English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
