E-709 Compact and Cost-Optimized Digital Piezo Controller

For SGS, Piezoresistive and Capacitive Sensors, 1 Axis

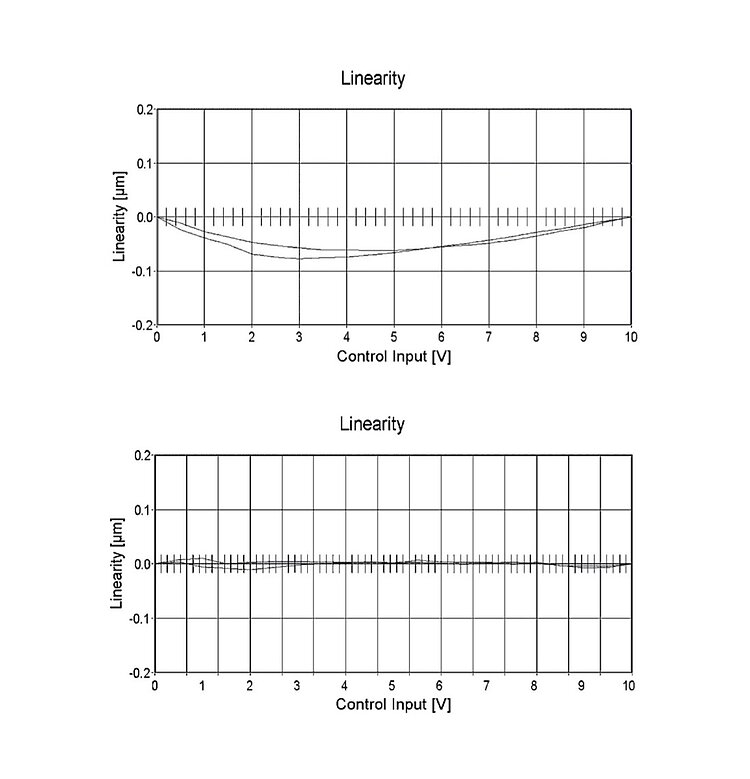

  • Linearity error maximum of 0.02 %
  • Fast 25 Mbit/s serial interface
  • Comprehensive I/O functions
  • Inexpensive OEM versions available
  • Extensive software package
E-709 Compact and Cost-Optimized Digital Piezo Controller
Product Description Specifications Downloads Quote / Order

Fast digital servo controller

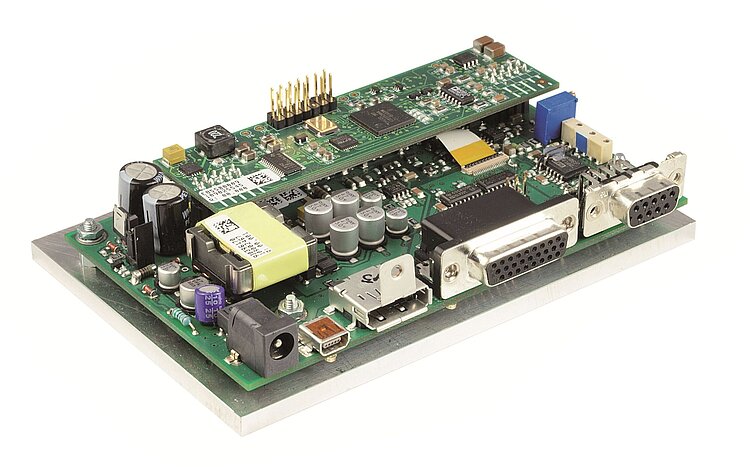

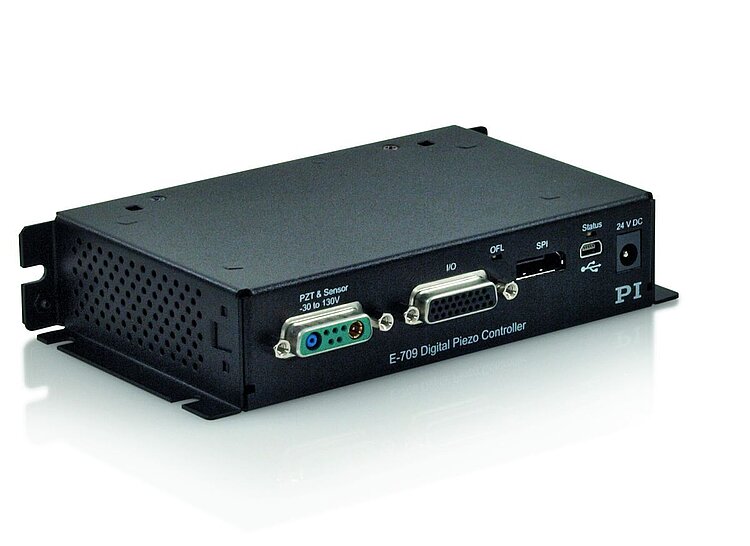

Benchtop (.xRG) or OEM board (.xR). Voltage range -30 to 130 V.

Interfaces

USB, digital RS-232, fast serial interface with up to 25 MBit/s. Additional high-bandwidth analog control input / sensor input. Analog output, e.g., for external amplifiers.

User software and functions

PIMikroMove, PI General Command Set (GCS). Drivers for NI LabVIEW, shared libraries for Windows and Linux. Compatible with µManager, MetaMorph, MATLAB. Wave generator. Linearization. Data recorder. Autozero. Trigger I/O. Software-configurable parameters.

Application fields

  • Multiphoton microscopy, confocal microscopy
  • 3-D imaging
  • Screening
  • Autofocus systems
  • Surface analysis
  • Wafer inspection

Specifications

Datasheet

Datasheet E-709

Version / Date
2020-10-07
pdf - 898 KB
Version / Date
2020-10-07
pdf - 906 KB
Version / Date
2020-10-07
pdf - 987 KB
Version / Date
2019-07-19
pdf - 1 MB
