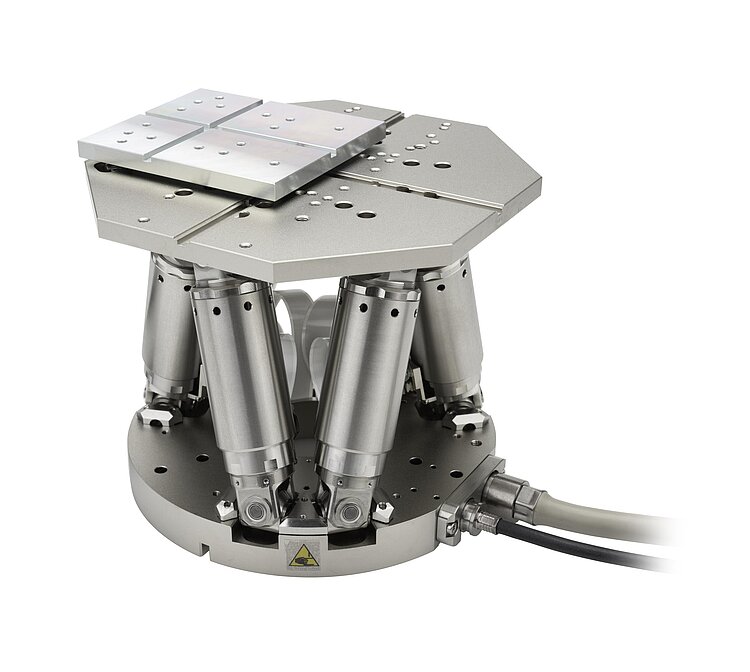

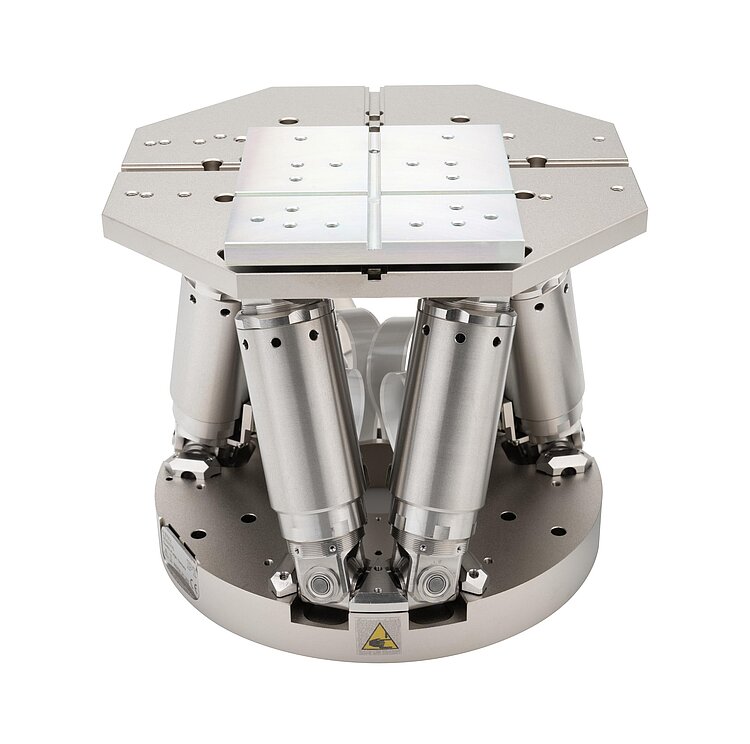

H-811.F2 6-Axis Miniature Hexapod

Parallel-kinematic design for six degrees of freedom, making it significantly more compact and stiff than serial-kinematic systems, higher dynamics, no moved cables: Higher reliability, reduced friction.

Extensive Software Package

The software package included in the scope of delivery allows integration of the system into virtually any environment. All common operating systems such as Windows, Linux, and macOS as well as a large number of common programming languages such as Python, MATLAB, and NI LabVIEW are supported. Thanks to sophisticated program examples and the use of software tools such as PIMikroMove, the time between starting integration and productive operation is shortened considerably.

Brushless DC Motor (BLDC)

Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.

Removable magnetic plate

Accelerate your workflows. The next workpiece can be prepared parallel to our automated process step. The removable magnetic plate can be disassembled quickly without tools and subsequently reassembled accurately each time.

PIVirtualMove

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before purchasing, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes the position and motion of the hexapod as well as the pivot point and several reference coordinate systems into account.

Application fields

Industry and research, micromanufacturing, fiber alignment, and the alignment of optical components.
