S-340.A0L
Tip/tilt platform, 2 mrad, open loop, LEMO connectors, aluminum cover plate

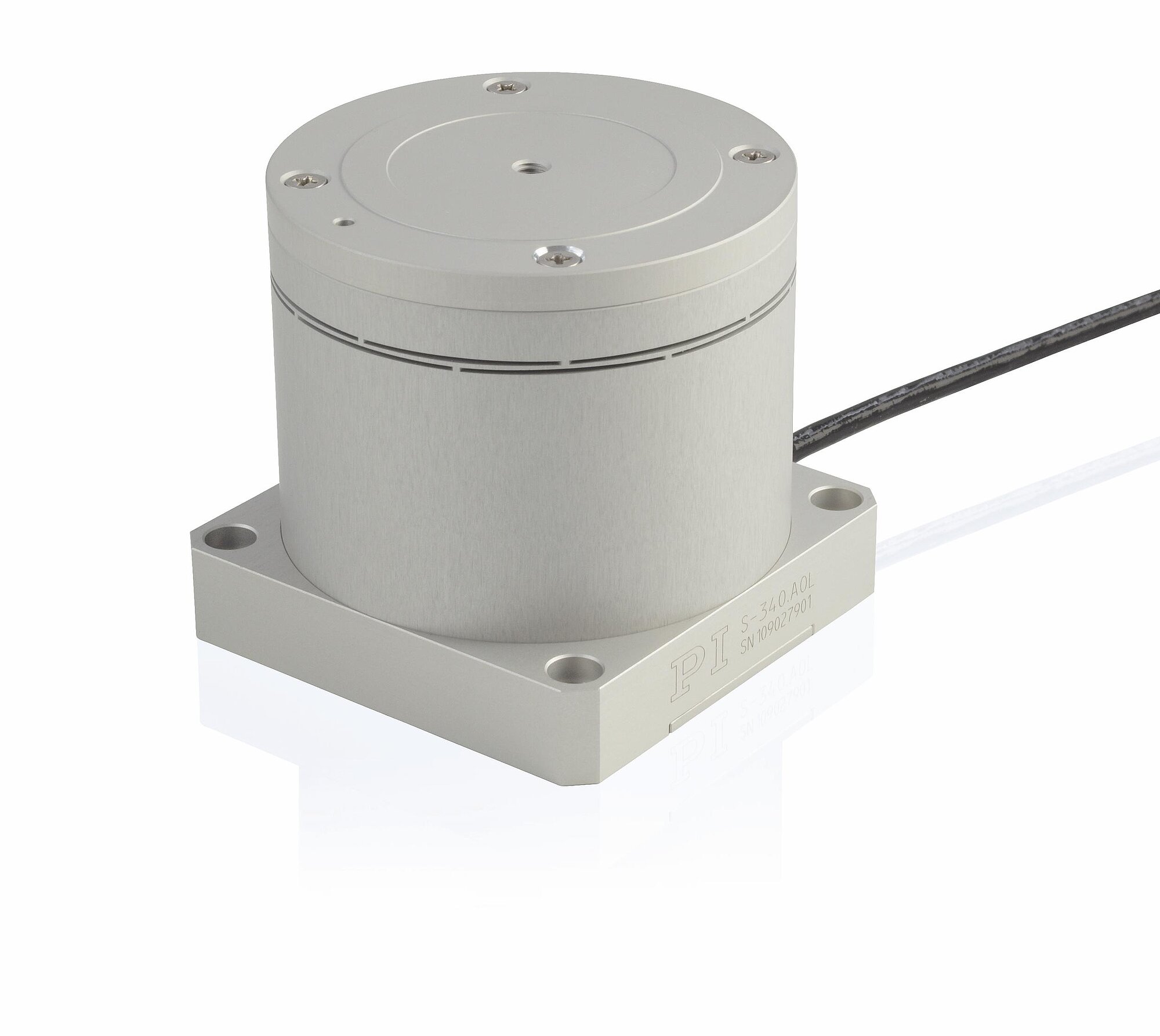

S-340 Piezo Tip/Tilt Platform
High Dynamics for Mirrors and Optics to Ø 75 mm (3")
- Resolution up to 20 nrad, excellent position stability
- Optical beam deflection to 4 mrad
- Various different materials for adapting the CTE between the platform and mirror
- Parallel kinematics for higher accuracy and dynamics
- Sub-ms response time
- For mirrors to Ø 75 mm (3"); Ø 100 mm (4") on request
- Closed-loop versions for improved linearity
- Excellent temperature stability

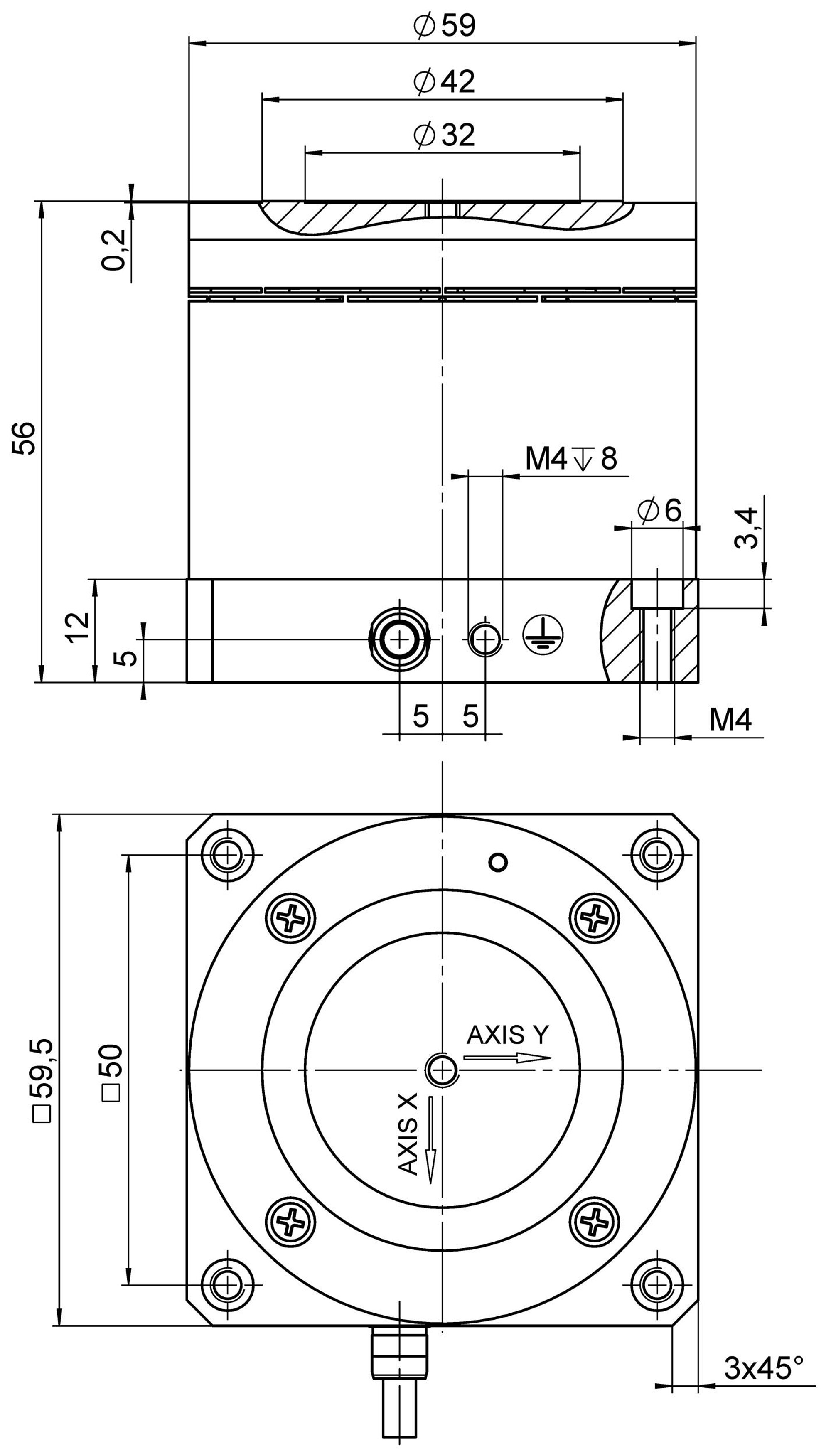

S-340, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point. The general tolerance according to DIN ISO 2768-f-H applies to all nontolerated dimensions.
S-340 Piezo Tip/Tilt Platform
Descrizione del Prodotto
Specifiche
Download
Quotazione / Ordine
Application fields
- Image processing / stabilization
- Optical trapping
- Laser scanning / beam steering with large deflection angle
- Laser tuning
- Optical filters / switches
- Optics
- Beam stabilization
Outstanding lifetime thanks to PICMA® piezo actuators
The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.
High guiding accuracy due to zero-play flexure guides
Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.
High dynamics multi-axis operation due to parallel kinematics
In a parallel-kinematic multi-axis system, all actuators act on a common platform. The minimum mass inertia and the identical design of all axes allow fast, dynamic, and nevertheless precision motion.
Material options for adapting the CTE of the mirror and platform
The following material combinations are recommended for adapting the thermal expansion coefficient:
- Platform made of aluminum: Mirror made of aluminum
- Platform made of Invar: Mirror made of quartz glass / Zerodur
Specifications
Specifications
| Motion | S-340.A0L | S-340.ASL | S-340.I0L | S-340.ISL | Tolerance |
|---|---|---|---|---|---|
| Active axes | θX θY | θX θY | θX θY | θX θY | |
| Rotation range in θX, open loop | 2 mrad | 2 mrad | 2 mrad | 2 mrad | ±20 % |
| Rotation range in θY, open loop | 2 mrad | 2 mrad | 2 mrad | 2 mrad | ±20 % |
| Rotation range in θX | 2 mrad | 2 mrad | |||
| Rotation range in θY | 2 mrad | 2 mrad | |||
| Linearity error in θX | 0.1 % | 0.1 % | typ. | ||
| Linearity error in θY | 0.1 % | 0.1 % | typ. | ||
| Positioning | S-340.A0L | S-340.ASL | S-340.I0L | S-340.ISL | Tolerance |
| Resolution in θX, open loop | 0.02 µrad | 0.02 µrad | 0.02 µrad | 0.02 µrad | typ. |
| Resolution in θY, open loop | 0.02 µrad | 0.02 µrad | 0.02 µrad | 0.02 µrad | typ. |
| Bidirectional repeatability in θX | 0.075 µrad | 0.075 µrad | typ. | ||
| Bidirectional repeatability in θY | 0.075 µrad | 0.075 µrad | typ. | ||
| Integrated sensor | SGS, indirect position measuring | SGS, indirect position measuring | |||
| System resolution in θX | 0.2 µrad | 0.2 µrad | |||
| System resolution in θY | 0.2 µrad | 0.2 µrad | |||
| Drive Properties | S-340.A0L | S-340.ASL | S-340.I0L | S-340.ISL | Tolerance |
| Drive type | PICMA® | PICMA® | PICMA® | PICMA® | |
| Electrical capacitance in θX | 6 µF | 6 µF | 6 µF | 6 µF | ±20 % |
| Electrical capacitance in θY | 6 µF | 6 µF | 6 µF | 6 µF | ±20 % |
| Mechanical Properties | S-340.A0L | S-340.ASL | S-340.I0L | S-340.ISL | Tolerance |
| Resonant frequency in θX, unloaded | 1.7 kHz | 1.7 kHz | 1.1 kHz | 1.1 kHz | ±20 % |
| Resonant frequency in θX, under load with glass mirror (Ø 50 mm; thickness 5 mm; 21 g) | 1.4 kHz | 1.4 kHz | 1 kHz | 1 kHz | ±20 % |
| Resonant frequency in θX, under load with glass mirror (Ø 50 mm; thickness 13 mm; 63 g) | 1 kHz | 1 kHz | 0.85 kHz | 0.85 kHz | ±20 % |
| Resonant frequency in θX, under load with glass mirror (Ø 75 mm; thickness 19 mm; 197 g) | 0.55 kHz | 0.55 kHz | 0.5 kHz | 0.5 kHz | ±20 % |
| Resonant frequency in θY, unloaded | 1.7 kHz | 1.7 kHz | 1.1 kHz | 1.1 kHz | ±20 % |
| Resonant frequency in θY, under load with glass mirror (Ø 50 mm; thickness 5 mm; 21 g) | 1.4 kHz | 1.4 kHz | 1 kHz | 1 kHz | ±20 % |
| Resonant frequency in θY, under load with glass mirror (Ø 50 mm; thickness 13 mm; 63 g) | 1 kHz | 1 kHz | 0.85 kHz | 0.85 kHz | ±20 % |
| Resonant frequency in θY, under load with glass mirror (Ø 75 mm; thickness 19 mm; 197 g) | 0.55 kHz | 0.55 kHz | 0.5 kHz | 0.5 kHz | ±20 % |
| Moment of inertia in θX, unloaded | 18 kg·mm² | 18 kg·mm² | 54 kg·mm² | 54 kg·mm² | ±20 % |
| Moment of inertia in θY, unloaded | 18 kg·mm² | 18 kg·mm² | 54 kg·mm² | 54 kg·mm² | ±20 % |
| Distance of pivot point to platform surface | 7.5 mm | 7.5 mm | 7.5 mm | 7.5 mm | ±0,1 mm |
| Guide | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | |
| Overall mass | 355 g | 355 g | 443 g | 443 g | |
| Material | Housing: Aluminum. Platform: Aluminum. | Housing: Aluminum. Platform: Aluminum. | Housing: Aluminum. Platform: Invar. | Housing: Aluminum. Platform: Invar. | |
| Miscellaneous | S-340.A0L | S-340.ASL | S-340.I0L | S-340.ISL | Tolerance |
| Operating temperature range | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | |
| Connector | LEMO LVPZT | LEMO LVPZT | LEMO LVPZT | LEMO LVPZT | |
| Cable length | 2 m | 2 m | 2 m | 2 m | |
| Recommended controllers / drivers | E-503, E-727 | E-503, E-727 | E-503, E-727 | E-503, E-727 | |
| Sensor connector | LEMO for strain gauge sensors | LEMO for strain gauge sensors |
The resolution of the system is limited only by the noise of the amplifier and the measuring technology because PI piezo nanopositioning systems are free of friction.
All specifications based on room temperature (22 °C ±3 °C).
