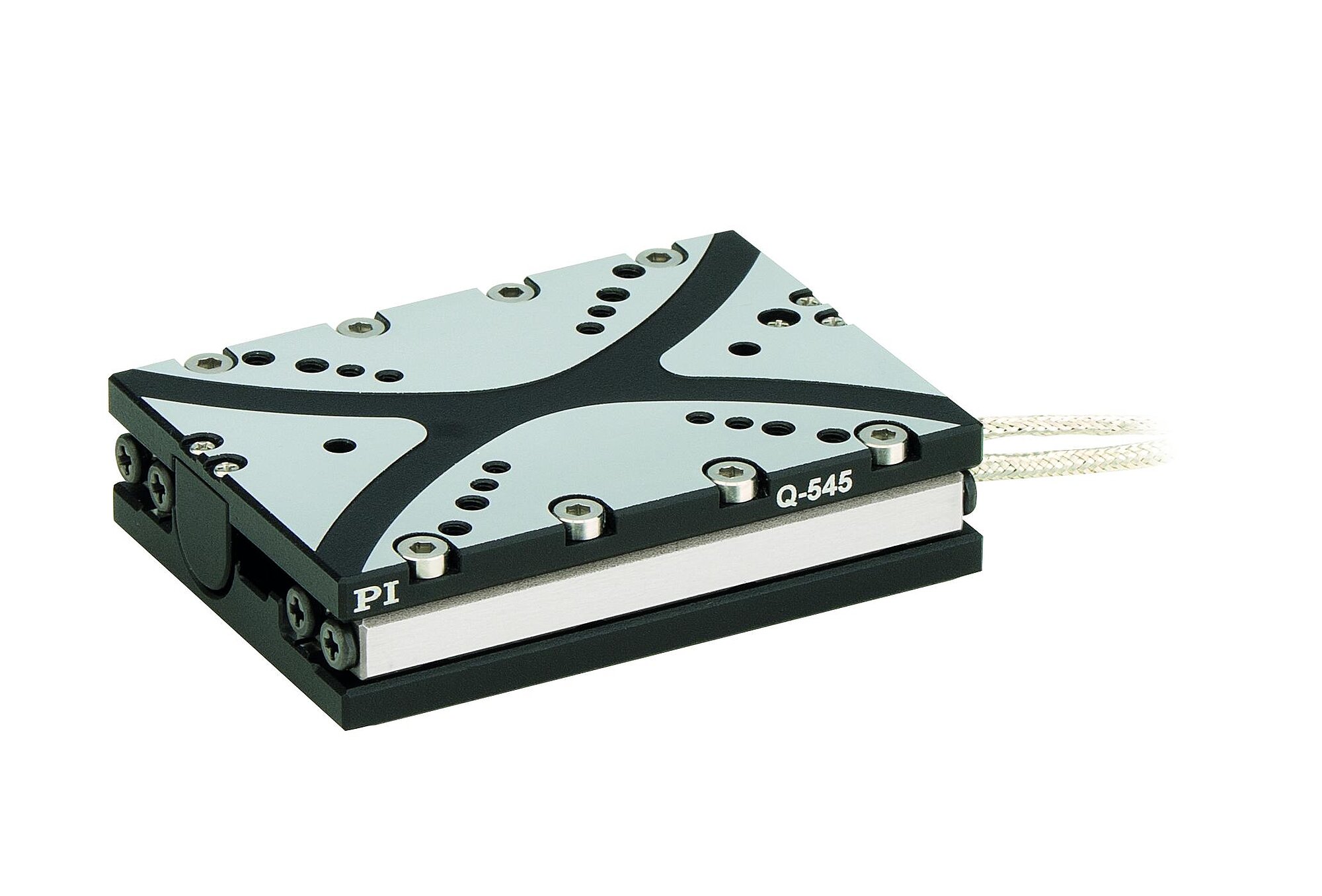

Q-545 Q‑Motion® Precision Linear Stage

High Forces and Small Design Due to Piezo Motors

Only 45 mm in width
Drive force 7 N
Incremental sensors with nanometer position resolution
XY combinations without adapter plate possible

Vai alla quotazione / ordine

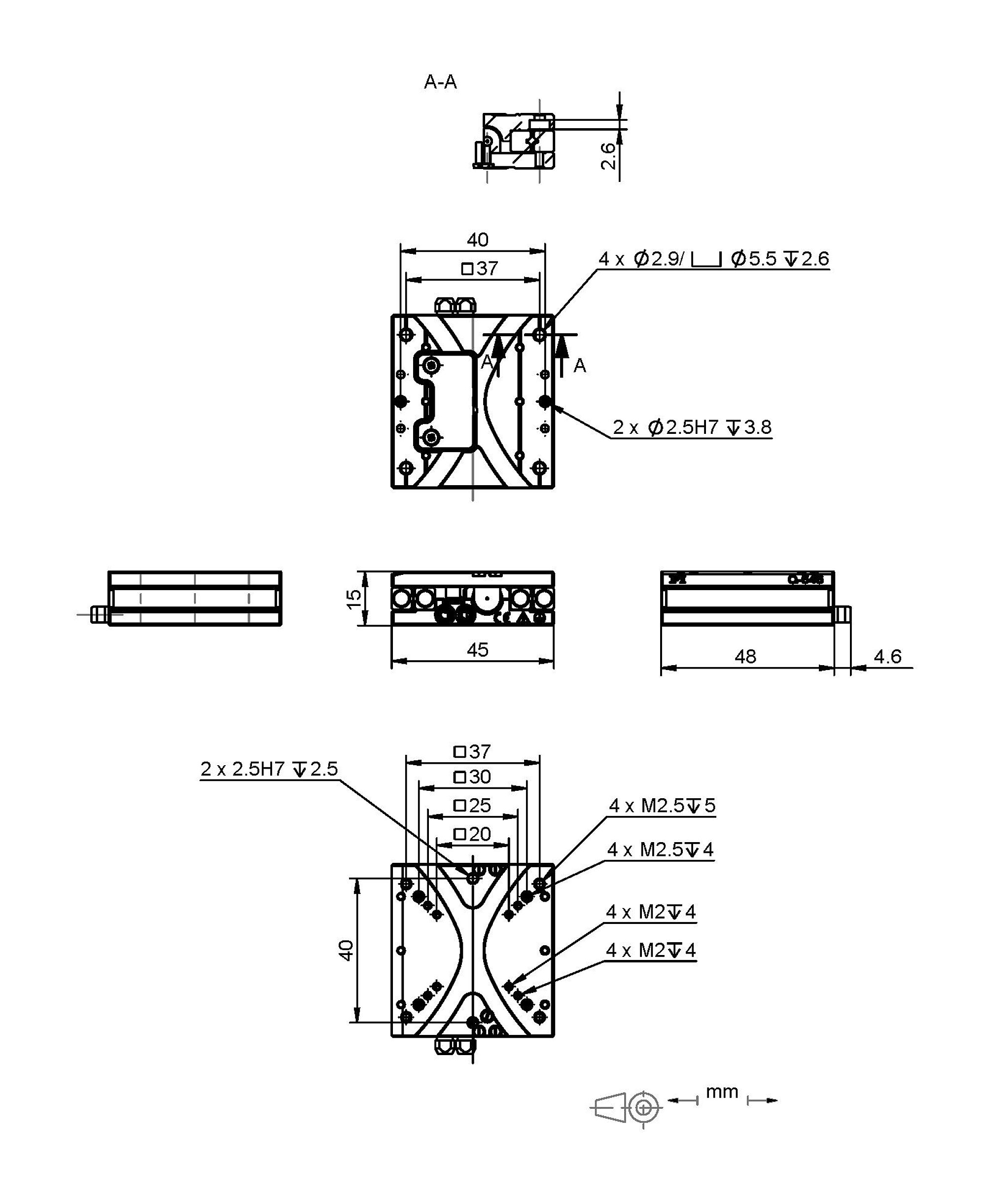

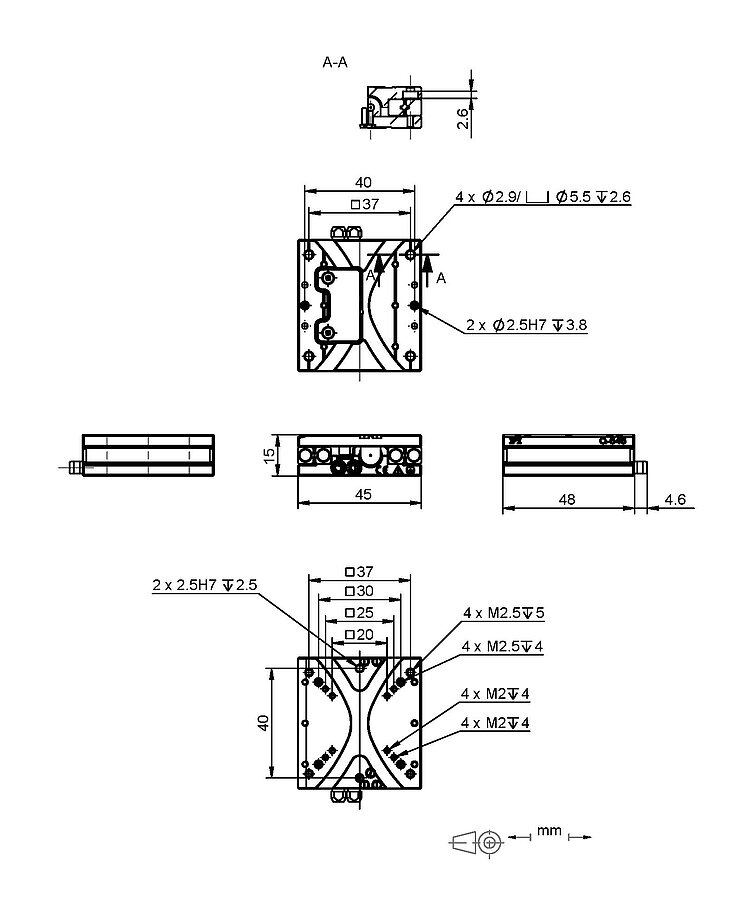

Q-545.140, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

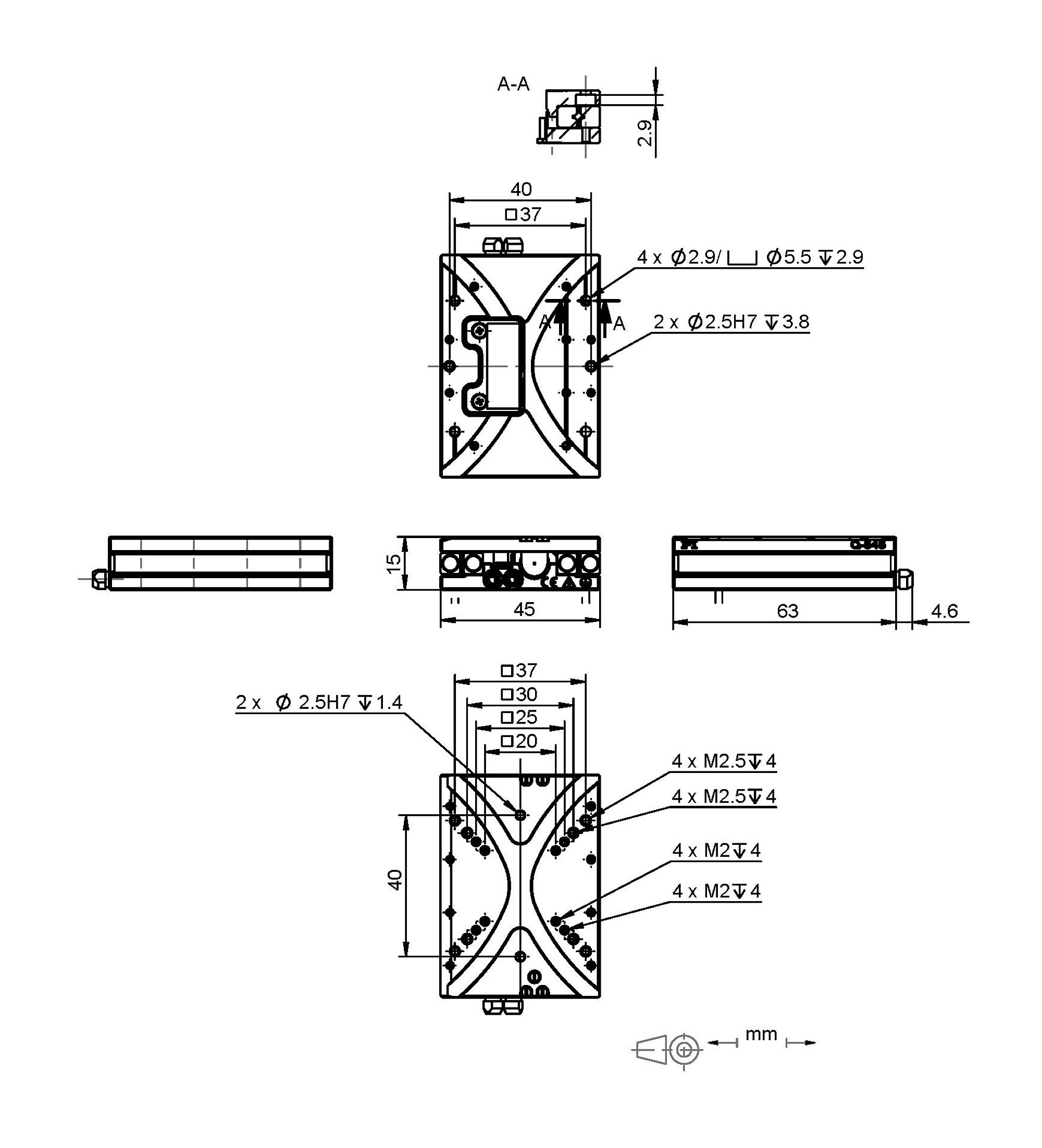

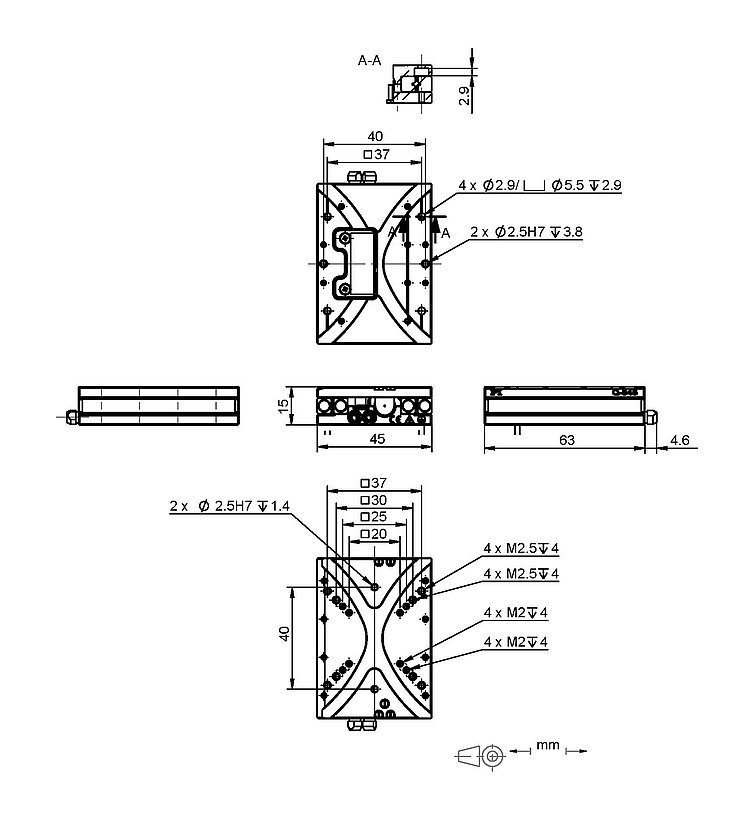

Q-545.240, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Piezoelectric inertia drive

Piezo inertia drives are space-saving and affordable piezo-based drives with relatively high holding forces and a virtually unlimited travel range. The inertia drive principle is based on a single piezoelectric actuator that is controlled with a modified sawtooth voltage provided by special driver electronics. The actuator expands slowly and moves the runner. Due to its inertia, the runner is unable to follow the subsequent fast contraction of the actuator and remains at its position. With an operating frequency of up to 20 kHz, the drives acting directly on the runner and achieve velocities of max. 8 mm/s.

Direct-measuring principle

The linear stages are equipped with a noncontact measuring optical linear encoder and a reference switch. Resolution 1 nm.

Application fields

Microassembly. Photonics. Optical alignment. Microscopy. Beamline instrumentation. Semiconductor technology. Testing.

Scarica il datasheet Vai alle Specifiche Vai alla quotazione / ordine

Datasheet

Versione / Data

2024-10-29

pdf - 577 KB

Versione / Data

2024-10-29

pdf - 576 KB

Versione / Data

2021-01-18

pdf - 483 KB

Download

Select a travel range:

Motion	Q-545.140	Q-545.240	Tolerance
Active axes	X	X
Travel range in X	13 mm	26 mm
Maximum velocity in X, unloaded	8 mm/s	8 mm/s
Linearity in X	2 µm	2 µm
Positioning	Q-545.140	Q-545.240	Tolerance
Minimum incremental motion in X	0.006 µm	0.006 µm	typ.
Reference switch	Optical	Optical
Integrated sensor	Incremental linear encoder	Incremental linear encoder
Sensor signal	Sin/cos, 1 V peak-peak	Sin/cos, 1 V peak-peak
Sensor resolution	1 nm	1 nm
Drive Properties	Q-545.140	Q-545.240	Tolerance
Drive type	Q-Motion® piezo motor	Q-Motion® piezo motor
Drive force in positive direction of motion in X	7 N	7 N	typ.
Drive force in negative direction of motion in X	7 N	7 N	typ.
Mechanical Properties	Q-545.140	Q-545.240	Tolerance
Stiffness in X	1.5 N/µm	1.5 N/µm	±10 %
Stiffness in Y	9 N/µm	10 N/µm	±10 %
Holding force in X, passive	8 N	8 N	min.
Maximum load capacity, base plate in any orientation	0.1 kg	0.1 kg
Maximum load capacity, base plate horizontal	0.5 kg	0.5 kg
Guide	Crossed roller guide	Crossed roller guide
Overall mass	216 g	245 g
Mass without cable	105 g	135 g
Material	Aluminum	Aluminum
Miscellaneous	Q-545.140	Q-545.240	Tolerance
Operating temperature range	0 to 50 °C	0 to 50 °C
Connector	D-sub 15 (m)	D-sub 15 (m)
Cable length	2 m	2 m
Recommended controllers / drivers	E-873.1AT, E-873.10C885	E-873.1AT, E-873.10C885

Specifications tested with E-873.1AT

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.

Scarica il datasheet Vai al download Vai alla quotazione / ordine

Product Note

Versione / Data

2019-03-26

pdf - 435 KB

inglese

Download

Datasheet

Versione / Data

2024-10-29

pdf - 577 KB

Versione / Data

2024-10-29

pdf - 576 KB

Versione / Data

2021-01-18

pdf - 483 KB

Download

Documentation

Q-Motion® Positioners: Q-5xx, Q-6xx

Versione / Data

4.3.0 03/2024

pdf - 626 KB

Versione / Data

4.3.0 03/2024

pdf - 661 KB

Download

Documentation

Q-545 Linear Stage, Piezoelectric Inertia Drive

Versione / Data

2024-10-29

pdf - 4 MB

Versione / Data

2024-10-29

pdf - 4 MB

3D Models

zip - 1 MB

Animated 3-D Models

zip - 1,014 KB

Vai alla quotazione / ordine

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Q-545.140

Q-Motion^® linear stage, piezoelectric inertia drive, 13 mm travel range, linear encoder, 1 nm resolution, 7 N drive force, dimensions 45 × 48 × 15 mm (W × L × H)

Add to quote list Remove from quote list

Q-545.240

Q-Motion^® linear stage, piezoelectric inertia drive, 26 mm travel range, linear encoder, 1 nm resolution, 7 N drive force, dimensions 45 × 63 × 15 mm (W × L × H)
