28 risultati


A-311 PIglide IS Planar Scanner with Air Bearing

High-Performance, Compact XY Nanopositioning System
  • Compact XY-nanopositioning system
  • High-precision positioning
  • Low profile
  • Travel ranges up to 300mm × 400mm
  • Load capacity up to 147N

A-322 PIglide HS Planar Scanner with Air Bearing

XY Positioning System with 1 nm Resolution
  • XY air bearing stage, planar, high performance, travel to 1 m, linear motors, absolute encoder, nanometer precision. For high accuracy automation &amp
  • metrology.

A-341 PIglide HGS Hybrid Gantry System

Hybrid Guide Design with Air Bearings and Recirculating Ball Bearing Guides for High Precision with Low Profile.

A-351 MGS Gantry System with Linear Motors

Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.

A-352 MGS Large Format Gantry System with Linear Motors

Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.

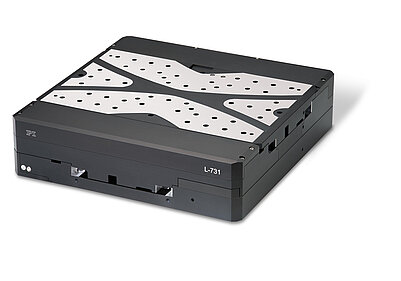

L-731 Precision XY Stage

High Travel Accuracy and Stability

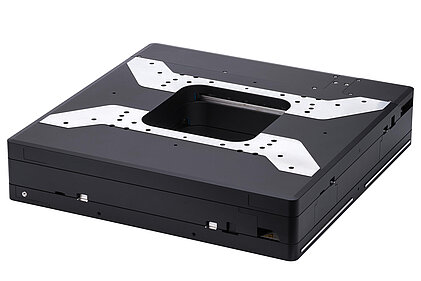

L-738 Precision XY Stage

Clear Aperture, High Run-Out Accuracy, and Stability

L-741 Precision XY Stage

High Run-Out Accuracy and Stability, 305 × 305 mm Travel Range

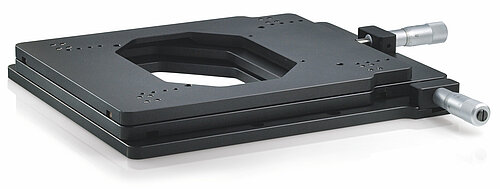

M-545 Microscope XY Stage

Compact, Stable, Long Travel Range

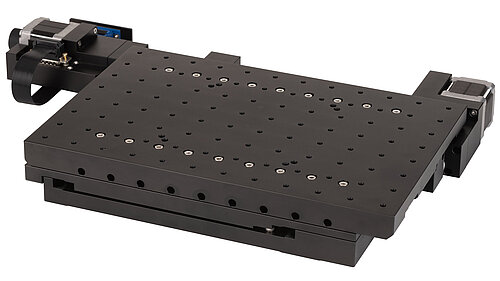

M-971 Motorized OEM XY Stage

Low Price with High Quantities

P-517 • P-527 Multi-Axis Piezo Scanner

High Dynamics Nanopositioner / Scanner with Direct Position Measuring

P-611.XZ • P-611.2 XZ and XYZ Nanopositioner

Compact Two-Axis Piezo Nanopositioner

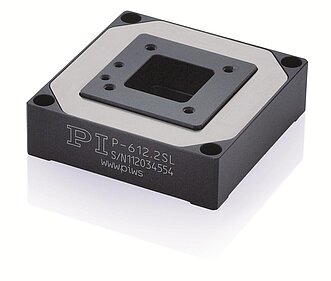

P-612.2 XY Piezo Nanopositioner

Compact, with Aperture
  • Compact: Surface 60 mm × 60 mm
  • 100 µm × 100 µm closed-loop travel range (130 µm × 130 µm, open loop)
  • For cost-critical applications
  • Clear aperture 20 mm × 20 mm

P-620.2 – P-629.2 PIHera XY Piezo Stage

High-precision XY Nanopositioners with Variable Travel Ranges

P-733.2 XY Piezo Nanopositioner

High-Precision XY Scanner with Aperture

P-734 XY Piezo Scanner

Highly Dynamic, Highest Travel Accuracy, with Aperture
