Product Finder - 6-Axis Robotics, Hexapods

PIVirtualMove

Il software di simulazione riproduce i limiti dello spazio di lavoro e della capacità di carico di un Hexapod. Pertanto, anche prima di effettuare un acquisto, è possibile verificare se un particolare modello di Hexapod è in grado di gestire i carichi, le forze e le coppie che si verificano in un'applicazione. A questo scopo, il tool di simulazione tiene conto della posizione e del movimento dell'Hexapod, nonché del punto di rotazione e di diversi sistemi di coordinate di riferimento.

>> Ulteriori informazioni sul tool di simulazione

Software Files

PIVirtualMove

Versione / Data
1.8.0.1, 2026-07
zip - 150 MB
Max. Load

Per favore conferma la tua selezione
Minimum incremental motion

Per favore conferma la tua selezione
Dimensions

Per favore conferma la tua selezione
Drive Type

Per favore conferma la tua selezione
Bearing Type

Per favore conferma la tua selezione

21 risultati


Novità

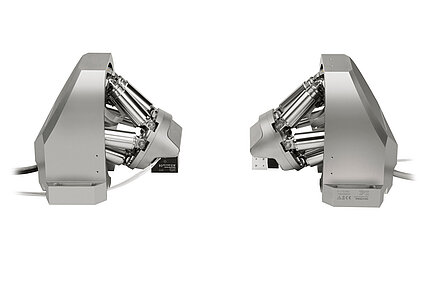

F-713.HAx • F-713.HUx Compact, High-Speed 6-DoF Photonics Alignment Systems

Single-Sided and Double-Sided, Upright and Low-Profile, Fully Automated Array Alignment Routines
  • Fully automated array alignment
  • Ultra-fast and precise
  • Single-sided and double-sided
  • Integrated scan routines
  • Broad software support
Novità

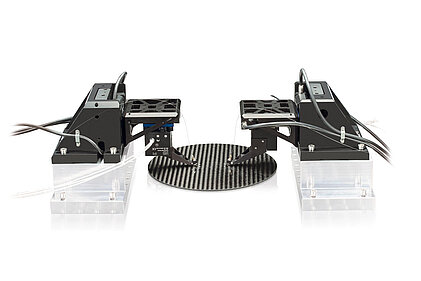

F-713.MAx Compact, High-Speed XYZ Photonics Alignment Systems

Single-Sided and Double-Sided, Fully Automated
  • High-precision XYZ photonics alignment system
  • Automated optimization for fibers & photonic devices
  • Automatic alignment in < 0.5 s
  • Integrated scan routines
  • Broad software support

H-810.I2 Miniature Hexapod

High Precision in the Smallest Space
  • Travel range X/Y/Z: ±20 mm / ±20 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±30°
  • Unidirectional repeatability X/Y/Z: ±0.03 μm / ±0.03 μm / ±0.08 μm
  • Max. payload horiz./any orient.: 3 kg / 1.5 kg
  • Max. velocity X/Y/Z: 6 mm/s

H-811.F2 Miniature Hexapod

Ideal for Fiber Alignment
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.15 μm / ±0.15 μm / ±0.06 μm
  • Max. payload horiz./any orient.: 5 kg / 2.5 kg
  • Max. velocity X/Y/Z: 20 mm/s

H-811.I2 • H-811.I2HS Miniature Hexapod

Fast, Compact, and Highly Precise
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.15 μm / ±0.15 μm / ±0.06 μm
  • Max. payload horiz./any orient.: 5 kg / 2.5 kg
  • Max. velocity X/Y/Z: 20 mm/s

H-811.I2V Vacuum Compatible Miniature Hexapod

Compact and Highly Precise
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.15 μm / ±0.15 μm / ±0.06 μm
  • Max. payload horiz./any orient.: 5 kg / 2.5 kg
  • Max. velocity X/Y/Z: 10 mm/s

H-811.S2 Miniature Hexapod

Fast and Compact for High Dynamics Applications
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.5 μm / ±0.5 μm / ±0.2 μm
  • Max. payload horiz./any orient.: 2.5 kg / 0.9 kg
  • Max. velocity X/Y/Z: 25 mm/s
Novità

H-811.x2IHP Miniature Hexapod

Fast, Compact, and Highly Precise
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.2 μm / ±0.2 μm / ±0.1 μm
  • Max. payload horiz./any orient.: 2.5 kg / 1 kg
  • Max. velocity X/Y/Z: 20 mm/s
Novità

H-815 Hexapod for Industrial 24/7 Applications with Highest Precision Requirements

Compact, Robust, and Precise
  • Travel range X/Y/Z: ±20 mm / ±20 mm / ±10 mm
  • Rotation range θX/θY/θZ: ±9° / ±9° / ±16°
  • Unidirectional repeatability X/Y/Z: ±0.09 μm / ±0.09 μm / ±0.05 μm
  • Max. payload horiz./any orient.: 10 kg / 4 kg
  • Max. velocity X/Y/Z: 20 mm/s

H-820 Hexapod

Cost-Effective Hexapod
  • Travel range X/Y/Z: ±50 mm / ±50 mm / ±25 mm
  • Rotation range θX/θY/θZ: ±15° / ±15° / ±30°
  • Unidirectional repeatability X/Y/Z: ±1.5 μm / ±1.5 μm / ±0.5 μm
  • Max. payload horiz./any orient.: 20 kg / 10 kg
  • Max. velocity X/Y/Z: 20 mm/s

H-824 Hexapod

Compact and Precise
  • Travel range X/Y/Z: ±22.5 mm / ±22.5 mm / ±12.5 mm
  • Rotation range θX/θY/θZ: ±7.5° / ±7.5° / ±12.5°
  • Unidirectional repeatability X/Y/Z: to ±0,25 μm / to ±0,25 μm / to ±0,10 μm
  • Max. payload horiz./any orient.: to 10 kg / to 5 kg
  • Max. velocity X/Y/Z: to 25 mm/s

H-824.V Vacuum-Compatible Hexapod

Compact and Precise
  • Travel range X/Y/Z: ±22.5 mm / ±22.5 mm / ±12.5 mm
  • Rotation range θX/θY/θZ: ±7.5° / ±7.5° / ±12.5°
  • Unidirectional repeatability X/Y/Z: to ±0.4 μm / to ±0.4 μm / to ±0.10 μm
  • Max. payload horiz./any orient.: to 5 kg / to 2.5 kg
  • Max. velocity X/Y/Z: to 12.5 mm/s

H-825 Hexapod

Compact Design, for Loads to 30 kg
  • Travel range X/Y/Z: ±27.5 mm / ±25 mm / ±14 mm
  • Rotation range θX/θY/θZ: ±11.5° / ±10.5° / ±19°
  • Unidirectional repeatability X/Y/Z: ±0.5 μm / ±0.25 μm / ±0.1 μm
  • Max. payload horiz./any orient.: 30 kg / 15 kg
  • Max. velocity X/Y/Z: 2 mm/s

H-840 Hexapod 6-Axis Positioning System

Precise, Versatile, Fast, Excellent Value
  • Travel range X/Y/Z: ±50 mm / ±50 mm / ±25 mm
  • Rotation range θX/θY/θZ: ±15° / ±15° / ±30°
  • Unidirectional repeatability X/Y/Z: ±0.3 μm / ±0.3 μm / ±0.1 μm
  • Max. payload horiz./any orient.: to 30 kg / to 10 kg
  • Max. velocity X/Y/Z: to 2.5 mm/s

H-840.G2IHP Hexapod

Inexpensive and High Precision
  • Travel range X/Y/Z: ±50 mm / ±50 mm / ±25 mm
  • Rotation range θX/θY/θZ: ±15° / ±15° / ±30°
  • Unidirectional repeatability X/Y/Z: ±0.3 μm / ±0.3 μm / ±0.1 μm
  • Max. payload horiz./any orient.: 30 kg / 10 kg
  • Max. velocity X/Y/Z: 2.5 mm/s

H-850 Hexapod

For Loads to 250 kg
  • Travel range X/Y/Z: ±50 mm / ±50 mm / ±25 mm
  • Rotation range θX/θY/θZ: ±15° / ±15° / ±30°
  • Unidirectional repeatability X/Y/Z: to ±0.5 μm / to ±0.5 μm / ±0.2 μm
  • Max. payload horiz./any orient.: to 250 kg / to 50 kg
  • Max. velocity X/Y/Z: to 0.5 mm/s

Selezione in Base all'Applicazione

Laser Material Processing

The laser machining process makes individual demands on the motion and positioning systems that are used. You make the decision which criteria are important for your application and this helps you to find your solution!
