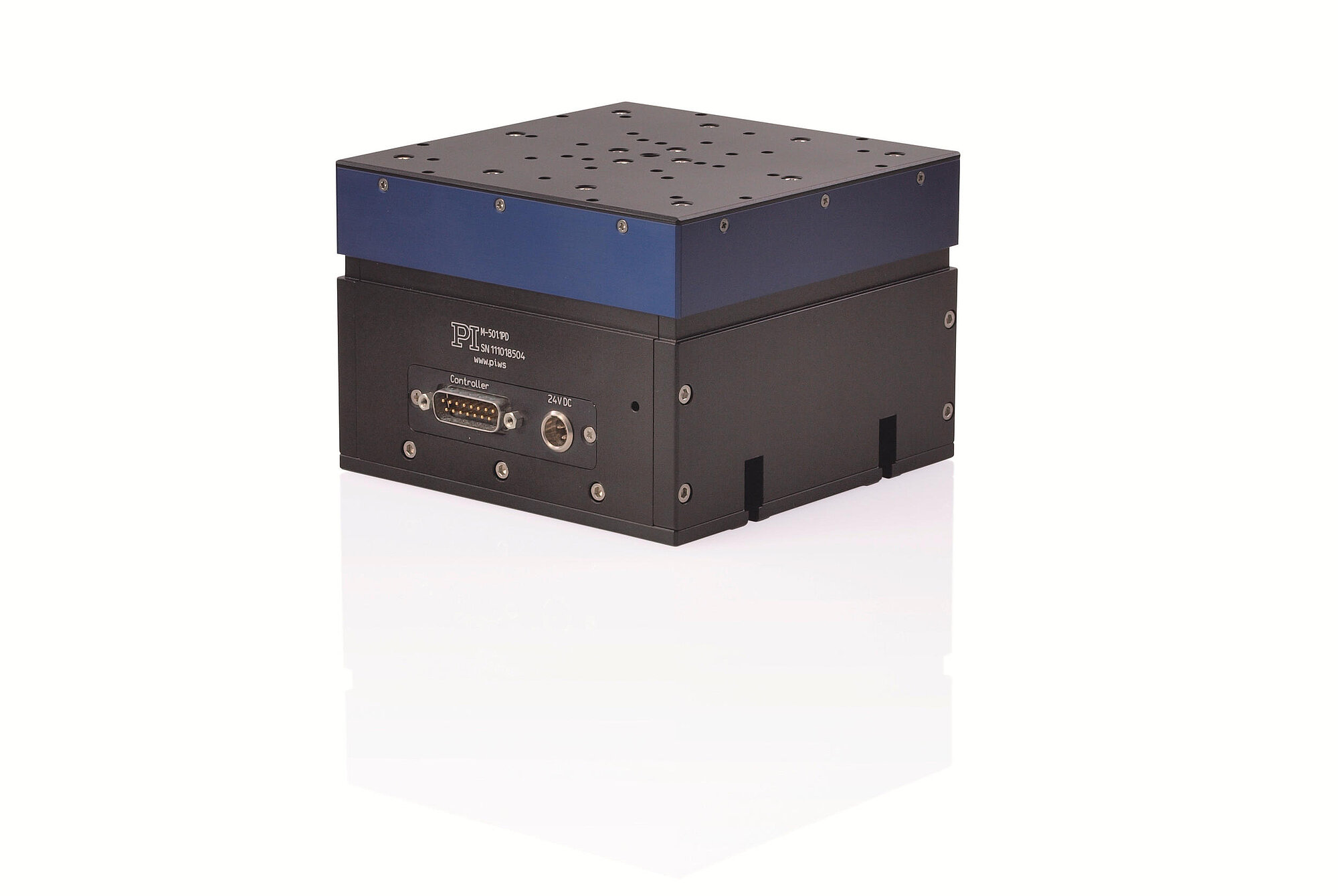

M-501 Precision Z Stage

This product has been replaced by the following new product: L-310 Precision Z Stage

e.g., for compact XYZ combinations with M-511 series

Extremely high-resolution encoder
ActiveDrive Motor
Zero-play ball screws
Noncontact limit and reference switches
Stress-relieved aluminum base for high stability
Self-locking to 10 kg

Vai alla quotazione / ordine

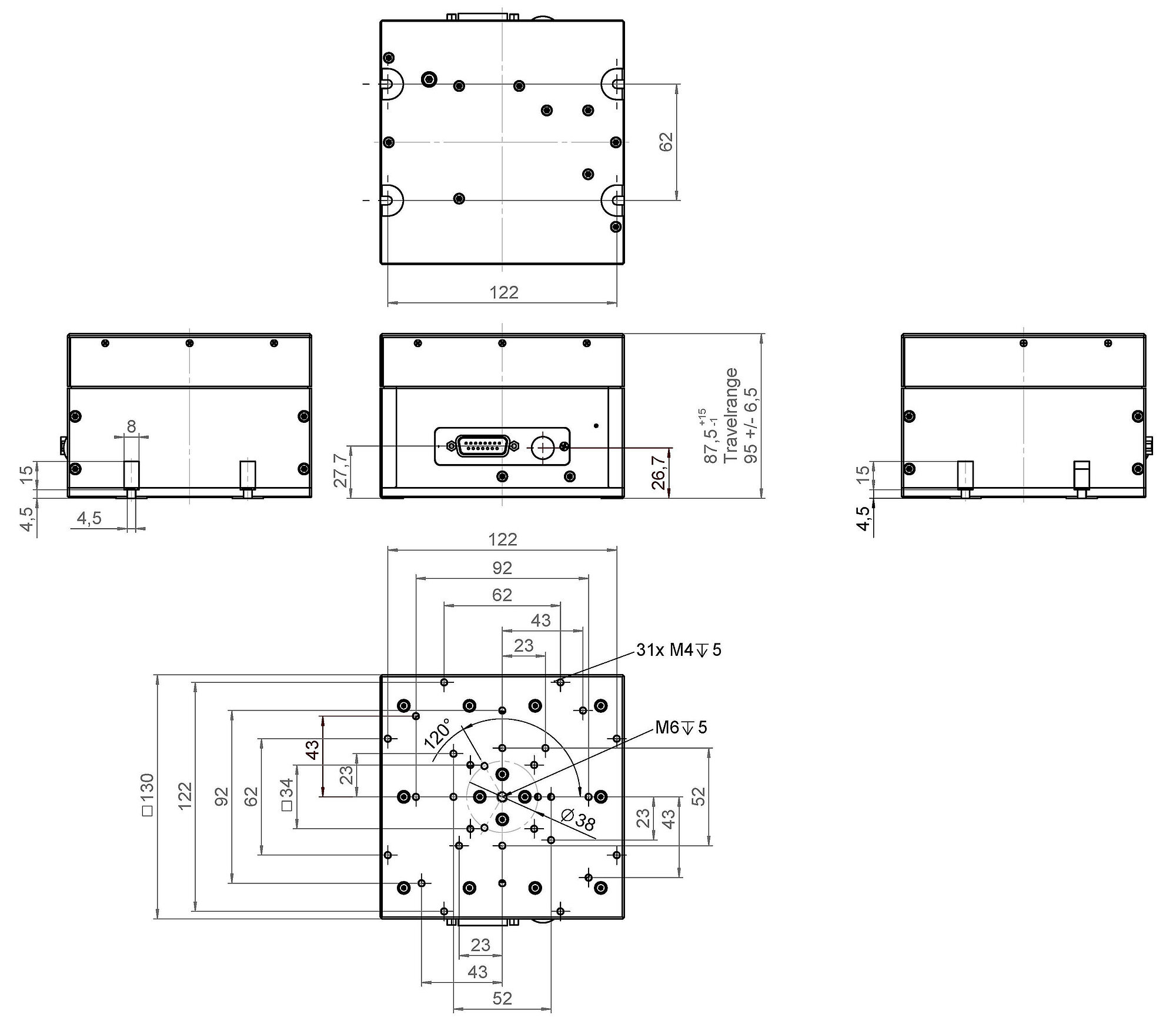

M-501, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Scarica il datasheet Vai alle Specifiche Vai alla quotazione / ordine

Datasheet

Versione / Data

2024-07-17

pdf - 404 KB

Versione / Data

2024-07-17

pdf - 407 KB

Download

Motion	M-501.1DG	M-501.1PD	Tolerance
Active axes	Z	Z
Travel range in Z	12.5 mm	12.5 mm
Maximum velocity in Z, unloaded	1 mm/s	3 mm/s
Angular error E_AZ	± 150 µrad	± 150 µrad	typ.
Angular error E_BZ	± 150 µrad	± 150 µrad	typ.
Positioning	M-501.1DG	M-501.1PD	Tolerance
Minimum incremental motion in Z	0.1 µm	0.1 µm	typ.
Unidirectional repeatability in Z	± 0.05 µm	± 0.05 µm	typ.
Bidirectional repeatability in Z	6 µm	6 µm	typ.
Reference switch	Hall effect	Hall effect
Reference switch repeatability	1 µm	1 µm
Limit switches	Hall effect	Hall effect
Integrated sensor	Incremental rotary encoder	Incremental rotary encoder
Sensor signal	A/B quadrature, RS-422	A/B quadrature, RS-422
Sensor resolution	2048 Cts./rev.	40960 Cts./rev.
Drive Properties	M-501.1DG	M-501.1PD	Tolerance
Drive type	DC gear motor	DC motor with ActiveDrive
Nominal voltage	12 V	24 V
Maximum power consumption	4 W	17 W
Drive force in positive direction of motion in Z	100 N	50 N	typ.
Drive force in negative direction of motion in Z	100 N	50 N	typ.
Torque constant	14.5 N·m/A	34.6 N·m/A	typ.
Number of pole pairs	1	1
Mechanical Properties	M-501.1DG	M-501.1PD	Tolerance
Permissible push force in Z	100 N	50 N	max.
Permissible torque in θX	40 N·m	40 N·m	max.
Permissible torque in θY	20 N·m	20 N·m	max.
Permissible torque in θZ	20 N·m	20 N·m	max.
Holding force in Z, passive	100 N	20 N
Drive screw type	Ball screw	Ball screw
Drive screw pitch	1 mm	1 mm
Gear ratio i	80 : 26 + 29,6 : 1 gearing (91 : 1)	80 : 26
Guide	Crossed roller guide	Crossed roller guide
Overall mass	2600 g	2600 g
Material	Anodized aluminum	Anodized aluminum
Miscellaneous	M-501.1DG	M-501.1PD	Tolerance
Operating temperature range	-20 to 50 °C	10 to 50 °C
Connector	D-sub 15 (m)	D-sub 15 (m)
Recommended controllers / drivers	C-863 C-884	C-863 C-884

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.

Scarica il datasheet Vai al download Vai alla quotazione / ordine

Datasheet

Versione / Data

2024-07-17

pdf - 404 KB

Versione / Data

2024-07-17

pdf - 407 KB

Download

Documentation

M-501.1DG Z Stage

Versione / Data

2020-10-09

pdf - 3 MB

Versione / Data

220-10-09

pdf - 3 MB

Documentation

M-501.1PD Z Stage

Versione / Data

2020-10-09

pdf - 3 MB

Versione / Data

2020-10-09

pdf - 3 MB

Documentation

Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx

Versione / Data

3.2.0 01/2021

pdf - 1 MB

Versione / Data

3.2.0 01/2021

pdf - 1 MB

Download

3D Models

zip - 63 KB

Vai alla quotazione / ordine

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

M-501.1DG

Precision Z stage; DC gear motor; 12.5 mm travel range; 100 N load capacity; 1 mm/s maximum velocity; incremental rotary encoder, 2048 counts/rev sensor resolution, A/B quadrature, RS-422

M-501.1PD

Precision Z stage; DC motor with ActiveDrive; 12.5 mm travel range; 50 N load capacity; 3 mm/s maximum velocity; incremental rotary encoder, 40960 counts/rev sensor resolution, A/B quadrature, RS-422
