N-472.110
Position-controlled PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; M10×1 thread; 22 N feed force; 2 mm/min maximum velocity; 2 m cable length

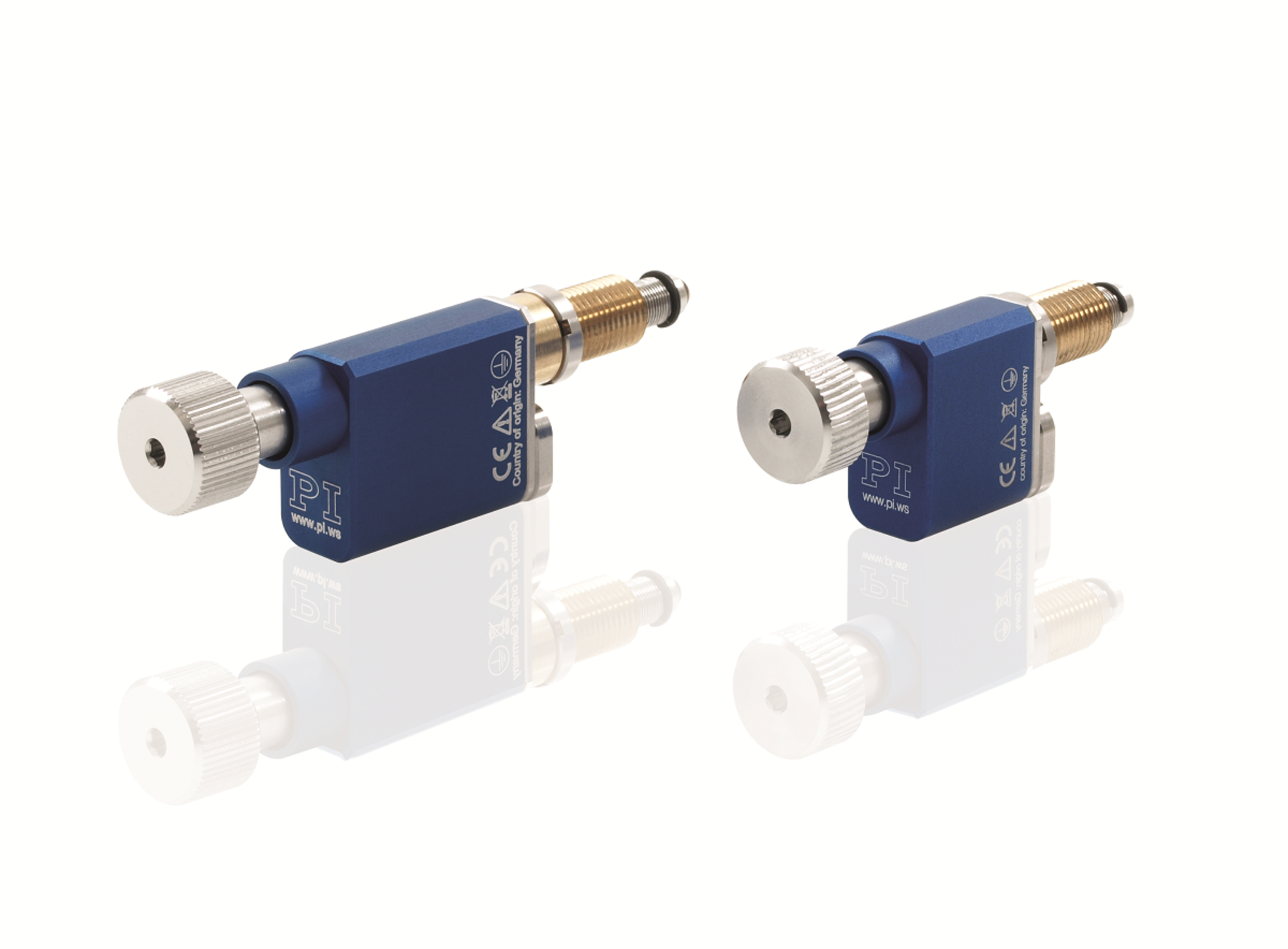

N-472 PiezoMike Linear Actuator
With Position Sensor for Closed-Loop Operation
- High stability and holding force 100 N
- Self-locking at rest even when closed-loop control is switched off
- Compact design with integrated incremental encoder
- Feed force 22 N
- Lifetime >1,000,000,000 steps at ambient conditions and >50,000,000 steps under vacuum conditions

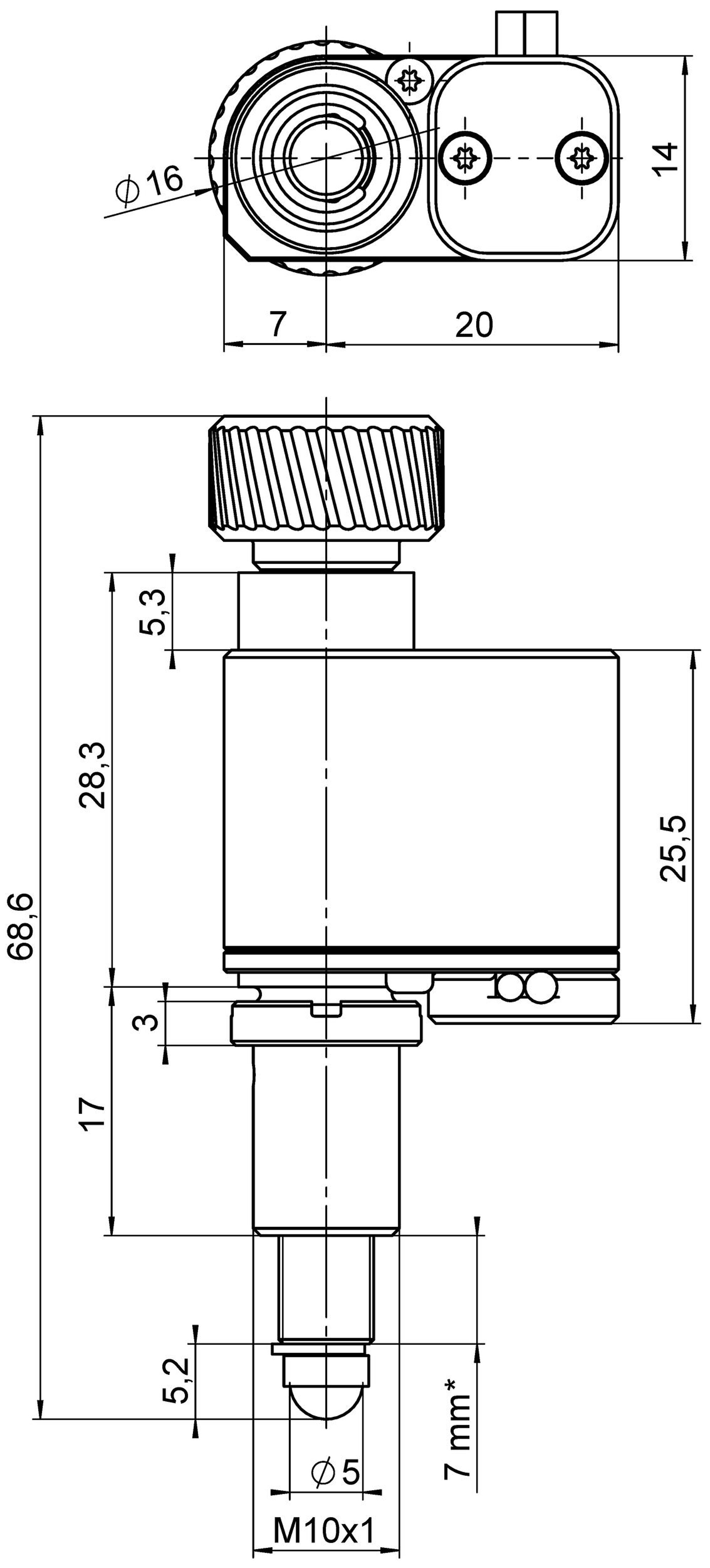

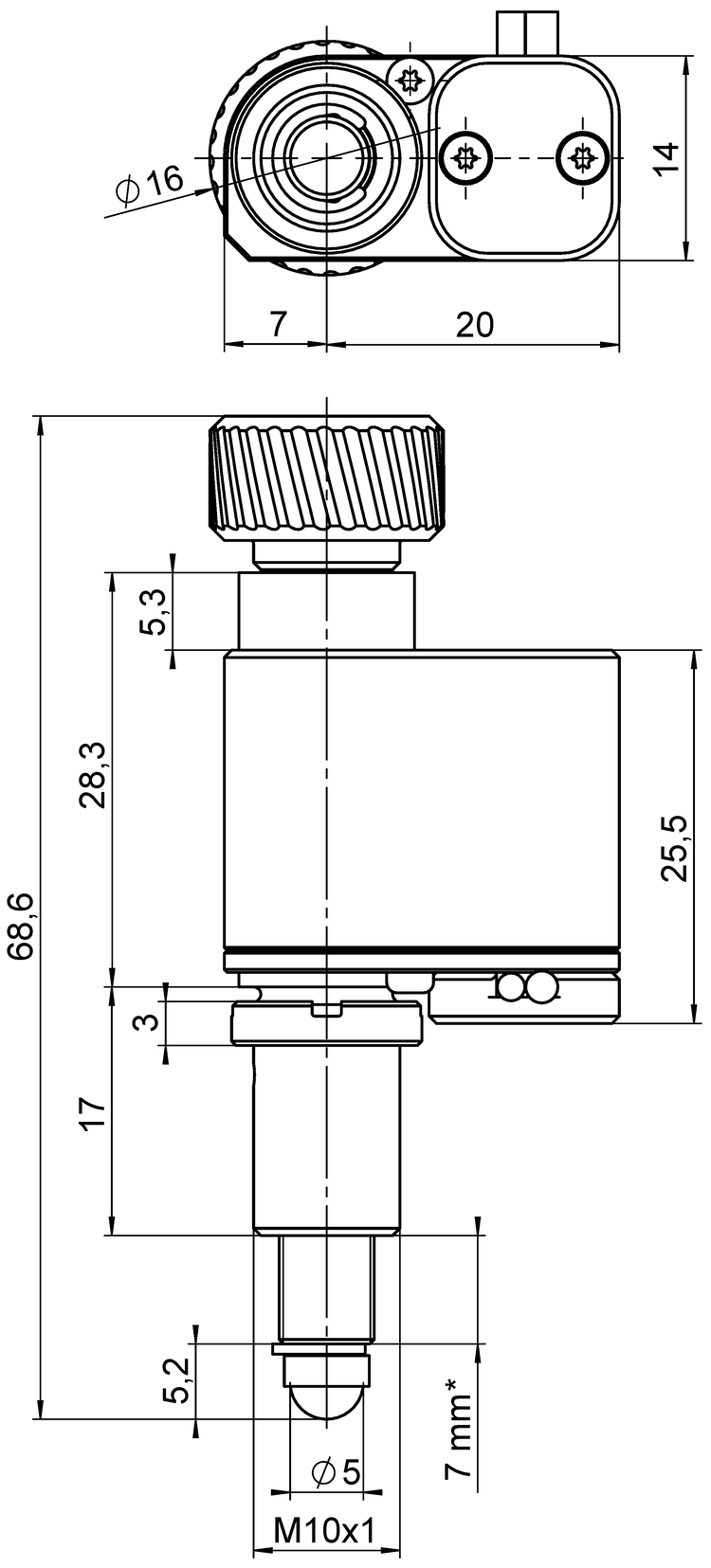

Models N-472.11x(x) with M10x1 thread, dimensions in mm. (* travel range)

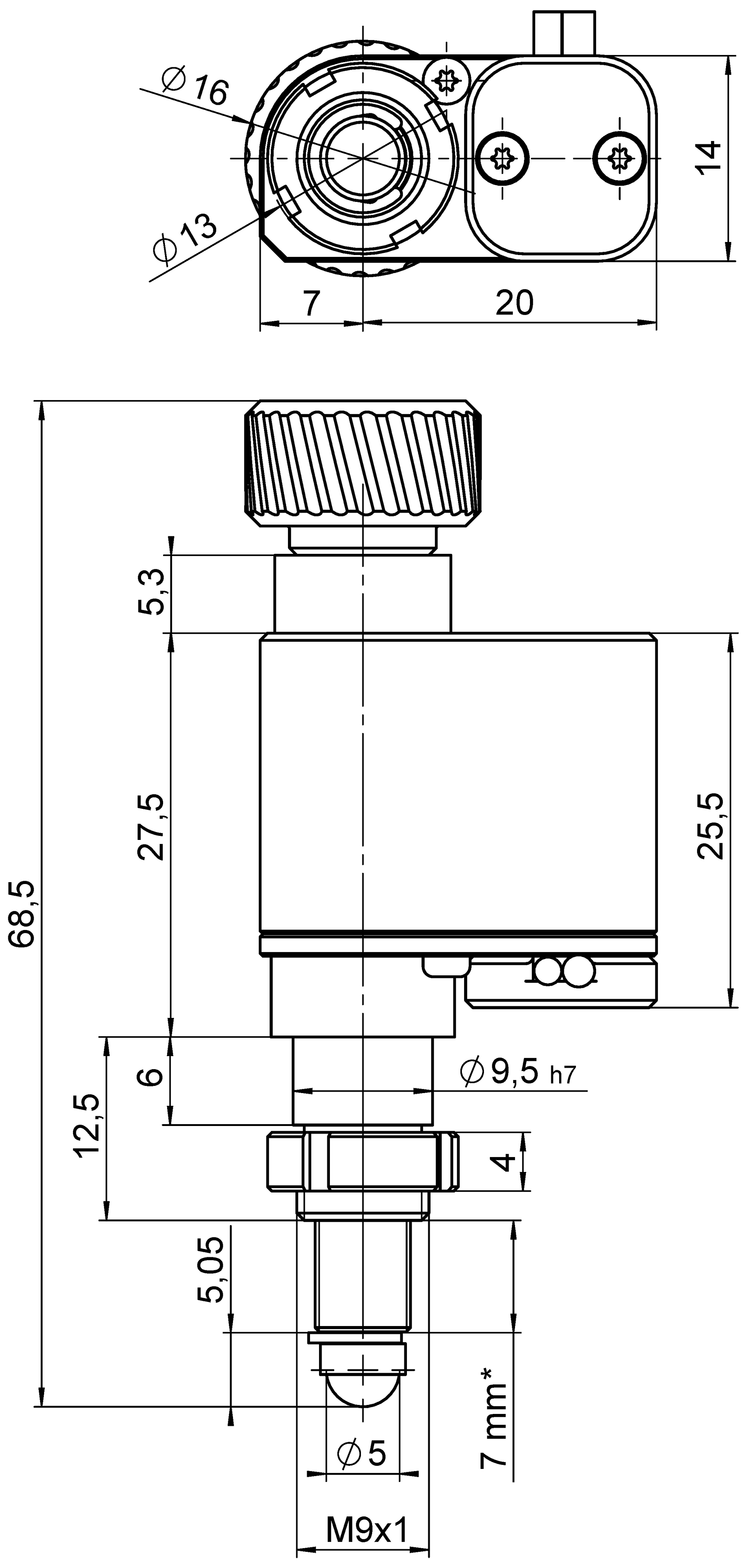

Models N-472.12x(x) with clamping shank, dimensions in mm. (* travel range)
N-472 PiezoMike Linear Actuator
Descrizione del Prodotto
Specifiche
Download
Quotazione / Ordine
Inertia drive
Compact, inexpensive inertia drive principle (stick-slip). The drive is self-locking at rest, requires no current, and does not generate any heat. It holds the position with maximum force.
Integrated position sensor
An incremental encoder measures the relative motion to a freely definable reference position.
Alignment of mechanical and optomechanical components
Stable adjustment in optical paths. Long-term positioning: High stability at target position, reliable startup even after longer downtimes. High holding force and resolution by combining piezo actuators with mechanical thread translation. Vacuum-compatible versions to 10-6 hPa available.
Specifications
Specifications
Positioning | Unit | Tolerance | N-472.110 | N-472.110Y | N-472.11V | N-472.120 | N-472.120Y | N-472.12V |
|---|---|---|---|---|---|---|---|---|
Step size, open-loop | nm | typ. | 20 | 20 | 20 | 20 | 20 | 20 |
Step size, closed loop | nm | typ. | 50 | 50 | 50 | 50 | 50 | 50 |
Unidirectional repeatability in X | nm | typ. | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 |
Integrated sensor |
|
| Incremental angle measuring system | Incremental angle measuring system | Incremental angle measuring system | Incremental angle measuring system | Incremental angle measuring system | Incremental angle measuring system |
Sensor signal |
|
| Sin/cos, 0.5 V peak-to-peak, differential | Sin/cos, 0.5 V peak-to-peak, differential | Sin/cos, 0.5 V peak-to-peak, differential | Sin/cos, 0.5 V peak-to-peak, differential | Sin/cos, 0.5 V peak-to-peak, differential | Sin/cos, 0.5 V peak-to-peak, differential |
Drive properties | Unit | Tolerance | N-472.110 | N-472.110Y | N-472.11V | N-472.120 | N-472.120Y | N-472.12V |
|---|---|---|---|---|---|---|---|---|
Drive type |
|
| Piezoelectric inertia drive | Piezoelectric inertia drive | Piezoelectric inertia drive | Piezoelectric inertia drive | Piezoelectric inertia drive | Piezoelectric inertia drive |
Operating voltage, peak-to-peak | V |
| 80 | 80 | 80 | 80 | 80 | 80 |
Maximum power consumption | W |
| 5 | 5 | 5 | 5 | 5 | 5 |
Drive force in positive direction of motion in X | N | max. | 22 | 22 | 22 | 22 | 22 | 22 |
Maximum operating frequency during continuous operation | Hz |
| 400 | 400 | 200 | 400 | 400 | 200 |
Short-term maximum operating frequency | Hz |
| 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
Mechanical properties | Unit | Tolerance | N-472.110 | N-472.110Y | N-472.11V | N-472.120 | N-472.120Y | N-472.12V |
|---|---|---|---|---|---|---|---|---|
Holding force in X, passive | N | min. | 100 | 100 | 100 | 100 | 100 | 100 |
Overall mass | g |
| 200 | 200 | 250 | 200 | 200 | 250 |
Material |
|
| Screw: Stainless steel; housing: Aluminum, bronze | Screw: Stainless steel; housing: Aluminum, bronze | Screw: Stainless steel; housing: Aluminum, bronze | Screw: Stainless steel; housing: Aluminum, bronze | Screw: Stainless steel; housing: Aluminum, bronze | Screw: Stainless steel; housing: Aluminum, bronze |
Mechanical interface |
|
| M10×1 mounting thread | M10×1 mounting thread | M10×1 mounting thread | 9.5 mm clamping shank | 9.5 mm clamping shank | 9.5 mm clamping shank |
Miscellaneous | Unit |
| N-472.110 | N-472.110Y | N-472.11V | N-472.120 | N-472.120Y | N-472.12V |
|---|---|---|---|---|---|---|---|---|
Operating temperature range | °C |
| 10 to 40 | 10 to 40 | 10 to 40 | 10 to 40 | 10 to 40 | 10 to 40 |
Vacuum class | hPa |
| — | — | 10-6 | — | — | 10-6 |
Connector |
|
| D-sub 15 (m) | D-sub 15 (m) | Bare wire strands | D-sub 15 (m) | D-sub 15 (m) | Bare wire strands |
Cable length | m |
| 2 | 2 | 1 | 2 | 2 | 1 |
Recommended controllers/drivers |
|
| E-873.1AT | E-873.1AT | E-873.1AT | E-873.1AT | E-873.1AT | E-873.1AT |
Maximum velocity not suitable for continuous operation (refer to the user manual).
Linearity error: 22 N preload, measured over the entire stroke, compensated for temperature drift.
Unidirectional repeatability: 22 N preload, measured at 1 mm stroke, compensated for temperature drift.
Cable length of vacuum-compatible models: 1 m connecting cable on the actuator, with stranded wires on the cable end; 2 m separate connecting cable, D-sub 15 (m) to stranded wires.
Custom versions are available on request.
At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
Downloads
Product Note
Datasheet
Documentation
Documentation
User Manual MP144
N-472 Closed-loop PiezoMike Linear Actuator
Versione / Data
2026-06-09
pdf - 11 MB
Versione / Data
2026-06-09
pdf - 11 MB
3D Models
3D Models
N-472 3D Model
Versione / Data
2022-01-19
zip - 3 MB
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
Ordering information
N-472.110Y
Position-controlled PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; M10×1 thread; 22 N feed force; 2 mm/min maximum velocity; 2 m cable length; turned cable exit
N-472.11V
Position-controlled PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; M10×1 thread; 22 N feed force; 2 mm/min maximum velocity; vacuum compatible to 10-6 hPa; 1 m cable length
N-472.120
Position-controlled PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; 9.5 mm (0.375") clamping shank; 22 N feed force; 2 mm/min maximum velocity; 2 m cable length
N-472.120Y
Position-controlled PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; 9.5 mm (0.375") clamping shank; 22 N feed force; 2 mm/min maximum velocity; 2 m cable length; turned cable exit
N-472.12V
Position-controlled PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; 9.5 mm (0.375") clamping shank; 22 N feed force; 2 mm/min maximum velocity; vacuum compatible to 10-6 hPa; 1 m cable length
