E-821 Energy Harvesting Module
In addition to the transducer and storage electronics, the E-821.EHD evaluation kit contains the required cabling and corresponding DuraAct piezo transducers for the integration in an application. The output voltage of between 1.8 and 5 V can be used to operate commercially available electric circuits and systems
The E-821 energy harvesting electronics is designed to work best with P-876 DuraAct patch transducers

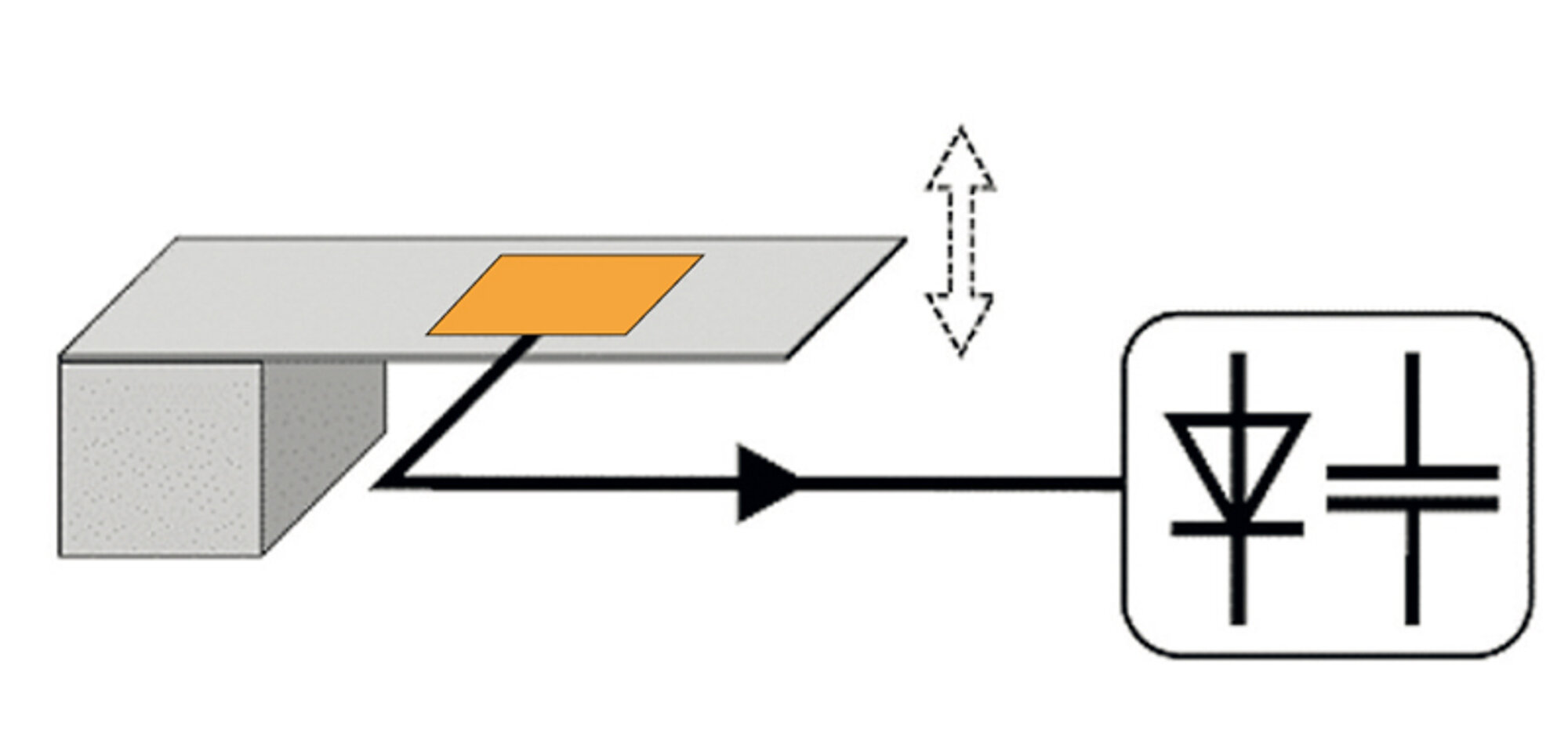

To dimension an energy harvesting system correctly, all important boundary conditions must be known and taken into account. The principle itself is simple: Ambient vibrations produce a charge separation in the piezoceramic DuraAct transducer. The electronic circuitry in the E-821 module then ensures a sufficiently stable output voltage that can be adjusted to the load
DuraAct patch transducers, which are available in many different designs, can be adapted to the application
E-821 Electronic Module for Energy Harvesting
Descrizione del Prodotto Specifiche Download Quotazione / Ordine

OEM electronic module for energy harvesting

For generating energy from vibration. Use in combination with DuraAct patch transducers. Adjustable output voltage. Processes input currents between 20 µA and 40 mA, voltage peaks are limited to 15 V. Custom version for operation with piezo stack actuators on request



Fields of application

Autonomous power supplies, e.g. for wireless sensor networks



Scarica il datasheet Vai alle Specifiche

Specifications

Datasheet

Datasheet E-821

Versione / Data
2015-01-29
pdf - 896 KB
Versione / Data
2015-01-29
pdf - 890 KB
Download
Download
Vai al download

Downloads

Datasheet

Datasheet

Datasheet E-821

Versione / Data
2015-01-29
pdf - 896 KB
Versione / Data
2015-01-29
pdf - 890 KB
Download
Download

Documentation

Documentation

User Manual E821T0002

E-821.EHD Piezoelectric Energy Harvesting Evaluation Kit

Versione / Data
2012-05-21
pdf - 1 MB
inglese
Documentation

User Manual E821T0001

E-821.00 Module for Energy Harvesting

Versione / Data
2012-05-18
pdf - 209 KB
inglese
Vai alla quotazione / ordine

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

E-821.EHD
Energy Harvesting with Piezo Transducers, Evaluation Kit. Content: 1 × E-821.00 Signal Conditioner Module for Energy Harvesting, 8.7 mJ; 1 × P-876.A12 DuraAct Patch Transducer, 61 mm × 35 mm × 0.5 mm; 1 × P-876.A12 DuraAct Patch Transducer on Substrate; Connection Cable
​
