Air Bearings e Stages

Gli stages air bearing vengono utilizzati dove è richiesto un movimento privo di vibrazioni, la velocità deve essere altamente costante e dove è richiesta una ripetibilità angolare ottimale. La tecnologia Air bearing evita l'attrito, l'usura e l'effetto backlash. Le guide lineari, rotative e sferiche PIglide sono componenti di precisione che possono essere integrati e motorizzati in applicazioni nei mercati OEM, industriali e nel campo della ricerca.

Assi Lineari con Air Bearings

A-142 Miniature Air Bearing Linear Stage
Novità

A-142 PIglide Voice Coil Linear Stage with Air Bearings

High Performance • Cleanroom-Compatible • Option for Vertical Mounting
  • High performance
  • Possible vertical mounting
  • Motion platform 75mm × 80mm
  • Travel ranges up to 10mm
  • Acceleration up to 20 m/s

A-131 PIglide VC Voice Coil Linear Stage with Air Bearings

High-Performance Miniature Nanopositioning System
  • Miniature nanopositioning system
  • Clean room compatible
  • Travel ranges up to 25mm
  • Load capacity up to 30N
  • Acceleration up to 40m/s

A-110 PIglide LC Linear Stage with Air Bearings

Inexpensive High Performance Nanopositioning Stage
  • High precision positioning
  • Inexpensive &amp
  • clean room compatible
  • Motion platform 160mm × 200mm
  • Travel ranges up to 400mm
  • Load capacity up to 100N

A-141 PIglide MB Miniature Linear Stage with Air Bearings

High Performance, Cleanroom Compatible, Customizable
  • High performance
  • Clean room compatible
  • Motion platform 57mm × 93mm
  • Travel ranges up to 35mm
  • Acceleration up to 3,5m/s

A-123 PIglide AT3 Linear Stage with Air Bearings

High Performance Nanopositioning Stage
  • High performance nanopositioning stage
  • Clean room compatible
  • Motion platform 210mm × 210mm
  • Travel ranges 50mm to 750mm
  • Resolution up to 1 nm

A-121 PIglide AT1 Linear Stage with Air Bearings

High Performance Small Footprint Nanopositioning Stage
  • High performance nanopositioning stage
  • small design
  • Motion platform 115mm × 115mm
  • Travel ranges up to 350mm
  • Resolution up to 1nm

Stages XY con Air Bearings

A-351 MGS Gantry System with Linear Motors

Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.
  • The A-351 MGS air bearing hybrid gantry system with linear motors has been designed to maximize throughput for applications that require overhead motion.

A-341 PIglide HGS Hybrid Gantry System

Hybrid Guide Design with Air Bearings and Recirculating Ball Bearing Guides for High Precision with Low Profile.
  • The A-341 gantry system with linear motors and absolute encoders maximizes throughput for applications that require overhead motion.

A-322 PIglide HS Planar Scanner with Air Bearing

XY Positioning System with 1 nm Resolution
  • XY air bearing stage, planar, high performance, travel to 1 m, linear motors, absolute encoder, nanometer precision. For high accuracy automation &amp
  • metrology.

A-311 PIglide IS Planar Scanner with Air Bearing

High-Performance, Compact XY Nanopositioning System
  • Compact XY-nanopositioning system
  • High-precision positioning
  • Low profile
  • Travel ranges up to 300mm × 400mm
  • Load capacity up to 147N

Stages di Rotazione e Tip/Tilt con Air Bearings

Novità

A-523 PIglide High-Precision Z Tip/Tilt Stage with Air Bearings

High Performance • Cleanroom-Compatible • Low Profile
  • High performance
  • Low profile
  • Travel range in Z up to ±2.5 mm
  • Rotation range in θX, θY up to ±1°
  • Load capacity up to 8 kg
PIglide RLA Rotation Stage with Air Bearings, Large Aperture
Novità

A-68x PIglide RLA Rotation Stage with Air Bearings, Large Aperture

Friction-free, Motorized
  • Friction-free, motorized
  • ⌀365mm motion platform
  • ⌀260 mm aperture
  • Eccentricity/flatness &lt
  • 300nm
Novità

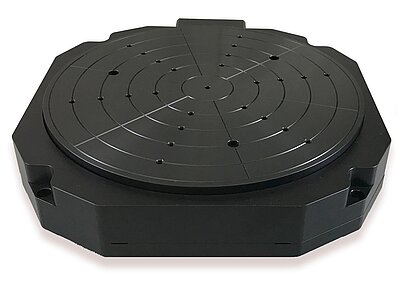

A-63x PIglide RL Flat Rotation Stage with Air Bearing

Friction-free, Motorized
  • Friction-free, motorized
  • Low profile
  • Eccentricity/flatness &lt
  • 100nm
  • Self-locking option

A-62x PIglide RM Rotation Stage with Air Bearings

Friction-Free, Ideal for Indexing, Positioning, Scanning, Measuring Technology
  • Friction-Free
  • Motion platform 50mm to 300mm
  • Load capacity up to 4170N
  • Eccentricity/flatness &lt
  • 200nm
  • mounted vertically or horizontally

Controllori di Movimento per PIglide

Novità

A-811.CE PIglide Motion Controller for One Axis

For Stages with Direct Drive, TCP/IP Interface
  • Motion controller for motor stages with air bearings. High end for industrial precision automation - linear and rotary motion.
Novità

A-82x PIglide Motion Controller for 4, 6 or 8 Axes

For Stages with Direct Drive and High Power Requirements, TCP/IP Interface
  • High power motion controller for linear motor stages with air bearings. High end for industrial precision automation - linear and rotary motion.

A-81x PIglide Motion Controller for 1, 2 or 4 Axes

For Stages with Direct Drive, TCP/IP Interface
  • Direct Drive, TCP/IP Interface
  • 1, 2, &amp
  • 4 motion axes
  • Quiet PWM drives
  • Output 10A continuous/20A peak/axis

Air Bearings

PIglide RT Rotary Air Bearing Module

A-60x PIglide RT Rotary Air Bearing Module

Frictionless, Nonmotorized
  • Frictionless, non-motorized
  • Motion platform 50mm to 300mm
  • High load capacity up to 425kg
  • Eccentricity/flatness &lt
  • 200nm
  • mounted vertically or horizontally
PIglide RB Linear Air Bearing Module

A-10x PIglide RB Linear Air Bearing Module

Friction Free, Ideal for Positioning, Scanning, Metrology
  • High-resolution positioning
  • Friction-free &amp
  • clean room compatible
  • Motion platform 300mm × 300mm
  • Load capacity 775kg
  • Travel ranges up to 1m

A-65x PIglide HB: Hemispherical Air Bearing Module

Friction-Free, Ideal for Rotational Motion on Three Axes
  • Ideal for Rotational Motion
  • Rotatable in three directions
  • Low inertia
  • Load capacity up to 635kg
  • tip/tilt range to ±45°

Accessori

Mounting Feet

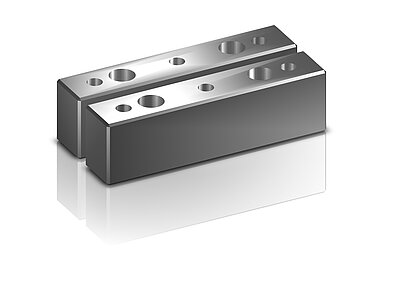

A-10x.MNT Mounting Feet

For Mounting the Air Bearing Modules of the A-10x Series
Pedestal

A-65x.PED Pedestal

Compatible with A-65x PIglide HB Hemispherical Air Bearing Module
  • Compatible with A-65x PIglide HB
  • Matching pedestal
PIglide Manual XY Tip/Tilt Platform

A-60x.MTT PIglide Manual XY Tip/Tilt Platform

Compatible with A-60x and A-62x
  • Add-On For Rotary Stage
  • 4 degrees of freedom
  • Travel range to ±3mm, ±1.25°
  • Direct mount on A-60x / A-62x
  • Manual operation
PIglide Filter and Air Preparation Kits

A-80x PIglide Filter and Air Preparation Kits

Accessories for Air Bearings and Air Bearing Stages
  • Accessories
  • controls supply pressure
  • available with multiple channels
  • available with storage tank
  • available with vacuum generation
