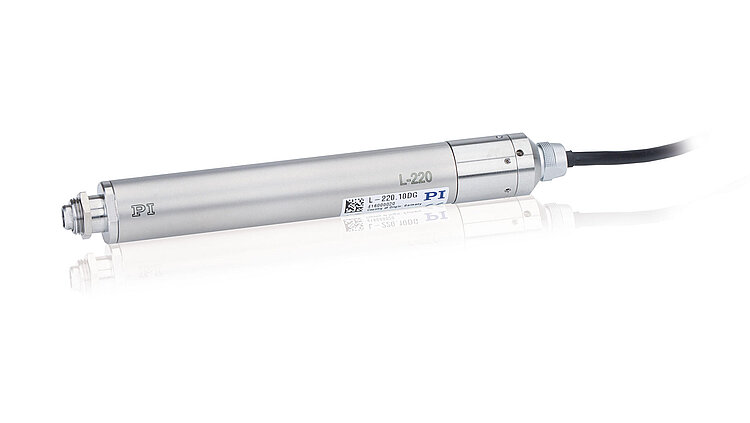

High-resolution linear actuator, DC gear motor, 13 mm travel range, 125 N feed force; 3.5 mm/s maximum velocity; ball screw; incremental rotary encoder, 512 counts/rev. resolution, A/B quadrature, RS-422; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 m cable length

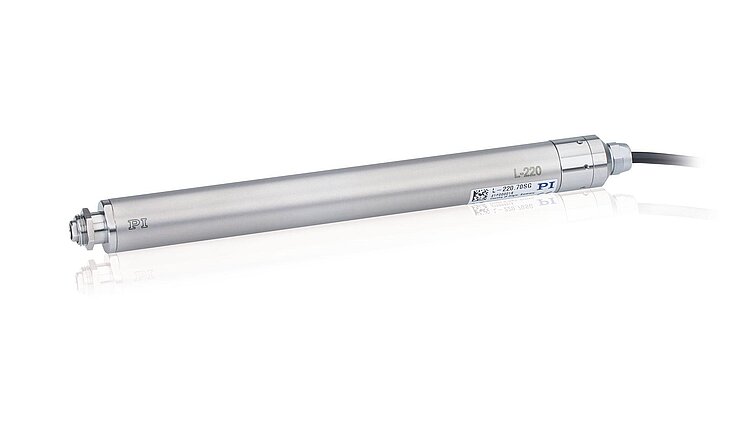

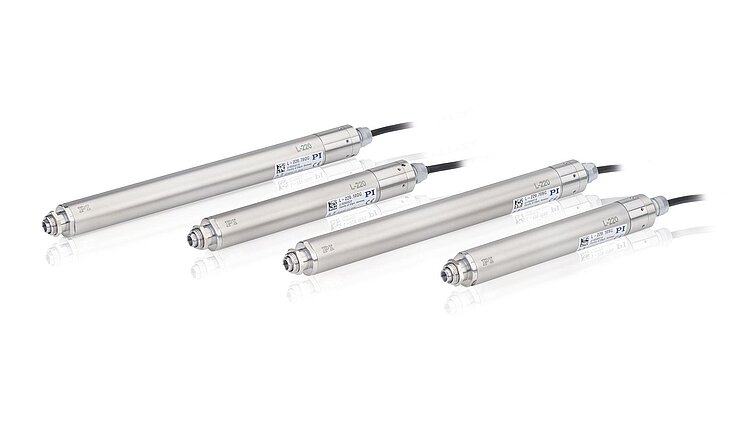

L-220 High-Resolution Linear Actuator
Suitable for High Cycle Numbers
- Forces to 125 N
- Travel ranges 13 to 77 mm (½" to 3")
- DC or stepper motor
- Vacuum-compatible variants available
Reference-class linear drive
Combines high precision, high forces, and high dynamics. Versions available for vacuum environments to 10-9 hPa.
High-quality components
Ball screw for smooth feed. Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat and spherical tip for decoupling forces. Noncontact limit switches protect the mechanics. A direction-sensing reference switch supports automation applications. Position-controlled variants with differential encoder driver in the connector for safe signal transfer over distances up to 10 m.
Motor variants
- Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion of just 100 nm
- High-performance and low-vibration 2-phase stepper motors with gear ratio allow precision positioning even without position control
Application fields
Research. Automation. Optical alignment.

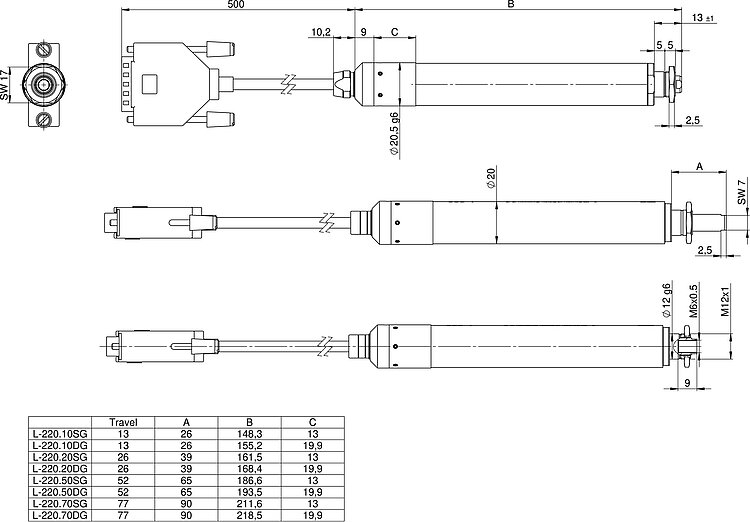

Specifications
Specifications
Motion | L-220.10DG | L-220.20DG | L-220.50DG | L-220.70DG | L-220.10SG | L-220.20SG | L-220.50SG | L-220.70SG | Tolerance |
---|---|---|---|---|---|---|---|---|---|
Active axes | X | X | X | X | X | X | X | X | |
Travel range in X | 13 mm | 26 mm | 52 mm | 77 mm | 13 mm | 26 mm | 52 mm | 77 mm | |
Maximum velocity in X, unloaded | 3.5 mm/s | 3.5 mm/s | 3.5 mm/s | 3.5 mm/s | 0.8 mm/s | 0.8 mm/s | 0.8 mm/s | 0.8 mm/s | |
Positioning | L-220.10DG | L-220.20DG | L-220.50DG | L-220.70DG | L-220.10SG | L-220.20SG | L-220.50SG | L-220.70SG | Tolerance |
Unidirectional repeatability in X | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm | typ. |
Bidirectional repeatability in X | ± 1 µm | ± 1 µm | ± 1 µm | ± 1 µm | ± 1 µm | ± 1 µm | ± 1 µm | ± 1 µm | typ. |
Minimum incremental motion in X | 0.1 µm | 0.1 µm | 0.1 µm | 0.1 µm | 0.1 µm | 0.1 µm | 0.1 µm | 0.1 µm | typ. |
Reference switch | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | |
Limit switches | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | |
Motor encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | Incremental rotary encoder | |||||
Resolution, motor encoder | 512 Cts./rev. | 512 Cts./rev. | 512 Cts./rev. | 512 Cts./rev. | |||||
Motor encoder: Sensor signal | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | |||||
Drive Properties | L-220.10DG | L-220.20DG | L-220.50DG | L-220.70DG | L-220.10SG | L-220.20SG | L-220.50SG | L-220.70SG | Tolerance |
Drive type | DC gear motor | DC gear motor | DC gear motor | DC gear motor | 2-phase stepper motor with gearhead | 2-phase stepper motor with gearhead | 2-phase stepper motor with gearhead | 2-phase stepper motor with gearhead | |
Maximum power consumption | 4 W | 4 W | 4 W | 4 W | |||||
Nominal voltage | 12 V | 12 V | 12 V | 12 V | 3.5 V | 3.5 V | 3.5 V | 3.5 V | |
Nominal current, RMS | 0.28 A | 0.28 A | 0.28 A | 0.28 A | 0.25 A | 0.25 A | 0.25 A | 0.25 A | typ. |
Peak current, RMS | 0.56 A | 0.56 A | 0.56 A | 0.56 A | typ. | ||||
Drive force in negative direction of motion in X | 125 N | 125 N | 125 N | 125 N | 125 N | 125 N | 125 N | 125 N | typ. |
Drive force in positive direction of motion in X | 125 N | 125 N | 125 N | 125 N | 125 N | 125 N | 125 N | 125 N | typ. |
Torque constant | 0.0115 N·m/A | 0.0115 N·m/A | 0.0115 N·m/A | 0.0115 N·m/A | typ. | ||||
Resistance phase-phase | 19.8 Ω | 19.8 Ω | 19.8 Ω | 19.8 Ω | 12.5 Ω | 12.5 Ω | 12.5 Ω | 12.5 Ω | typ. |
Inductance phase-phase | 0.42 mH | 0.42 mH | 0.42 mH | 0.42 mH | 6.3 mH | 6.3 mH | 6.3 mH | 6.3 mH | |
Back EMF, phase-phase, rotational | 1.21 V/kRPM | 1.21 V/kRPM | 1.21 V/kRPM | 1.21 V/kRPM | 11 V/kRPM | 11 V/kRPM | 11 V/kRPM | 11 V/kRPM | max. |
Number of pole pairs | 1 | 1 | 1 | 1 | |||||
Motor resolution | 24 Full steps/rev. | 24 Full steps/rev. | 24 Full steps/rev. | 24 Full steps/rev. | |||||
Mechanical Properties | L-220.10DG | L-220.20DG | L-220.50DG | L-220.70DG | L-220.10SG | L-220.20SG | L-220.50SG | L-220.70SG | Tolerance |
Drive screw type | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | |
Drive screw pitch | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | 1 mm | |
Gear ratio i | 12493 : 567 | 12493 : 567 | 12493 : 567 | 12493 : 567 | 387283 : 5103 | 387283 : 5103 | 387283 : 5103 | 387283 : 5103 | |
Moved mass in X, unloaded | 20 g | 20 g | 25 g | 30 g | 20 g | 20 g | 25 g | 30 g | |
Permissible push force in Y | 1 N | 1 N | 1 N | 1 N | 1 N | 1 N | 1 N | 1 N | max. |
Overall mass | 210 g | 230 g | 260 g | 290 g | 230 g | 250 g | 280 g | 320 g | |
Material | Stainless steel, bronze | Stainless steel, bronze | Stainless steel, bronze | Stainless steel, bronze | Stainless steel, bronze | Stainless steel, bronze | Stainless steel, bronze | Stainless steel, bronze | |
Holding force in X, passive | 125 N | 125 N | 125 N | 125 N | |||||
Miscellaneous | L-220.10DG | L-220.20DG | L-220.50DG | L-220.70DG | L-220.10SG | L-220.20SG | L-220.50SG | L-220.70SG | Tolerance |
Operating temperature range | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | |
Connector | HD D-sub 26-pin (m) | HD D-sub 26-pin (m) | HD D-sub 26-pin (m) | HD D-sub 26-pin (m) | HD D-sub 26-pin (m) | HD D-sub 26-pin (m) | HD D-sub 26-pin (m) | HD D-sub 26-pin (m) | |
Cable length | 0.5 m | 0.5 m | 0.5 m | 0.5 m | 0.5 m | 0.5 m | 0.5 m | 0.5 m | |
Recommended controllers / drivers | C-863 C-885 with C-863.20C885 C-884 ACS modular controller | C-863 C-885 with C-863.20C885 C-884 ACS modular controller | C-863 C-885 with C-863.20C885 C-884 ACS modular controller | C-863 C-885 with C-863.20C885 C-884 ACS modular controller | C-663.12 C-885 with C-663.12C885 ACS modular controller | C-663.12 C-885 with C-663.12C885 ACS modular controller | C-663.12 C-885 with C-663.12C885 ACS modular controller | C-663.12 C-885 with C-663.12C885 ACS modular controller |
Downloads
Datasheet
Documentation
User Manual MP149
L-220 High-Resolution Linear Actuator
3-D Models
L-220 3-D model
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
High-resolution linear actuator, DC gear motor, 26 mm travel range, 125 N feed force; 3.5 mm/s maximum velocity; ball screw; incremental rotary encoder, 512 counts/rev. resolution, A/B quadrature, RS-422; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 m cable length
High-resolution linear actuator, DC gear motor, 52 mm travel range, 125 N feed force; 3.5 mm/s maximum velocity; ball screw; incremental rotary encoder, 512 counts/rev. resolution, A/B quadrature, RS-422; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 m cable length
High-resolution linear actuator, DC gear motor, 77 mm travel range, 125 N feed force; 3.5 mm/s maximum velocity; ball screw; incremental rotary encoder, 512 counts/rev. resolution, A/B quadrature, RS-422; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 m cable length
High-resolution linear actuator; 2-phase stepper motor with gearhead; 13 mm travel range; 125 N feed force; 0.8 mm/s maximum velocity; ball screw; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 cable length
High-resolution linear actuator; 2-phase stepper motor with gearhead; 26 mm travel range; 125 N feed force; 0.8 mm/s maximum velocity; ball screw; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 cable length
High-resolution linear actuator; 2-phase stepper motor with gearhead; 52 mm travel range; 125 N feed force; 0.8 mm/s maximum velocity; ball screw; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 cable length
High-resolution linear actuator; 2-phase stepper motor with gearhead; 77 mm travel range; 125 N feed force; 0.8 mm/s maximum velocity; ball screw; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 m cable length
