Piezoceramic Disks, Rods & Cylinders

Piezoceramic Disks, Rods & Cylinders

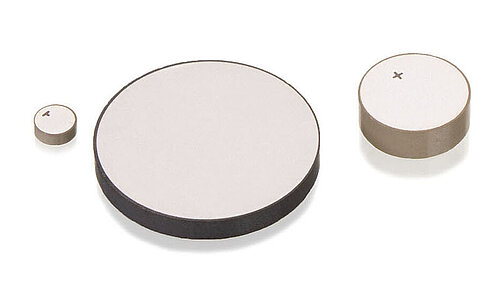

PRYY Piezoelectric Disks

  • Piezo material matched to the application
  • Full-surface contact electrodes

Customized Disks without Special Electrodes

PI Plate
PI Plates Drawing

OD     Outer diameter

TH      Thickness
P        Polarization direction

Outer diameter OD
2 to 80 mm
Thickness TH
0.15 to 30 mm
Electrodes
Silver (thick layer) or PVD thin layer (different materials: e.g. CuNi, Au, etc.)

Customized Disks with Special Electrodes (Wrap-Around Contacts)

PI Plates with Wrap-Around Electrodes
PI Plates with Wrap-Around Electrodes Drawing

OD     Outer diameter
TH      Thickness

Wrap-around electrodes allow you to establish electrical contacting at a favorable position within the mechanical assembly.
