PT120 – PT140 Piezo Tubes

High-Dynamics Operation with Low Loads

  • Radial and axial displacement
  • Subnanometer resolution
  • Ideal for OEM applications
  • Large choice of designs
  • Short lead times
PT120 – PT140 Piezo Tubes
Descrizione del Prodotto Specifiche Download Quotazione / Ordine

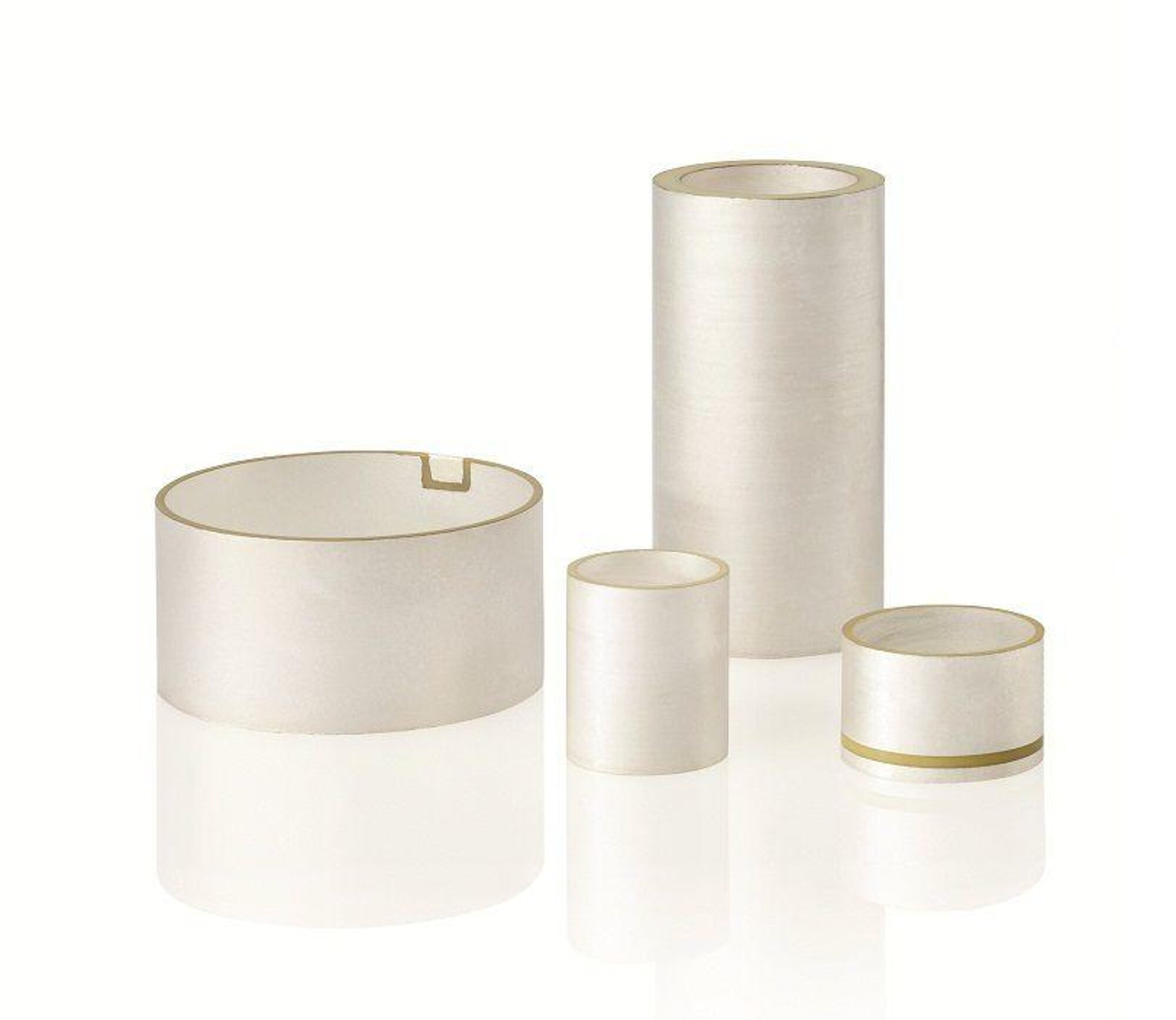

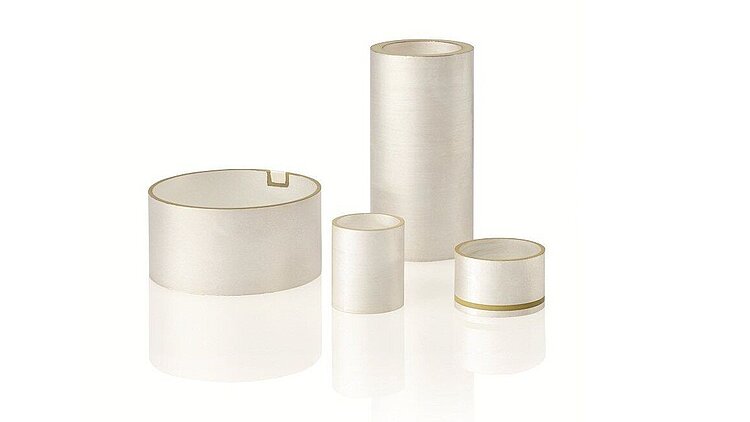

Piezo actuator / scanner tube

Operating voltage to 1000 V. Axial and diameter contraction, monolithic piezoceramic actuator with minimal geometric tolerances.

Custom designs with modified specifications

  • Materials
  • Operating voltage range, displacement
  • Tolerances
  • Applied sensors
  • Special high / low temperature versions
  • Segmentation of the electrodes, wrap-around electrodes, circumferential insulating borders
  • Non-magnetic

Possible dimensions

  • Length L max. 70 mm
  • Outer diameter OD 2 to 80 mm
  • Inner diameter ID 0.8 to 74 mm
  • Min. wall thickness 0.30 mm

Fields of application

Industry and research. For microdosing and micromanipulation.
