Piezo Gripper P-606.1P with Integrated Force Sensor

Novità

Compact, Precise, and Fast

Driven by a piezo actuator, PI's microgripper offers ultrafast response, high force, and millinewton precision – ensuring exceptionally safe and gentle handling of optical fibers, multichannels, optical components, and similar delicate parts.
Interchangeable end effectors allow customers to tailor the gripper to the size, shape, and orientation of their specific photonics components – ensuring maximum process reliability and optimal handling.
The piezo gripper offers an ideal combination of precision, flexibility, and component protection with a maximum opening width of 1.9 mm and interchangeable end effectors. The opening width can be adjusted within a range of 0.5 mm and 1.9 mm when the movable gripper jaw is mounted in two slotted holes.
Thanks to full compatibility with the 3D  NanoCube® and therefore PI's F‑713 systems, the gripper integrates seamlessly into high-precision multi-axis positioning systems. This expands application possibilities for users and provides them with safety, control, and repeatability when gripping even the most delicate or complexly structured components.

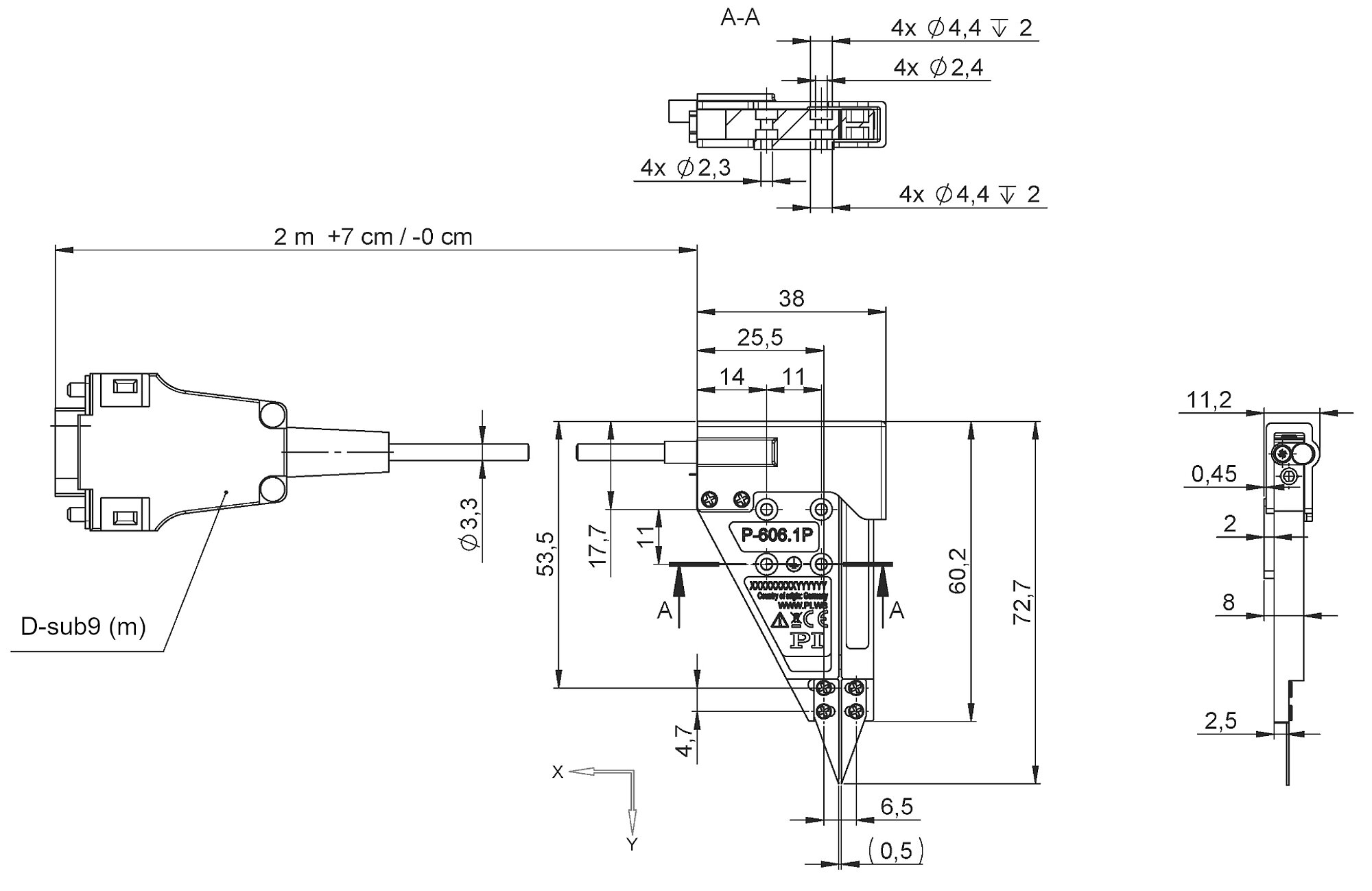

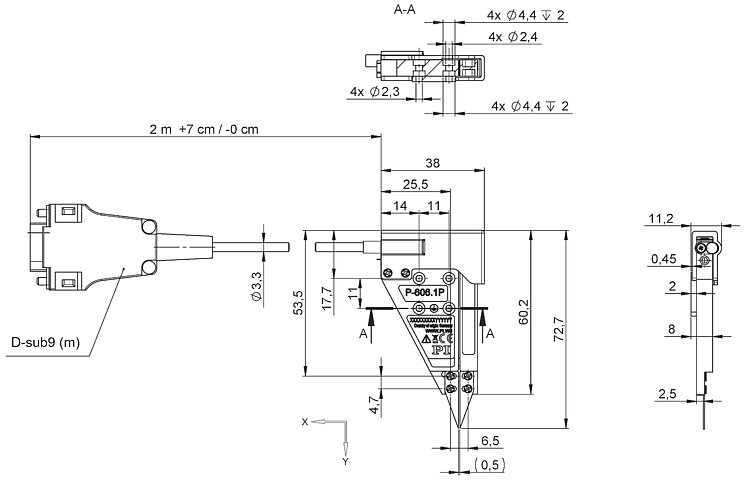

Dimensions of the P-606.1P

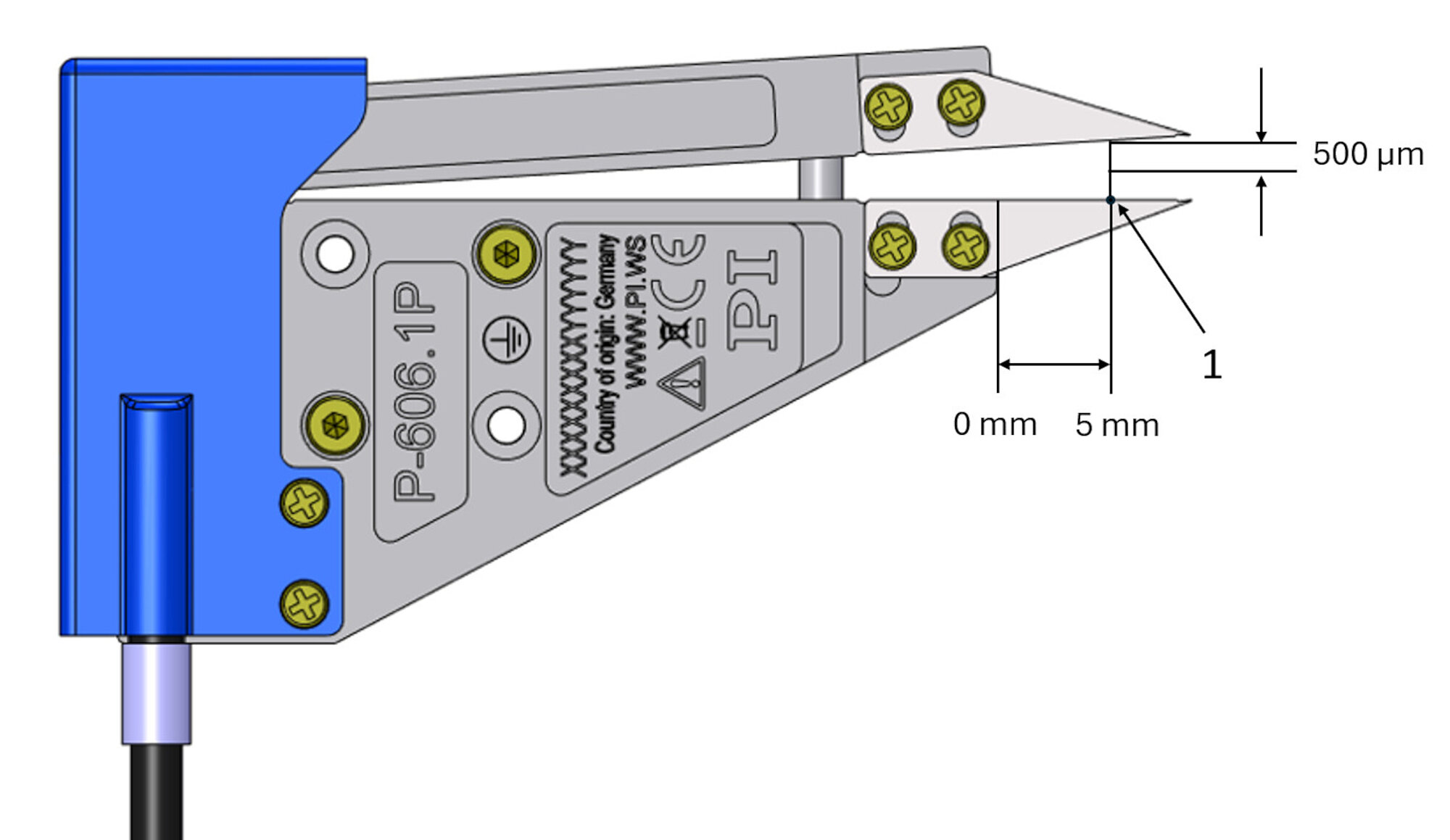

The 500 µm jaw travel of the P-606.1P is relative to the measurement point shown here (1). The displacement shown is strongly exaggerated for clarity. The gripper is open when powered off. If voltage applied to the P-606.1P is increased, the movable gripper jaw will move from the open starting position until contact is made with the object to be gripped.

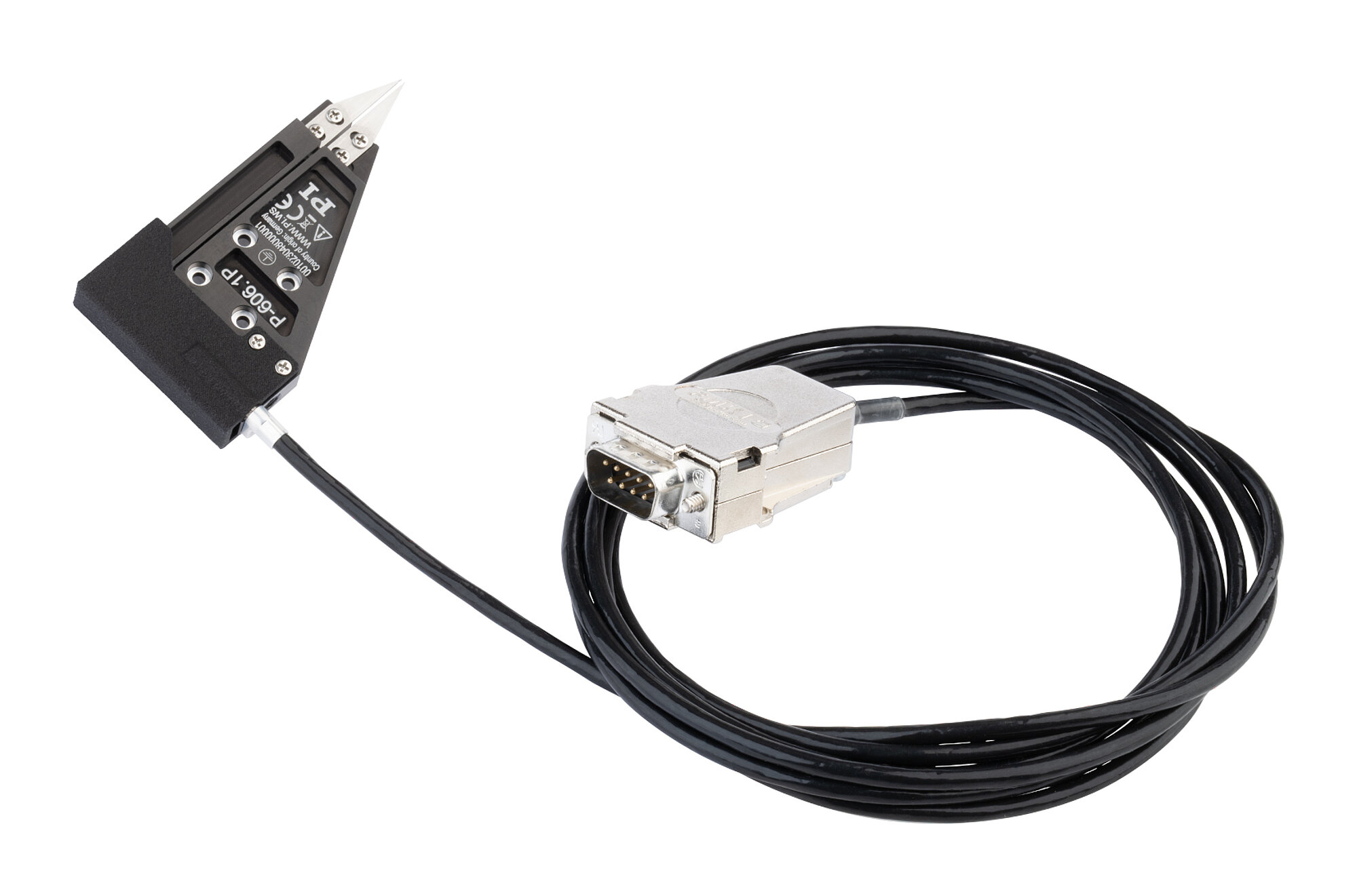

P-606.1P with cable and connector

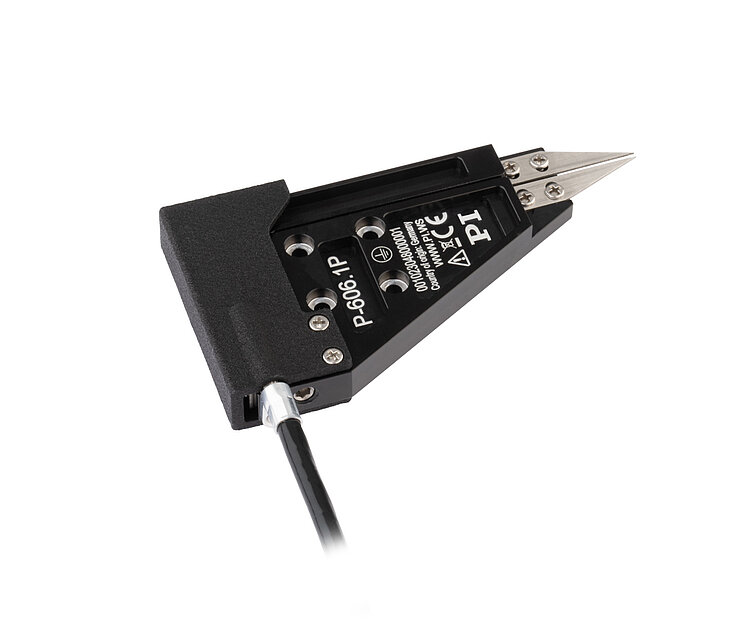

PI's monolithic gripper combines high stiffness with low mass, enabling dynamic, stable gripping and positioning in photonics manufacturing.

The photonics manufacturing community faces the challenge of handling ever smaller and more delicate components with safety and repeatability in mind. Conventional gripping mechanisms quickly reach their limits — whether due to insufficient precision, limited dynamics, or inflexible gripping geometries. This is precisely where the piezo gripper comes into play, having been specifically developed for these highly sensitive applications.

Applications

Piezo actuator technology enables force-controlled motion, extremely fast reaction times, and completely jerk-free gripping — delivering a solution perfectly tailored to the requirements of modern photonics processes.

Use case

In the production of photonic integrated circuits (PICs), grating-coupled fiber arrays must be positioned with utmost precision and bonded in place using epoxy resin. This process requires controlled gripping, alignment, and repeated placement of the delicate arrays without damaging their surfaces or coupling structures

Thanks to its force-controlled motion, jerk-free monolithic bending element, and 500 µm jaw travel, the piezo-driven microgripper enables exceptionally gentle and repeatable handling. This allows fiber arrays to be precisely aligned with the PIC coupling structures before final epoxy bonding takes place — a critical step toward achieving high coupling efficiency and stable optical performance in the finished product.

Controller & software

The P-606.1P requires the E-709.PRG controller and the software "PI Software Suite C-990.CD1 – E-709.CRG".

Only version 2.8.2.0 of the C-990.CD1 – E-709.CRG PI Software Suite is intended for use with the controller.

This version of the PI Software Suite can be downloaded at:

https://www.physikinstrumente.com/en/knowledge-center/downloads/product-documentation/A

Scarica il datasheet Vai alle Specifiche Vai alla quotazione / ordine

Datasheet

Versione / Data

2026-07-06

pdf - 895 KB

Versione / Data

2026-07-06

pdf - 901 KB

Download

Motion	P-606.1P	Tolerance
Active axes	X	-
Jaw travel	500 µm	Typ.
Opening width	0.5 mm to 1.9 mm	-
Positioning	P-606.1P	Tolerance
Integrated sensor	Piezoresistive force sensor	-
Clamping force	4 N	Typ.
Settling time	< 20 ms	-
Smallest change in force	0.005 N	Typ.
Force stability over 100 s	0.02 N	Typ.
Motion execution	Unsymmetrical	-
Drive properties	P-606.1P	Tolerance
Drive type	PICMA^® Plus	-
Electrical capacitance in Z	0.54 µF	-
Mechanical properties	P-606.1P	Tolerance
Gripper jaw pair	Included, interchangeable	-
Resonant frequency	> 300 Hz	-
Guide	Flexure guide with lever amplification	-
Mass without cable	25 g	-
Overall mass	120.3 g	-
Materials	Aluminum, steel, piezoceramics, plastic, PCB, cable, adhesive	-
Miscellaneous	P-606.1P	Tolerance
Operating temperature range	10 °C to 30 °C	-
Motor and sensor connector	D-sub 9 (m)	-
Cable length	2.0 m	-
Recommended controller	E-709.PRG	-

Jaw travel: Travel range of the movable gripper jaw, for a voltage range from -20 to 120, depending on distance between measurement point and base body, see "Drawings and images"

Opening width: Distance between the stationary gripper jaw and movable gripper jaw, adjustable by mounting the movable gripper jaw in two slotted holes, regardless of motion

Settling time: Refers to closing or opening the gripper. When selecting the control parameters for dynamic operation, a settling time < 5 ms is possible.

Motion execution: Unsymmetrical motion: One gripper jaw moves; the other is stationary.

Gripper jaw pair: End effectors of the P-606.1P on delivery

Resonant frequency: Refers to P-616.3C NanoCube® with P-606.1P

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
