E-713.IxxD0 • IxxI0 Digital Interfaces for E-713 Motion Controller

Integration of digital signals

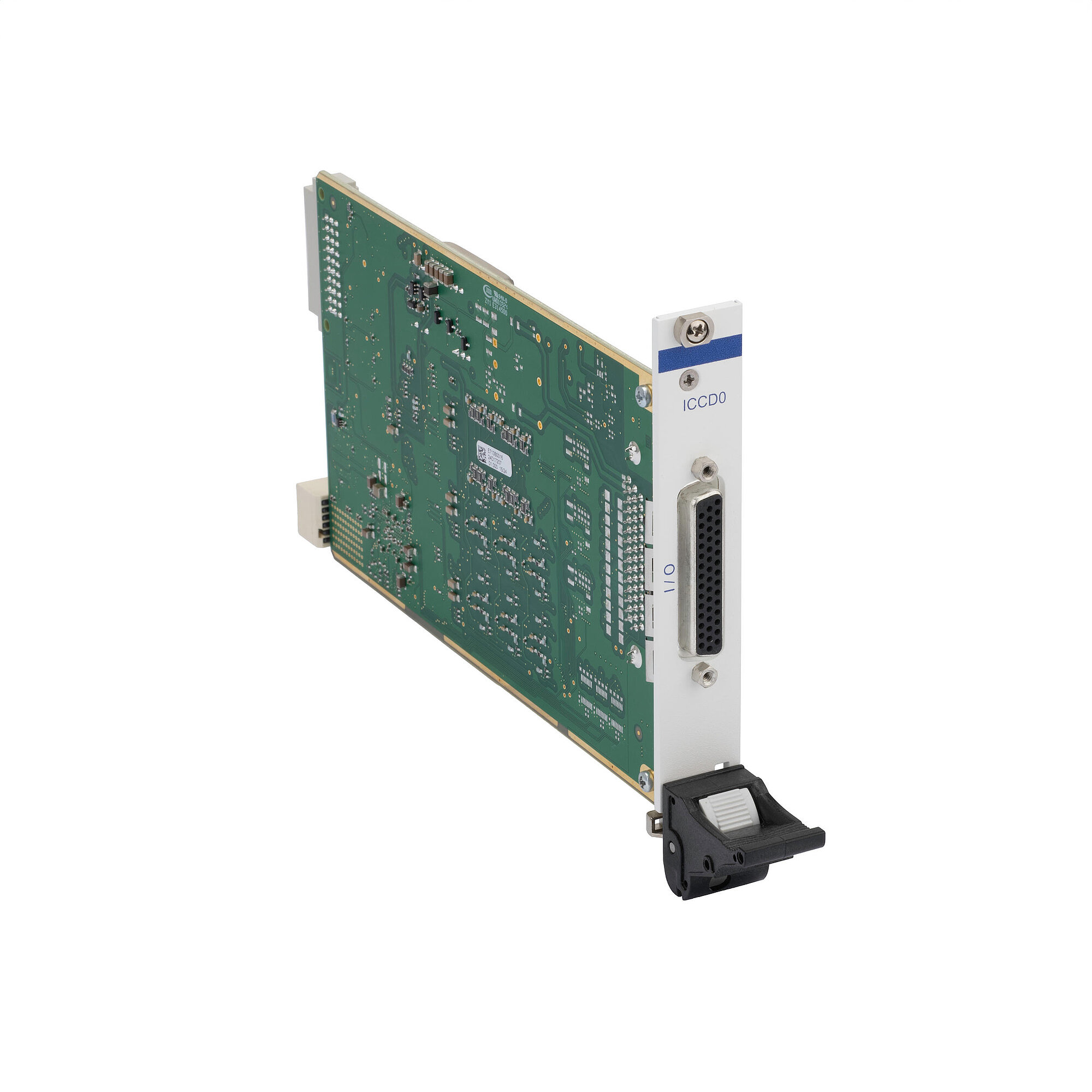

Interface modules each with 12 digital inputs and outputs for a nominal level of 5 V or 24 V. With diagnostic option for the outputs.

Suitable for industrial use and interference-proof

The galvanic isolation and a sophisticated grounding concept provide for the highest signal integrity through protection from interference. The model with 24 V nominal level facilitates simple integration of the E-713 Motion Controller into the automation technology.

Trigger function or motor stop

The user can use commands to configure each of the digital inputs and outputs for various applications. This makes it possible to use the inputs to initiate the recording or wave generator output in the E-713 Motion Controller. Furthermore, a digital input can be used to automatically switch off the servo mode and thus trigger a motor stop in the event of a fault. The outputs can be used to output trigger signals, e.g., synchronously to the axis motion and to the wave generator output.

Modular design

The digital interface modules are intended for use in the modular E-713 Motion Controller. The modular concept makes it possible to assemble E-713 Motion Controllers exactly according to customer requirements. An E-713 Motion Controller controls in a coordinated manner up to 16 axes with various drive types. This involves the use of state-of-the-art control and linearization algorithms. Optional interface modules support motion automation.
