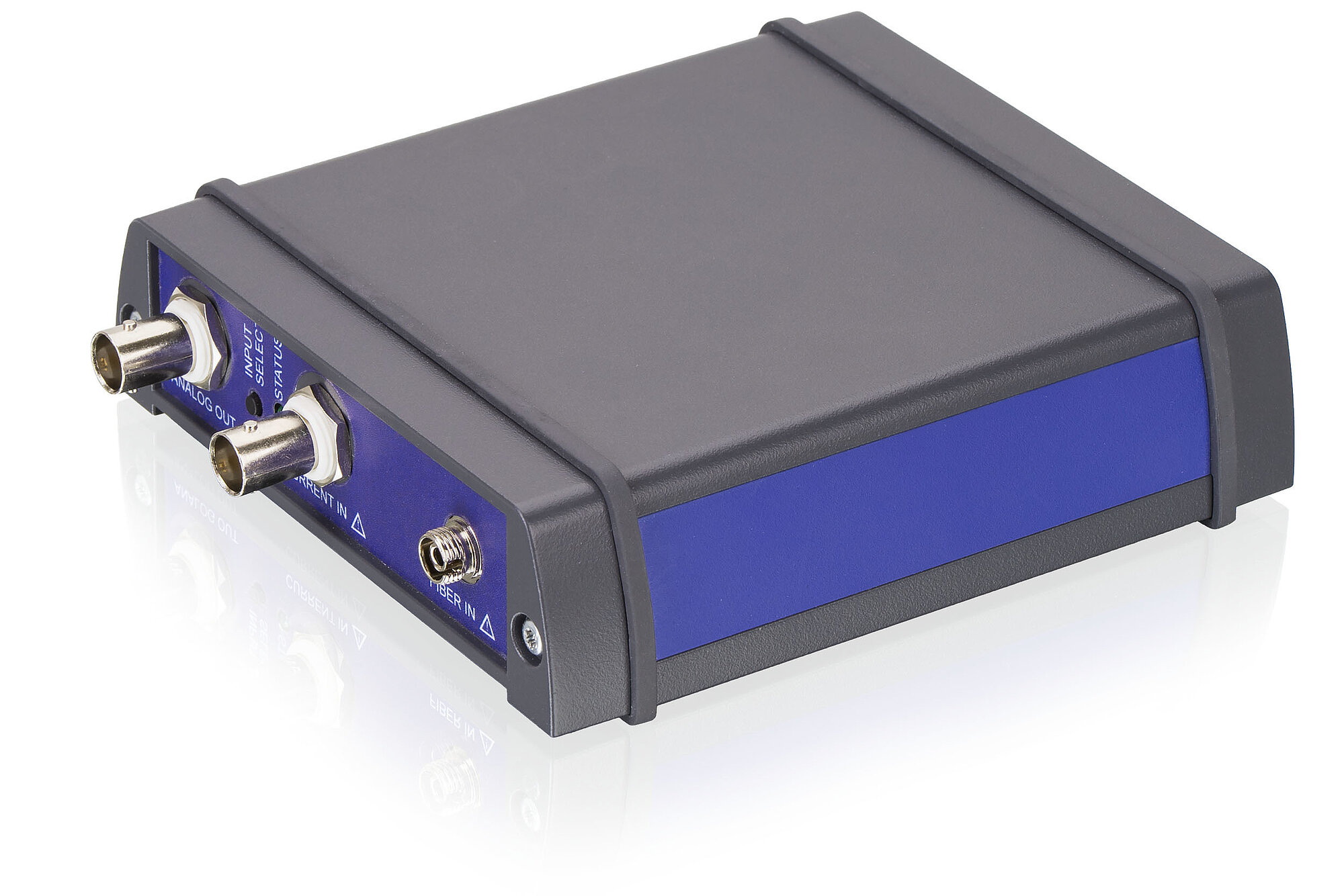

F-712.PM1 Optical Power Meter

Ideal for Applications in Silicon Photonics

  • Large signal bandwidth of 20 kHz
  • High dynamic range

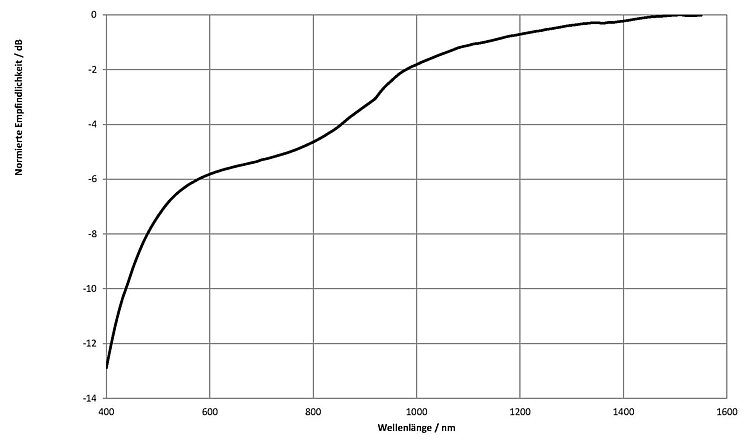

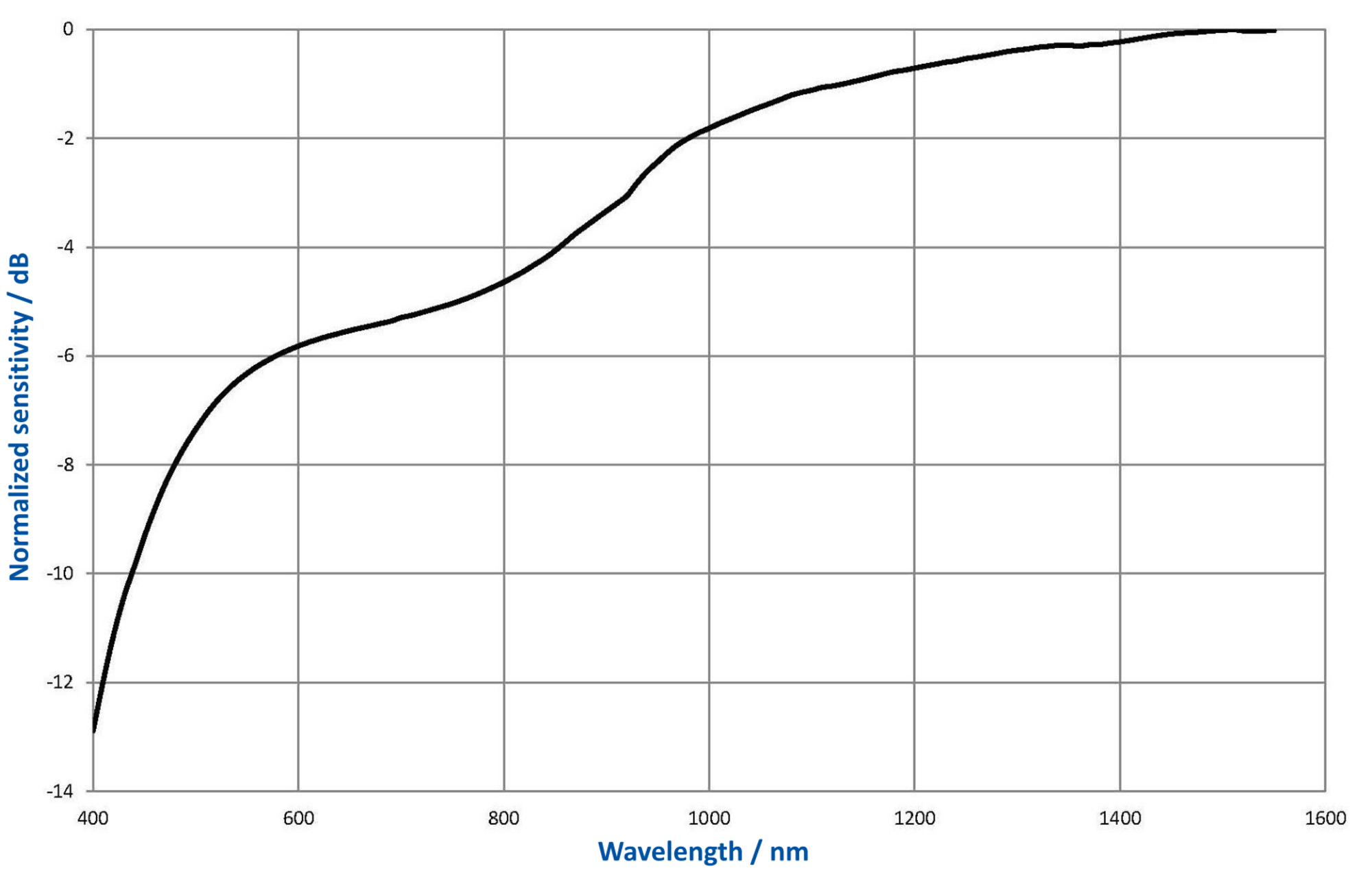

  • Wavelength range 400 to 1550 nm
  • Current input range to 1 mA
  • Logarithmic output
F-712.PM1 Optical Power Meter
Product Description Specifications Downloads Quote / Order

Product overview

This optical power meter can convert an optical signal into a voltage signal in high resolution and with an extremely high bandwidth. The design of the optical input enables measuring of the optical signal independent of the position of the optical fiber in the connector.

The device also has a current input. For example, a photodiode can be connected to this input and the diode current converted into a logarithmic voltage signal. Switching between the inputs is done via a button and an LED lights up when the current input is activated. The large wavelength range of the optical power meter enables working in both the visible and infrared range without switching. The precise, logarithmical output signal is ideal for optical alignment systems. The optical power meter is therefore suitable for the fastest fully automatic alignment systems available on the market.

Specifications

Datasheet

Datasheet F-712.PM1

Version / Date
2017-11-06
pdf - 603 KB
Version / Date
2017-11-06
pdf - 619 KB
Version / Date
2019-05-23
pdf - 676 KB
Version / Date
2019-07-22
pdf - 713 KB

Downloads

Datasheet

Datasheet

Datasheet F-712.PM1

Version / Date
2017-11-06
pdf - 603 KB
Version / Date
2017-11-06
pdf - 619 KB
Version / Date
2019-05-23
pdf - 676 KB
Version / Date
2019-07-22
pdf - 713 KB

Documentation

Documentation

User Manual MP165

F-712.PM1 Optical Power Meter, 400-1550 nm Wavelength Range, Logarithmic Output ±5 V

Version / Date
2018-10-22
pdf - 405 KB
Version / Date
2018-10-22
pdf - 410 KB
Documentation

User Manual F712T0019

Calculation of Optical Power - Using the F-712.PM1 Power Meter with F-712 High-Precision Fiber Alignment Systems

Version / Date
2020-02-24
pdf - 475 KB
English

3-D Models

3-D Models

F-712.PM1 3-D model

zip - 674 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

F-712.PM1
Optical power meter, 400-1550 nm wavelength range, to 1 mA input current, 20 kHz signal bandwidth, logarithmic output ±5 V, benchtop device, including power adapter

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
